Hammond CLWS18 18in Ladder Rack Wall Support Triangle Bracket
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Triangle wall support sized for 18 in ladder rack; 22.00 in (559 mm) high x 22.00 in (559 mm) deep x 1.78 in (45 mm) wide
- 16-gauge mild steel construction for durable structural support of ladder rack systems
- Holds ladder rack off the wall to maintain spacing for cable routing and system clearance
- Supports CL Series ladder rack and most tube steel cable runway and basket tray systems, plus fiber runner
- Assembly hardware and two J bolts included; wall mounting hardware sold separately
- Ladder support capacity: three 6 in, one 12 in, or one 18 in section
- Black powder coat finish, GREENGUARD, TSCA and RoHS compliant
- TAA compliant and manufactured in North America for government procurement

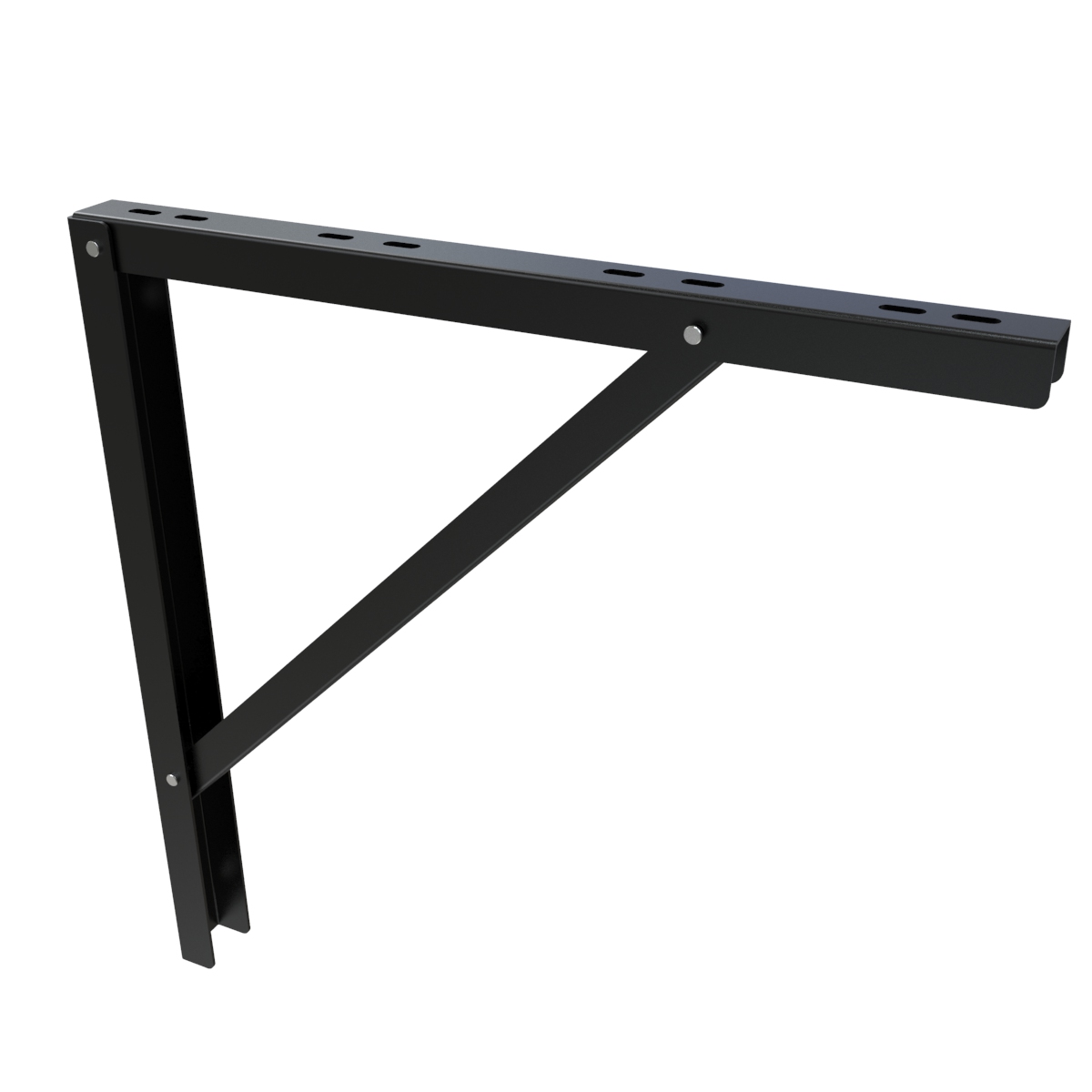

The CLWS18 is a triangle-shaped wall support bracket used to mount 18 in cable ladder rack off a wall surface, creating a stable, offset overhead cable pathway. It is aimed at structured cabling contractors, data center and telecom technicians, and AV/IT integrators who need to carry ladder rack, cable runway, fiber runner or basket tray along a wall while keeping clearance for cable routing and system access.
Construction is 16-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant. The triangle assembly ships as three fabricated pieces together with its assembly hardware: a CLWS wall support bracket, a CLWS tray support bracket and a CLWS angle support, joined by three 0.25 x 2.00 in zinc-plated clevis pins and three 3/64 x 15/16 in zinc-plated cotter pins. Two J bolts are also included for securing the runway to the bracket. Wall mounting hardware is not included, so the fasteners can be matched to the wall substrate.
Overall dimensions of CLWS18 are 22.00 in (559 mm) high by 22.00 in (559 mm) deep with a 1.78 in (45 mm) width, and the drawing shows a maximum footprint of 22.10 in (561 mm). Mounting is through 0.34 x 0.88 in (8.74 x 22.23 mm) slots plus 0.44 in (11 mm) holes. Shipping weight is 7.2 lbs (3.27 kg).
The universal design supports CL Series ladder rack and most tube steel cable runway and basket tray systems. Depending on how it is used, a single CLWS18 bracket can support up to three 6 in ladder sections, one 12 in section or one 18 in section. The part is manufactured in Canada, TAA compliant, USMCA compliant, and REACH and RoHS compliant.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- Structured cabling and overhead cable routing systems
- Wall-mounted ladder rack runs requiring offset support
- Supporting fiber runner and basket tray systems
Overview
| Series | CLWS Series Cable Ladder Rack Wall Support Triangle Standoff Bracket |
| Description | Wall triangle for 18 in ladder |
| Part Number | CLWS18 |
| Product Type | Ladder rack wall support triangle / standoff bracket |
Dimensions
| Hole Diameter | 0.44 in (11 mm) |
| Overall Depth | 22.00 in (559 mm) |
| Overall Width | 1.78 in (45 mm) |
| Overall Height | 22.00 in (559 mm) |
| Maximum Drawing Dimension | 22.10 in (561 mm) |
Identifiers
| UPC | 623980004396 |
| ECCN | EAR99 |
| UNSPSC | 39131710 |
| GTIN-14 | 00623980004396 |
| Tariff Code | 7326.90.8688 |
| Country Of Origin | CA |
| UPC Without Check Digit | 62398000439 |
Packaging & Shipping
| Shipping Weight | 7.2 lbs (3.27 kg) |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Black powder coat (painted black) |
| Material | Mild Steel |
| Component 1 | CLWS wall support bracket, qty 1 |
| Component 2 | CLWS tray support bracket, qty 1 |
| Component 3 | CLWS angle support, qty 1 |
Mounting & Compatibility
| J Bolts | Included (2x) |
| Assembly Hardware | Included |
| System Compatibility | CL Series ladder rack and most tube steel cable runway and basket tray systems; also fiber runner and basket tray systems |
| Wall Mounting Hardware | Not included (sold separately) |
| Ladder Support Qty, 6 In | 3 |
| Ladder Support Qty, 12 In | 1 |
| Ladder Support Qty, 18 In | 1 |
Compliance & Certifications
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant black powder coat |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size ladder rack does CLWS18 support?▾
CLWS18 is the wall triangle for 18 in ladder rack. Per the series table, one bracket can support three 6 in, one 12 in, or one 18 in ladder section.
Does CLWS18 include wall mounting hardware?▾
No. Assembly hardware and two J bolts are included, but wall mounting hardware is not included and is sold separately so fasteners can be matched to the wall.
What are the overall dimensions of CLWS18?▾
22.00 in (559 mm) high by 1.78 in (45 mm) wide by 22.00 in (559 mm) deep, with a maximum drawing dimension of 22.10 in (561 mm).
What is CLWS18 made of and how is it finished?▾
It is 16-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant.
Is CLWS18 suitable for government or federal projects?▾
The data lists CLWS18 as TAA compliant and USMCA compliant, manufactured in North America (country of origin CA), which supports government procurement requirements.
Can it be used with systems other than CL Series ladder rack?▾
Yes. The universal design supports CL Series ladder rack and most tube steel cable runway and basket tray systems, and it is also compatible with fiber runner and basket tray systems.
