Hammond CLWS12 16 in Ladder Rack Wall Support Triangle

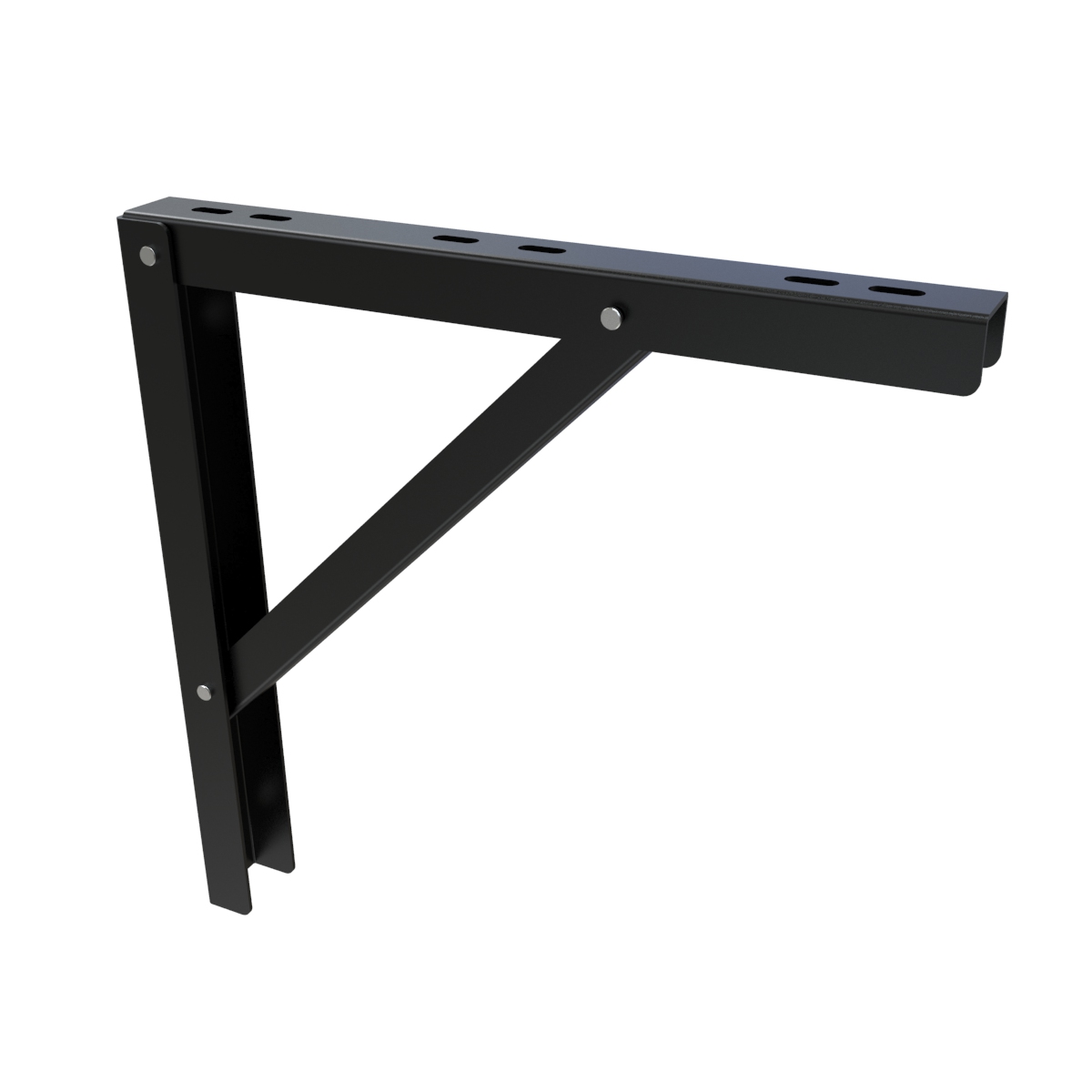

The CLWS12 is a triangular wall support bracket that holds cable ladder rack and similar overhead cable pathways off the wall surface, creating the offset needed for cable routing and system access. It is sized for 12 in ladder rack and is intended for integrators, structured cabling contractors and facilities teams building wall-supported runway along data center, telecom and network room walls.

Construction is 16-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant. The assembly ships as three brackets - a wall support bracket, a tray support bracket and an angle support bracket - joined with three 0.25 x 2.00 in zinc-plated clevis pins and three cotter pins. Assembly hardware and two J bolts are included; wall mounting hardware is not included, so fasteners can be matched to the wall substrate.

Overall dimensions are 16.00 in (406 mm) high, 1.78 in (45 mm) wide and 16.00 in (406 mm) deep, with a shipping weight of 5 lbs (2.27 kg). Mounting slots measure 0.34 x 0.88 in (8.74 x 22.23 mm), and the bracket also includes a 0.44 in (11 mm) diameter hole. Per the series ordering table, the CLWS12 supports two 6 in ladder sections or one 12 in ladder section.

The universal design works with CL Series ladder rack and most tube steel cable runway and basket tray systems, as well as fiber runner systems. The updated hardware design simplifies alignment and reduces installation time when supporting runs along walls or stabilizing the system at transition points. CLWS12 is TAA-compliant, manufactured in North America, RoHS and REACH compliant, and USMCA compliant.
