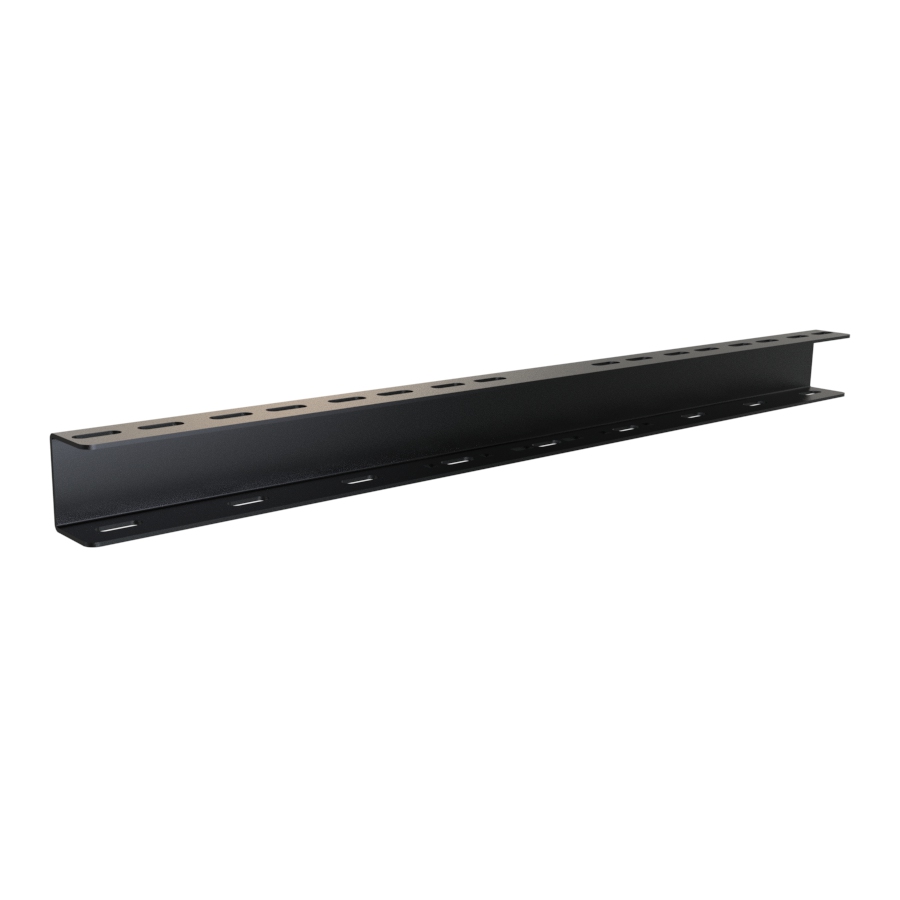

Hammond CLRAP24 26.25 in Wide Rack to Ladder Adapter Plate
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 26.25 in (667 mm) wide adapter plate for mounting ladder rack directly to racks and cabinets
- Integrated 2.00 in (51 mm) elevation eliminates the need for a separate height adapter kit
- 14-gauge mild steel construction for a durable structural rack-to-runway connection
- Black powder coat finish, GREENGUARD, TSCA and RoHS compliant
- Supports 6 in, 12 in and 18 in ladder sizes (24 in not supported)
- Includes Top of Rack Adapter plus J-Bolt Kit (pair, CLJBK) and mounting hardware
- TAA compliant and manufactured in North America for government procurement requirements
- Compatible with standard ladder rack systems and EIA-compliant racks
The CLRAP24 is a rack-to-ladder-rack adapter plate that mounts cable runway directly to open frame racks and cabinets, giving IT and telecom installers a clean, structural transition between rack-mounted equipment and overhead cable pathways. It is intended for data centers, server rooms, telecom rooms and structured cabling installations where ladder rack terminates at a rack location.
Construction is 14-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant, so the plate stands up to the loads and handling typical of overhead pathway work. The part is manufactured in North America (Country of Origin: CA), is TAA compliant and USMCA compliant, and is classified EAR99 for export.
This 24 in version measures 26.25 in (667 mm) wide, 2.00 in (51 mm) high and 1.50 in (38 mm) deep. The integrated 2.00 in elevation provides the height offset for rack-to-ladder-rack mounting without a separate height adapter kit, and the plate uses O .34 x 1.00 in [8.74 mm x 24.5 mm] slots for adjustment during installation.
Per the series ordering table, CLRAP24 supports 6 in, 12 in and 18 in ladder sizes; 24 in ladder is not supported. Each CLRAP24 ships as a Top of Rack Adapter with a J-Bolt Kit (pair, replacement part no. CLJBK) and mounting hardware included, so the assembly can be attached to standard ladder rack systems and EIA-compliant racks without sourcing extra components.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- Open frame rack environments and structured cabling systems
- Connecting ladder rack directly to racks or cabinets
- Creating clean rack-to-runway transitions for overhead cable routing
Overview
| Series | CLRAP Series — Rack to Ladder Rack Adapter Cable Runway Mount |
| Part Number | CLRAP24 |
| Product Type | Rack adaptor plate for ladder rack / cable runway |
| Short Description | 24IN RACK ADAPTOR PLATE LADDER |
Dimensions
| Depth | 1.50 in (38 mm) |
| Width | 26.25 in (667 mm) |
| Height | 2.00 in (51 mm) |
| Mounting Slot Size | O .34 x 1.00 in [8.74 mm x 24.5 mm] slot |
Identifiers
| UPC | 623980013367 |
| UNSPSC | 39121301 |
| GTIN-14 | 00623980013367 |
| UPC W/o Check Digit | 62398001336 |
Rack Mounting
| Elevation | Integrated 2 in elevation; no separate height adapter kit required |
| Rack Compatibility | Standard ladder rack systems and EIA-compliant racks |
| Ladder Size Support — 6 In | Yes |
| Ladder Size Support — 12 In | Yes |
| Ladder Size Support — 18 In | Yes |
| Ladder Size Support — 24 In | No |
Packaging & Shipping
| Hardware | J-bolts (2x) and mounting hardware included |
| Tariff Code | 7318.15.8085 |
| Country Of Origin | CA |
| What's In The Box | 1 x Top of Rack Adapter; 1 x J-Bolt Kit (pair) — replacement part no. CLJBK |
Construction & Finish
| Gauge | 14-gauge steel |
| Finish | Black powder coat (painted black) |
| Material | Mild Steel |
Environmental & Protection
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What ladder rack widths does CLRAP24 support?▾
According to the series ordering table, CLRAP24 supports 6 in, 12 in and 18 in ladder sizes. 24 in ladder is not supported.
Does CLRAP24 include mounting hardware?▾
Yes. Each unit includes one Top of Rack Adapter and one J-Bolt Kit (pair), and the drawing notes that J-bolts (2x) and mounting hardware are included. The J-Bolt Kit is available separately as CLJBK.
Do I need a separate height adapter kit?▾
No. The CLRAP24 has an integrated 2 in elevation that provides the rack-to-ladder-rack height offset, eliminating the need for a separate height adapter kit.
What are the overall dimensions of CLRAP24?▾
It measures 26.25 in (667 mm) wide, 2.00 in (51 mm) high and 1.50 in (38 mm) deep.
Is CLRAP24 suitable for government projects?▾
The CLRAP Series is TAA compliant and manufactured in North America; CLRAP24 lists Country of Origin CA and is USMCA compliant, which supports government procurement requirements.
What is it made of and how is it finished?▾
CLRAP24 is 14-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant.
