Hammond CL65RWKBK 6 in Wide 5 ft Ladder Rack-to-Wall Kit, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 6.00 in (152 mm) wide ladder section, 59.50 in (1511 mm) long (5 ft), 1.50 in (38 mm) high
- Complete kit: 5 ft ladder, CLRAP rack adapter, CLWA wall angle support and a pair of CLJBK J-bolts
- 16-gauge USA-manufactured 1.50 in x 0.38 in tube steel ladder construction in mild steel
- Black powder coat finish, noted as GREENGUARD, TSCA and RoHS compliant
- Creates a structured transition from rack-mounted equipment to overhead cable routing systems
- Compatible with standard ladder rack systems and open frame racks
- TAA-compliant and manufactured in North America for government procurement requirements
- Ships unassembled; 12.00 in (305 mm) rung spacing shown on the drawing

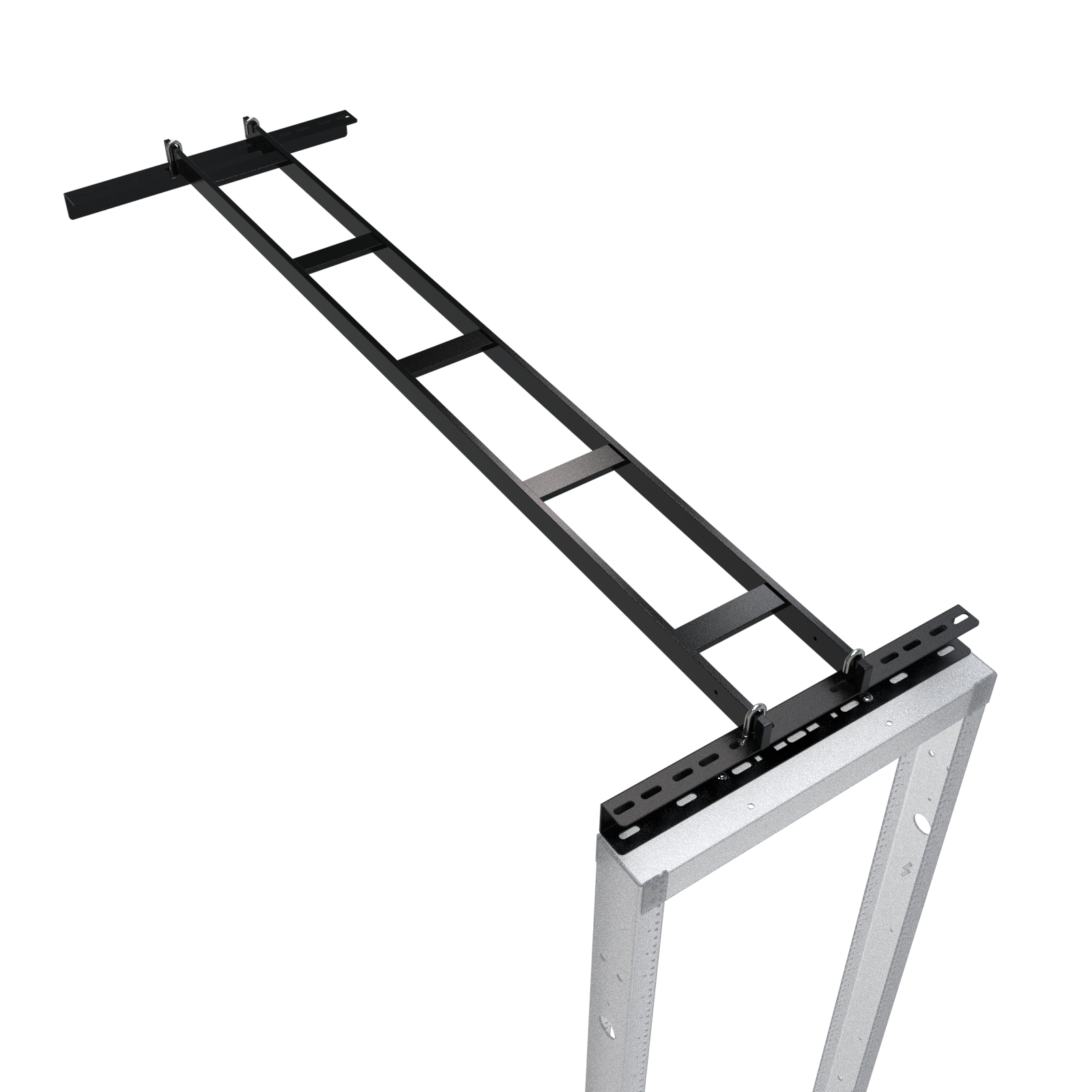

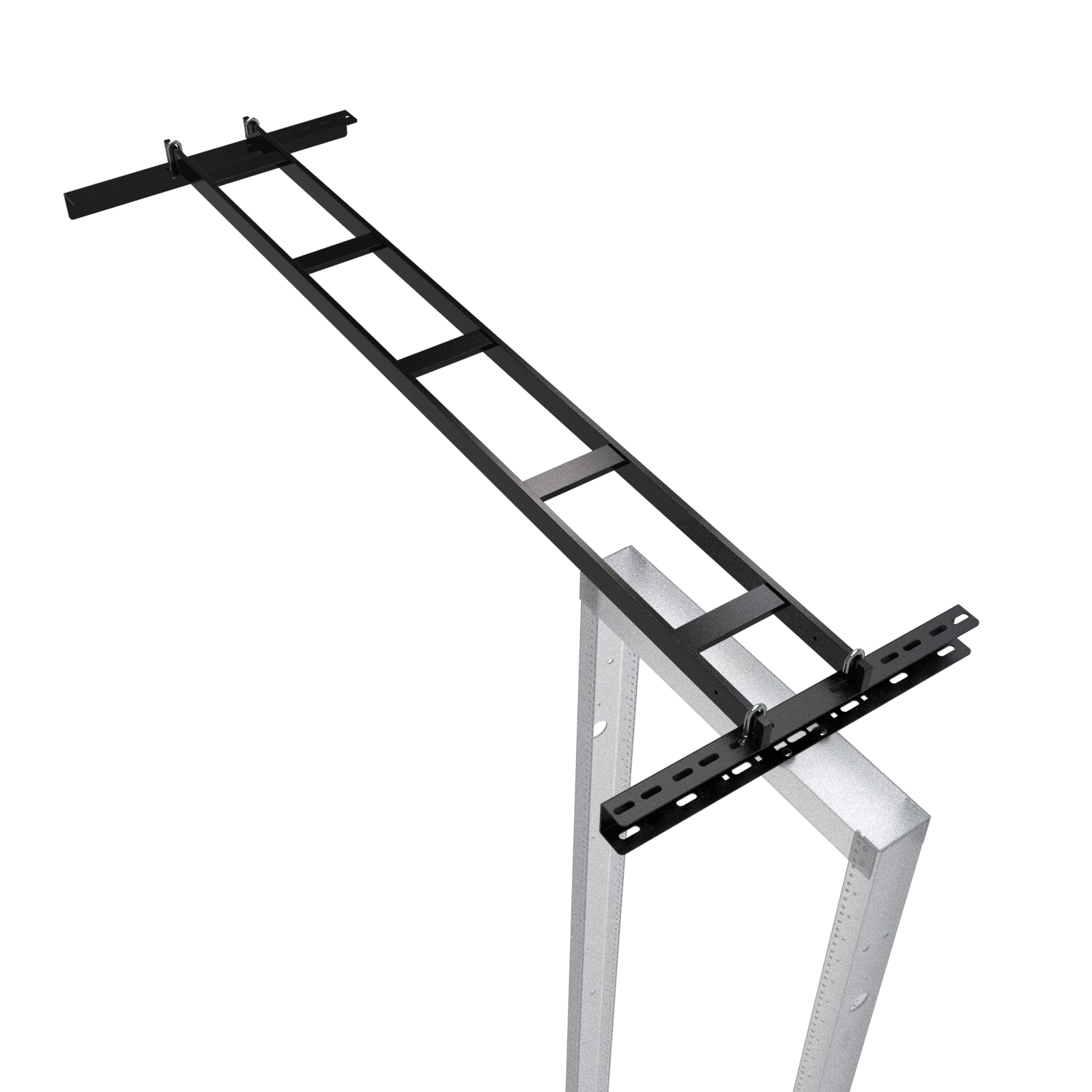

The CL65RWKBK is a 6 in wide rack-to-wall kit from the CLRWK Series, supplying everything needed to transition cable from an open frame rack up to an overhead ladder rack pathway. It is aimed at IT and structured cabling installers, AV integrators and facilities teams building organized overhead cable routes in telecom rooms and data centers.
Each kit contains a 5 ft ladder section measuring 59.50 in (1511 mm) long by 6.00 in (152 mm) wide with a 1.50 in (38 mm) height, plus a CLRAP ladder rack adapter kit, a CLWA ladder wall angle support and a pair of CLJBK J-bolts. The drawing lists an overall ladder length of 59.60 in (1514 mm), 12.00 in (305 mm) rung spacing and a 0.38 in (10 mm) tube section. The kit ships unassembled.
Construction is 16-gauge mild steel, using USA-manufactured 1.50 in x 0.38 in tube steel for the ladder, finished in black powder coat that the series data identifies as GREENGUARD, TSCA and RoHS compliant. The combination of wall support, ladder and rack adapter gives a secure mounting point for ladder rack at the rack location and improves overall system stability.
CL65RWKBK is TAA-compliant and made in Canada, with USMCA, RoHS and REACH compliance declared, ECCN EAR99 and tariff code 7326.90.8688 for procurement and export documentation. Because the transition solution is pre-configured, installation time is reduced compared with assembling separate wall, ladder and adapter components.
Ideal For
- Connecting open frame racks to overhead ladder rack systems
- Data centers and telecom rooms
- Network and structured cabling installations
- Backbone cable routing from rack level to ceiling pathways
- Ladder rack deployments requiring wall transitions
Overview
| Series | CLRWK Series - Rack to Wall Kit Cable Ladder Rack Transition Kit |
| Kit Type | 5 ft Ladder Rack-to-Wall Kit |
| Part Number | CL65RWKBK |
| Short Description | CABLE LADDER 6W RACK WALL KIT |
Dimensions
| Ladder Width | 6.00 in (152 mm) |
| Rung Spacing | 12.00 in (305 mm) |
| Ladder Height | 1.50 in (38 mm) |
| Ladder Length | 59.50 in (1511 mm) |
| Tube Steel Section | 1.50 in x 0.38 in |
| Mounting Hole Diameter | 0.22 in (6 mm) |
| Overall Ladder Length (Drawing) | 59.60 in (1514 mm) |
Identifiers
| UPC | 623980007120 |
| UNSPSC | 39131705 |
| GTIN-14 | 00623980007120 |
| Tariff Code | 7326.90.8688 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398000712 |
Included Components
| End Plug | 1 x CLEP end plug (per drawing notes) |
| Wall Angle | Yes - 1 x CLWA Ladder Wall Angle Support |
| Rack Adapter | Yes - 1 x CLRAP Ladder Rack Adapter Kit |
| Ladder Section | 1 x 5 ft length of ladder |
| J-Bolt Hardware | Yes - 2 x J-Bolts (pair), replacement part CLJBK |
Construction & Finish
| Gauge | 16-gauge |
| Finish | Black powder coat (PAINTED BLACK) |
| Assembly | Ships unassembled |
| Material | Mild Steel |
| Ladder Tube Origin | USA-manufactured tube steel |
Environmental & Protection
| Finish Environmental Compliance | GREENGUARD, TSCA and RoHS compliant black powder coat |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is included with CL65RWKBK?▾
The kit includes one 5 ft ladder section, one CLRAP ladder rack adapter kit, one CLWA ladder wall angle support and two J-bolts (replacement part CLJBK). The drawing notes also list one CLEP end plug. The kit ships unassembled.
How wide and long is the ladder section?▾
The ladder is 6.00 in (152 mm) wide, 59.50 in (1511 mm) long and 1.50 in (38 mm) high. The drawing shows an overall length of 59.60 in (1514 mm).
What is the ladder made of and how is it finished?▾
It uses 16-gauge mild steel with USA-manufactured 1.50 in x 0.38 in tube steel construction, finished in black powder coat described as GREENGUARD, TSCA and RoHS compliant.
Is CL65RWKBK suitable for government projects?▾
The part is listed as TAA-compliant and manufactured in North America, with a country of origin of CA and USMCA compliance declared, which supports government procurement requirements.
What is the difference between CL65RWKBK and the other kits in the series?▾
All three kits share the same 1.50 in height and 59.50 in length and the same included components; the difference is ladder width - 6.00 in for CL65RWKBK, 12.00 in for CL125RWKBK and 18.00 in for CL185RWKBK.
What are the export and customs identifiers for this part?▾
CL65RWKBK carries ECCN EAR99, tariff code 7326.90.8688, UNSPSC 39131705, UPC 623980007120 and GTIN-14 00623980007120.
