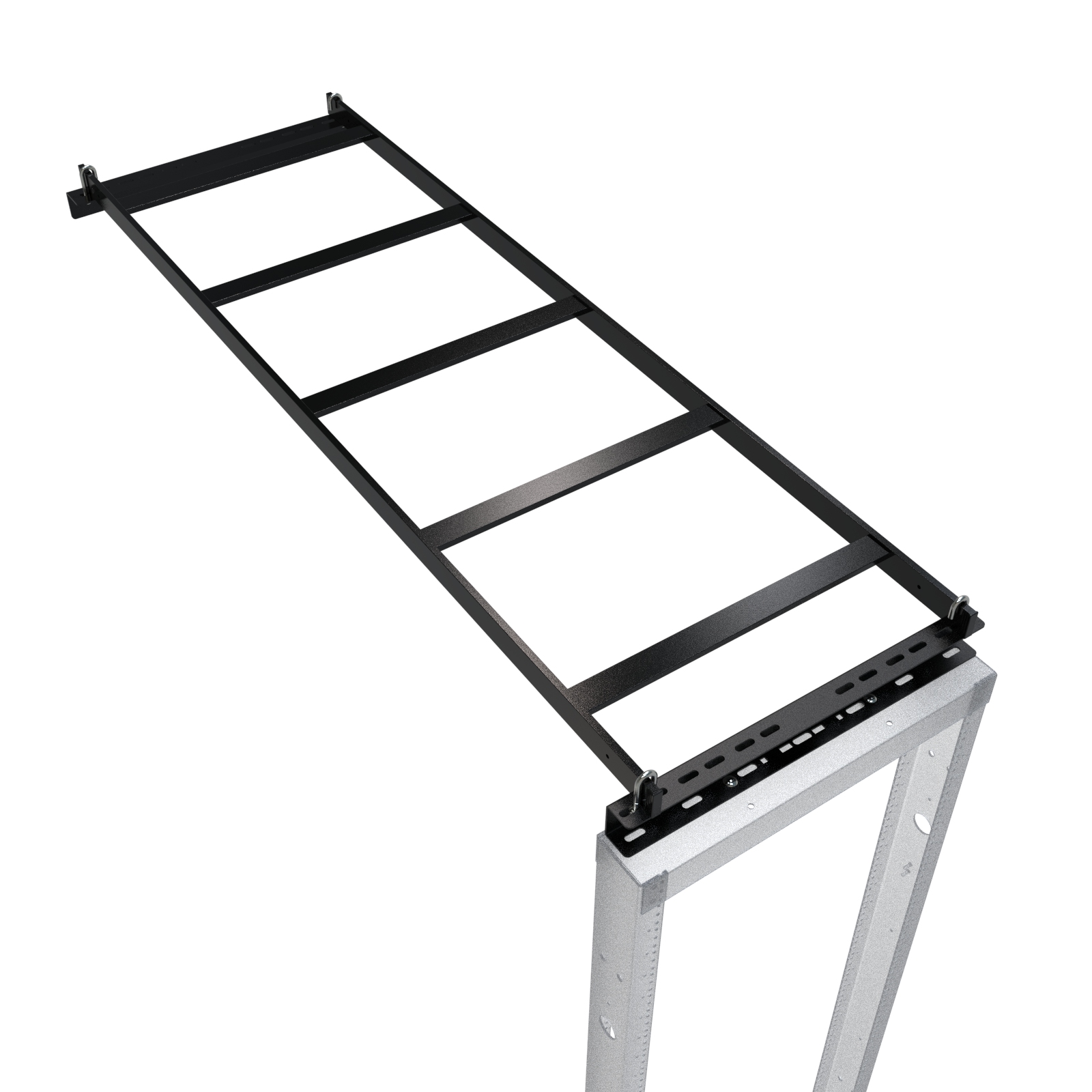

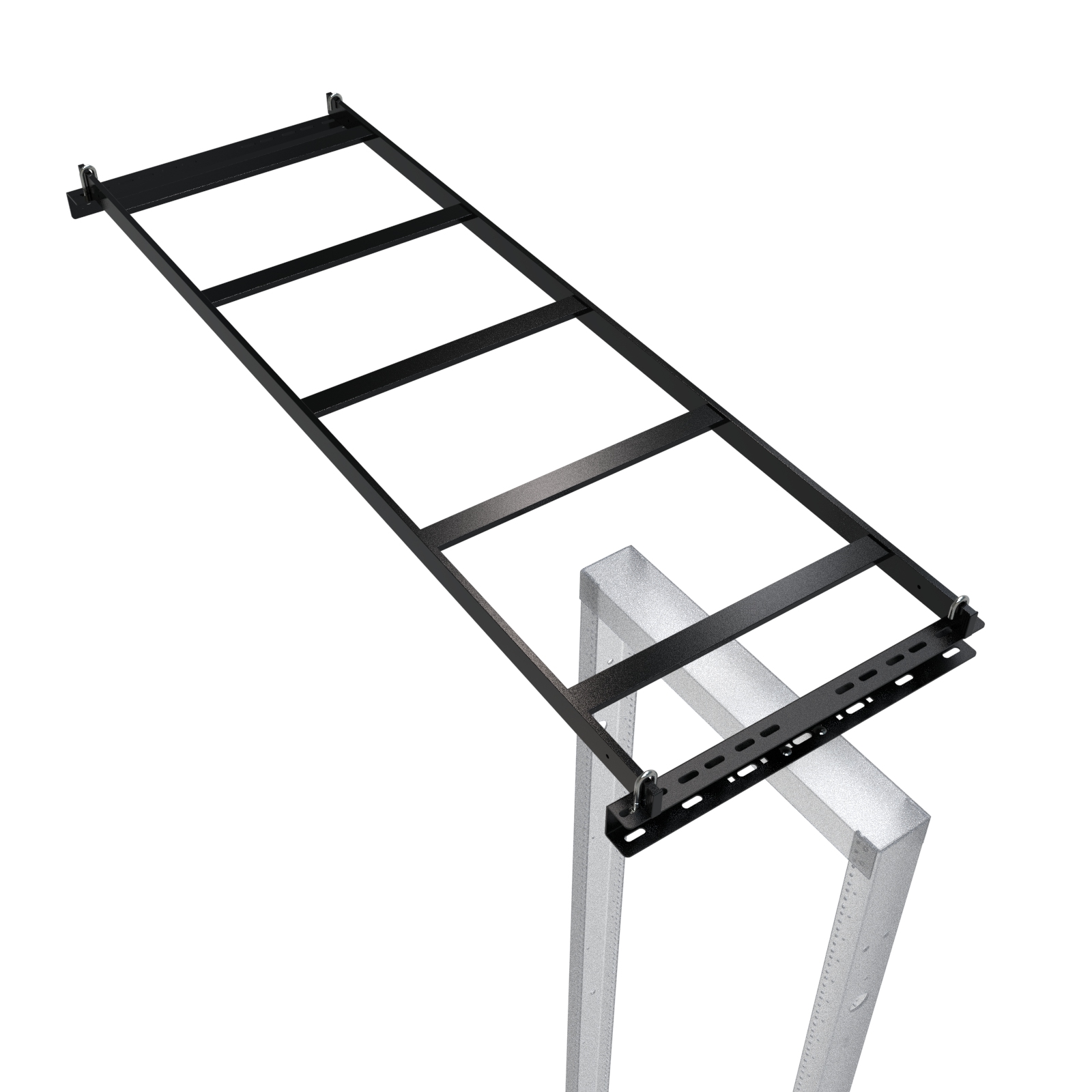

Hammond CL185RWKBK 18 in Wide 5 ft Cable Ladder-to-Wall Kit
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 18.00 in (457 mm) wide x 59.50 in (1511 mm) long ladder section, 1.50 in (38 mm) high, with 12.00 in (305 mm) rung spacing
- Complete kit: 5 ft ladder, CLRAP rack adapter, CLWA wall angle support and J-bolt hardware
- 16-gauge 1.50 in x 0.38 in USA-manufactured tube steel ladder construction in mild steel
- Black powder coat finish, GREENGUARD, TSCA and RoHS compliant
- TAA-compliant and manufactured in North America for government procurement requirements
- Creates a structured transition from rack-mounted equipment to overhead cable routing
- Compatible with standard ladder rack systems and open frame racks
- Ships unassembled; 22 lbs (9.98 kg) shipping weight
The CL185RWKBK is an 18 in wide cable ladder rack-to-wall kit built to connect an open frame rack to an overhead ladder rack system. It is aimed at structured cabling contractors, telecom and data center technicians, and network installers who need a pre-configured transition from rack-mounted equipment up to overhead cable pathways.
The ladder section is fabricated from 16-gauge, USA-manufactured 1.50 in x 0.38 in tube steel in mild steel, finished in a black powder coat that is GREENGUARD, TSCA and RoHS compliant. The part is TAA-compliant and manufactured in North America, with a country of origin of Canada, supporting government procurement requirements.
This kit supplies a 59.50 in (1511 mm) long ladder measuring 18.00 in (457 mm) wide and 1.50 in (38 mm) high, with 12.00 in (305 mm) rung spacing and an overall drawing length of 59.60 in (1514 mm). Shipping weight is 22 lbs (9.98 kg).
- 1x 5 ft length of ladder
- 1x CLRAP ladder rack adapter kit
- 1x CLWA ladder wall angle support
- J-bolt hardware (CLJBK, pair per the series table; the drawing also lists 1x CLEP end plug)
Because the wall support, ladder section and rack adapter arrive together, CL185RWKBK reduces installation time and provides a secure ladder rack mounting point at the rack location, improving system stability and cable organization. The kit ships unassembled and is compatible with standard ladder rack systems and open frame racks.
Ideal For
- Data centers and telecom rooms
- Network and structured cabling installations
- Connecting open frame racks to overhead ladder rack systems
- Ladder rack deployments requiring wall transitions
- Backbone cable routing from rack level to ceiling pathways
Overview
| Series | CLRWK Series – Rack to Wall Kit Cable Ladder Rack Transition Kit |
| Assembly | Ships unassembled |
| Description | Cable Ladder 18W Rack Wall Kit |
| Part Number | CL185RWKBK |
| Table Reference | 5ft Ladder Rack-to-Wall Kit |
Dimensions
| Ladder Width | 18.00 in (457 mm) |
| Rung Spacing | 12.00 in (305 mm) |
| Ladder Height | 1.50 in (38 mm) |
| Ladder Length | 59.50 in (1511 mm) |
| Tube Steel Profile | 1.50 in x 0.38 in (38 mm x 10 mm) |
| Overall Length (Drawing) | 59.60 in (1514 mm) |
| Top View Overall Width (Drawing) | 20.25 in (514 mm) |
| Additional Drawing Spacing Dimension | 5.75 in (146 mm) |
Identifiers
| UPC | 623980007168 |
| UNSPSC | 39131705 |
| GTIN-14 | 00623980007168 |
| UPC W/o Check Digit | 62398000716 |
Included Components
| Wall Angle | 1x Ladder Wall Angle Support (CLWA) |
| Rack Adapter | 1x Ladder Rack Adapter Kit (CLRAP) |
| Ladder Section | 1x 5 ft length of ladder |
| J-Bolt Hardware | Yes – 2x J-Bolts (Pair), replacement part CLJBK |
| End Plug (Per Drawing) | 1x CLEP End Plug |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 22 lbs (9.98 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Gauge | 16-gauge tube steel ladder (USA-manufactured tube steel) |
| Finish | Black powder coat (painted black) |
| Material | Mild Steel |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant powder coat |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is included with CL185RWKBK?▾
The kit includes one 5 ft length of ladder, one CLRAP ladder rack adapter kit, one CLWA ladder wall angle support and J-bolt hardware (a pair of J-bolts, replacement part CLJBK). The drawing also lists one CLEP end plug. The kit ships unassembled.
What size is the ladder section?▾
The ladder is 18.00 in (457 mm) wide, 59.50 in (1511 mm) long and 1.50 in (38 mm) high, with 12.00 in (305 mm) rung spacing. The drawing shows an overall length of 59.60 in (1514 mm).
What is it made of and how is it finished?▾
The ladder uses 16-gauge 1.50 in x 0.38 in USA-manufactured tube steel; the material is listed as mild steel. It is finished in black powder coat that is GREENGUARD, TSCA and RoHS compliant.
Is CL185RWKBK suitable for government projects?▾
Yes. It is listed as TAA-compliant and manufactured in North America, with a country of origin of Canada and USMCA compliance, supporting government procurement requirements.
What does this kit do?▾
It connects an open frame rack to an overhead ladder rack system, creating a structured transition from rack-mounted equipment to overhead cable pathways and providing a secure ladder rack mounting point at the rack location.
How much does it weigh for shipping?▾
The shipping weight is 22 lbs (9.98 kg).
