Hammond CL125RWKBK 12 in Wide 5 ft Ladder Rack-to-Wall Kit

The CL125RWKBK is a 12 in wide, 5 ft cable ladder rack-to-wall kit that connects an open frame rack to an overhead ladder rack pathway. It is aimed at structured cabling contractors, telecom and data centre technicians, and AV or IT integrators who need a pre-configured transition from rack-mounted equipment up to overhead cable routing instead of assembling brackets, runway and adapters from separate line items.

The ladder section is built from 16-gauge, USA-manufactured 1.50 in x 0.38 in tube steel in mild steel, finished in black powder coat that is GREENGUARD, TSCA and RoHS compliant. The 16-gauge steel construction provides durable support for connecting open frame racks to overhead ladder rack systems, and the kit is TAA-compliant and manufactured in North America, which supports government procurement requirements.

Ladder dimensions for this part are 12.00 in (305 mm) wide, 1.50 in (38 mm) high and 59.50 in (1511 mm) long, with an overall drawing length of 59.60 in (1514 mm) and 5.75 in (146 mm) rung spacing. Shipping weight is 20 lbs (9.07 kg).

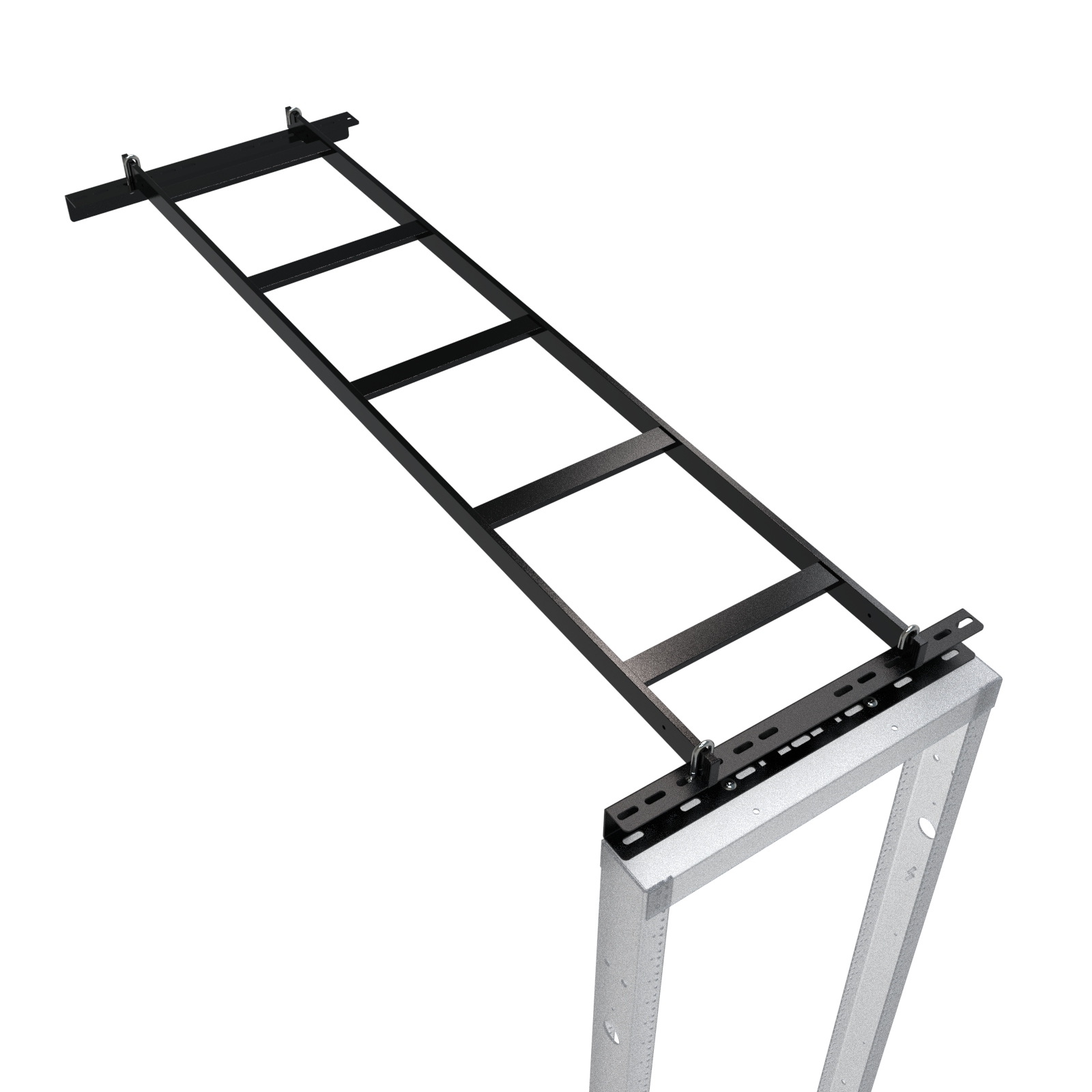

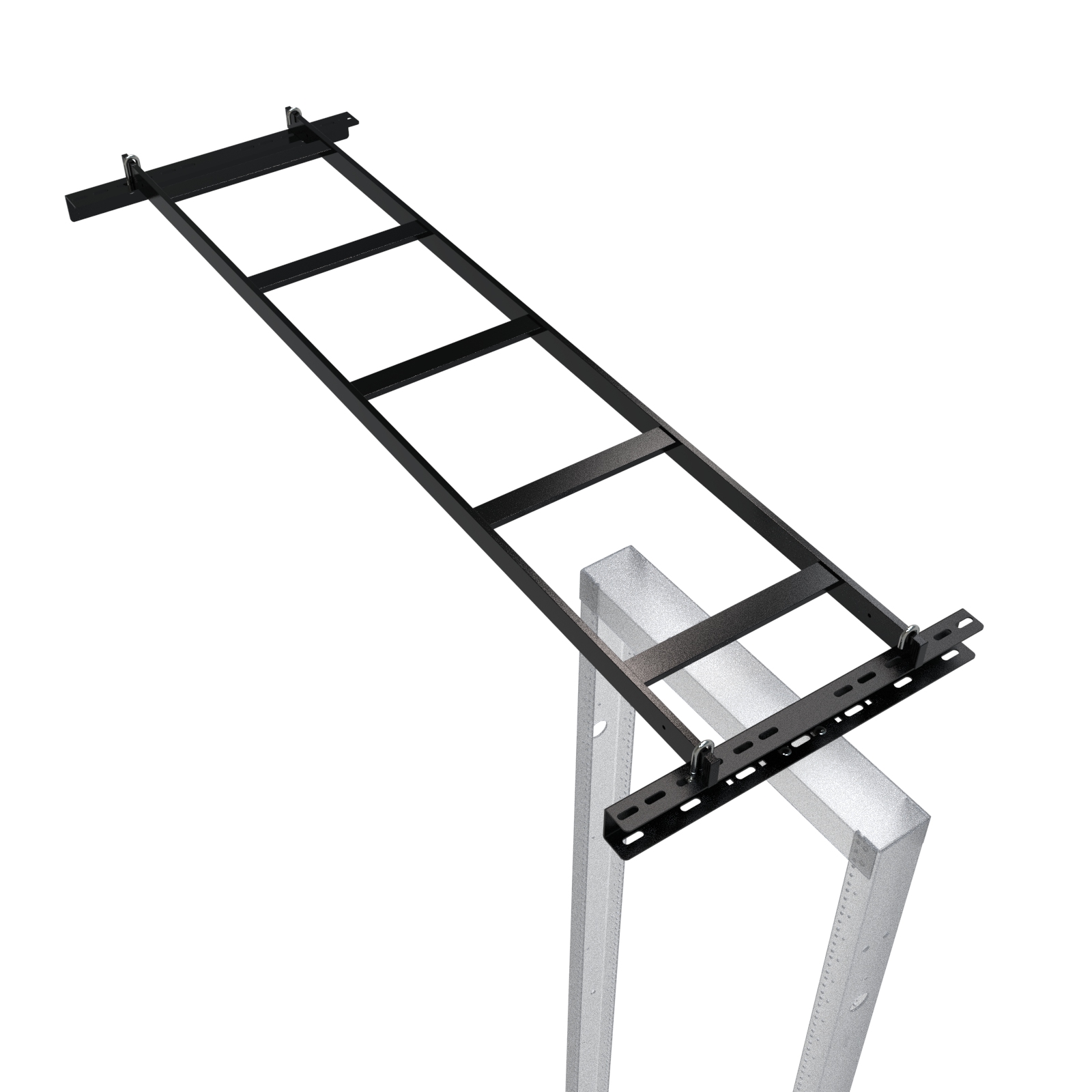

CL125RWKBK ships unassembled as a complete kit: one 5 ft ladder section, one CLRAP ladder rack adapter kit, one CLWA ladder wall angle support and J-bolt hardware (the series box list shows two J-bolts, replacement part CLJBK; the drawing note also lists a CLEP end plug). The rack adapter provides a secure mounting point at the rack, while the wall angle supports the far end, so the assembly creates a stable overhead pathway for backbone and patch cable routing.

• Compatible with standard ladder rack systems and open frame racks for flexible deployment.
• Reduces installation time with a single pre-configured transition solution.
