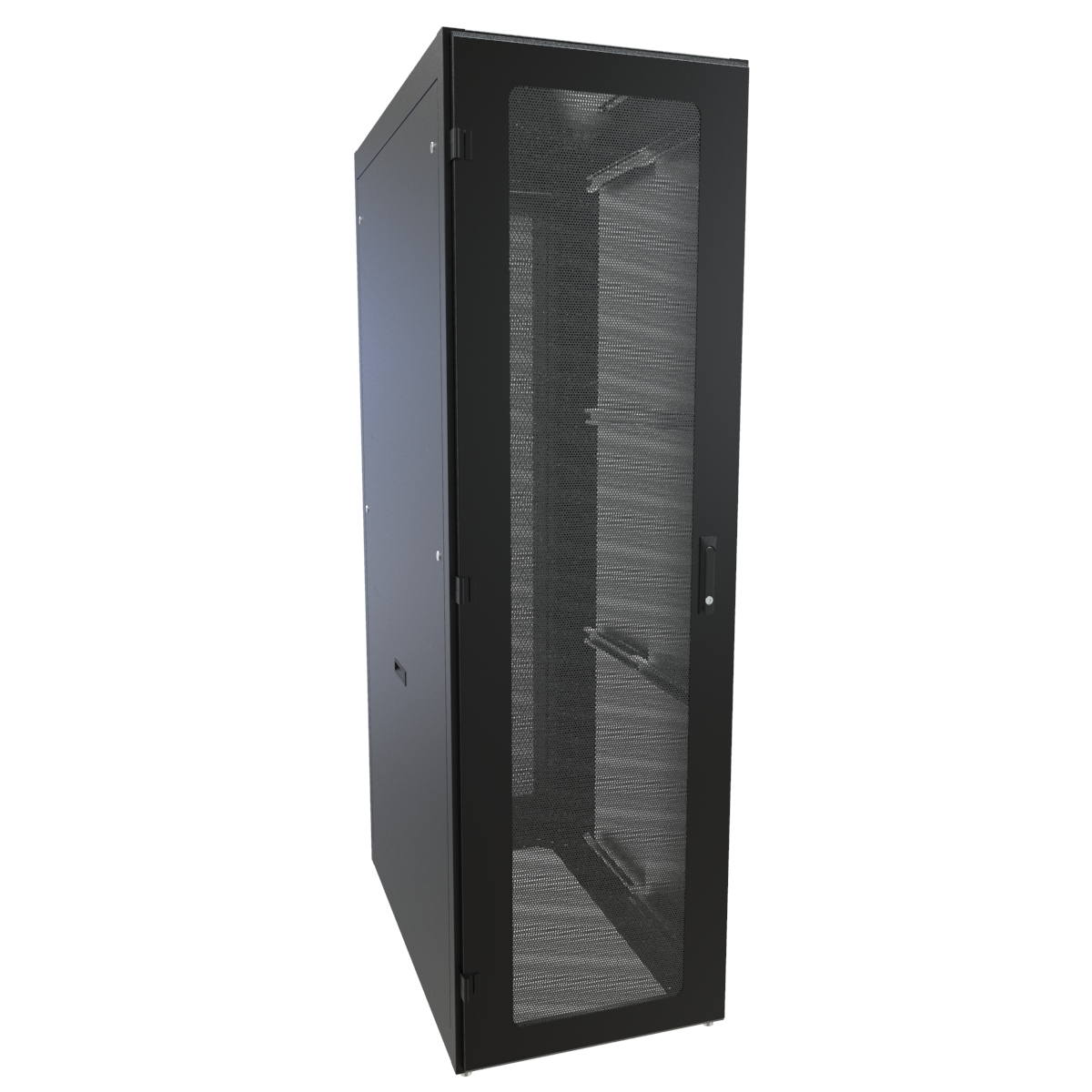

Hammond C4RR247342ABK 42U 3,000 lb Assembled Server Cabinet, 24in Wide

The C4RR247342ABK is a pre-configured, fully assembled 42U server rack cabinet built on the modular C4 platform, intended for data centers, server and equipment rooms, MDF and core network rooms, and other IT installations where a standardized cabinet configuration speeds specification and deployment. It measures 80.08 in x 24 in x 43 in overall including doors (2,034 mm x 610 mm x 1,092 mm) and ships assembled with factory-installed components to reduce on-site installation time.

Construction is a 14-gauge welded mild steel frame with reinforced 12-gauge corner brackets and 16-gauge doors and side panels, finished in textured RAL 9005 black powder coat that meets GREENGUARD Gold, TSCA and RoHS requirements. The cabinet is UL Listed 2416 (UL File # E474597) load rated to 3,000 lb (1,360 kg), and is seismic rated to a 1,200 lb (544 kg) dynamic load (Ip = 1.5) per IBC 2018, CBC 2019, NBC 2015, ASCE 7-16 and ASCE 7-10 when secured with a seismic bolt-down kit such as C4K-Z4.

Usable mounting space is 73.50 in high x 19.00 in wide x 40.00 in deep (1,867 x 483 x 1,016 mm), served by two pairs of adjustable-depth, EIA-compliant square-hole 19 in mounting rails in 12-gauge steel, with a starter pack of CAGKIT1032-25 screws and cage nuts. A vented front door and vented split/barn rear door with 79% open area and locking swing-handles support front-to-rear airflow, and two removable side panels with 1/4-turn latches simplify access during installation and maintenance.

C4RR247342ABK includes one top panel with two fan knockouts with brushed cable entry and four cable entry holes with plugs for overhead routing. Grounding and bonding provisions, factory-installed nylon leveling feet with 5/16-18 thread, caster mounting points and knock-outs for ganging support multi-cabinet deployments. The cabinet is TAA-compliant and manufactured in North America.
