Hammond C4D2473VBK1 42U Vented Surface Cabinet Door, 24 in Wide
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Vented 42U surface door for C4 Series cabinets 24.00 in (610 mm) wide
- 79% perforated face for through-door airflow
- 16-gauge steel construction, mild steel material
- Textured RAL9005 black powder paint coat meeting Greenguard indoor air quality guidelines
- Supplied with locking swing handle key lock (FH333), offset cam, 3 LH surface door hinges and 3 rubber bumper feet
- Hinged on left, swings right to left; DC100HINGE kit / C4RHINGE required for right-hand hinging
- TAA-compliant for GSA Schedule purchases; RoHS and REACH compliant
- Manufactured in North America; USMCA compliant

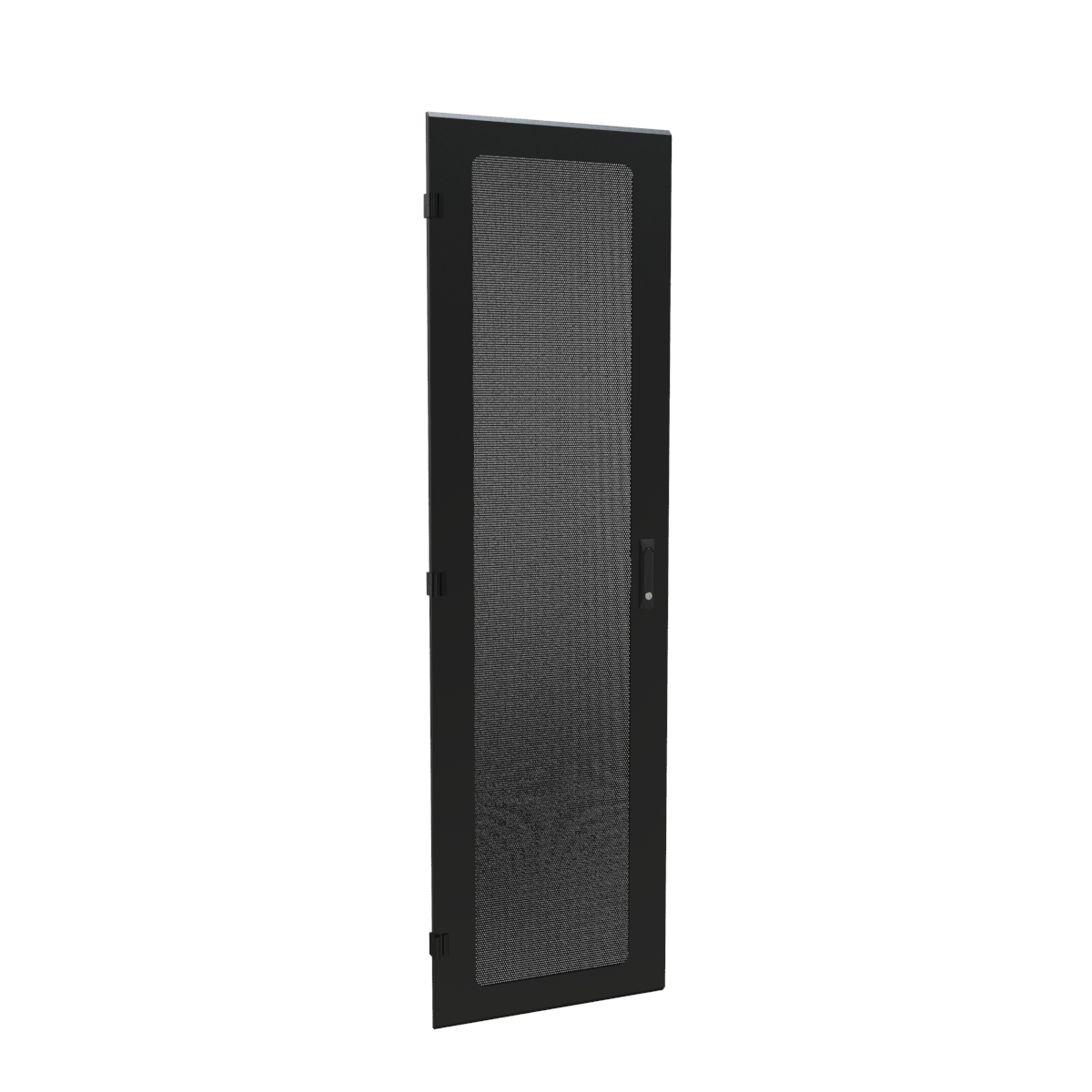

The C4D2473VBK1 is a 42U vented surface door for 24.00 in (610 mm) wide C4 Series cabinets. It is part of the Surface Door with Locking Swinghandle group of the C4 Doors line, and is intended for IT, AV and facilities teams configuring or re-configuring C4 cabinets where airflow through the door face is needed. The vented face is specified at 79% perforation on the part drawing, making it a practical choice where equipment draws cooling air through the front or rear of the cabinet.
Construction is 16-gauge steel finished in a textured RAL9005 black powder paint coat. The finish complies with the Greenguard guidelines for indoor air quality, and the door is RoHS and REACH compliant, TAA-compliant for GSA Schedule purchases, and manufactured in North America. The material is listed as mild steel with a country of origin of CA.
Per the drawing for C4D2473VBK1, the door panel measures 23.00 in (584 mm) wide with an overall height of 78.56 in (1996 mm) and a 71.94 in (1827 mm) vented panel dimension. The assembly ships with three surface door hinges (left hand), a swing handle key lock (FH333), an offset cam and three stick-on rubber bumper feet.
The door is hinged on the left and swings from right to left as supplied. For right-hand hinging, the series calls for the C4RHINGE, and the part drawing notes that a DC100HINGE kit is required for right-hand hinge. Sibling part numbers for the same 42U, 24.00 in wide cabinet include solid (C4D2473SBK1), window (C4D2473WBK1) and vented split barn-style (C4D2473BBK1) versions.
Ideal For
- Server cabinet front or rear door where through-door airflow is required
- Retrofitting or replacing doors on existing C4 Series 42U cabinets
- TAA-compliant builds for GSA Schedule purchases
- Network and AV equipment cabinets in indoor air quality sensitive spaces
Overview
| Series | C4 Doors |
| Door Type | Surface Door with Locking Swinghandle, Vented |
| Description | SFD 42U 24W C4 VENTED DOOR |
| Part Number | C4D2473VBK1 |
| Compatibility | Exclusively for use with the C4 Cabinet Series |
Dimensions
| Overall Height | 78.56 in (1996 mm) |
| Door Panel Width | 23.00 in (584 mm) |
| Vented Panel Height | 71.94 in (1827 mm) |
Identifiers
| UPC | 623980019321 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980019321 |
| UPC W/o Check Digit | 62398001932 |
Rack Mounting
| Use With Cabinet - Width | 24.00 in (610 mm) |
| Use With Cabinet - Rack Units | 42U |
Included Components
| Offset Cam | 1 |
| Surface Door Hinge (LH) | 3 |
| Surface Vented Door (2473) | 1 |
| Swing Handle Key Lock FH333 | 1 |
| Bumper Feet - Rubber Stick On | 3 |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Textured RAL9005 black powder paint coat |
| Hinging | Hinged on left, swings from right to left |
| Material | Mild Steel |
| Perforation | 79% perf |
| Right-Hand Hinge Option | Order C4RHINGE; DC100HINGE kit required for right hand hinge |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Indoor Air Quality | Finish complies with Greenguard guidelines |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinets does C4D2473VBK1 fit?▾
It is exclusively for use with the C4 Cabinet Series, specifically a 42U cabinet that is 24.00 in (610 mm) wide.
Is the door lockable?▾
Yes. This is a surface door with a locking swinghandle; the drawing lists a swing handle key lock FH333 and an offset cam as part of the assembly.
Can the door be hinged on the right instead of the left?▾
As supplied it is hinged on the left and swings from right to left. For right-hand hinging the series specifies ordering the C4RHINGE, and the part drawing notes a DC100HINGE kit is required for right hand hinge.
How much airflow does the vented face provide?▾
The part drawing specifies a 79% perforated face. For most server applications the series notes suggest perforated doors on both the front and back of the cabinet.
Is this part TAA compliant for government purchases?▾
Yes. The door is listed as TAA-compliant for GSA Schedule purchases, is RoHS and REACH compliant, and is manufactured in North America with a country of origin of CA.
What other door styles are available for the same cabinet size?▾
For a 42U, 24.00 in wide C4 cabinet the surface door options are solid (C4D2473SBK1), window (C4D2473WBK1), vented (C4D2473VBK1) and vented split barn style (C4D2473BBK1).
Related Products

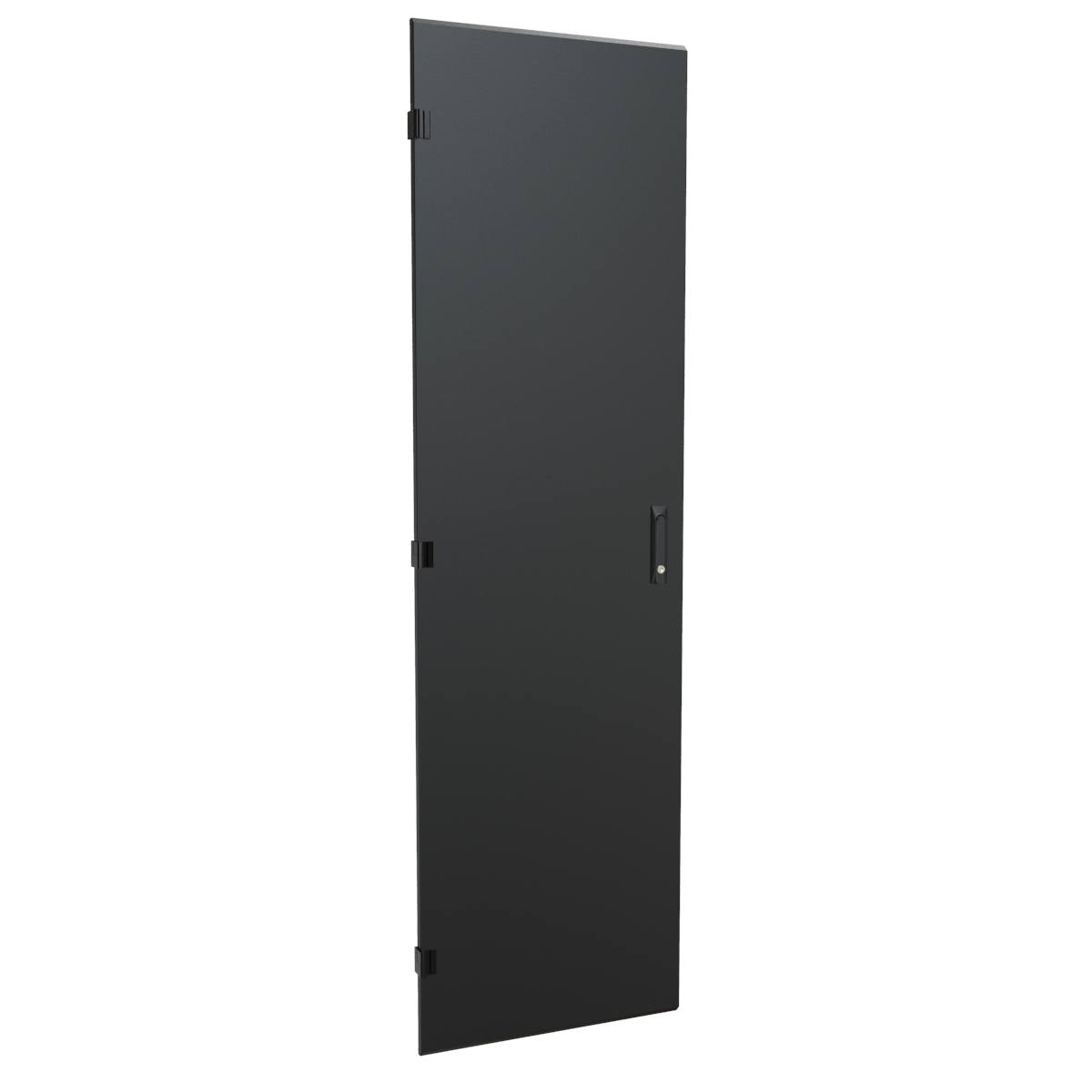

Save 35%C4D2473SBK1 — Sfd 42U 24W C4 Solid Door
Hammond Manufacturing · C4D2473SBK1

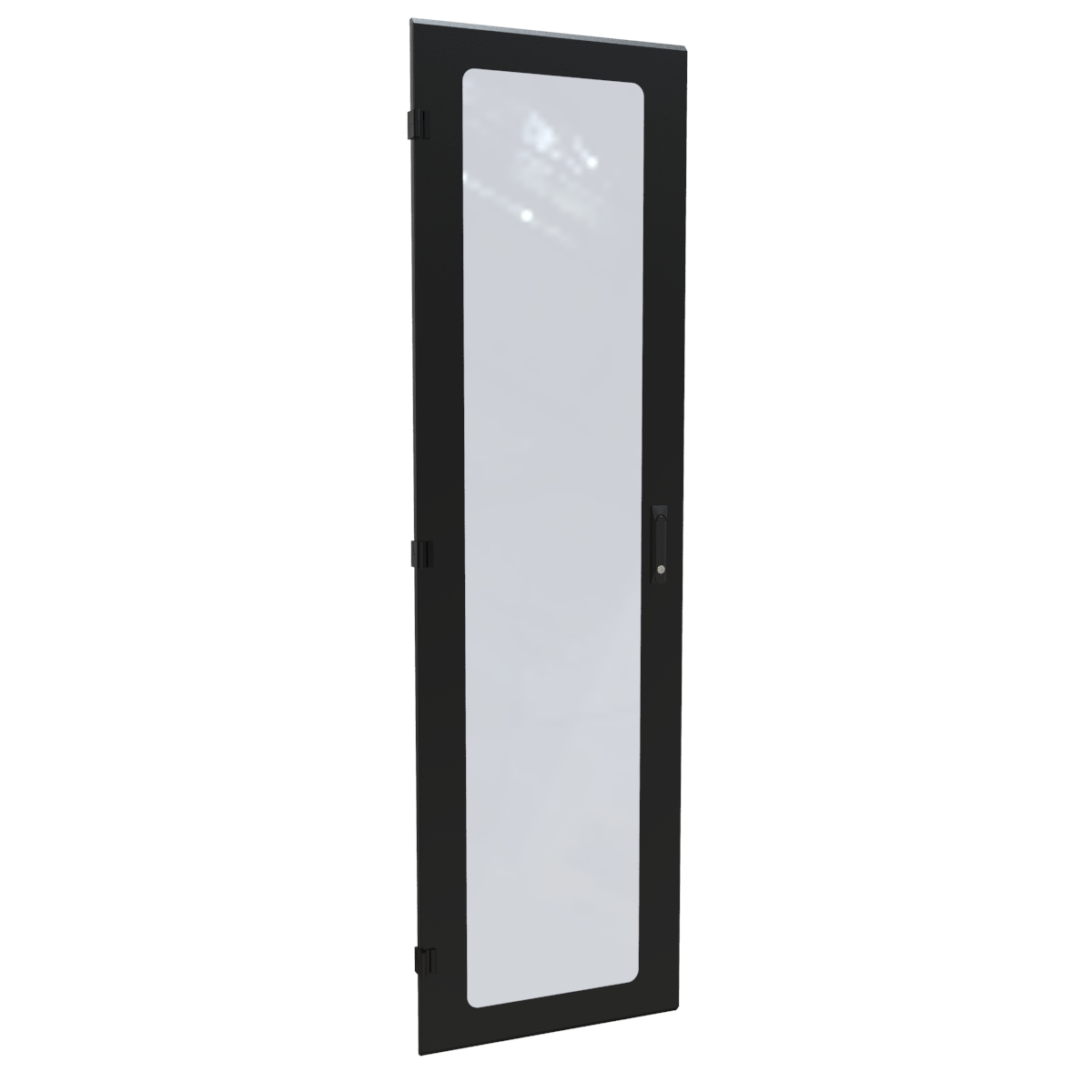

Save 35%C4D2473WBK1 — Sfd 42U 24W C4 Window Door
Hammond Manufacturing · C4D2473WBK1

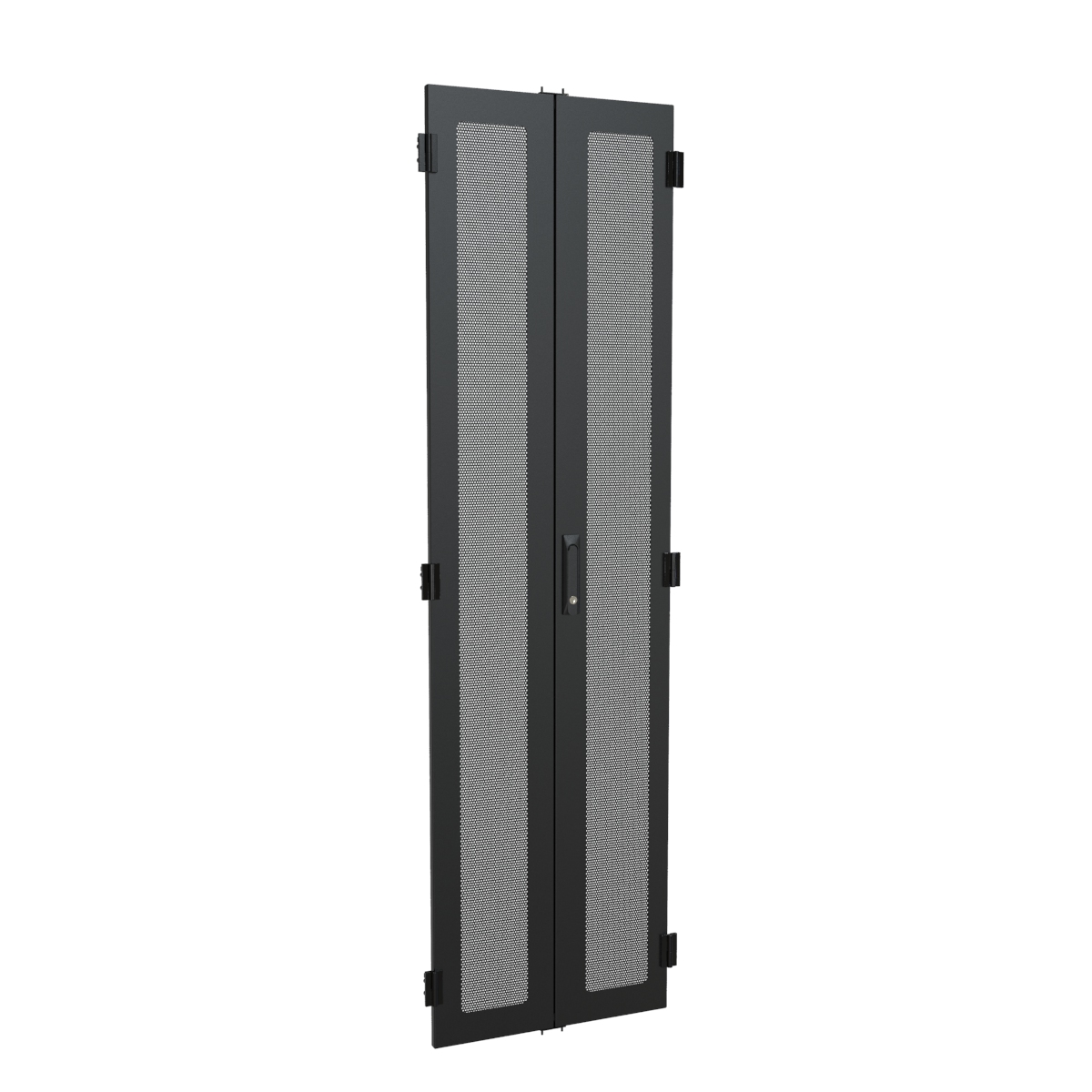

Save 35%C4D2473BBK1 — 42U 24W C4 Barn Door Swh
Hammond Manufacturing · C4D2473BBK1

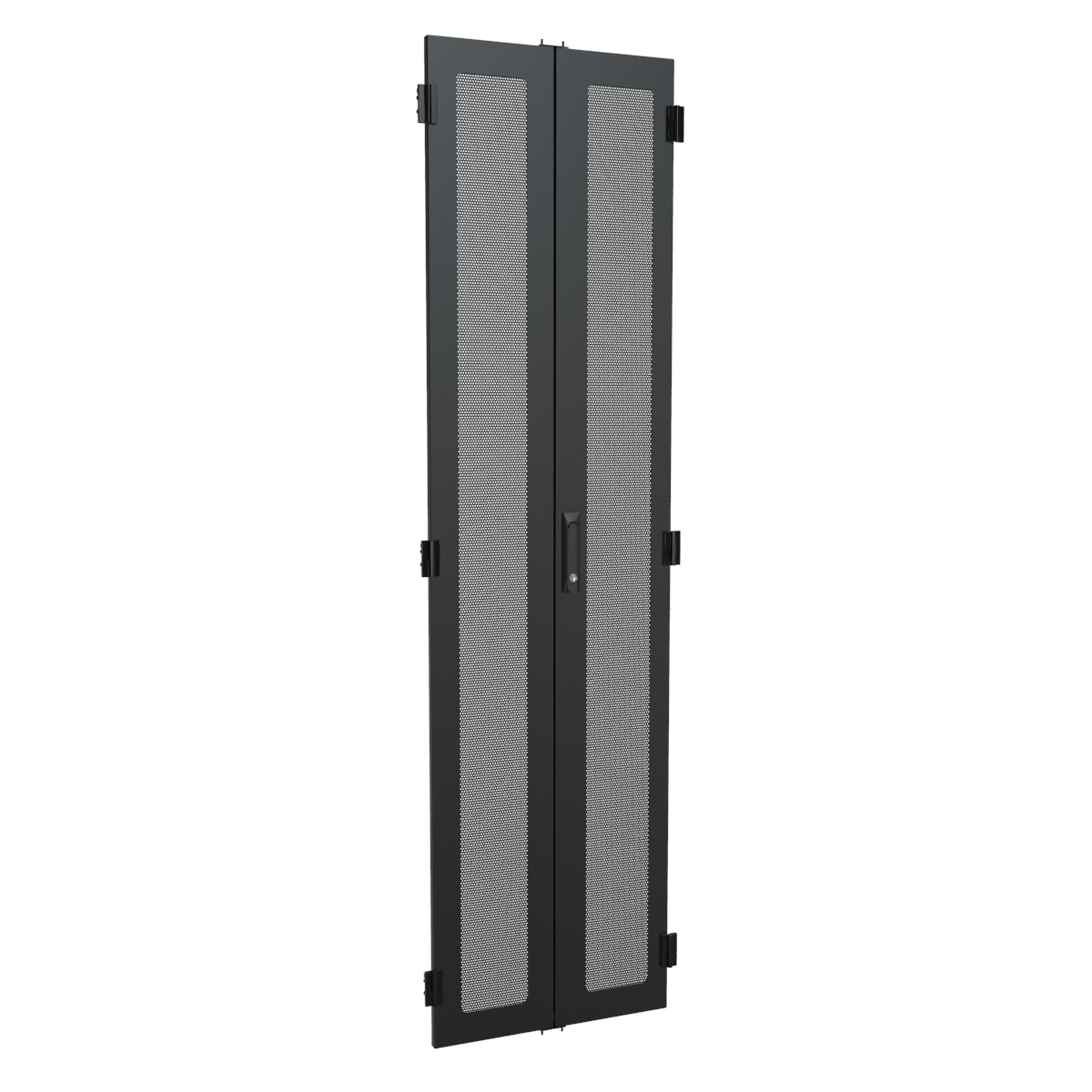

Save 35%C4D2477BBK1 — 44U 24W C4 Barn Door Swh
Hammond Manufacturing · C4D2477BBK1

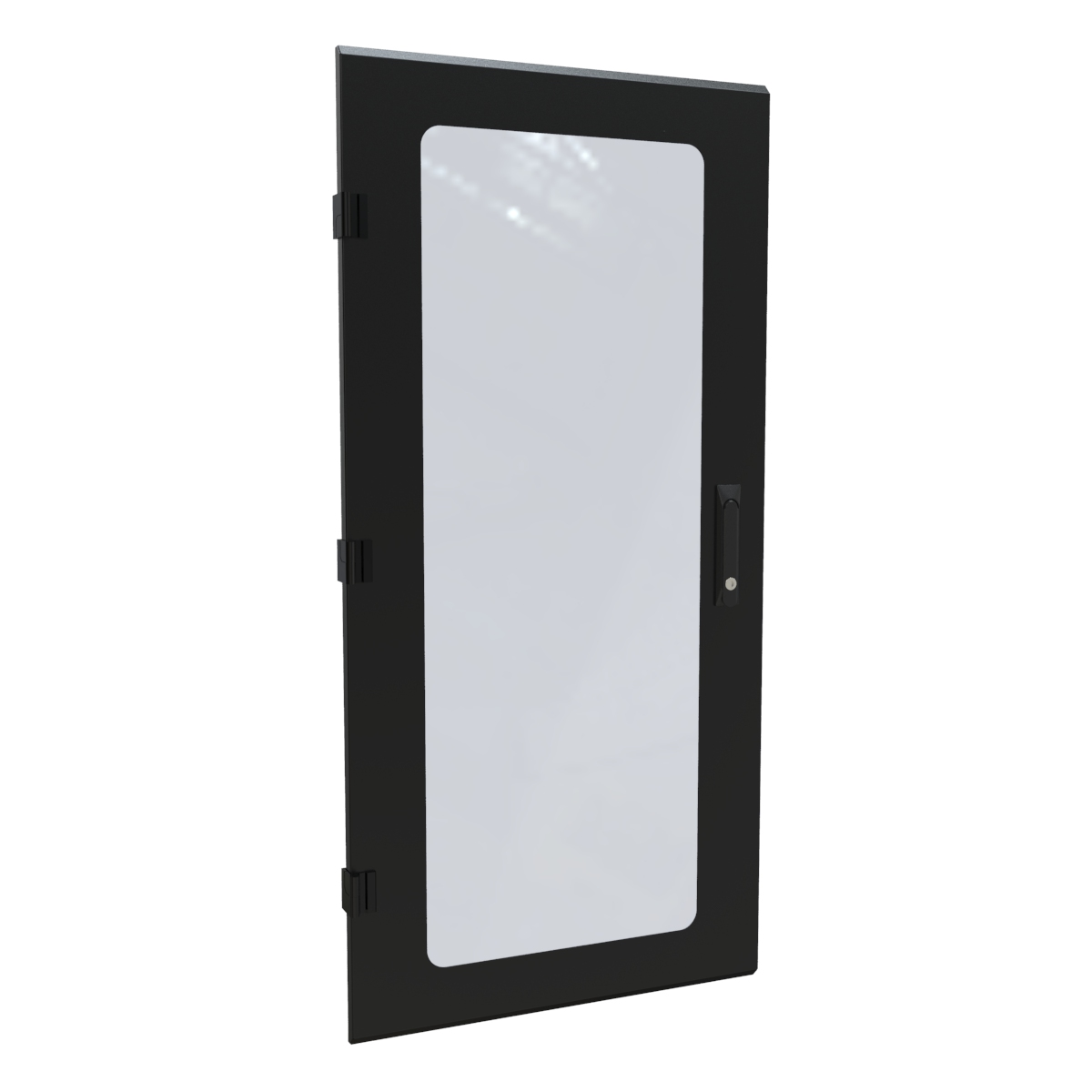

Save 35%C4D2442WBK1 — Sfd 24U 24W C4 Window Door
