Hammond C2T2436SLG1 25 x 28.25 in Light Gray Solid Cabinet Top Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Solid 14-gauge steel top panel seals the cabinet top to support controlled airflow and containment strategies
- Overall size 25.00 in (635 mm) wide x 28.25 in (718 mm) deep; nominal 24 x 36 size
- RAL7035 light gray textured painted finish; black textured version available as C2T2436SBK1
- Blocks dust, debris and contaminants from entering the rack from above
- Helps maintain front-to-rear airflow paths for improved cooling efficiency
- Mounting hardware included: 6 x 8-32 clip nuts and 6 x 8-32 x 0.5 in machine screws (CLPKIT832-6)
- Fits C4 cabinets 30.00 in wide x 42.00 in deep per series compatibility table
- TAA compliant and manufactured in Canada; RoHS, REACH and USMCA compliant

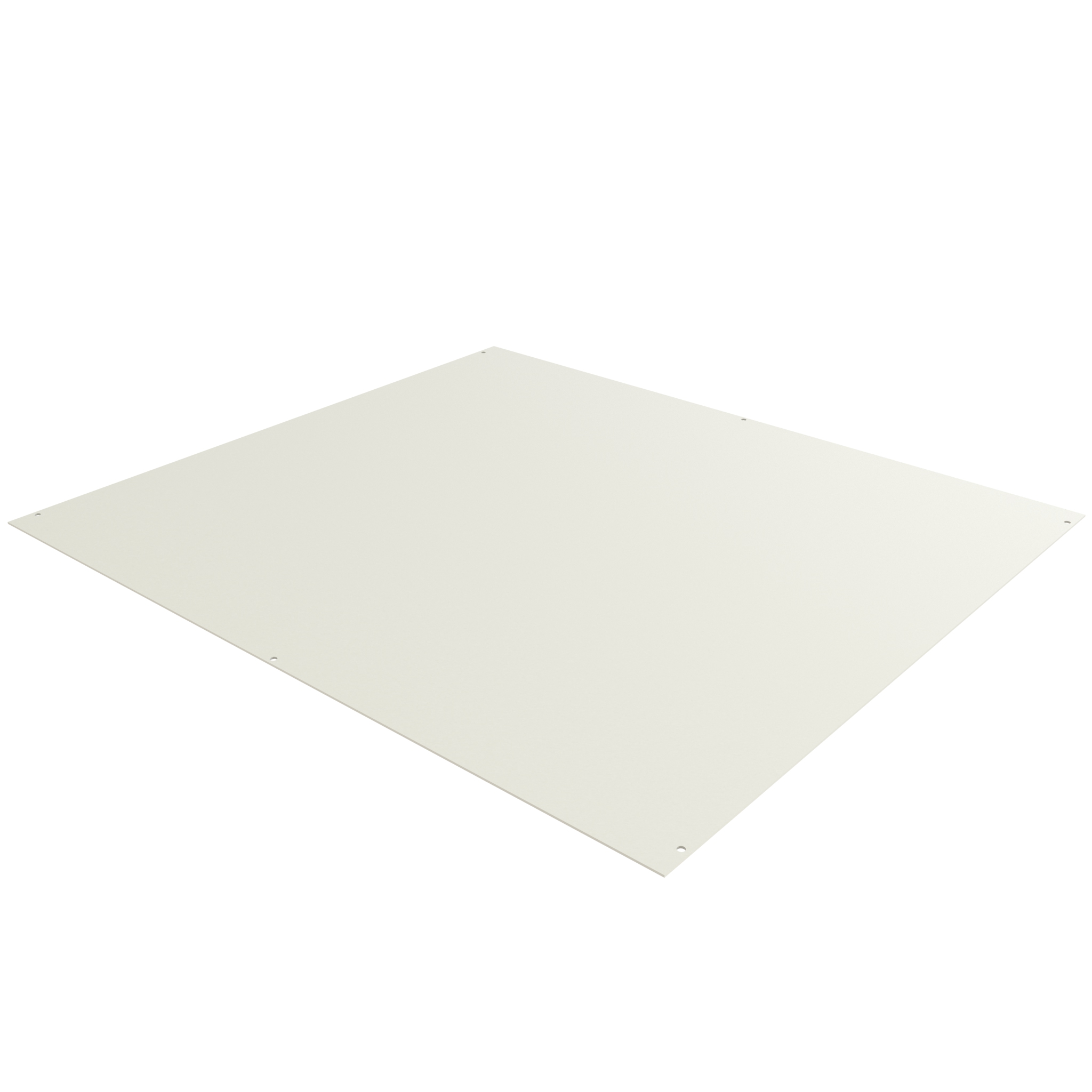

The C2T2436SLG1 is a solid rack cabinet top panel in 14-gauge steel, measuring 25.00 in (635 mm) wide by 28.25 in (718 mm) deep, finished in RAL7035 light gray textured paint. It is intended for IT, network, data center and industrial installations where the top of a rack cabinet must be sealed to support a controlled airflow environment rather than opened for overhead cable entry.
Because the panel is solid, it prevents air leakage through the cabinet top and helps maintain proper front-to-rear airflow paths inside the rack, improving cooling efficiency and system performance. It also keeps dust, debris and contaminants from entering the enclosure from above, which suits hot aisle / cold aisle containment schemes and high-density deployments with a defined airflow strategy.
Construction is mild steel for durable enclosure protection and long-term reliability. This nominal 24 x 36 size (short description "SOLID TOP 24X36") corresponds to the light gray version of the C2T2436S panel; the black textured equivalent is C2T2436SBK1. Shipping weight is 8 lbs (3.63 kg).
Mounting hardware is included in the box: one top panel, six 8-32 clip nuts in black oxide finish and six 8-32 x 0.5 in zinc-plated machine screws, all covered by replacement kit CLPKIT832-6. Assembly instructions (BUL86698) cover the clip nut and screw installation. Per the series cabinet compatibility table, C2T2436 panels fit C4 cabinets 30.00 in wide by 42.00 in deep.
C2T2436SLG1 is manufactured in Canada, is TAA compliant, USMCA compliant, RoHS compliant and REACH compliant, with ECCN EAR99 and tariff code 9403.10.0040.
Ideal For
- Sealing cabinet tops in hot aisle / cold aisle containment systems
- IT and network cabinets requiring controlled front-to-rear airflow
- Industrial and controlled environments where contamination must be minimized
- High-density rack deployments with defined airflow strategies
- Replacing vented or open top panels in airflow-managed cabinets
Overview
| Series | C2TS Series |
| Part Number | C2T2436SLG1 |
| Product Type | Rack cabinet solid top panel |
| Short Description | SOLID TOP 24X36 |
| Black Finish Equivalent | C2T2436SBK1 |
Dimensions
| Nominal Size | 24 x 36 |
| Overall Depth | 28.25 in (718 mm) |
| Overall Width | 25.00 in (635 mm) |
Identifiers
| UPC | 623980660301 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980660301 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398066030 |
Rack Mounting
| Mounting Hardware | Included |
| Assembly Instructions | BUL86698 Rev. A, Top Panel |
| Designed For Use With | C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK or CLC cabinet series (H1 requires H1TC Series for mounting) |
Packaging & Shipping
| In The Box | 1 x Top Panel, 6 x 8-32 clip nut (black oxide finish), 6 x 8-32 x 0.5 in machine screw (zinc plated) |
| Shipping Weight | 8 lbs (3.63 kg) |
| Replacement Hardware Kit | CLPKIT832-6 |
Construction & Finish
| Gauge | 14-gauge steel |
| Finish | Painted RAL7035 textured (light gray) |
| Material | Mild Steel |
Environmental & Protection
| Panel Style | Solid (no vents or cable entry openings) |
| Airflow Function | Seals cabinet top; prevents air leakage and contamination from above |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the actual dimensions of the C2T2436SLG1 top panel?▾
Overall dimensions are 25.00 in (635 mm) wide by 28.25 in (718 mm) deep. The nominal size referenced in the product description is 24 x 36.
Which cabinets does this panel fit?▾
The C2TS Series is designed for use with C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK or CLC cabinet series; H1 requires the H1TC Series for mounting. Per the compatibility table, C2T2436 panels fit C4 cabinets measuring 30.00 in wide by 42.00 in deep.
Is mounting hardware included?▾
Yes. The box contains the top panel plus six 8-32 clip nuts (black oxide finish) and six 8-32 x 0.5 in zinc-plated machine screws. The replacement hardware kit part number is CLPKIT832-6.
What colour is C2T2436SLG1?▾
It is painted RAL7035 textured (light gray). The black textured version of the same panel is C2T2436SBK1.
Does this panel allow cable entry or airflow through the top?▾
No. It is a solid panel that seals the cabinet top. For overhead cable entry consider the C2T_BF Series, for integrated fan capability the C2TF Series, and for passive top airflow the C2TV Series.
Is C2T2436SLG1 suitable for government procurement?▾
It is TAA compliant and manufactured in North America (country of origin CA), and is also USMCA, RoHS and REACH compliant with ECCN EAR99.
