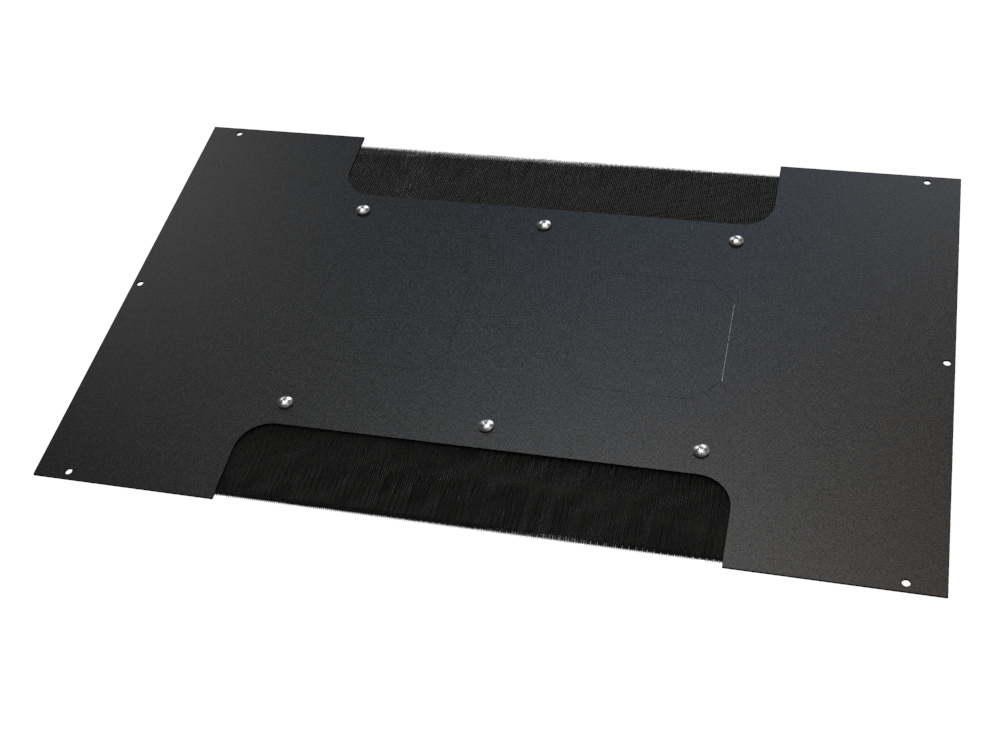

Hammond C2T2423BFBK1 25 x 15 in Brush Cable Entry Cabinet Top Panel

The C2T2423BFBK1 is a rack cabinet top panel with brush cable entry and fan knockouts, intended for IT, network, telecom, AV and broadcast installations where cables are dropped into a cabinet from overhead ladder rack or cable tray. It replaces a solid top panel so cabling can pass cleanly into the enclosure while airflow and enclosure protection are maintained.

Construction is 14-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant, supporting indoor air quality and environmental compliance requirements. The panel is TAA-compliant and manufactured in North America, which suits government and institutional procurement specifications.

This version measures 25.00 in (635 mm) wide by 15.00 in (381 mm) deep overall and includes two (2) brushed openings, each 2.36 in (60 mm) wide by 7.50 in (191 mm) long. A 4 in laser knockout is provided so an optional fan kit can be added for active cooling, or the knockout can be opened up to increase cable entry capacity. Mounting holes are 0.22 in (6 mm) diameter, and cabinet mounting hardware (CLPKIT832-6) is included for quick installation.

• Two brush cable entry zones for organised, protected cable pass-through.
• 4 in fan knockout for optional FK Series fan kits or extra cable entry.

C2T2423BFBK1 is designed for use with the C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK and CLC cabinet series; H1 cabinets require the H1TC Series for mounting. Typical deployments include data centres and IT rooms with overhead routing, structured cabling projects, and high-density racks that need both cable entry and airflow management in one panel.
