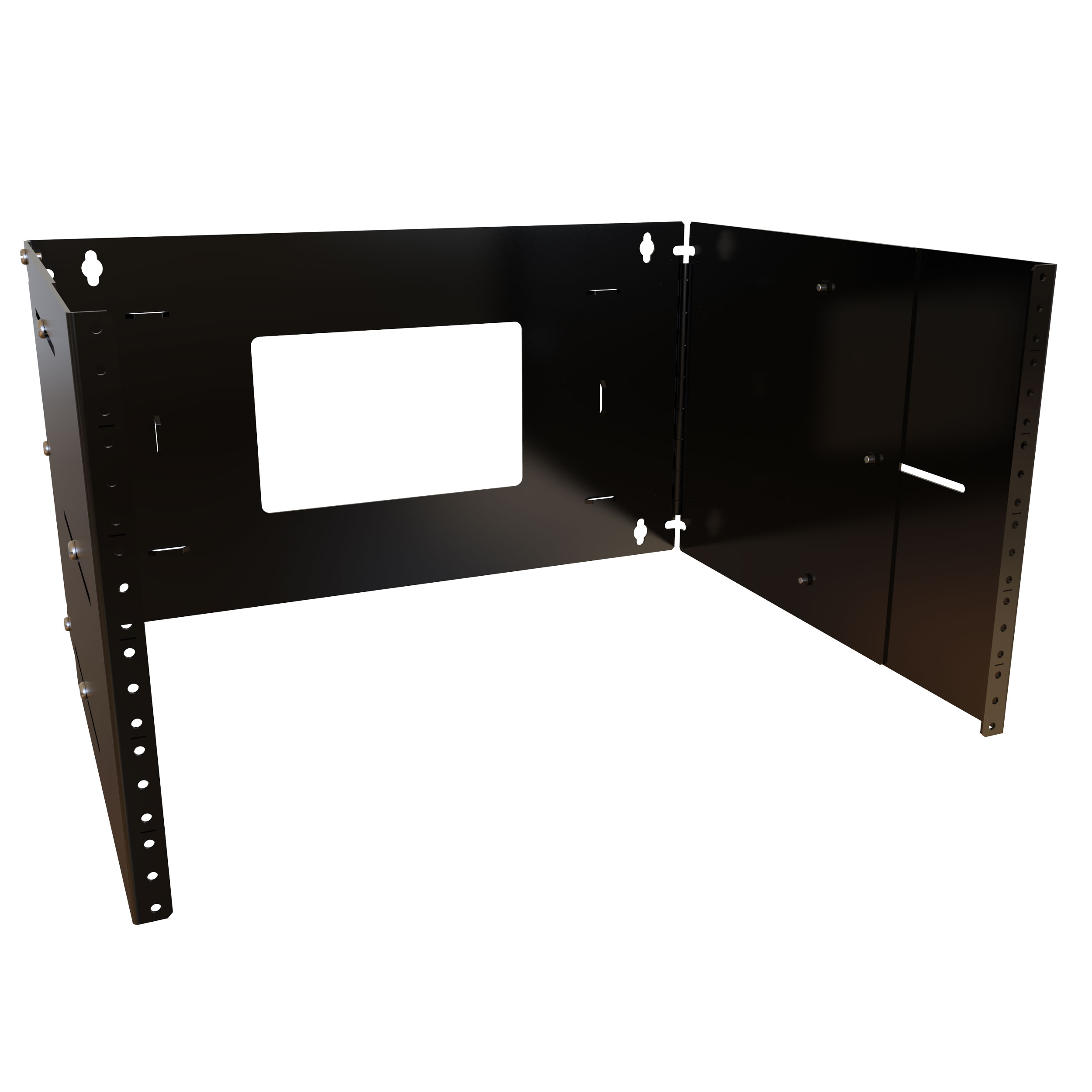

Hammond APB19010BK1 6U Hinged Wall Rack, 12-18 in Adjustable Depth

The APB19010BK1 is a 6U open wall-mount rack from the APB Series, an adjustable depth wall bracket with hinged access for mounting 19" equipment in telecom and IT installations. It suits IT and AV integrators, structured cabling contractors and facilities teams who need to mount patch panels, switches and other lightweight rack gear on a wall or backboard instead of in a full cabinet.

Construction is 14-gauge mild steel with a 100 lb load rating, finished in RAL9005 black powder coat that is GREENGUARD, TSCA and RoHS compliant. One pair of 10-32 tapped 19" mounting rails is included and conforms to EIA-310, so standard rack-mount equipment lands on familiar hole spacing. Rear cable access with multiple tie points helps keep wall-mounted cabling organized.

This 6U size measures 10.48 in (266 mm) high by 19.39 in (493 mm) wide overall, with a 19.00 in (483 mm) mounting width. Depth adjusts from 12.00 in (305 mm) to 18.00 in (457 mm) without disassembly, and the hinged section swings open at the hinge point for rear access during installation, servicing and cable management. Nominal listed size is 10.48 x 19.25 x 18 in (266 x 489 x 457 mm); shipping weight is 15 lbs (6.80 kg).

APB19010BK1 ships as a self-squaring, knock-down assembly for easier handling and simplified installation. The box contains the rear wall-mounting hinged section, the rear non-hinged section, two sliding rails, assembly instructions, 25 10-32 x 0.75 in rack mounting screws (SCREW1032-25) and 10 pieces of 10-32 x 3/8 assembly hardware. Wall mounting hardware is not included. The unit is TAA-compliant and manufactured in North America (Country of Origin: CA), USMCA, RoHS and REACH compliant.
