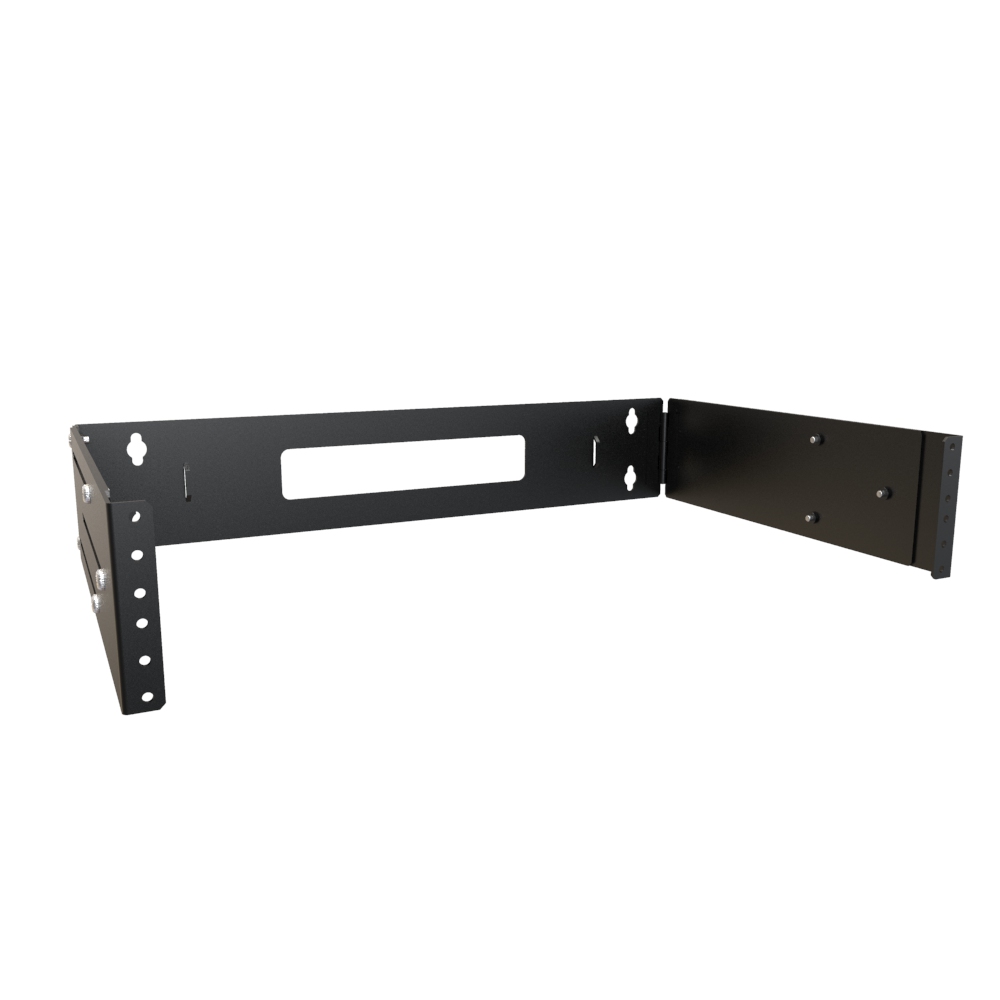

Hammond APB19003BK1 2U Adjustable Depth Hinged Wall Mount Rack

The APB19003BK1 is a 2U adjustable depth wall bracket for mounting 19-inch equipment where a full cabinet will not fit. It is aimed at IT and telecom installers, structured cabling contractors and facilities teams who need to hang a patch panel, small switch or media converter on a backboard or wall in a shallow closet. The hinged design lets the bracket swing away from the wall so the rear of the equipment and the cabling remain reachable during installation and servicing.

Construction is 14-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant. The bracket carries a 100 lb load rating and ships as a self-squaring, knock-down assembly for easier handling and lower shipping cost. One pair of 10-32 threaded 19" mounting rails is supplied and follows EIA-310, so standard rack-mount gear lines up correctly. Rear cable access with multiple tie points supports organized routing behind the equipment.

This size provides 2U of usable mounting space, an overall height of 3.38 in (86 mm) and an overall width of 19.39 in (493 mm), with a 19.00 in (483 mm) mounting width. Depth adjusts from 12.00 in (305 mm) to 18.00 in (457 mm) without disassembling the bracket, so the same part suits varying equipment depths and retrofit work.

The box for APB19003BK1 contains the rear wall-mounting hinged section, the rear non-hinged section, two sliding rails, assembly instructions, (25) 10-32 x 0.75 in rack mounting screws (SCREW1032-25) and (10) 10-32 x 3/8 assembly screws. Wall mounting hardware is not included and should be selected for the wall or backboard type. The product is made in Canada, TAA compliant, USMCA compliant, RoHS compliant and REACH compliant.
