Hammond AHK3 Non-Locking 3-Point Type 12 Handle Kit, Over 60
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Three point latch for enclosures greater than 60 in
- 80.41 in overall latch assembly per drawing
- Handle, latch cam, latch rods and adjustable rod guides included
- Roller latch rod ends for easier door closing
- Non-locking, clockwise handle rotation
- Field installs on most 1418 Series single door enclosures (not 1418 J)
The AHK3 is a Type 12 (N12) non-locking handle kit with a three point latch, for enclosures greater than 60". It is the long-rod version in the series, intended for tall 1418 Series single door enclosures that need secure latching along the full door height. It is designed for field installation and does not fit the 1418 J Series.
Included are a handle, a latch cam, latch rods and adjustable rod guides. The latch rod ends have rollers for easier door closing, and the non-locking handle rotates clockwise. All parts are plated or painted for corrosion resistance.
The manufacturer drawing shows an overall latch assembly of 80.41 in, with a 40.21 in typical dimension, compared with 45.16 in on the AHK2.
The adjustable rod guides let the long latch rods be positioned to suit the door, and the kit is designed for field installation on an enclosure already in place. At 80.41 in overall, it is the longest assembly in the series.
The AHK3 ships in a box at 5 lbs (2.27 kg) and is REACH and RoHS compliant. For doors less than 60" choose the AHK2; for key locking three point handles, see the AHKL series.
Ideal For
- Three point latching on tall 1418 Series enclosure doors
- Field retrofit of enclosure latching over 60 in
- Type 12 industrial enclosures
Overview
| Latch Type | 3 point latch, greater than 60" |
| Handle Type | Non-Locking |
| Kit Contents | Handle, latch cam, latch rods and adjustable rod guides |
| Product Type | Type 12 Handle Kit |
| Handle Rotation | clockwise |
| Short Description | AUTOMOTIVE HANDLE KITS WITHOUT |
| Manufacturer Description | N12 Non-locking 3 pt. greater than 60" |
Dimensions
| Handle To Rod End (Drawing) | 40.21 in typ. |
| Overall Latch Rod Length (Drawing) | 80.41 in |
Identifiers
| UPC | 623980410944 |
| UNSPSC | 39121321 |
Compatibility
| Enclosure Fit | Designed for field installation on most 1418 Series single door enclosures (does not fit 1418 J Series) |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 5 lbs (2.27 kg) |
Construction & Finish
| Latch Rod Ends | Rollers for easier door closing |
| Corrosion Resistance | All parts are plated or painted for corrosion resistance |
Environmental & Protection
| Type Rating | Type 12 (N12) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What enclosure height is the AHK3 for?▾
It is the three point latch kit for greater than 60".
How long is the latch rod assembly?▾
The drawing shows 80.41 in overall, with a 40.21 in typical dimension.
Is the handle lockable?▾
No, the AHK3 is non-locking and rotates clockwise.
What is included?▾
A handle, latch cam, latch rods and adjustable rod guides.
Can I install it in the field?▾
Yes. The kits are designed for field installation on most 1418 Series single door enclosures (not 1418 J Series).
Related Products
Save 44%AHK2 — N12 Non-locking 3 pt. less than 60"
Hammond Manufacturing · AHK2
Save 44%AHKL1 — N12 Locking 1 pt. latch
Hammond Manufacturing · AHKL1

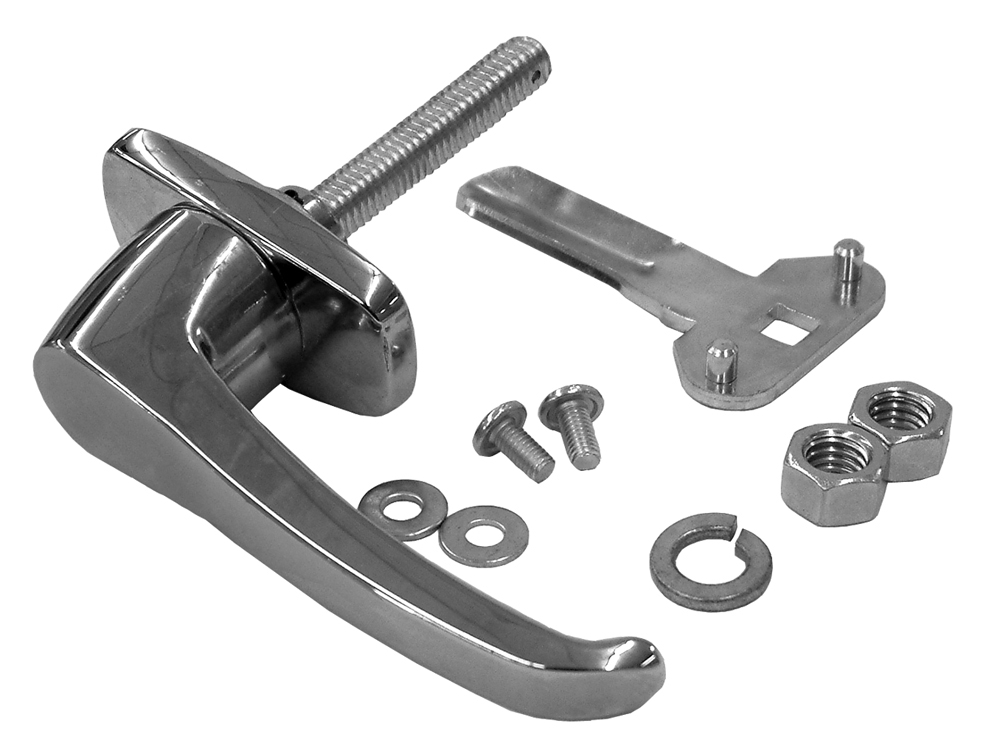

Save 44%AHK1 — N12 Non-locking 1 pt. latch
