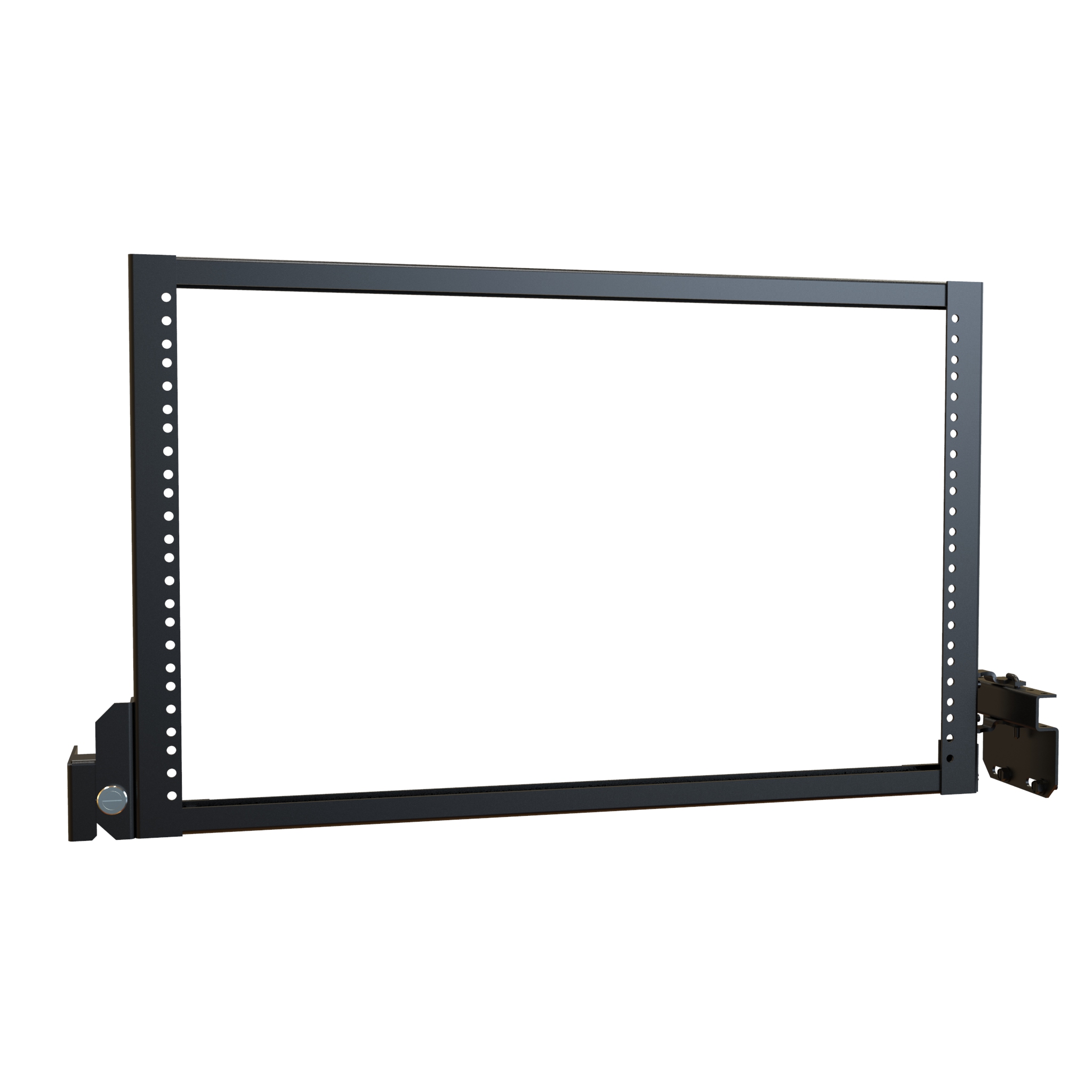

Hammond 2CSFT24 8U 24 in Turret Rack Swing Frame, Black
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 8U swing frame with 24 in panel width for Series 2000 turrets and terminals
- Fits console sizes 36, 48 and 60
- Swing-out design for rear wiring and equipment access
- Variable-depth positioning; left- or right-hand hinging
- Heavy-duty steel with textured black powder coat
- TAA-compliant for GSA Schedule purchases; manufactured in North America
The 2CSFT24 is the 24 in wide, 8U turret swing frame in the Hammond S2CSWF Series. It lets panel builders mount 24-inch rack equipment in the turret or terminal section of a Series 2000 operator console, with a swing-out action that keeps the back of the equipment within reach.
Construction is heavy-duty steel finished in textured black powder coat. The frame can be positioned front-to-rear thanks to its variable-depth design, helping with equipment placement, cable routing and door clearance, and it installs with either left-hand or right-hand hinging to suit the site.
This frame fits Turrets/Terminal units in console sizes 36, 48 and 60. Its ordering-table dimensions are A 15.75 in (400 mm) and B 24.28 in (617 mm), and the part drawing shows a 25.08 in inside width, 15.56 in inside height, 22.77 in opening and 23.31 in hole centers.
Installation uses Series 2000 Rail Support Kits, which are sold separately, and clip nuts are required when mounting to punched rails. The 2CSFT24 is manufactured in North America, TAA-compliant for GSA Schedule purchases and RoHS and REACH compliant, with a shipping weight of 15 lbs (6.80 kg).
Ideal For
- Mounting 24-inch rack equipment in console turrets
- Industrial operator consoles
- Creating serviceable rack installations inside operator consoles
- Utility and infrastructure control centers
Overview
| Series | S2CSWF Series (Series 2000 consoles) |
| Description | Swing Frame - Turret - 8U - 24" Wide - Black |
| Product Type | Rack Mount Swing Frame |
| Fits Console Size | 36, 48, 60 |
| Fits Console Unit | Turrets/Terminal |
| Short Description | S2MCS-24" TURRET SW FRAME (BU) |
Dimensions
| Dimension A | 15.75 in (400 mm) |
| Dimension B | 24.28 in (617 mm) |
| Opening (Drawing) | 22.77 in |
| Hole Centers (Drawing) | 23.31 in |
| Inside Width (Drawing) | 25.08 in |
| Inside Height (Drawing) | 15.56 in |
| Hole Diameters (Drawing) | 0.31 in and 0.25 in |
Identifiers
| UPC | 623980991757 |
| UNSPSC | 39121321 |
| Part Number | 2CSFT24 |
Rack Mounting
| Hinging | Left-hand or right-hand |
| Panel Width | 24" |
| Installation | Series 2000 Rail Support Kits (sold separately); clip nuts required when mounting to punched rails |
| Panel Height | 8U |
| Depth Adjustment | Variable depth, positionable front-to-rear |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 15 lbs (6.80 kg) |
Construction & Finish
| Finish | Textured black powder coat |
| Construction | Heavy-duty steel |
Compliance & Certifications
| TAA | TAA-compliant for GSA Schedule purchases |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Country Of Manufacture | Manufactured in North America |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Will the 2CSFT24 fit a 24 size turret?▾
No. It fits Turrets/Terminal units in sizes 36, 48 and 60; the 19 in version, 2CSFT19, also fits size 24.
How much rack space does it provide?▾
8U with a 24 in panel width.
Can it be hinged on either side?▾
Yes, it installs with left-hand or right-hand hinging.
What is needed to install it?▾
Series 2000 Rail Support Kits (sold separately), and clip nuts when mounting to punched rails.
What does it weigh?▾
The shipping weight is 15 lbs (6.80 kg).
