Hammond 1599KSTSGY 220 x 140 mm Economy Short-Slope Console, Gray ABS

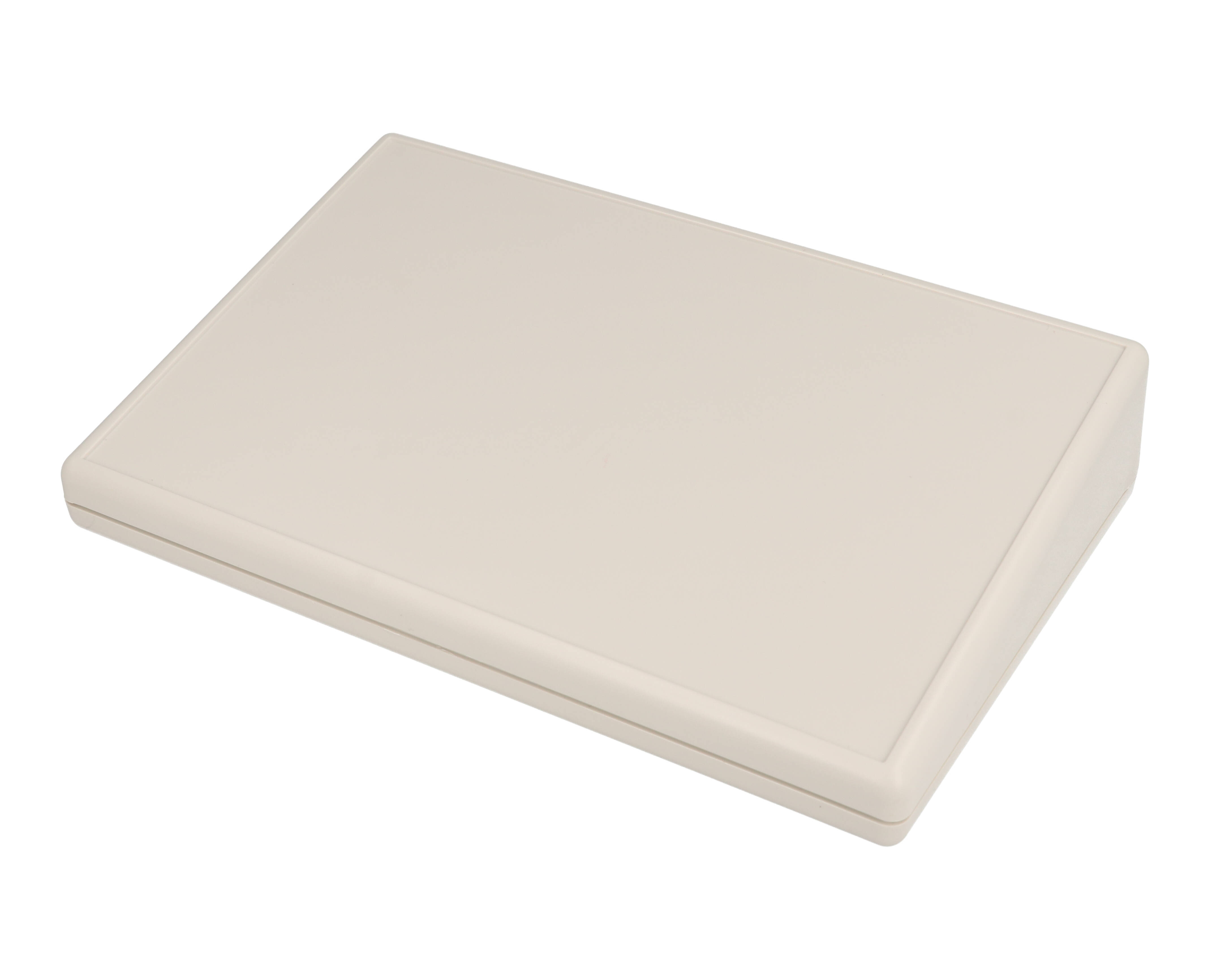

The 1599KSTSGY is a light gray short-slope sloping console from the 1599T series, a slope-top plastic console for interface and control electronics built by OEM engineers and integrators. This K-size console is 220 mm wide and 140 mm from front to rear, stepping from its 21 mm front height up to a 46 mm rear height.

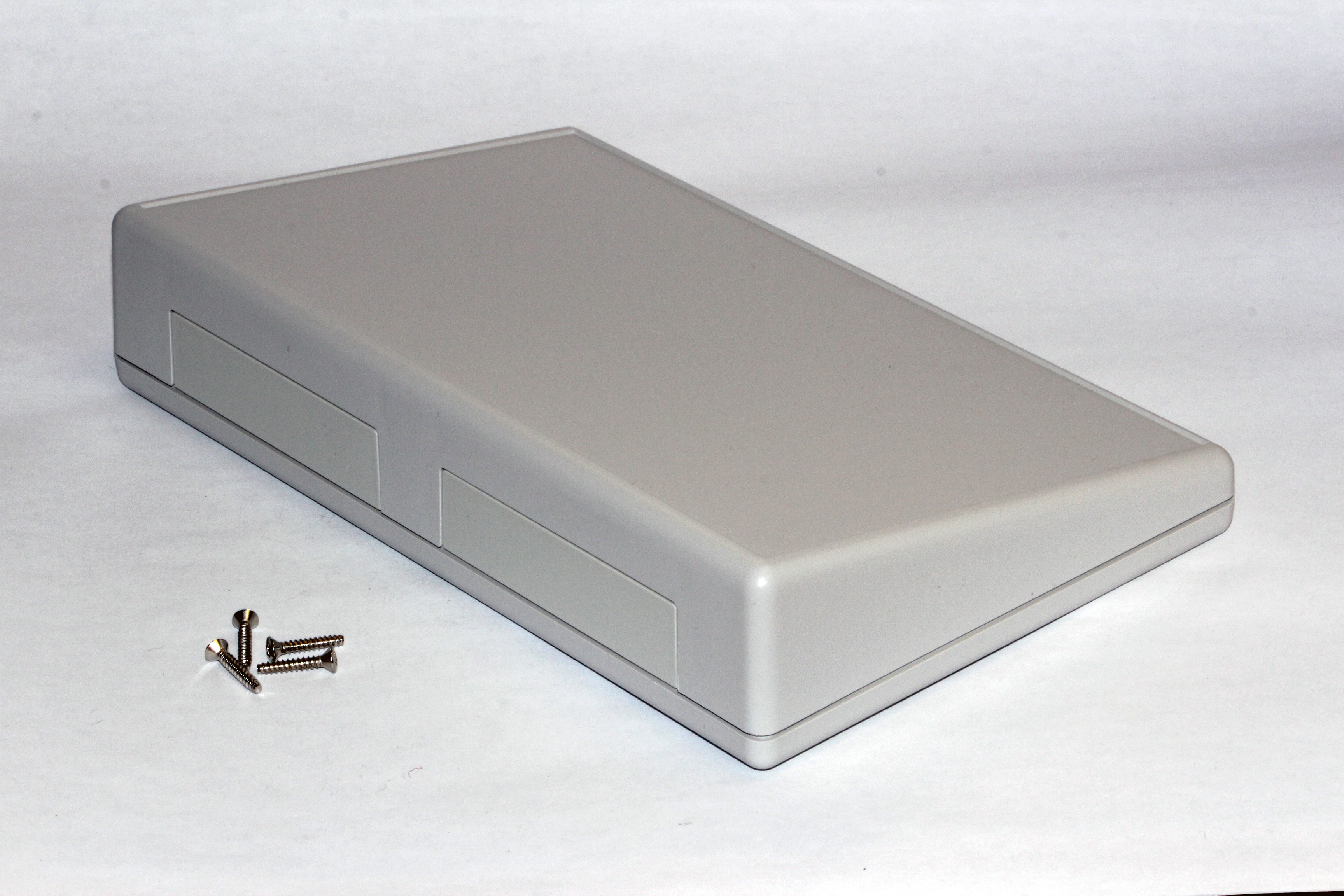

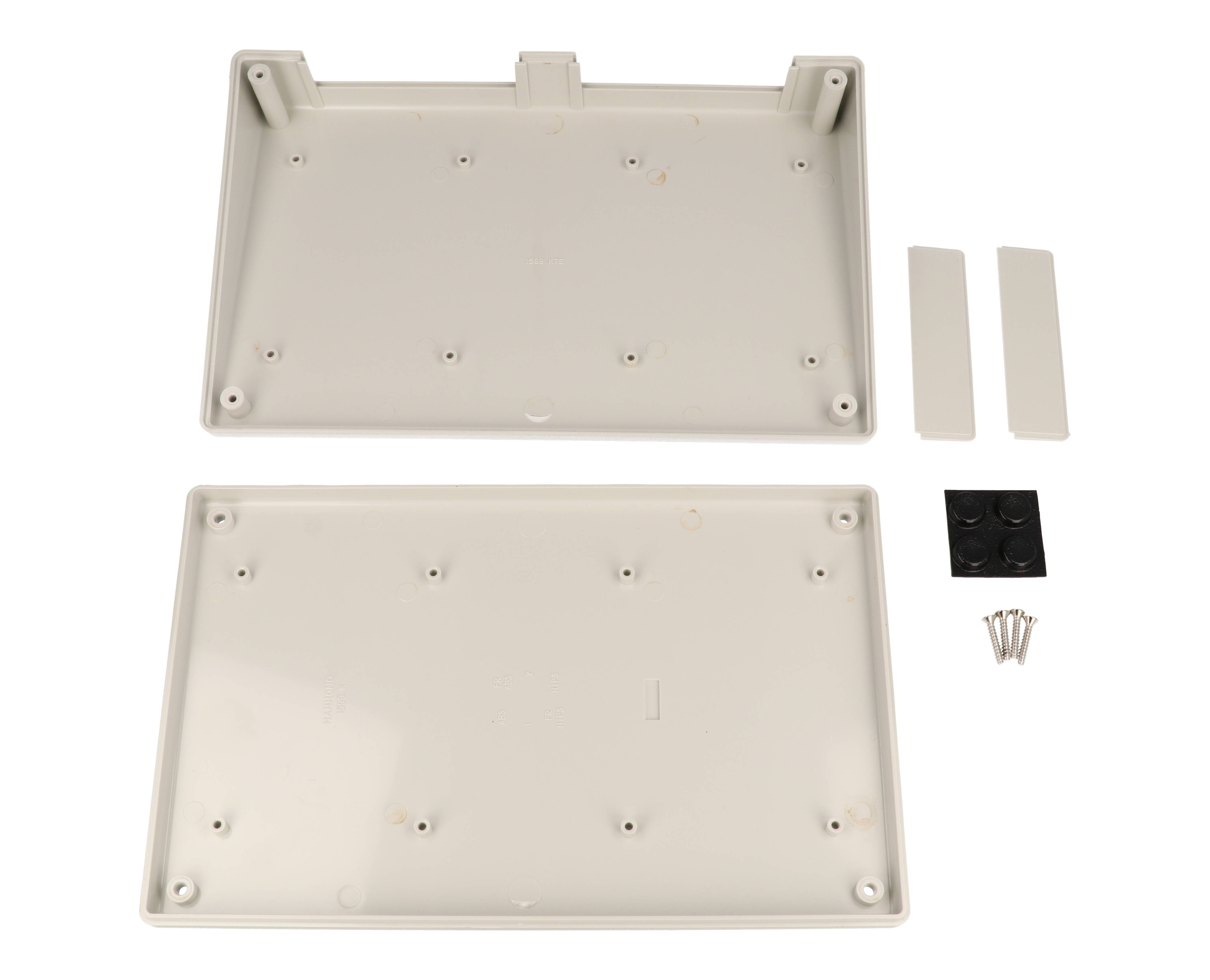

The box and lid are molded from general purpose ABS (not flame retardant) rated UL94 HB. As an economy version it closes with #4 self-tapping screws driven into the plastic rather than machine screws into brass inserts; the recommended cover screw torque is 42-57 ozf.in (30-40 cN.m). The rear of the enclosure has two flat removable panels for easy modification, and the K size includes PC board standoffs on both the inside top and bottom. Four black rubber feet are included with the enclosure.

The maximum P.C. board size is 131 mm long by 211 mm wide (board not supplied), and the inside of the box accepts #4 self-tapping screws for mounting it. The top carries a recessed inlay of 206.00 mm [8.11 in] by 129.50 mm [5.10 in], set at a 11.1° slope angle on the drawing.

The 1599KSTSGY is listed with an IP54 rating, is RoHS and REACH compliant, and ships shrink-wrapped with a shipping weight of 0.58 lbs (0.26 kg). For a flame retardant version of the same size, see 1599KTSGY.

Some chemicals can damage or weaken ABS, including acetone, ketones, thread-locking compounds and cutting or tapping fluid, so check any cleaner, lubricant or fluid for plastic compatibility before use.
