Hammond 1593YALGY 140mm Gray Handheld Case with Battery Door

The 1593YALGY is the 140 mm long, 28 mm deep battery version of the 1593AL hand held instrument enclosure, molded in light gray ABS plastic. It pairs a single removable aluminum front panel with a battery compartment and door, making it a fit for portable meters, remotes and field instruments where the user swaps batteries without tools.

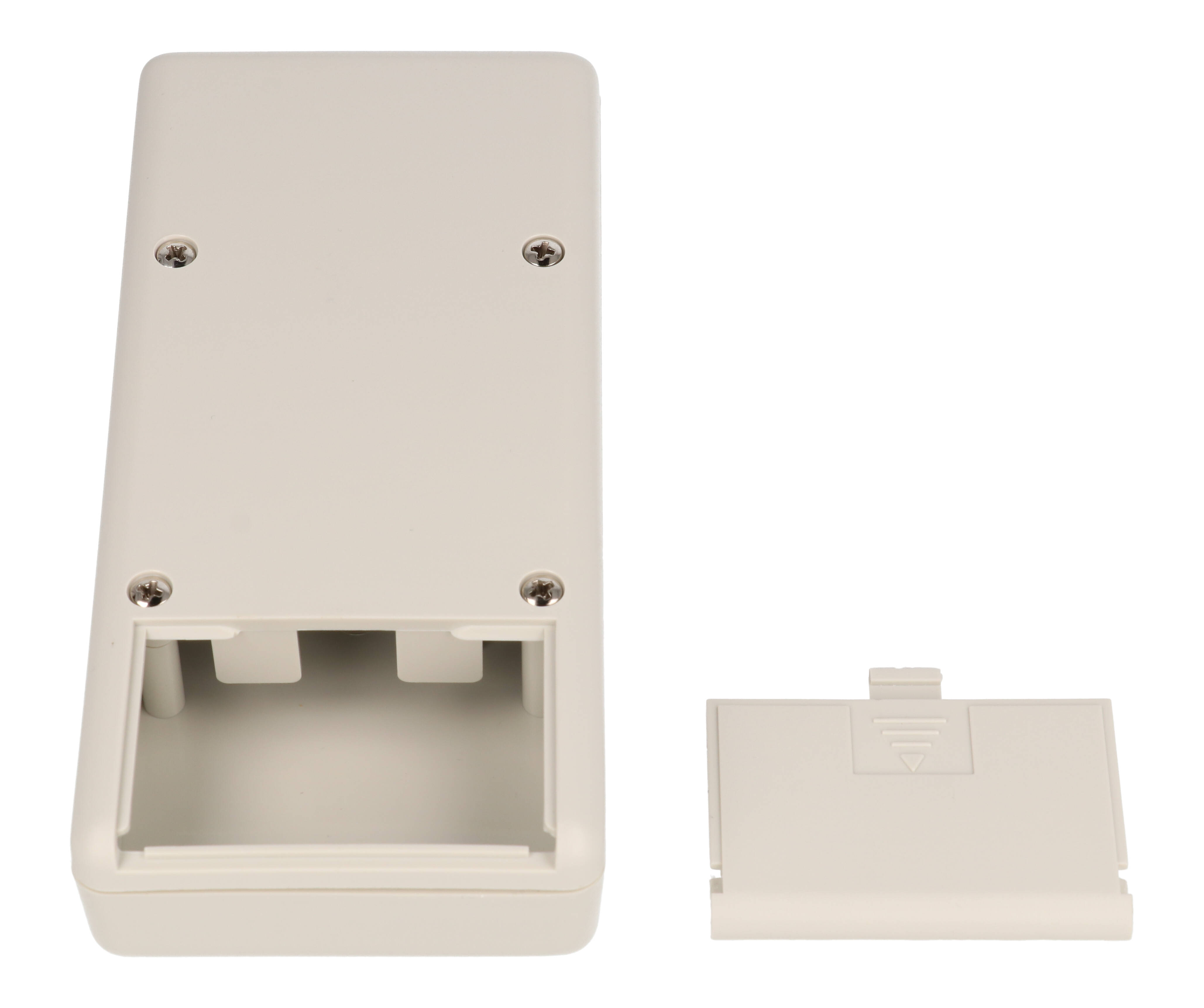

The body is general purpose ABS (UL94 HB) with a satin texture, shaped to fit comfortably into the hand, with a recessed top for a membrane display or keypad. Lap joint construction protects against dust accumulation and splashing water. The halves are secured with self tapping screws; this light gray version includes nickel finish screws. The battery compartment uses the long life "three snap" door.

Nominal size is 5.5 in x 2.6 in x 1.1 in (140 mm x 66 mm x 28 mm); the drawing shows 140.00 mm [5.51 in] long, 66.00 mm [2.60 in] wide and 28.00 mm [1.10 in] high overall. Inside you get 96.30 mm [3.79 in] of length, 60.39 mm [2.38 in] of width and 21.90 mm [0.86 in] of height, and the top inlay measures 128.50 mm [5.06 in] x 55.00 mm [2.17 in] at 1.00 mm [0.04 in] deep for a label or keypad overlay. The aluminum panel is 1.63 mm [0.06 in] thick.

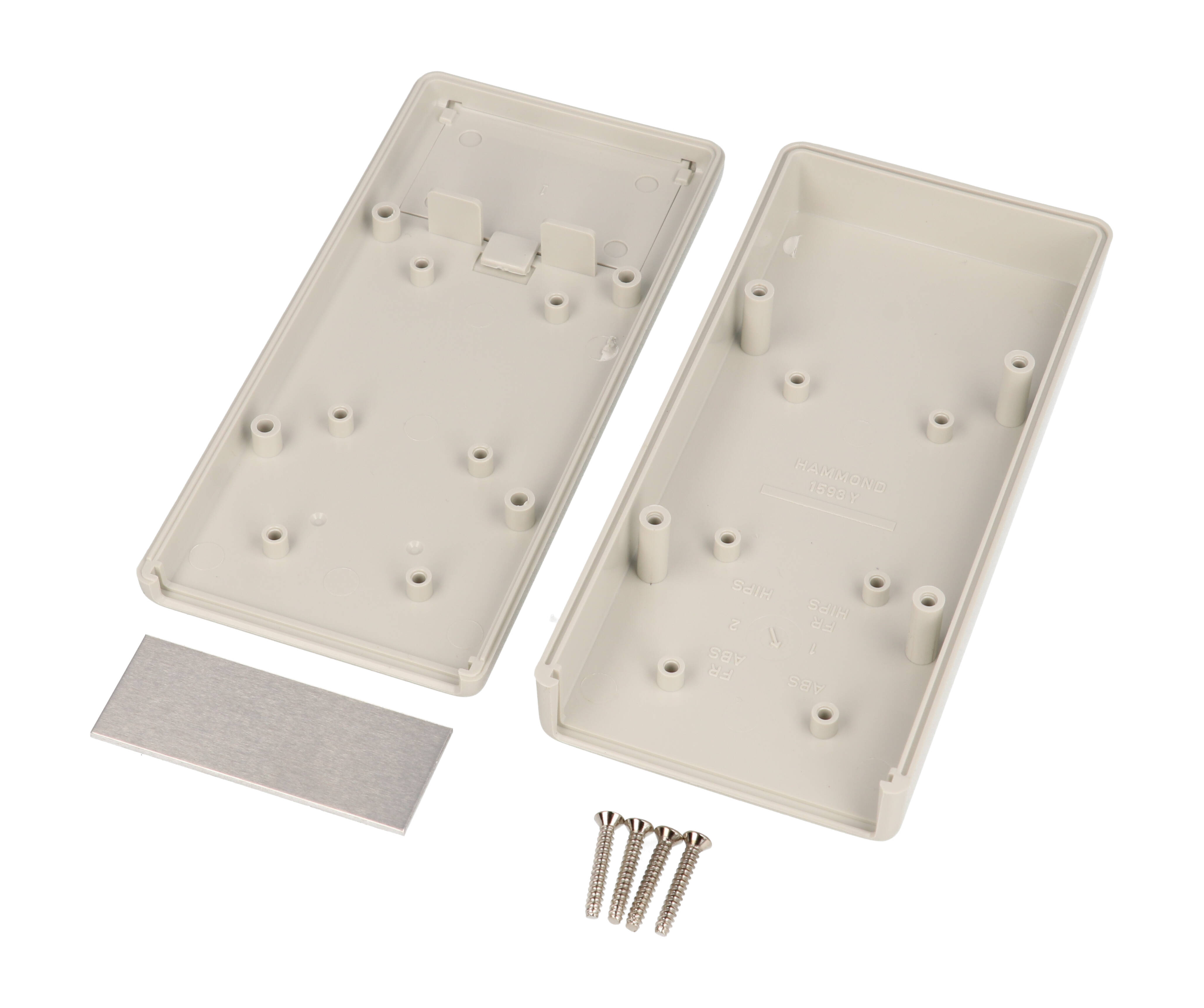

The purchased assembly includes top and bottom cover, 1 flat aluminum panel for the front, a battery door and 4 cover screws. Board mounting bosses accept #4 self-tapping screws (1593ATS50, #4 x 1/4", pack of 50); the printed circuit board is not supplied. Recommended cover screw torque is 57 lbf-in (40 cN-m). Replacement #4 x 3/4" self-tapping cover screws come as 1593QS100 (silver) or 1593QS100BK (black), aluminum panels as 1593PAL10 (pack of 10), infrared panels as 1593PIR10, and a nylon belt clip as 1599CLIP (black) or 1599CLIPGY (grey). The enclosure is RoHS and REACH compliant and can be factory modified by milling, drilling or printing.
