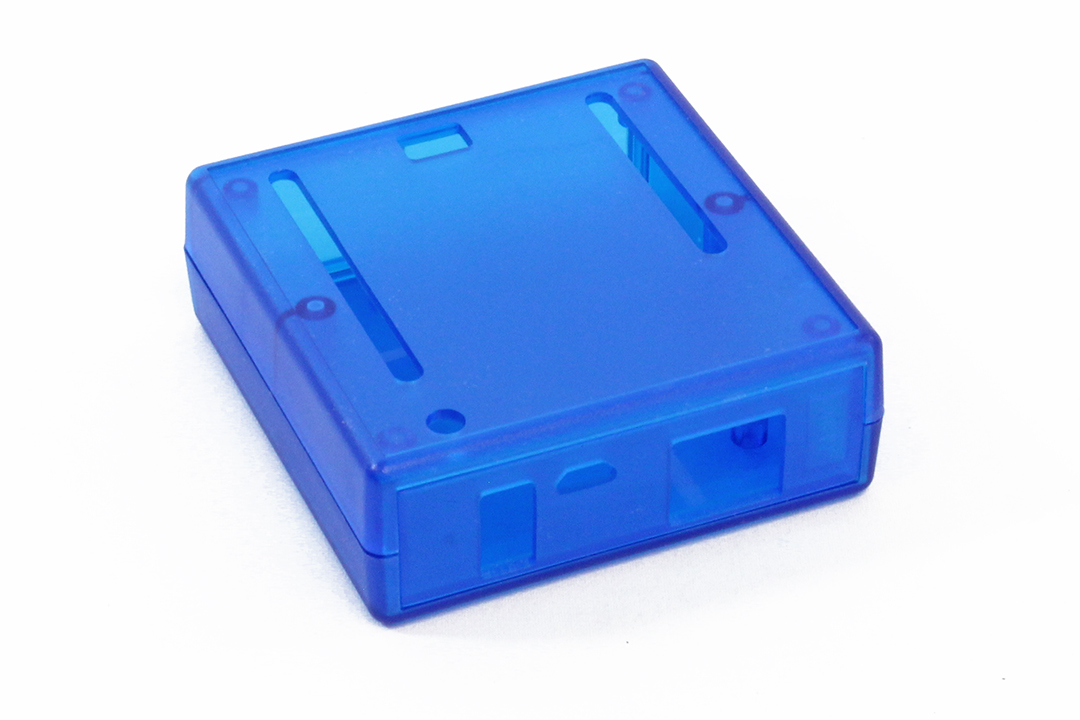

Hammond 1593HAMARTBU Translucent Blue Arduino Uno Enclosure, ABS Plastic

The 1593HAMARTBU is a translucent blue plastic enclosure made for Arduino boards, with the Leonardo, M0 Pro, Uno and Yun listed as compatible. It suits hobbyists, classrooms and product developers who want a tidy housing that still allows access to I/O connectors and frequently used controls and LEDs.

The 1593HAMARTBU is molded from general purpose ABS plastic with a satin texture and a UL94 HB flame rating, in translucent blue. It measures 2.95 in x 2.81 in x 1.06 in (75 mm x 71 mm x 27 mm), with an inside width of 67.89 mm [2.67 in] and an inside height of 22.00 mm [0.87 in]. A recessed inlay on the cover (68.69 mm x 66.69 mm, 0.80 mm deep) is dimensioned on the drawing.

Each assembly ships with top and bottom covers, three front panels (for the Yun, Uno and Leonardo / M0 Pro), two rear panels (one blank and one that clears the Yun micro SD card), two cover screws, two screws to secure the Arduino board, four self-adhesive rubber feet and an instruction sheet. Panels can be swapped to suit the board you are housing; an Arduino 101 panel is sold separately. The board itself is not included.

• Cover secured with self-tapping screws; inside top accepts a #4 self-tapping screw
• Back cover accepts an M2.6 self-tapping panel screw
• Recommended cover screw torque: 57 lbf-in (40 cN-m)
• RoHS and REACH compliant; shipped shrink wrapped at 0.13 lbs (0.06 kg)

Need a plain box instead? The same enclosure is offered without cutouts in the 1593 series (1593AR). The 1593HAMARTBU can also be factory modified with milling, drilling or printing, and solid models are available in .stp or .x_t. Avoid acetone, ketones, thread-locking compounds and strong solvents, which can damage ABS.
