Hammond 1590Z166PL 360 x 160 mm Enclosure Steel Inner Mounting Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Inner mounting panel for 1590Z166, 1590Z166BK and 1590Z166GY enclosures
- 13.57 in x 5.71 in x 0.06 in (345 mm x 145 mm x 2 mm)
- 16 gauge galvanized steel
- Outline matches the 1590Z166 max. P.C. board size of 344.7 x 145 mm
- Mounts on the internal shelf; SCGM6-20 listed as extra panel screws
- RoHS and REACH compliant; shrink wrapped

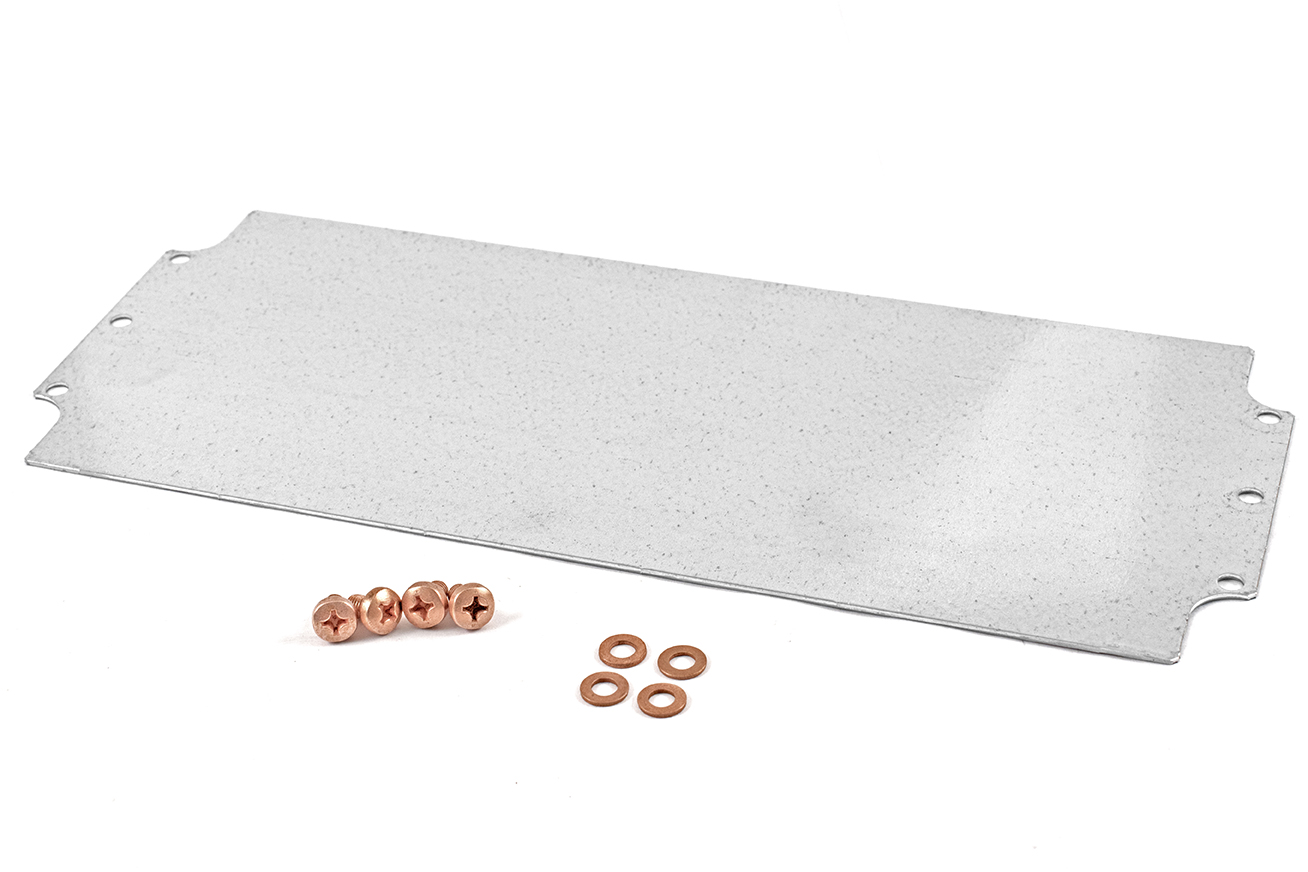

The 1590Z166PL is the steel inner mounting panel for the 1590Z166 diecast aluminum enclosures, which measure 14.17 in (360 mm) long, 6.30 in (160 mm) wide and 3.54 in (90 mm) deep. It fits the natural 1590Z166, the black 1590Z166BK and the gray 1590Z166GY and provides a full-length plate for circuit boards, relays and wiring components.
The panel is 16 gauge galvanized steel. Its part page size is 13.57 in x 5.71 in x 0.06 in (345 mm x 145 mm x 2 mm), and the drawing dimensions the outline at 344.70 mm [13.57 in] by 145.00 mm [5.71 in]. Those figures correspond to the maximum P.C. board size listed for the 1590Z166 (344.7 mm and 145 mm).

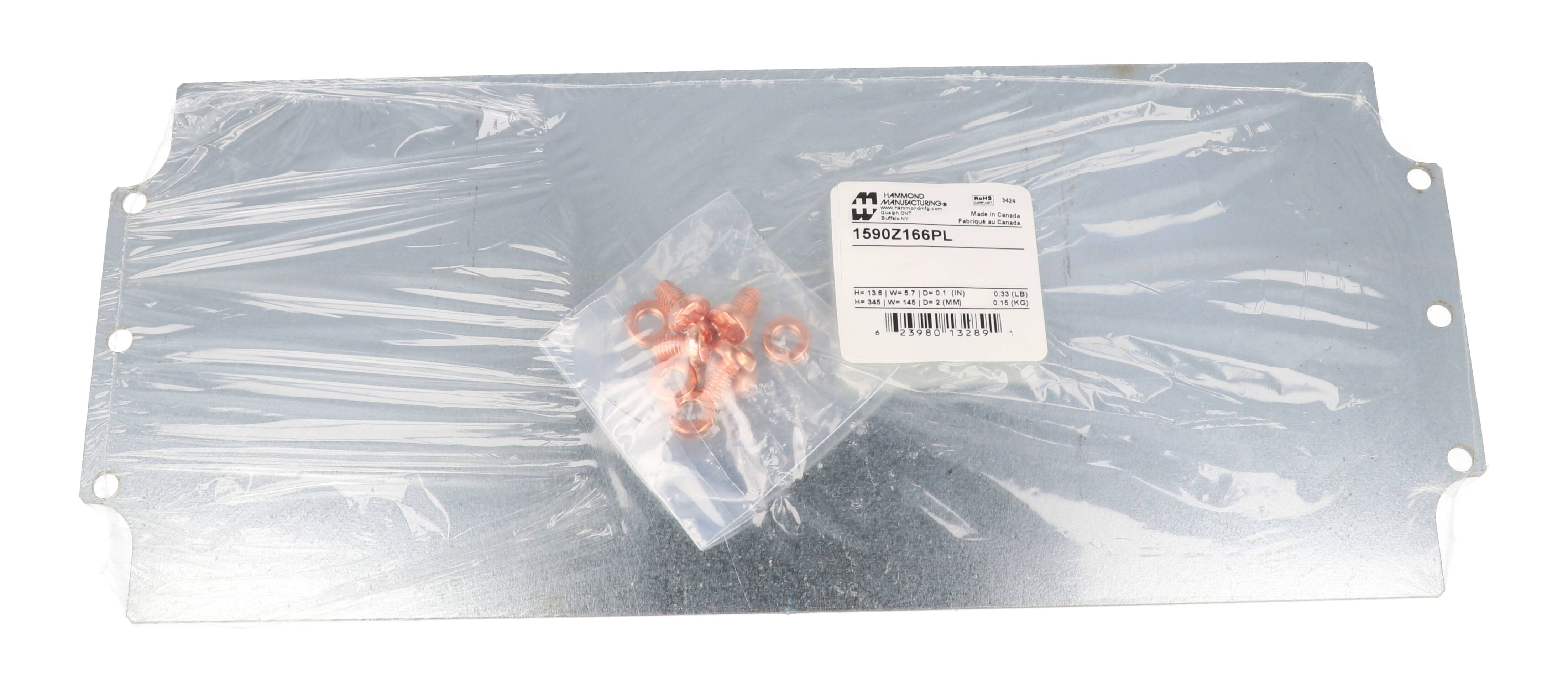

The panel fastens to the enclosure's internal mounting shelf. SCGM6-20 is listed in the ordering table as the extra panel screws for this enclosure. The 1590Z166PL is sold separately, packed in shrink wrap, with a listed shipping weight of 0.33 lbs (0.15 kg).
It is RoHS and REACH compliant and carries UNSPSC 39121301. Building your electronics on the panel first makes it easier to wire and test outside the box before installation.
Ideal For
- Mounting boards and relays inside a 1590Z166 enclosure
- Pre-wiring control electronics on a removable plate
- Adding a steel sub-panel to a 360 x 160 x 90 mm diecast box
Overview
| Type | Inner Panel |
| Description | 1590Z166 INNER PANEL |
| Part Number | 1590Z166PL |
| Fits Enclosures | 1590Z166, 1590Z166BK, 1590Z166GY |
| Long Description | inner mounting panel for 1590Z166 enclosures |
Dimensions
| Size (L X W X H) | 13.57 in x 5.71 in x 0.06 in (345 mm x 145 mm x 2 mm) |
| Panel Width (Drawing) | 145.00 mm [5.71 in] |
| Panel Length (Drawing) | 344.70 mm [13.57 in] |
Identifiers
| UPC | 623980132891 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Sold | Separately from the enclosure |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.33 lbs (0.15 kg) |
Construction & Finish
| Material | Steel |
| Panel Material (Drawing) | 16 gauge galvanized steel |
| Extra Panel Screws (Listed For Enclosure) | SCGM6-20 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures take the 1590Z166PL?▾
The 1590Z166, 1590Z166BK and 1590Z166GY enclosures (360 x 160 x 90 mm).
What are its dimensions?▾
13.57 in x 5.71 in x 0.06 in (345 mm x 145 mm x 2 mm).
What steel is used?▾
16 gauge galvanized steel.
What screws are listed for mounting it?▾
The series ordering table lists SCGM6-20 as the extra panel screws for the 1590Z166 enclosures.
Does it come with the enclosure?▾
No, inner panels are sold separately.
