Hammond 1590Z166G 360 x 160 mm Silicone Replacement Gasket, Pack of 2
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two replacement gaskets for 1590Z166, 1590Z166BK and 1590Z166GY
- Pre-formed one-piece silicone rubber
- Temperature rating -40C to +150C (-40F to 302F)
- IP66 rating per the part page
- 14.06 in x 6.17 in x 0.14 in (357 mm x 157 mm x 4 mm)
- RoHS and REACH compliant; packed in a bag

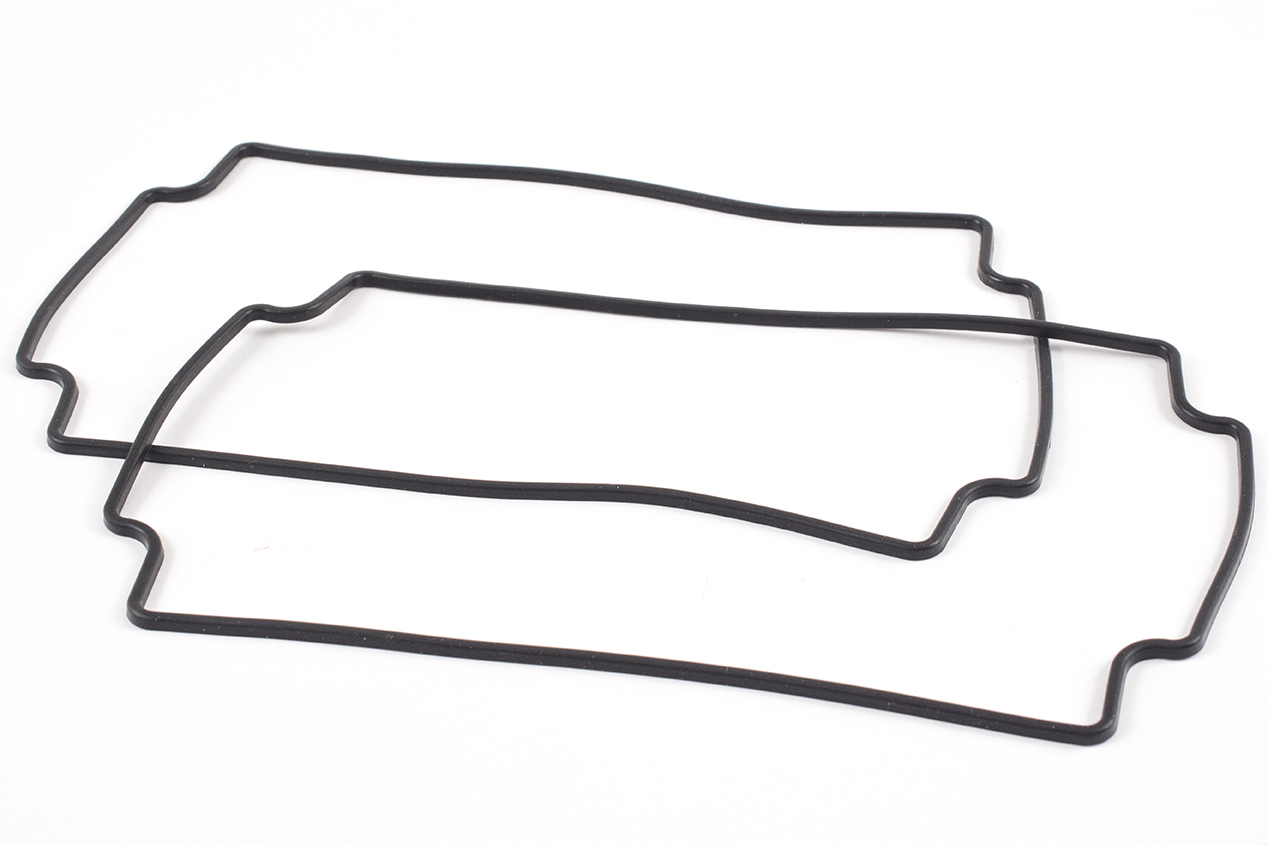

The 1590Z166G contains two pre-formed silicone rubber replacement gaskets for the 1590Z166 diecast aluminum enclosures: 1590Z166 (natural), 1590Z166BK (black) and 1590Z166GY (gray). Those enclosures measure 14.17 in (360 mm) long, 6.30 in (160 mm) wide and 3.54 in (90 mm) deep. The pack lets facilities and service teams restore the lid seal after repeated opening or when a gasket is damaged.
In the 1590Z series, a replaceable one-piece silicone rubber gasket in the tongue and groove joint between box and lid protects against dust and water. The gasket is rated -40C to +150C (-40F to 302F), and the part page shows an IP66 rating.
The part page lists the size as 14.06 in x 6.17 in x 0.14 in (357 mm x 157 mm x 4 mm). The drawing dimensions the gasket at 14.057 in [357.06 mm] by 6.168 in [156.66 mm] with a 0.138 in [3.50 mm] section. The material is silicone rubber, with an alternate material from SHIN-ETSU, Type KE-931U and KE-941U (1:1) mixture.

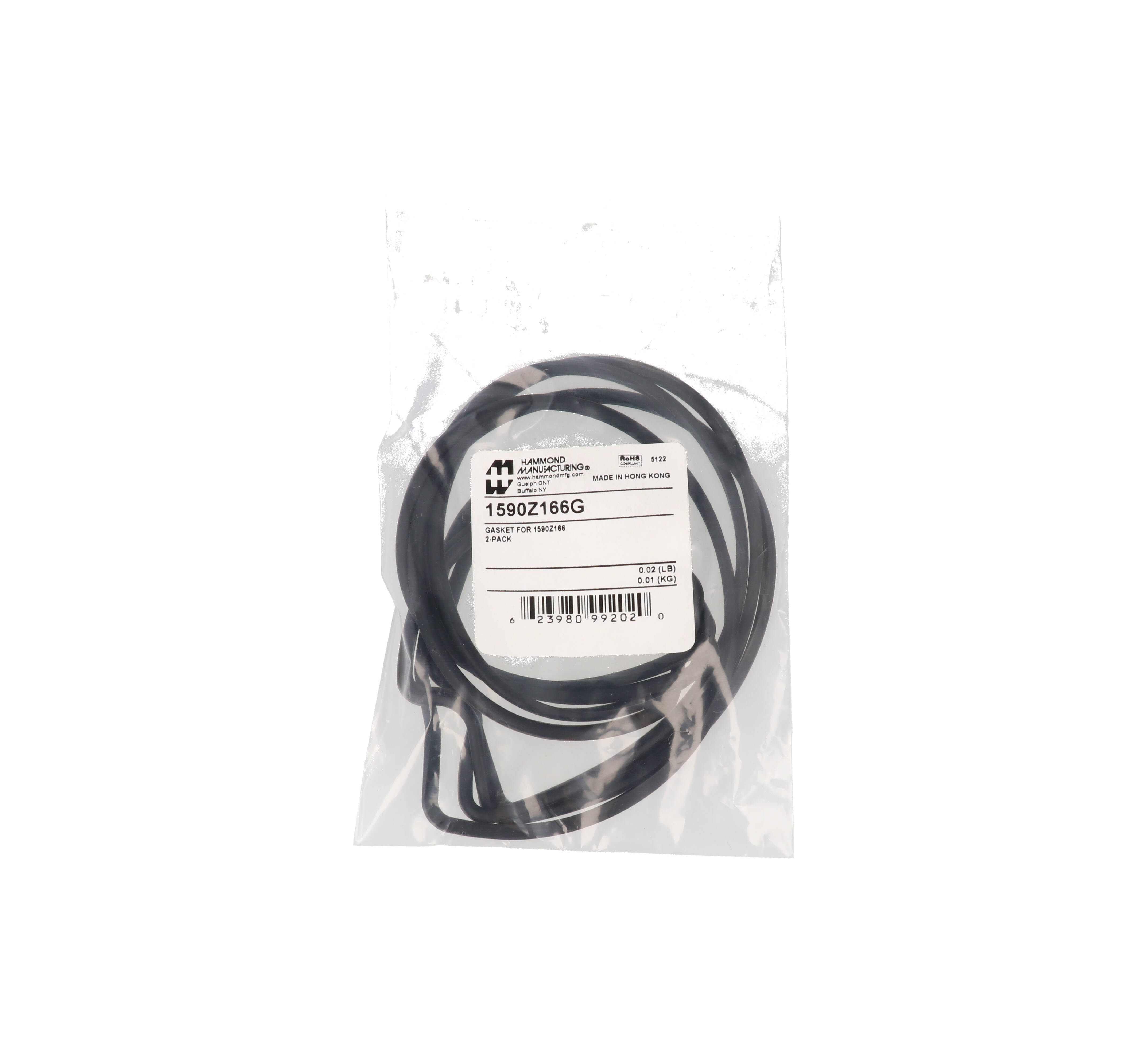

The 1590Z166G is bagged, weighs 0.02 lbs (0.01 kg) shipped, is RoHS and REACH compliant, and carries UNSPSC 39121301.
Ideal For
- Replacing the lid gasket on 1590Z166 enclosures
- Spare seals for enclosures in regular service
- Restoring dust and water protection after reopening
Overview
| Form | Pre-formed silicone gasket, one piece |
| Type | Gasket |
| Quantity | Pack of 2 |
| Description | 2x GASKET FOR 1590Z166 |
| Part Number | 1590Z166G |
| Fits Enclosures | 1590Z166, 1590Z166BK, 1590Z166GY |
| Long Description | replacement gasket for 1590Z166 enclosures |
Dimensions
| Size (L X W X H) | 14.06 in x 6.17 in x 0.14 in (357 mm x 157 mm x 4 mm) |
| Gasket Cross-Section | 0.138 in [3.50 mm] |
| Gasket Width (Drawing) | 6.168 in [156.66 mm] |
| Gasket Length (Drawing) | 14.057 in [357.06 mm] |
Identifiers
| UPC | 623980992020 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Material | Silicone |
| Alternate Material | Manufactured by SHIN-ETSU, Type KE-931U & KE-941U (1:1) mixture |
| Material (Drawing) | Silicone Rubber |
Environmental & Protection
| IP Rating | IP66 |
| Temperature Rating | -40C to +150C (-40F to 302F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1590Z166G fit?▾
The 1590Z166, 1590Z166BK and 1590Z166GY enclosures.
How many gaskets are included?▾
Two gaskets per pack.
What temperatures is it rated for?▾
-40C to +150C (-40F to 302F).
What are the dimensions?▾
14.06 in x 6.17 in x 0.14 in (357 mm x 157 mm x 4 mm); the drawing shows 14.057 in [357.06 mm] by 6.168 in [156.66 mm] with a 0.138 in [3.50 mm] section.
Is there an alternate material?▾
Yes. The drawing lists silicone rubber, with an alternate material by SHIN-ETSU, Type KE-931U & KE-941U (1:1) mixture.
