Hammond 1590Z164G Silicone Replacement Gasket 2-Pack, 360 x 122 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pack of 2 replacement gaskets for 1590Z164, 1590Z164BK and 1590Z164GY
- Pre-formed one-piece silicone rubber gasket
- Rated -40C to +150C (-40F to 302F)
- IP66 rating on the part page
- 14.1 in x 4.52 in x 0.12 in (358 mm x 115 mm x 3 mm)
- Alternate material: SHIN-ETSU KE-931U & KE-941U (1:1) mixture
- RoHS and REACH compliant; bag packaging

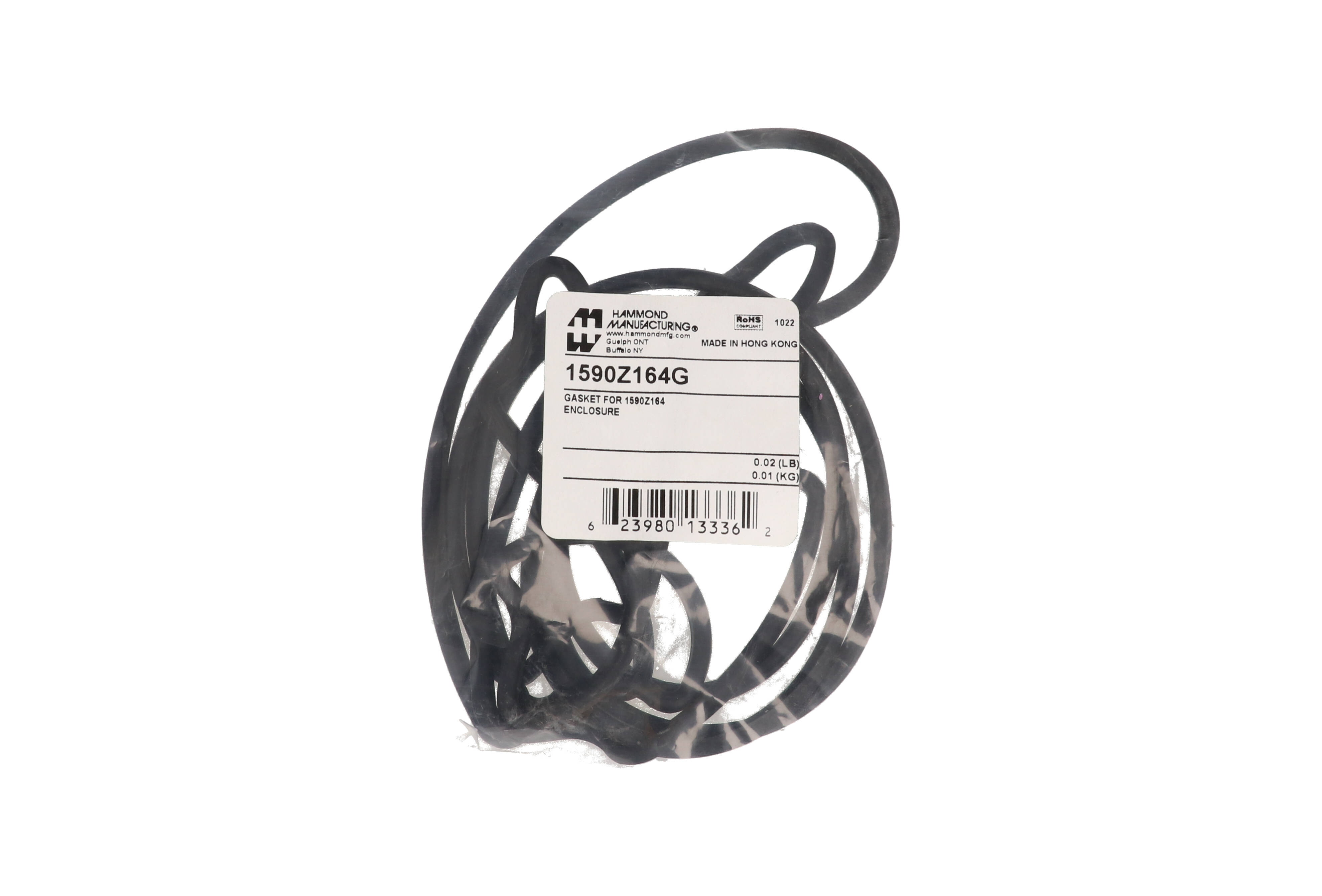

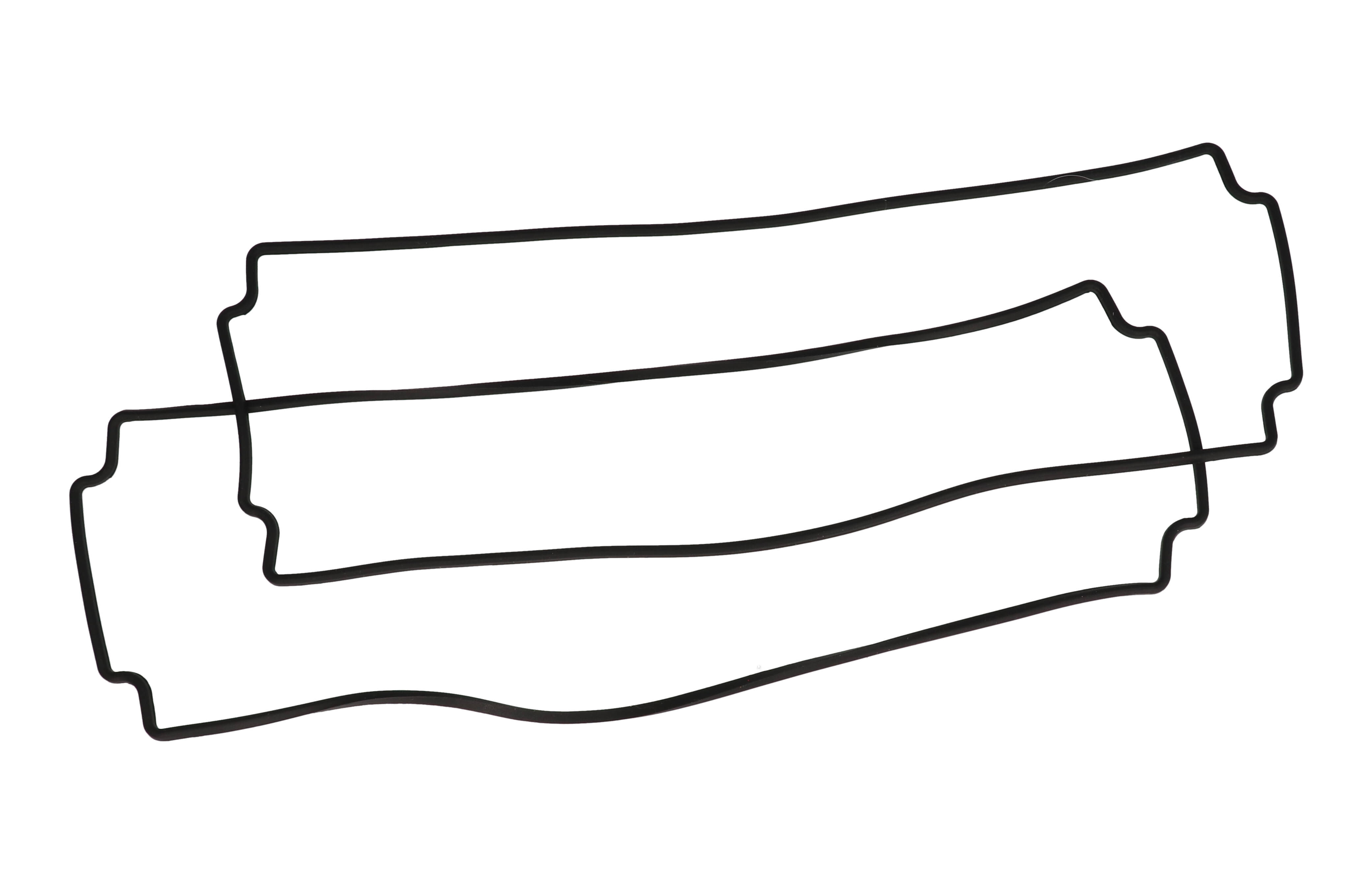

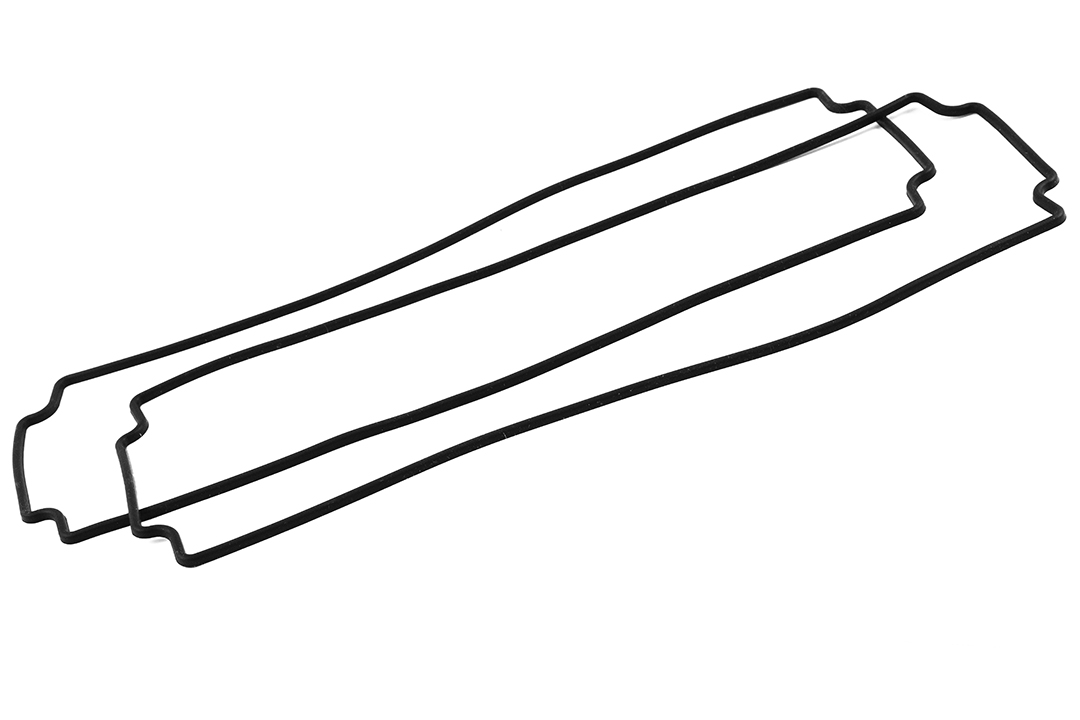

The 1590Z164G is a two-pack of pre-formed silicone rubber replacement gaskets for the long 1590Z164 diecast aluminum enclosures: the natural 1590Z164, the black 1590Z164BK and the gray 1590Z164GY. These boxes measure 14.17 in (360 mm) by 4.80 in (122 mm) with a 3.15 in (80 mm) total depth, and this gasket reseals the lid when the original is worn or damaged.
The 1590Z series uses a two-piece tongue and groove design with a replaceable one-piece silicone rubber gasket that protects against dust and water. The gasket's temperature rating is -40C to +150C (-40F to 302F), and the part page lists the gasket at IP66.
The part page gives the size as 14.1 in x 4.52 in x 0.12 in (358 mm x 115 mm x 3 mm). The drawing shows 14.090 in [357.88 mm] by 4.521 in [114.83 mm], with a section of 0.118 in [3.00 mm] by 0.134 in [3.40 mm]. The drawing specifies silicone rubber, with an alternate material from SHIN-ETSU, Type KE-931U and KE-941U (1:1) mixture.
Each 1590Z164G ships in a bag at 0.02 lbs (0.01 kg). It is RoHS and REACH compliant, UNSPSC 39121301.
Ideal For
- Replacing the lid gasket on 1590Z164 enclosures
- Keeping spare seals for frequently serviced enclosures
- Resealing a 360 x 122 mm diecast box after maintenance
Overview
| Form | Pre-formed silicone gasket, one piece |
| Type | Gasket |
| Quantity | Pack of 2 |
| Description | 2x GASKET FOR 1590Z164 |
| Part Number | 1590Z164G |
| Fits Enclosures | 1590Z164, 1590Z164BK, 1590Z164GY |
| Long Description | replacement gasket for 1590Z164 enclosures |
Dimensions
| Size (L X W X H) | 14.1 in x 4.52 in x 0.12 in (358 mm x 115 mm x 3 mm) |
| Gasket Cross-Section | 0.118 in [3.00 mm] x 0.134 in [3.40 mm] |
| Gasket Width (Drawing) | 4.521 in [114.83 mm] |
| Gasket Length (Drawing) | 14.090 in [357.88 mm] |
Identifiers
| UPC | 623980133362 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Material | Silicone |
| Alternate Material | Manufactured by SHIN-ETSU, Type KE-931U & KE-941U (1:1) mixture |
| Material (Drawing) | Silicone Rubber |
Environmental & Protection
| IP Rating | IP66 |
| Temperature Rating | -40C to +150C (-40F to 302F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures is the 1590Z164G for?▾
The 1590Z164, 1590Z164BK and 1590Z164GY diecast aluminum enclosures.
How many gaskets come in a pack?▾
Two.
What is the gasket's temperature rating?▾
-40C to +150C (-40F to 302F).
What are the gasket dimensions?▾
14.1 in x 4.52 in x 0.12 in (358 mm x 115 mm x 3 mm); the drawing shows 14.090 in [357.88 mm] by 4.521 in [114.83 mm].
What material is used?▾
Silicone rubber, with an alternate material by SHIN-ETSU, Type KE-931U & KE-941U (1:1) mixture.
Related Products

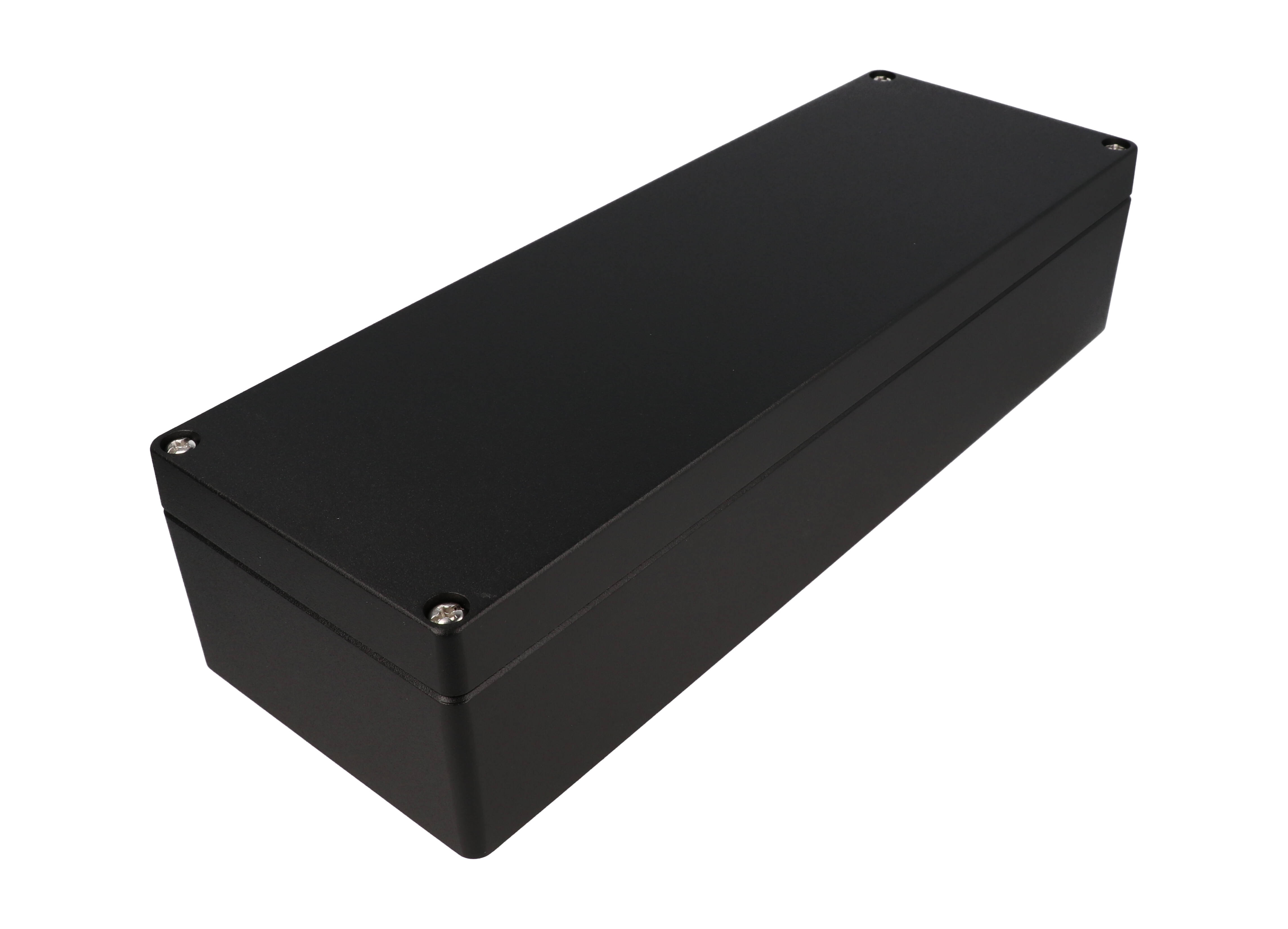

Save 52%1590Z164BK — enclosure - diecast
Hammond Manufacturing · 1590Z164BK

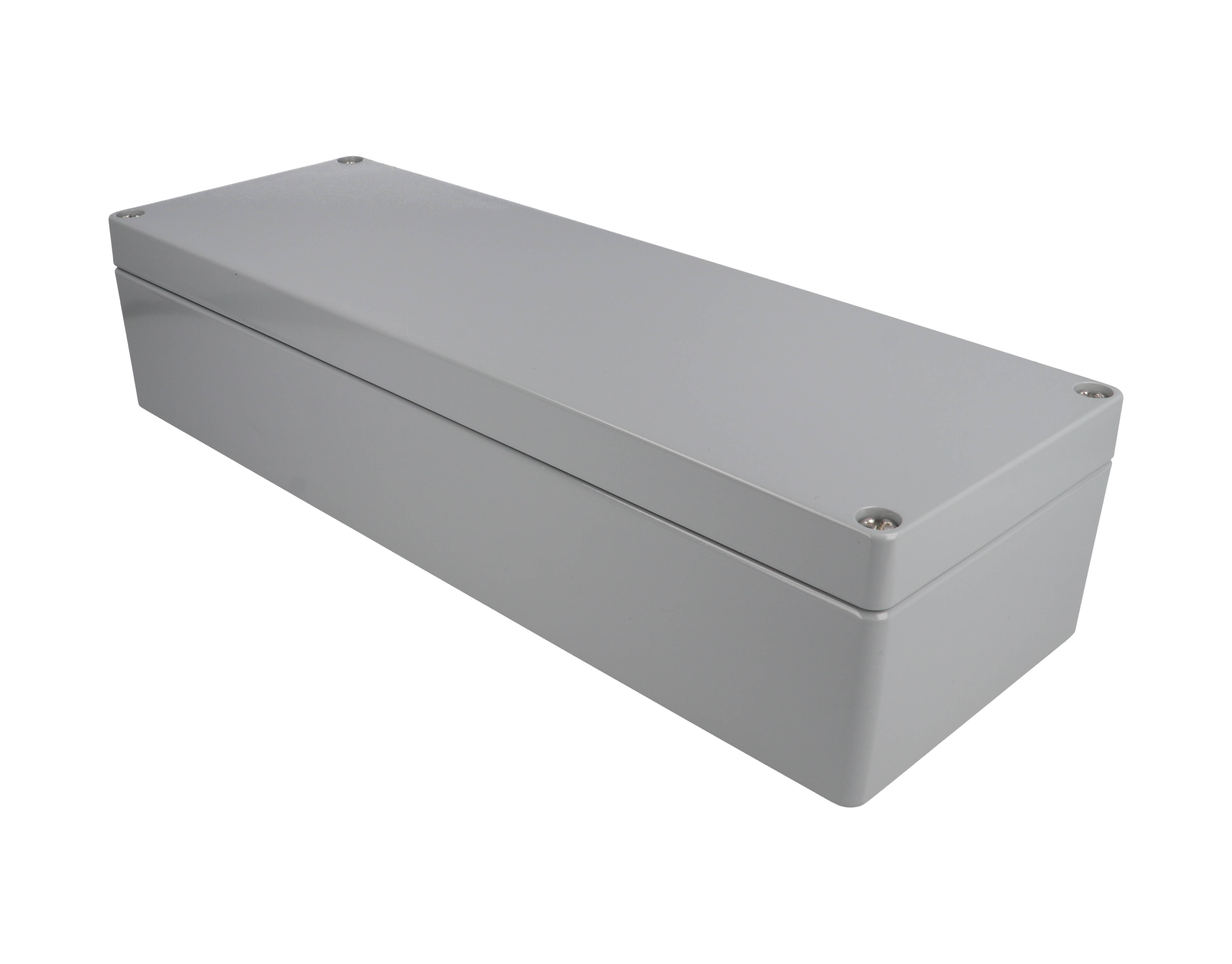

Save 52%1590Z164GY — enclosure - diecast
Hammond Manufacturing · 1590Z164GY

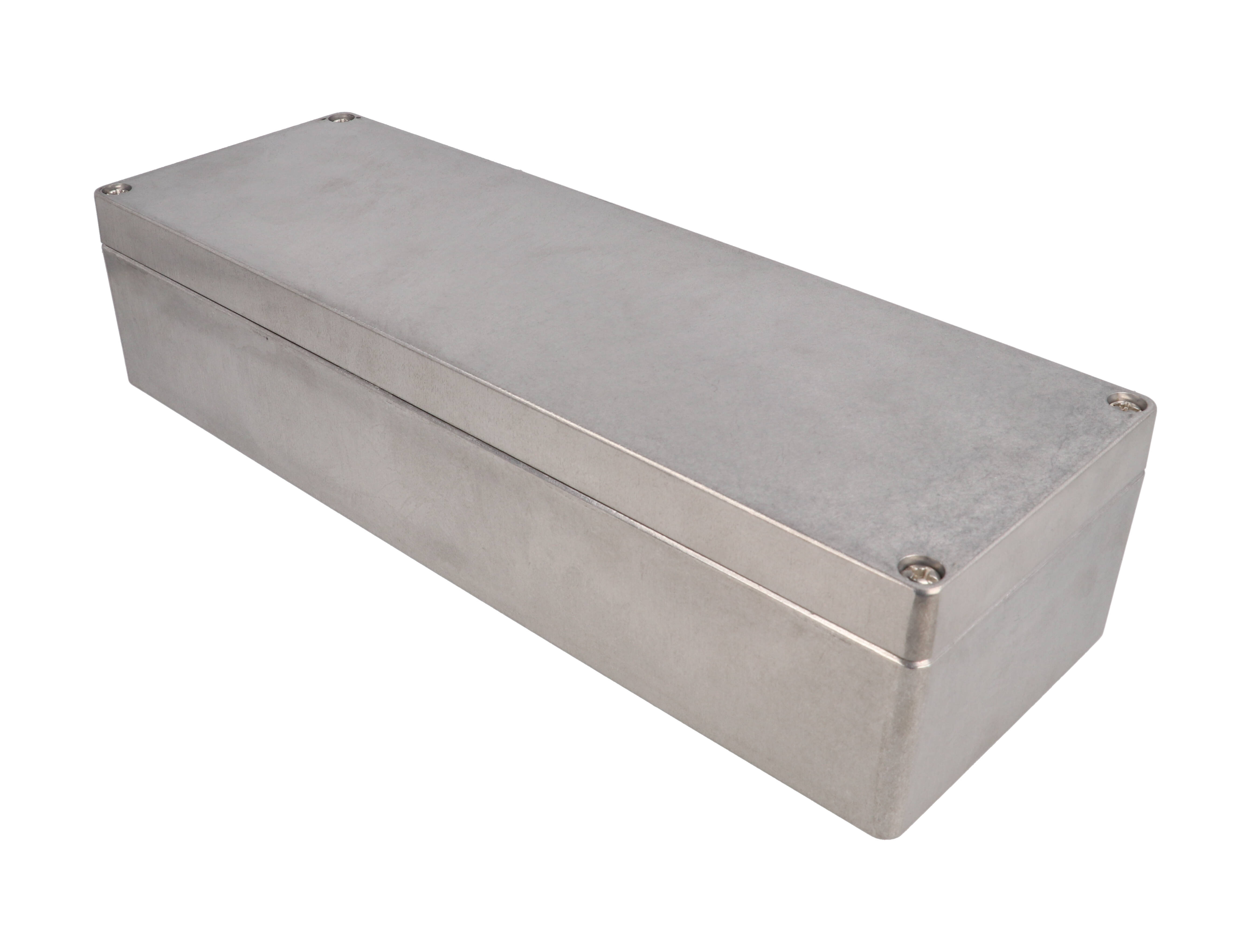

Save 52%1590Z164 — enclosure - diecast
Hammond Manufacturing · 1590Z164

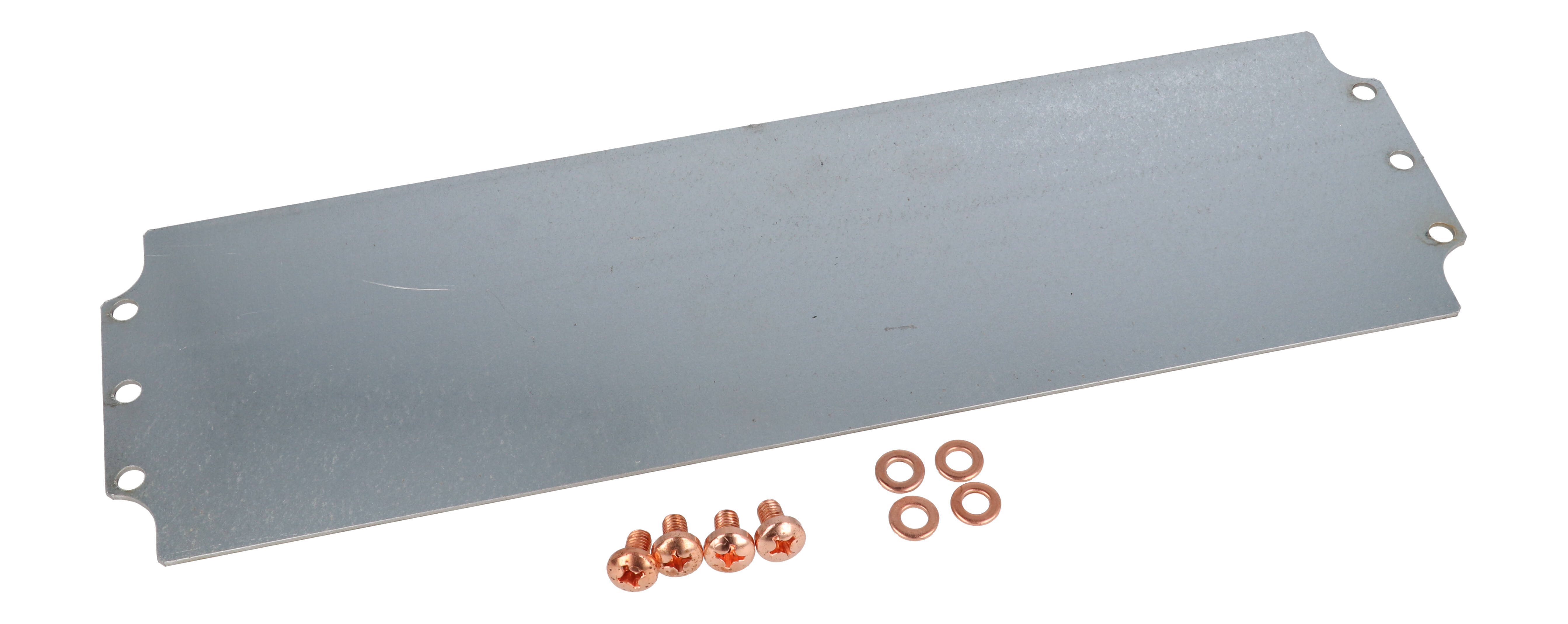

Save 52%1590Z164PL — inner mounting panel for 1590Z164 enclosures
