Hammond 1590Z145PL 188 x 88 mm Steel Inner Mounting Panel
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Inner panel listed for 1590Z145, 1590Z145BK and 1590Z145GY
- 188 x 88 mm steel plate, 1.50 mm thick per drawing
- Sits on the enclosure's internal mounting shelf
- Extra panel screws: SCGM4-50
- RoHS and REACH compliant
- Solid models available in .stp or .x_t
The 1590Z145PL is a steel inner mounting panel listed in the 1590Z series ordering table for the 200 x 100 mm 1590Z145 enclosures. It provides a removable plate for mounting boards and components, which then sits on the enclosure's internal mounting shelf.

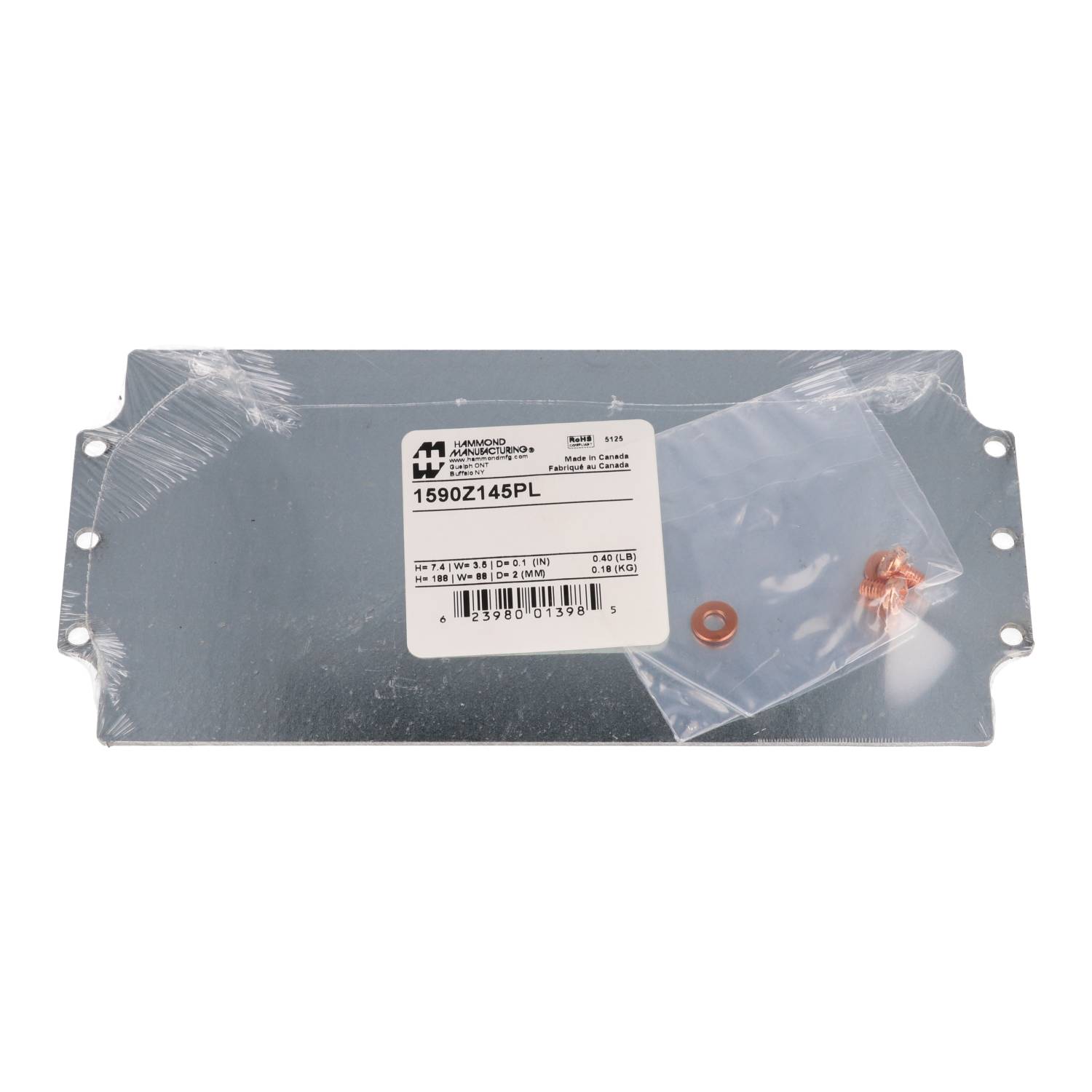

The panel measures 188 mm x 88 mm x 2 mm (7.4 x 3.46 x 0.06 in), and the drawing dimensions it at 188.00 mm [7.40 in] by 88.00 mm [3.46 in] with a 1.50 mm [.06 in] thickness. It is steel; the 1590Z series specifies 16 gauge galvanized steel for its optional inner panels. Shipping weight is 0.4 lbs (0.18 kg).

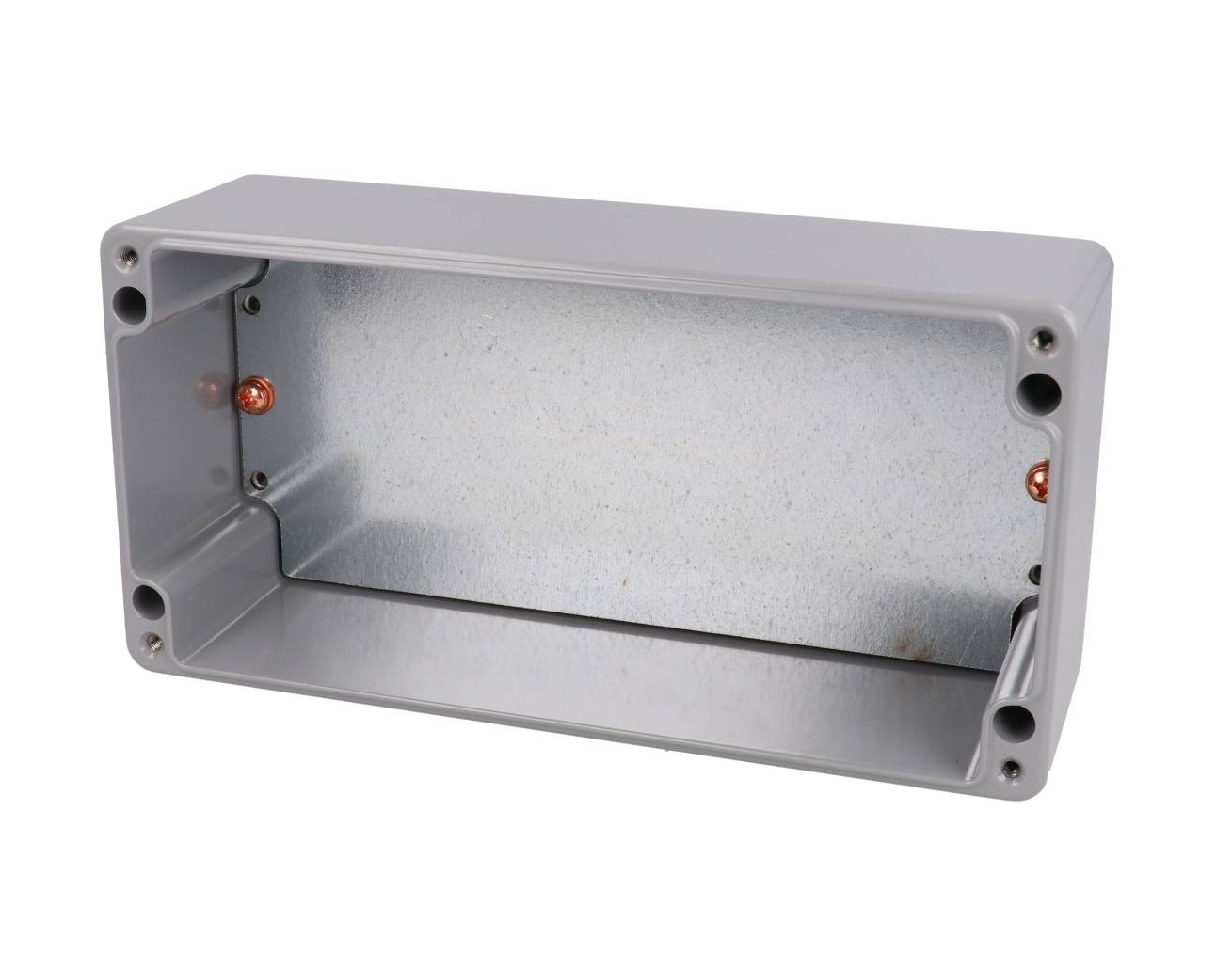

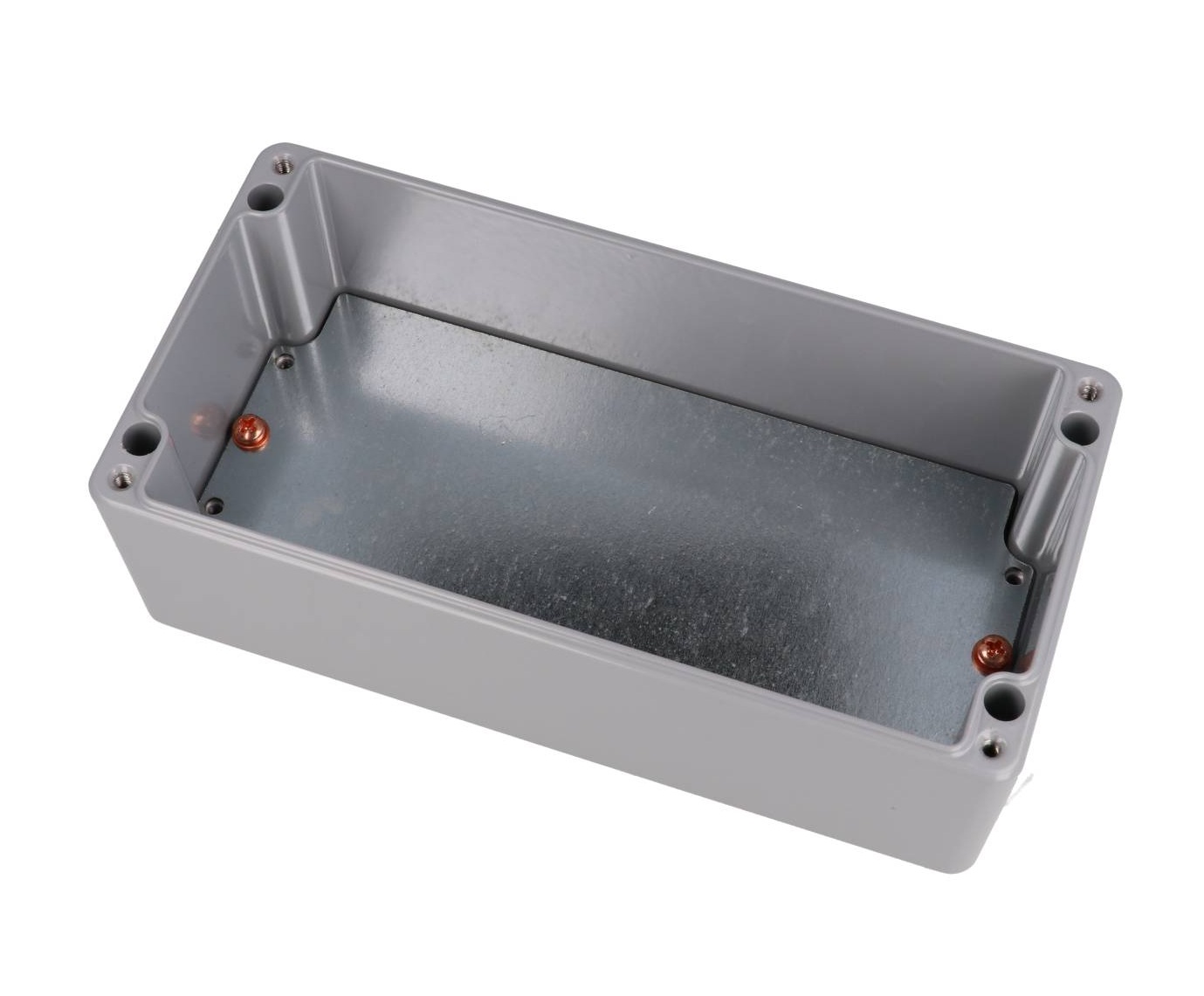

Per the ordering table it fits the 1590Z145 (natural), 1590Z145BK (textured black) and 1590Z145GY (smooth gray) enclosures, which are 200 mm (7.87 in) long, 100 mm (3.94 in) wide and 80 mm (3.15 in) in total depth with a 20 mm lid depth. The part's short description reads "1590Z145 INNER PANEL"; note that the manufacturer's long description text references 1590Z090 enclosures, so confirm fit against your enclosure if in doubt. Extra panel screws for this size are SCGM4-50.
The 1590Z145PL is RoHS and REACH compliant, and solid models are available in .stp or .x_t.
Ideal For
- PCB mounting inside 1590Z145 enclosures
- Removable component mounting plate
- Sub-assembly plate for sealed diecast housings
Overview
| Series | 1590Z Series (Type 4X/ 6P Diecast Aluminum Enclosures) |
| CAD Models | Solid models available in .stp or .x_t |
| Product Type | Inner mounting panel |
| Fits Enclosures | 1590Z145, 1590Z145BK, 1590Z145GY (per series ordering table) |
| Short Description | 1590Z145 INNER PANEL |
| Mating Enclosure Size | 200 mm (7.87 in) x 100 mm (3.94 in) x 80 mm (3.15 in) total depth, 20 mm (0.79 in) lid depth; internal mounting shelf: YES |
| Manufacturer Description | inner mounting panel for 1590Z090 enclosures |
Dimensions
| Size (L X W X H) | 7.4 in x 3.46 in x 0.06 in (188 mm x 88 mm x 2 mm) |
| Panel Thickness (Drawing) | 1.50 mm [.06 in] |
| Panel Length X Width (Drawing) | 188.00 mm [7.40 in] x 88.00 mm [3.46 in] |
Accessories
| Extra Panel Screws | SCGM4-50 |
Identifiers
| UPC | 623980013985 |
| UNSPSC | 39121301 |
| Part Number | 1590Z145PL |
Packaging & Shipping
| Shipping Weight | 0.4 lbs (0.18 kg) |
Construction & Finish
| Material | Steel |
| Series Panel Material | 16 gauge galvanized steel (optional inner panels, 1590Z series) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosure is the 1590Z145PL for?▾
The series ordering table lists it as the inner panel for 1590Z145, 1590Z145BK and 1590Z145GY, and its short description is "1590Z145 INNER PANEL". The manufacturer's long description mentions 1590Z090 enclosures, so check fit if unsure.
What size is it?▾
188 mm x 88 mm x 2 mm (7.4 in x 3.46 in x 0.06 in); the drawing shows 1.50 mm [.06 in] thickness.
What does it weigh?▾
0.4 lbs (0.18 kg) shipping weight.
Is it compliant with RoHS?▾
Yes, it is RoHS and REACH compliant.
