Hammond 1590Z137PL 190 x 70 mm Galvanized Steel Inner Mounting Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Inner mounting panel for 1590Z137, 1590Z137BK and 1590Z137GY
- 16 gauge galvanized steel per drawing
- 190 x 70 x 2 mm (7.48 x 2.76 x 0.06 in)
- Seats on the enclosure's internal mounting shelf
- Extra panel screws: SCGM4-50
- RoHS and REACH compliant

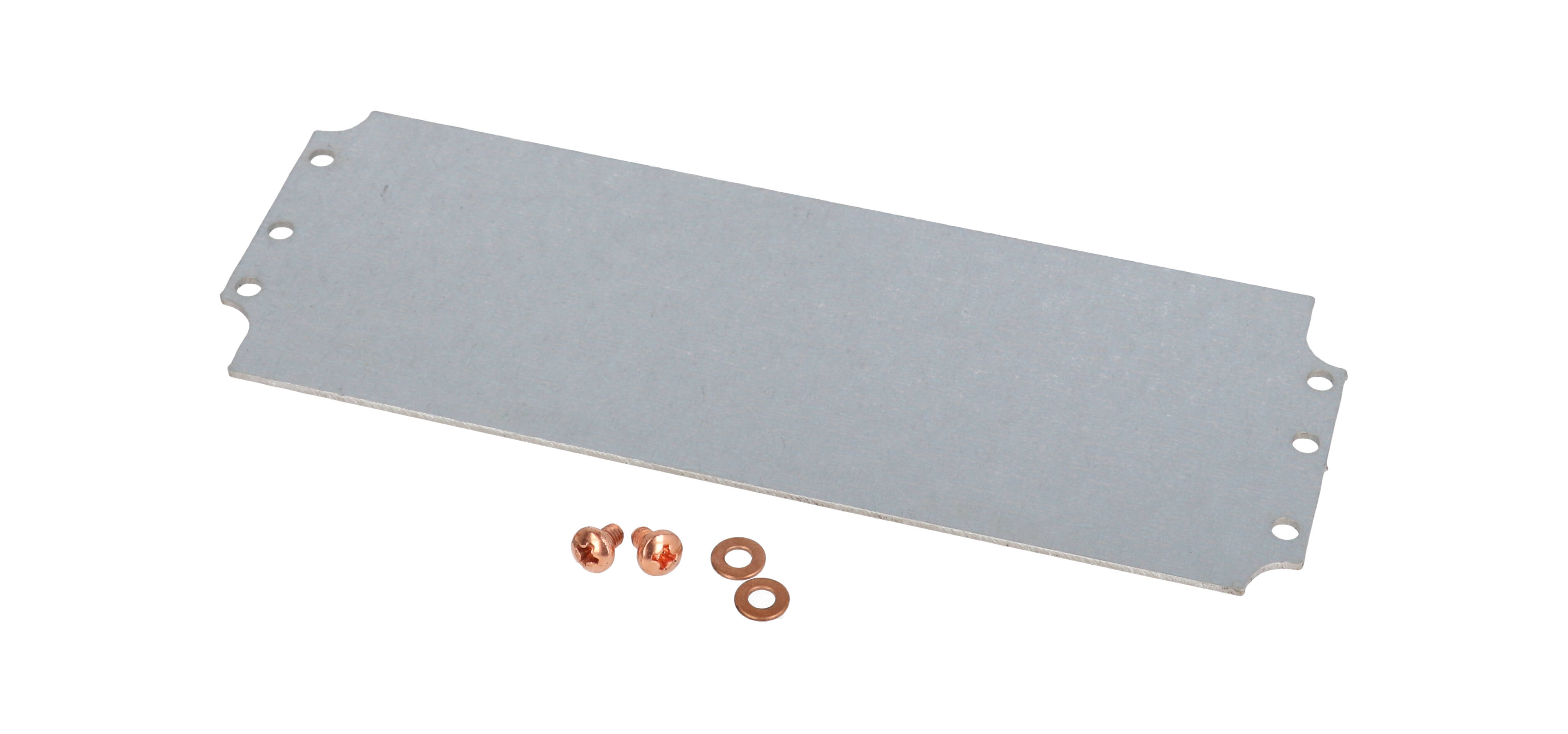

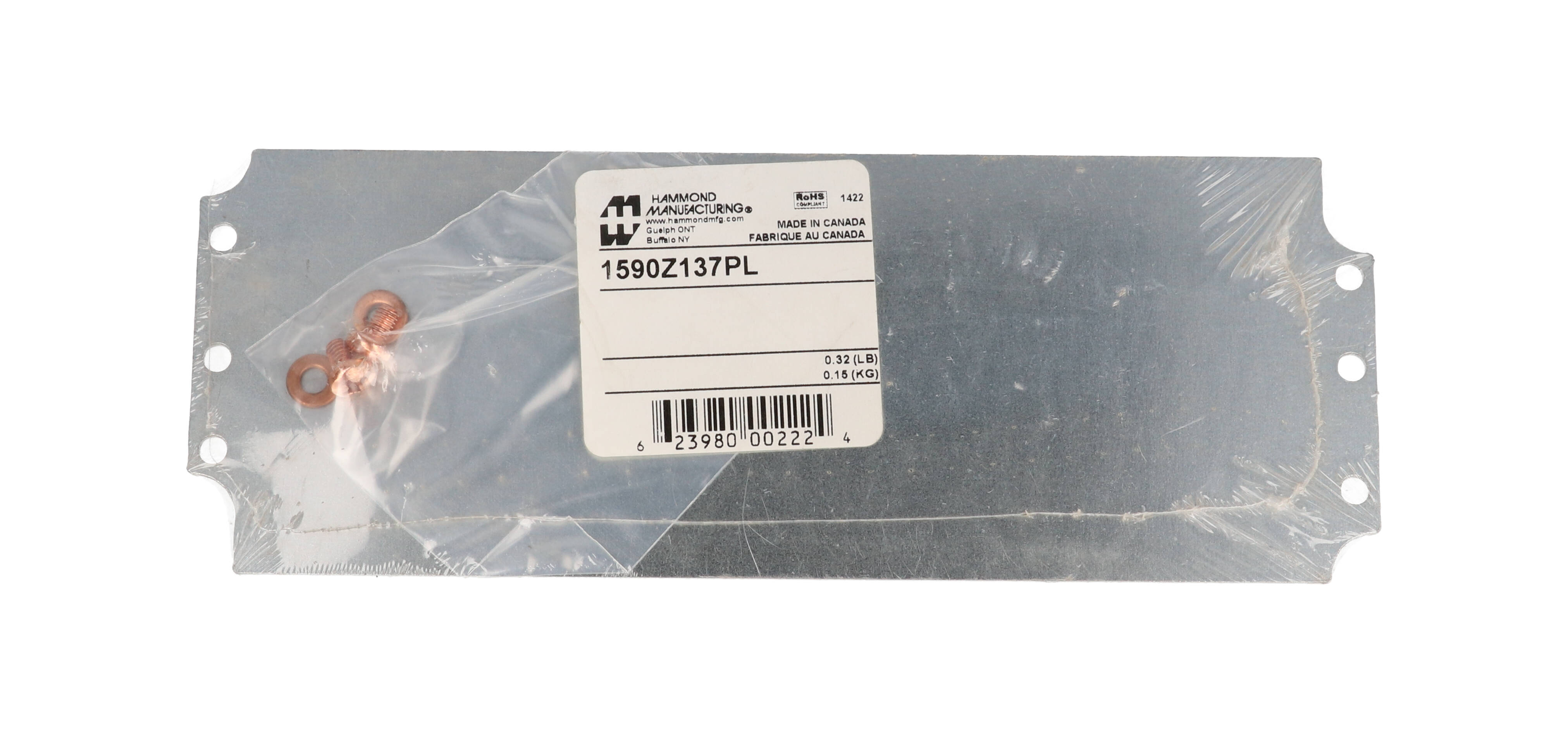

The 1590Z137PL is the inner mounting panel for the 1590Z137 diecast aluminum enclosure family. It gives electronics assemblers a flat steel plate on which to mount circuit boards, terminal strips or components before dropping the assembly into the enclosure.
The panel is steel; the drawing specifies 16 gauge galvanized steel, which the 1590Z series describes as its optional inner panel material. It measures 190 mm x 70 mm x 2 mm (7.48 x 2.76 x 0.06 in) and has a shipping weight of 0.32 lbs (0.15 kg). It is RoHS and REACH compliant.

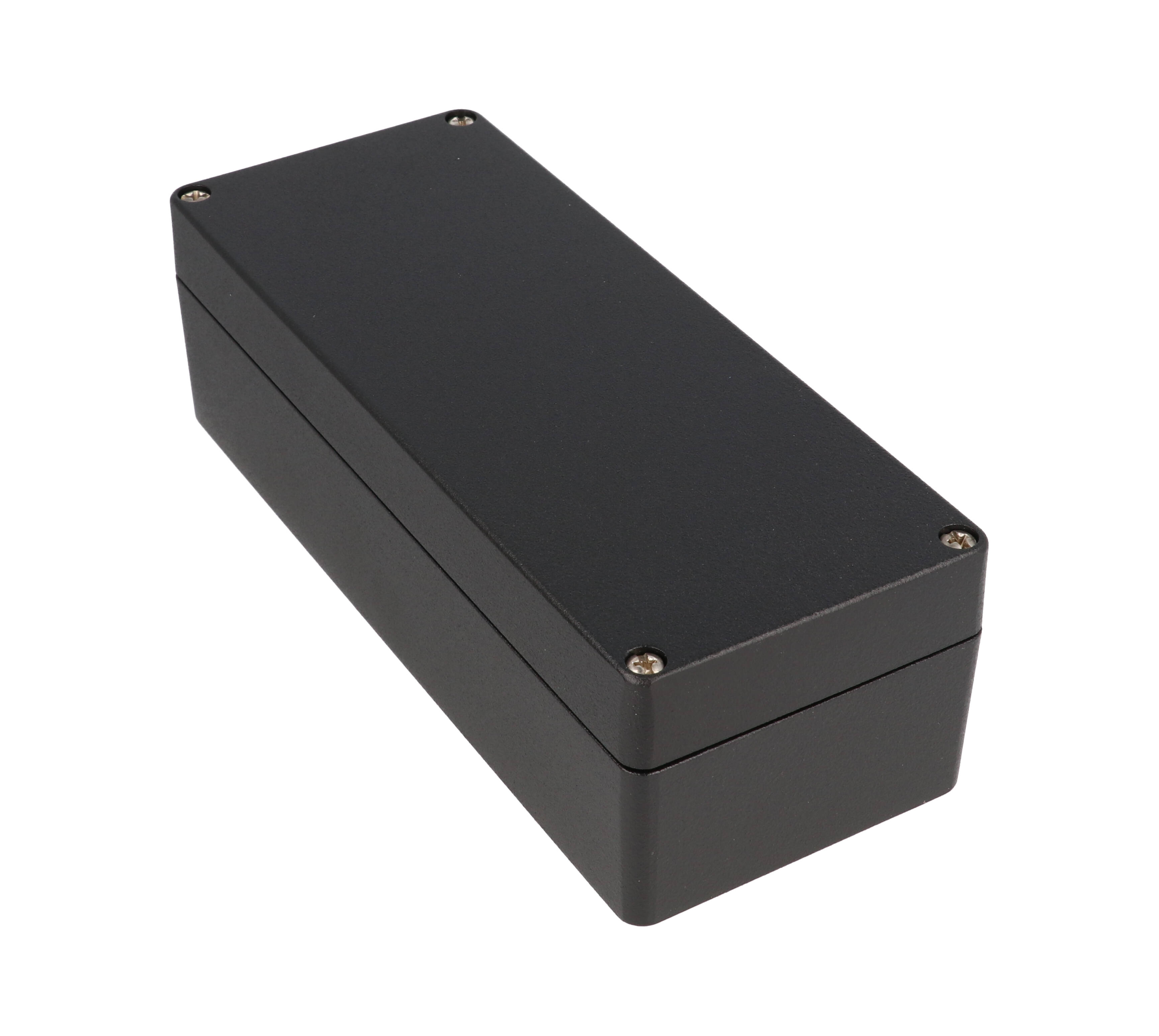

The 1590Z137PL fits the natural 1590Z137, textured black 1590Z137BK and smooth gray 1590Z137GY enclosures, all of which have an internal mounting shelf. Those enclosures measure 200 mm (7.87 in) long, 80 mm (3.15 in) wide and 60 mm (2.36 in) in total depth with a 20 mm (0.79 in) lid depth. Extra panel screws for this size are listed as SCGM4-50.
Because inner panels in the 1590Z series are sold separately, order the 1590Z137PL alongside the enclosure when your build needs a removable mounting plate. Solid models are available in .stp or .x_t for layout work before drilling or mounting components.
Ideal For
- Mounting PCBs inside 1590Z137 enclosures
- Component and terminal mounting plate
- Removable sub-assembly for sealed enclosures
Overview
| Series | 1590Z Series (Type 4X/ 6P Diecast Aluminum Enclosures) |
| CAD Models | Solid models available in .stp or .x_t |
| Product Type | Inner mounting panel |
| Fits Enclosures | 1590Z137, 1590Z137BK, 1590Z137GY |
| Short Description | 1590Z137 INNER PANEL |
| Mating Enclosure Size | 200 mm (7.87 in) x 80 mm (3.15 in) x 60 mm (2.36 in) total depth, 20 mm (0.79 in) lid depth; internal mounting shelf: YES |
| Manufacturer Description | inner mounting panel for 1590Z137 enclosures |
Dimensions
| Size (L X W X H) | 7.48 in x 2.76 in x 0.06 in (190 mm x 70 mm x 2 mm) |
Accessories
| Extra Panel Screws | SCGM4-50 |
Identifiers
| UPC | 623980002224 |
| UNSPSC | 39121301 |
| Part Number | 1590Z137PL |
Packaging & Shipping
| Shipping Weight | 0.32 lbs (0.15 kg) |
Construction & Finish
| Material | Steel |
| Panel Material (Drawing) | 16 gauge galvanized steel |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1590Z137PL fit?▾
It is the inner mounting panel for 1590Z137 enclosures: 1590Z137 (natural), 1590Z137BK (black) and 1590Z137GY (gray).
What is the panel made of?▾
Steel; the drawing specifies 16 gauge galvanized steel.
How big is the panel?▾
190 mm x 70 mm x 2 mm (7.48 in x 2.76 in x 0.06 in).
Are screws included for the panel?▾
The data lists SCGM4-50 as the extra panel screws for this enclosure size.
