Hammond 1590YGASKET Silicone IP65 Gasket 2-Pack for 1590Y Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Converts 1590Y enclosures from IP54 to IP65
- Two pre-formed silicone gaskets per kit
- Adhesive backing; applied to the lid
- Rated -40°C to 150°C (-40°F to 302°F)
- Fits natural and black 1590Y, flanged-lid and flanged-bottom versions
- Install after machining or painting
- RoHS and REACH compliant

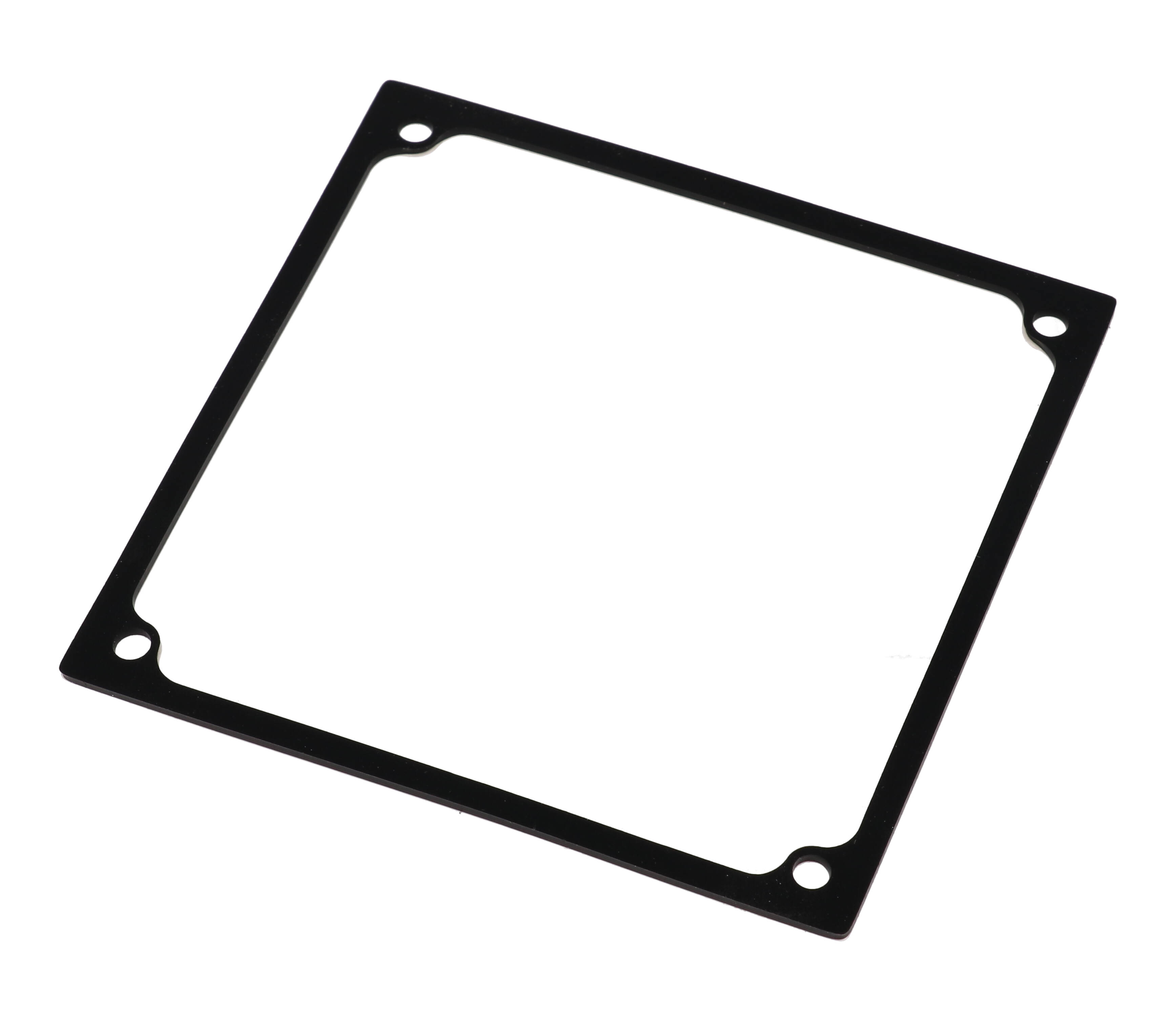

The 1590YGASKET is the silicone gasket kit for the square 92 x 92 x 42 mm 1590Y diecast aluminum enclosures. Use it to upgrade a standard IP54 1590Y box to IP65, or to replace the gasket in a water-tight 1590WY model.
Each kit includes two pre-formed silicone gaskets with adhesive backing for easy installation. Because the gasket is applied to the lid, you can machine and/or paint the enclosure first and gasket it later. The gasket has a temperature rating of -40°C to 150°C (-40°F to 302°F).
The series ordering table lists the 1590YGASKET for every 1590Y configuration in natural and black: no-flange (1590Y, 1590WY), flanged lid (1590YFL, 1590WYFL) and flanged bottom plate (1590YF, 1590WYF), plus the BK equivalents of each.

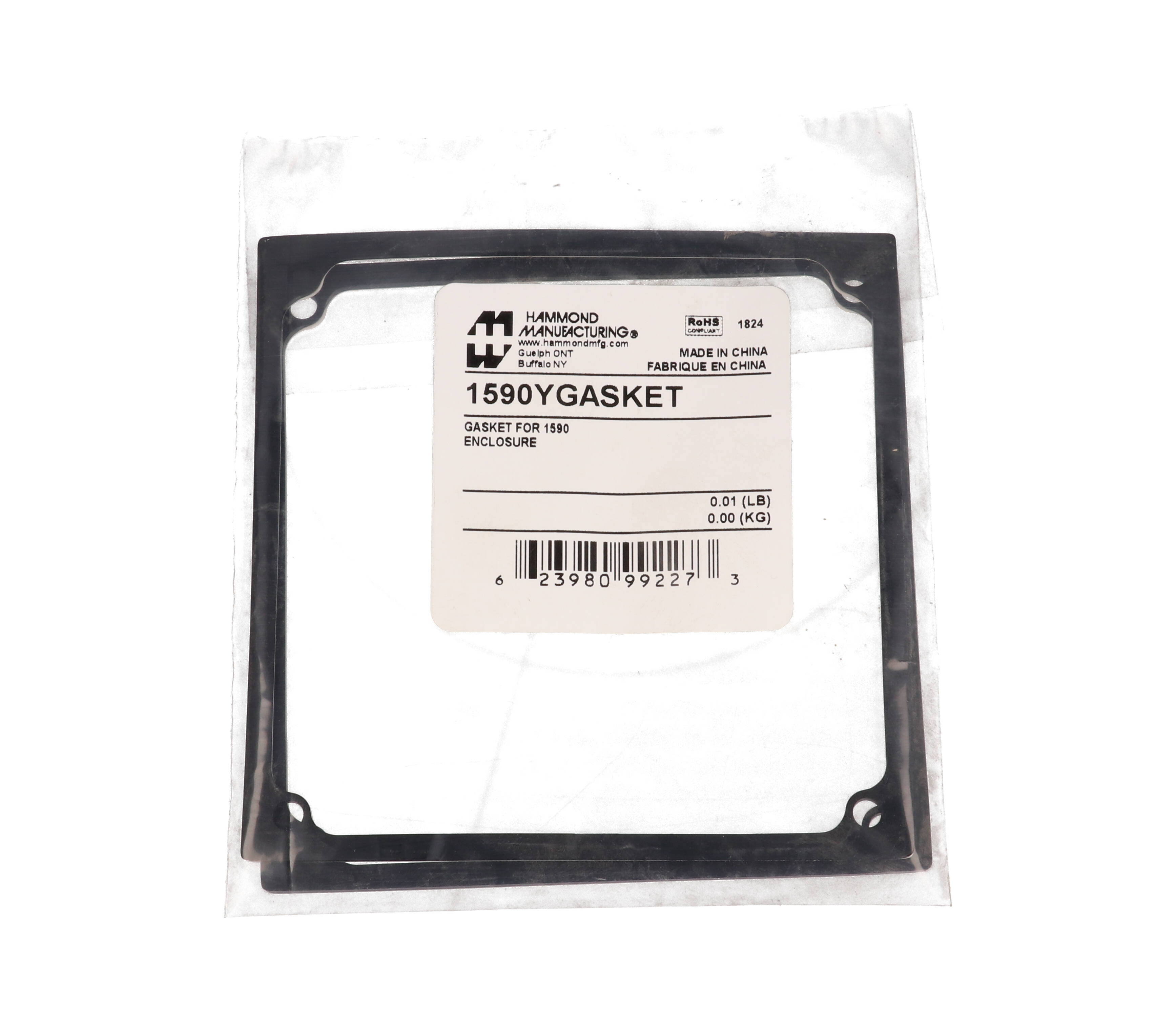

The enclosure is designed to meet IP65 with a properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in). When converting a standard box to water-tight, also order stainless steel screws with O-ring (1590WMS100, or black 1590WMS100BK). The 1590YGASKET is packed in a bag, has a listed shipping weight of 0.01 lbs (0.00 kg), and is RoHS and REACH compliant.
Ideal For
- Upgrading standard 1590Y boxes to IP65
- Replacing gaskets on water-tight 1590WY enclosures
- Sealing enclosures after machining or painting
- Electronics exposed to dust and water
Overview
| Type | Gasket |
| Quantity | 2 pre-formed silicone gaskets per kit |
| Part Number | 1590YGASKET |
| Long Description | silicone gasket for 1590Y enclosures, 2-pack |
| Short Description | SILICONE GASKET 2 PACK |
Identifiers
| UPC | 623980992273 |
| UNSPSC | 39121301 |
Compatibility
| Black Versions | 1590YBK, 1590WYBK, 1590YFLBK, 1590WYFLBK, 1590YFBK, 1590WYFBK |
| Enclosure Size | 1590Y, 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm) |
| Natural Versions | 1590Y, 1590WY, 1590YFL, 1590WYFL, 1590YF, 1590WYF |
| Recommended Screws For Water-Tight Conversion | Stainless steel screws with O-ring: 1590WMS100 / 1590WMS100BK |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Backing | Adhesive backing |
| Material | Silicone |
| Application | Applied to the lid |
Environmental & Protection
| IP Rating | IP65 (with properly installed gasket and lid screws torqued to 25-30 cN.m / 36-43 ozf.in) |
| Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures use the 1590YGASKET?▾
All 1590Y-size enclosures in the ordering table: 1590Y, 1590WY, 1590YFL, 1590WYFL, 1590YF, 1590WYF and their black BK versions.
How many gaskets come in the pack?▾
Two pre-formed silicone gaskets.
What torque is needed for IP65?▾
Lid screws torqued to 25-30 cN.m (36-43 ozf.in) with the gasket properly installed.
Can I paint the enclosure before fitting the gasket?▾
Yes. The kit allows the enclosure to be machined and/or painted first and gasketed later.
What screws should I use when converting to watertight?▾
The manufacturer recommends its watertight stainless steel screws with O-ring, 1590WMS100 or black 1590WMS100BK.
