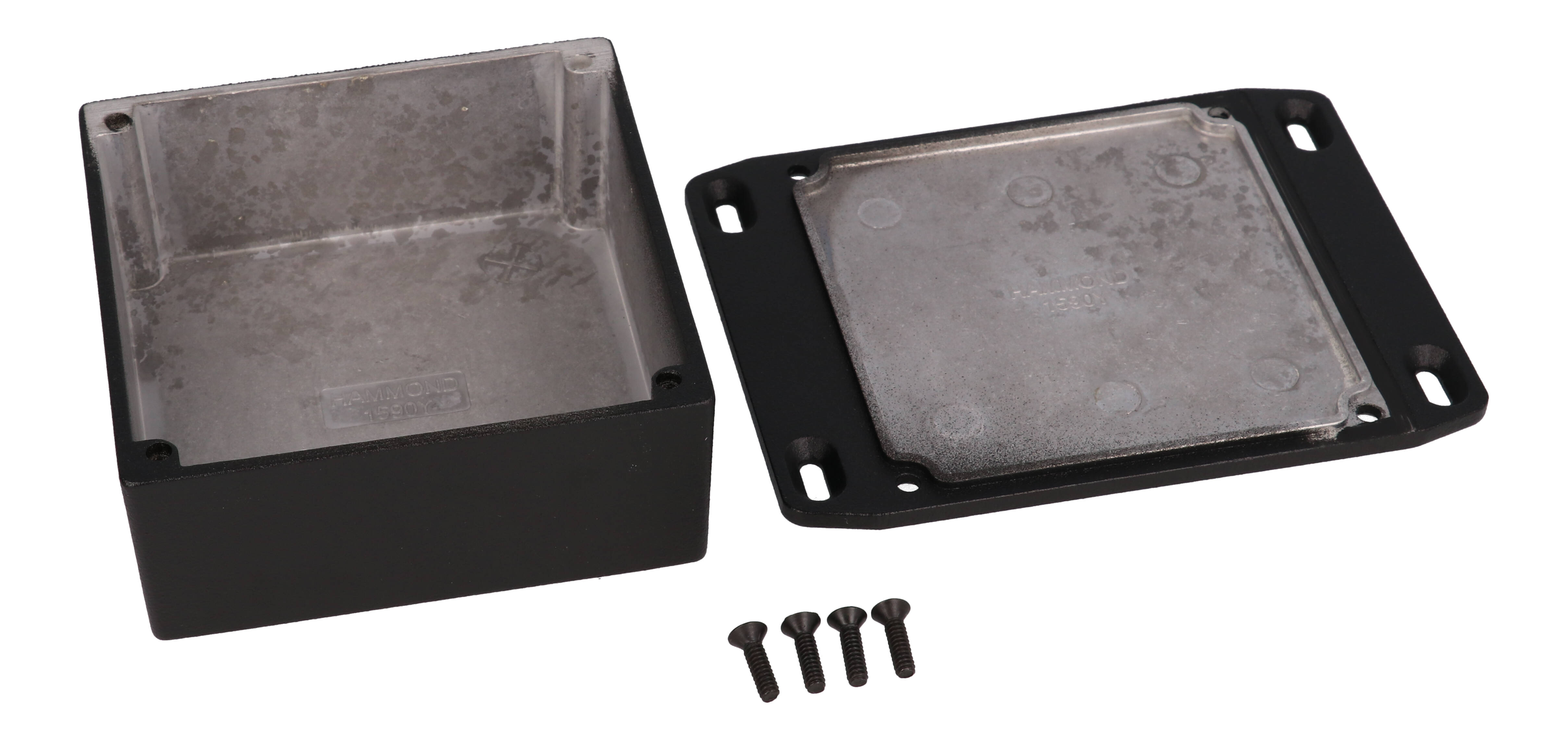

Hammond 1590YFLBK Black Square Flanged-Lid Diecast Box, 92 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black powder paint with black screws included
- Wall-mounting flange integrated into the lid, 122.20 mm overall
- Square 92 x 92 x 42 mm body
- Inside 85.17 x 85.17 x 36.30 mm; PCB up to 84.17 x 84.17 mm
- Four 6-32 UNC cover screws in factory-tapped holes
- RoHS and REACH compliant
The 1590YFLBK is the textured black, flanged-lid version of the square 1590Y diecast aluminum enclosure. The wall-mounting flange is part of the lid, so the 92 x 92 x 42 mm housing can be fixed to a wall or panel with a finished black look.
The aluminum alloy casting is coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to enhance appearance. Lap joint construction where lid and box meet protects against dust and splashing water. Its part attributes list IP65; in the ordering table it is the standard black flanged-lid version, and the water-tight version supplied with a silicone gasket is 1590WYFLBK.
Nominal size is 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm), 122.20 mm [4.811 in] long overall with the lid flange and 42.00 mm [1.654 in] high. The interior is 85.17 mm [3.353 in] square with 36.30 mm [1.429 in] height, fitting a P.C. board up to 84.17 x 84.17 mm on walls drafted at 2° or less.
Each 1590YFLBK includes box, lid and four 6-32 UNC cover screws. The optional replacement gasket kit is 1590YGASKET; with a gasket, torque lid screws to 25-30 cN.m (36-43 ozf.in). Shipping weight is 0.64 lbs (0.29 kg) in shrink wrap, RoHS and REACH compliant.
Ideal For
- Wall-mounted black control boxes
- Panel-mounted compact electronics
- Surface-mounted interface housings
- OEM products machined after finishing
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws (black screws) |
| Cover Screw Thread | 6-32 UNC, into factory-tapped holes (4X) |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated / 1590MS100BK black [6-32 x 1/2"] |
| Tamper-Resistant Screwdriver Bit | SCDRIVET10-2 |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless / 1590WMS100BK black stainless [6-32 x 1/2" with O-Ring] |
| Tamper-Resistant Screws (Torx With Pin, 50-packs) | 1590MS50T natural / 1590MS50TBK black; water-tight 1590WMS50T / 1590WMS50TBK |
Overview
| Type | Die-cast box, flanged |
| Version | Standard |
| Part Number | 1590YFLBK |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast; flanged lid; black |
| Short Description | DIECAST BOX W/FLANGE LID BLACK |
| Replacement Gasket Kit (Optional) | 1590YGASKET |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 85.17 mm [3.353 in] |
| Inside Height | 36.30 mm [1.429 in] |
| Inside Length | 85.17 mm [3.353 in] |
| Size L X W X H | 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm) |
| Max. P.C. Board Width | 84.17 mm |
| Max. P.C. Board Length | 84.17 mm |
| Width (Ordering Table) | 3.62 in (92 mm) |
| Height (Ordering Table) | 1.65 in (42 mm) |
| Length (Ordering Table) | 3.62 in (92 mm) |
| Overall Width (Drawing) | 92.00 mm [3.622 in] |
| Overall Height (Drawing) | 42.00 mm [1.654 in] |
| Overall Length (Drawing, Box) | 92.00 mm [3.622 in] |
| Overall Length Incl. Lid Flange | 122.20 mm [4.811 in] |
Identifiers
| UPC | 623980401317 |
| UNSPSC | 39121301 |
Related Versions
| No Flanges, Standard | 1590YBK |
| Flanged Lid, Standard | 1590YFLBK |
| No Flanges, Water-Tight | 1590WYBK |
| Flanged Lid, Water-Tight | 1590WYFLBK |
| Flanged Bottom Plate, Standard | 1590YFBK |
| Flanged Bottom Plate, Water-Tight | 1590WYFBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.64 lbs (0.29 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Flange | Wall-mounting flange integrated into lid |
| Box And Lid | Diecast aluminum alloy |
| Joint Construction | Lap joint where lid and box meet |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP65 (listed in part attributes; this is the standard flanged-lid version in the ordering table, water-tight version is 1590WYFLBK) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between 1590YFLBK and 1590WYFLBK?▾
Both are black flanged-lid 1590Y enclosures. The 1590WYFLBK is the water-tight version that includes a silicone gasket; the 1590YFLBK is listed as the standard version.
How long is it including the flange?▾
122.20 mm [4.811 in] overall per the drawing.
What screws are included?▾
Four 6-32 UNC cover screws; black screws are included with the black version.
What does it weigh?▾
Shipping weight is 0.64 lbs (0.29 kg).
