Hammond 1590XXYL Yellow 145x121 mm Diecast Stomp Box Enclosure

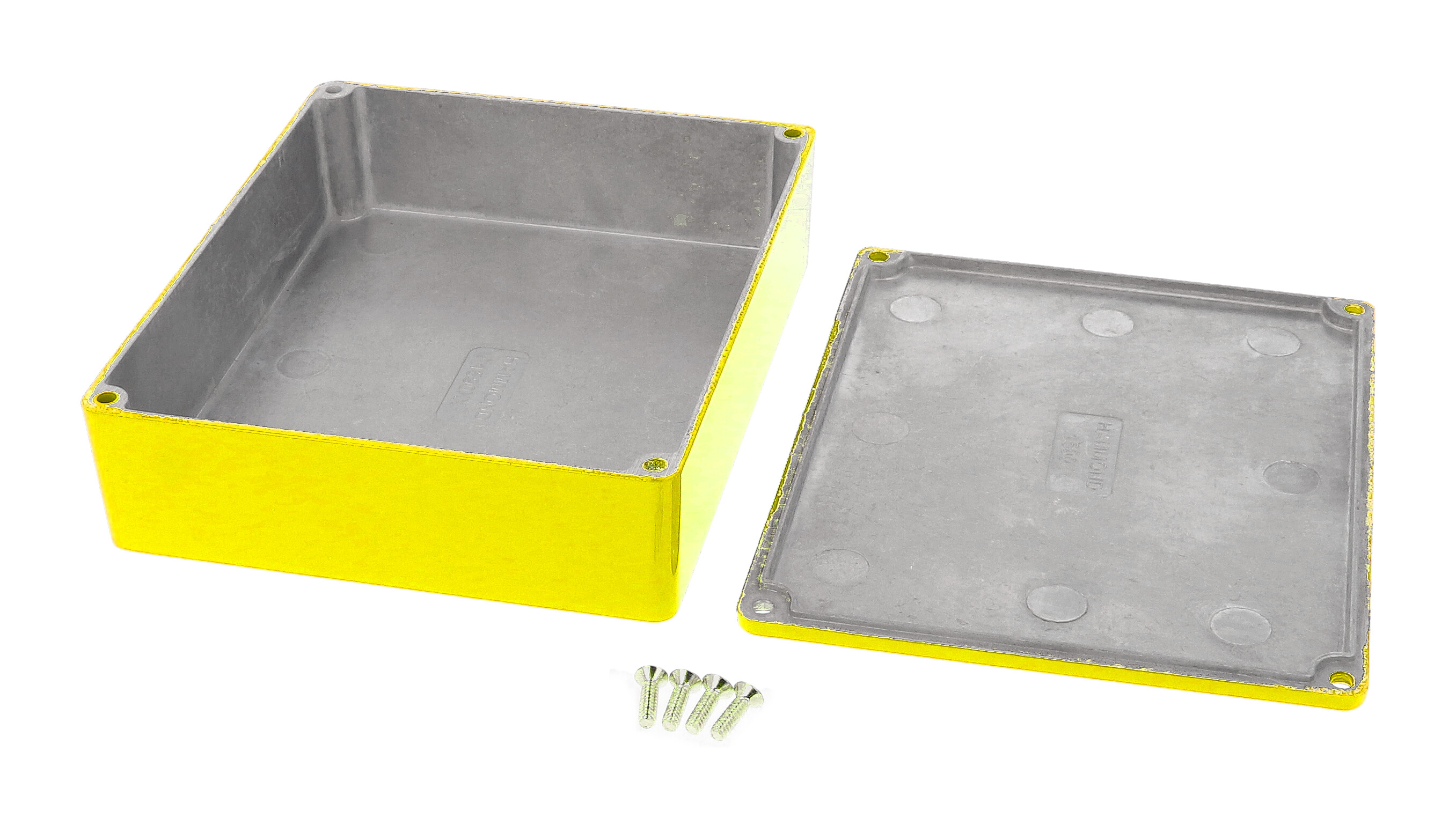

The 1590XXYL is the 145 x 121 mm rectangular size of the 1590-STOMP painted diecast stomp box series, factory powder coated in Yellow (RAL 1021), a yellow factory powder coat. It is the largest rectangular size in the series table, for stomp box manufacturers and experimenters building larger circuits.

Box and lid are diecast aluminum alloy, tough yet easy to machine. The smooth glossy polyester powder coat gives a lasting finish even after machining, accepts labels and silk screens easily, and is matched to standard RAL colours.

The ordering table lists 145 mm (5.71 in) length, 121 mm (4.76 in) width and 40 mm (1.57 in) height; the part page gives 5.72 x 4.77 x 1.55 in (145 x 121 x 39 mm). The drawing shows an overall 145.20 x 121.20 x 39.30 mm with inside dimensions of 139.00 mm long, 115.00 mm wide and 35.05 mm high. Maximum PC board size is 114 x 138 mm, and the side wall draft angle of 2° or less eases board mounting.

• Lap joint construction, designed to meet IP54; the optional 1590XGASKET plus water-tight screws raises it to IP65
• Includes box, lid and 4 cover screws (6-32 UNC); recommended torque 50-55 cN.m, or 25-30 cN.m with gasket
• RoHS and REACH compliant; shrink wrapped, 0.73 lbs (0.33 kg) shipping weight

Unfinished (1590XX) and black textured (1590XXBK) versions exist, and the enclosure can be factory modified with milling, drilling or printing. STEP or IGES solid models are available.
