Hammond 1590XFLBK Black 145x121x56 mm Flanged-Lid Diecast Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black powder paint finish with black screws
- Wall-mounting flange integrated into the lid, 175.20 mm overall
- 145 x 121 x 56 mm nominal diecast aluminum box
- Inside 138.09 x 114.09 x 52.40 mm
- Designed to meet IP54; gasket kit 1590XGASKET for IP65
- Four 6-32 UNC cover screws in factory-tapped holes
- RoHS and REACH compliant

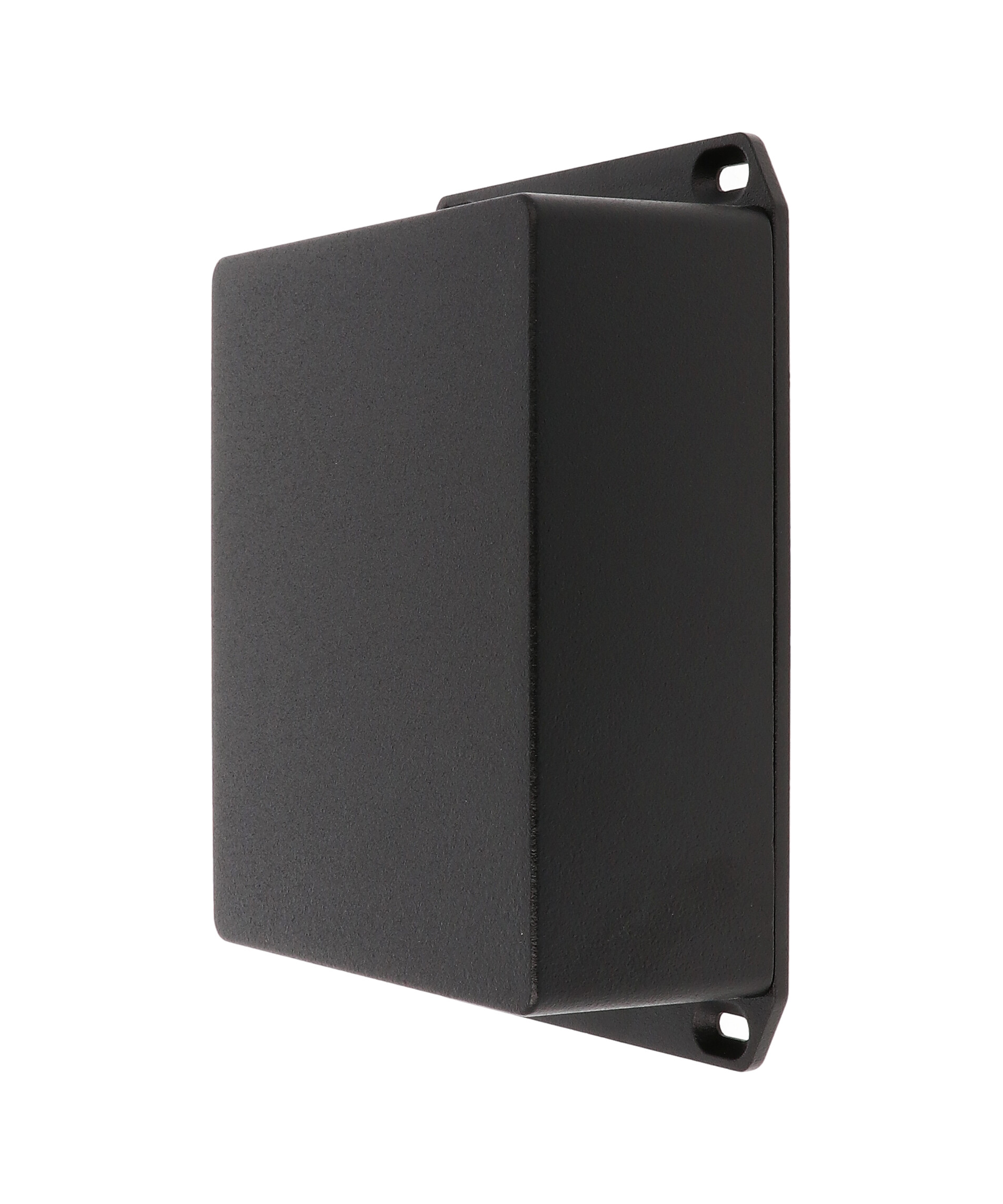

The 1590XFLBK is the textured black, flanged-lid member of the 1590X size: a 145 x 121 x 56 mm diecast aluminum enclosure whose lid carries an integrated wall-mounting flange. It suits integrators and equipment builders who want a surface-mounted metal housing with a finished black appearance.
The aluminum alloy casting is coated in tough polyester powder paint for a lasting finish, even after machining, and black screws are included to enhance appearance. Lap joint construction where the lid and box meet protects against dust and splashing water; the standard version is designed to meet IP54.
Nominal box size is 5.72 in x 4.77 in x 2.22 in (145 mm x 121 mm x 56 mm), and overall length across the lid flange is 175.20 mm [6.898 in]. The interior measures 138.09 mm [5.437 in] by 114.09 mm [4.492 in] with 52.40 mm [2.063 in] of height; listed maximum P.C. board dimensions are 113.09 mm and 137.09 mm.

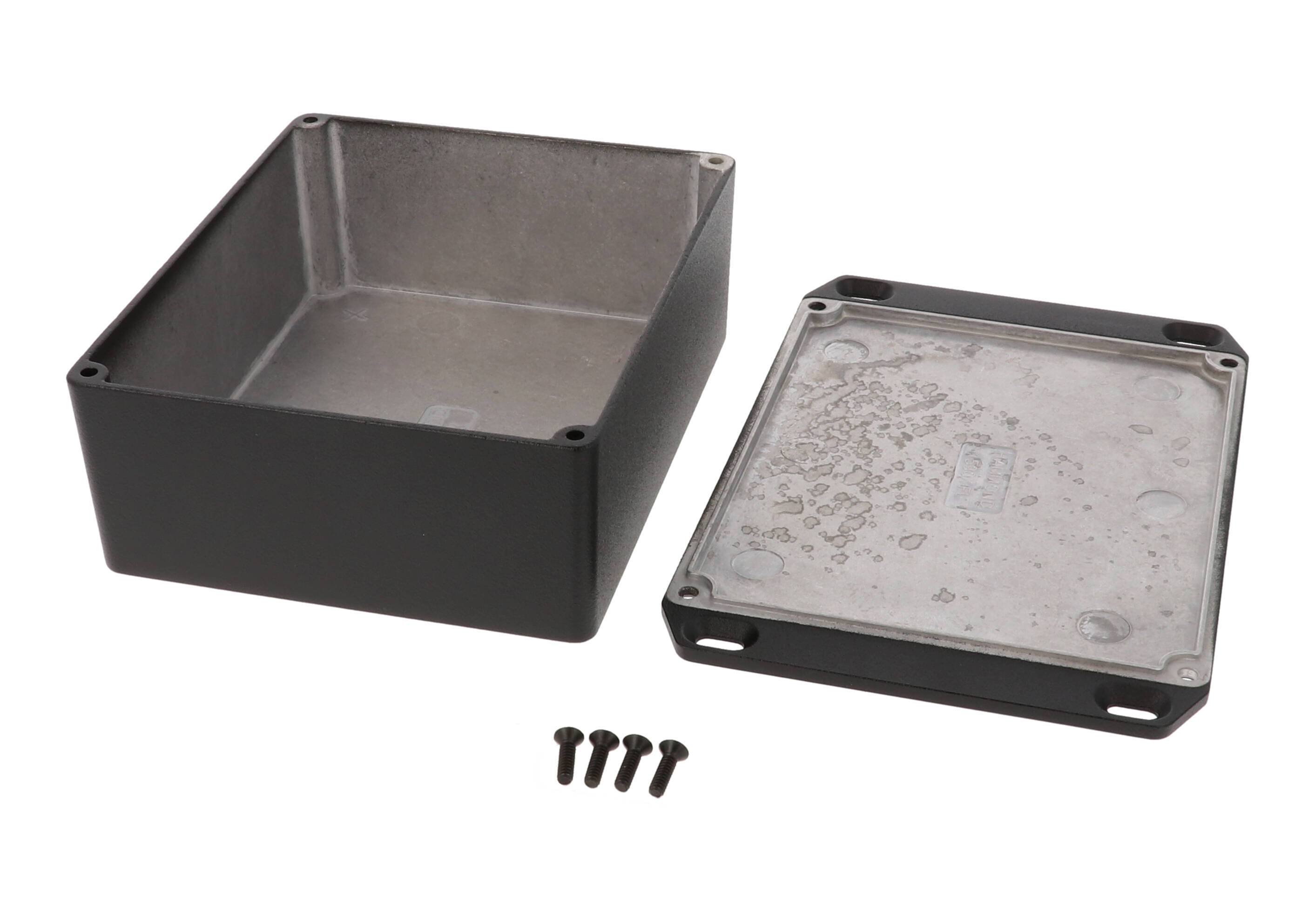

Supplied with box, lid and four 6-32 UNC cover screws (recommended torque 50-55 cN.m / 71-78 ozf.in). For IP65, add gasket kit 1590XGASKET and liquid resistant screws, or choose the factory water-tight 1590WXFLBK. The 1590XFLBK ships in shrink wrap at 0.88 lbs (0.40 kg) and is RoHS and REACH compliant.
Ideal For
- Wall-mounted black instrument housings
- Panel or machine mounted control electronics
- Flanged enclosures for circuit boards
- OEM products machined after finishing
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws (black screws) |
| Cover Screw Thread | 6-32 UNC, into factory-tapped holes (4X) |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated / 1590MS100BK black [6-32 x 1/2"] |
| Tamper-Resistant Screwdriver Bit | SCDRIVET10-2 |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless / 1590WMS100BK black stainless [6-32 x 1/2" with O-Ring] |
| Tamper-Resistant Screws (Torx With Pin, 50-packs) | 1590MS50T natural / 1590MS50TBK black; water-tight 1590WMS50T / 1590WMS50TBK |
Overview
| Type | Die-cast box, flanged |
| Version | Standard |
| Part Number | 1590XFLBK |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast |
| Short Description | DIECAST |
| Replacement Gasket Kit (Optional) | 1590XGASKET |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 114.09 mm [4.492 in] |
| Inside Height | 52.40 mm [2.063 in] |
| Inside Length | 138.09 mm [5.437 in] |
| Size L X W X H | 5.72 in x 4.77 in x 2.22 in (145 mm x 121 mm x 56 mm) |
| Max. P.C. Board Width | 137.09 mm |
| Max. P.C. Board Length | 113.09 mm |
| Width (Ordering Table) | 4.76 in (121 mm) |
| Height (Ordering Table) | 2.20 in (56 mm) |
| Length (Ordering Table) | 5.71 in (145 mm) |
| Overall Width (Drawing) | 121.20 mm [4.772 in] |
| Overall Height (Drawing) | 56.40 mm [2.220 in] |
| Overall Length Incl. Lid Flange | 175.20 mm [6.898 in] |
Identifiers
| UPC | 623980036113 |
| UNSPSC | 39121301 |
Related Versions
| No Flanges, Standard | 1590XBK |
| Flanged Lid, Standard | 1590XFLBK |
| No Flanges, Water-Tight | 1590WXBK |
| Flanged Lid, Water-Tight | 1590WXFLBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.88 lbs (0.40 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Flange | Wall-mounting flange integrated into lid |
| Box And Lid | Diecast aluminum alloy |
| Joint Construction | Lap joint where lid and box meet |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between 1590XFLBK and 1590XBK?▾
The 1590XFLBK has a wall-mounting flange integrated into the lid (175.20 mm overall length); the 1590XBK has no mounting flanges.
Are the screws black?▾
Yes, black screws are included with the textured black version.
What is the shipping weight?▾
0.88 lbs (0.40 kg).
Can it be made watertight?▾
Yes. Gasket kit 1590XGASKET is designed to meet IP65 with lid screws torqued to 25-30 cN.m (36-43 ozf.in). Liquid resistant black screws are 1590WMS100BK.
