Hammond 1590WYFL Watertight IP65 Flanged-Lid Diecast Aluminum Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Water-tight version designed to meet IP65 with included silicone gasket
- Wall-mounting flange integrated into the lid; 122.20 mm overall length
- Nominal 92 x 92 x 42 mm (3.62 x 3.62 x 1.65 in)
- Inside 85.17 x 85.17 mm, 36.30 mm inside height; PCB up to 84.17 x 84.17 mm
- Natural aluminum, vibra finished with no sharp edges
- Lap joint construction between lid and box
- Four 6-32 UNC cover screws included
- RoHS and REACH compliant

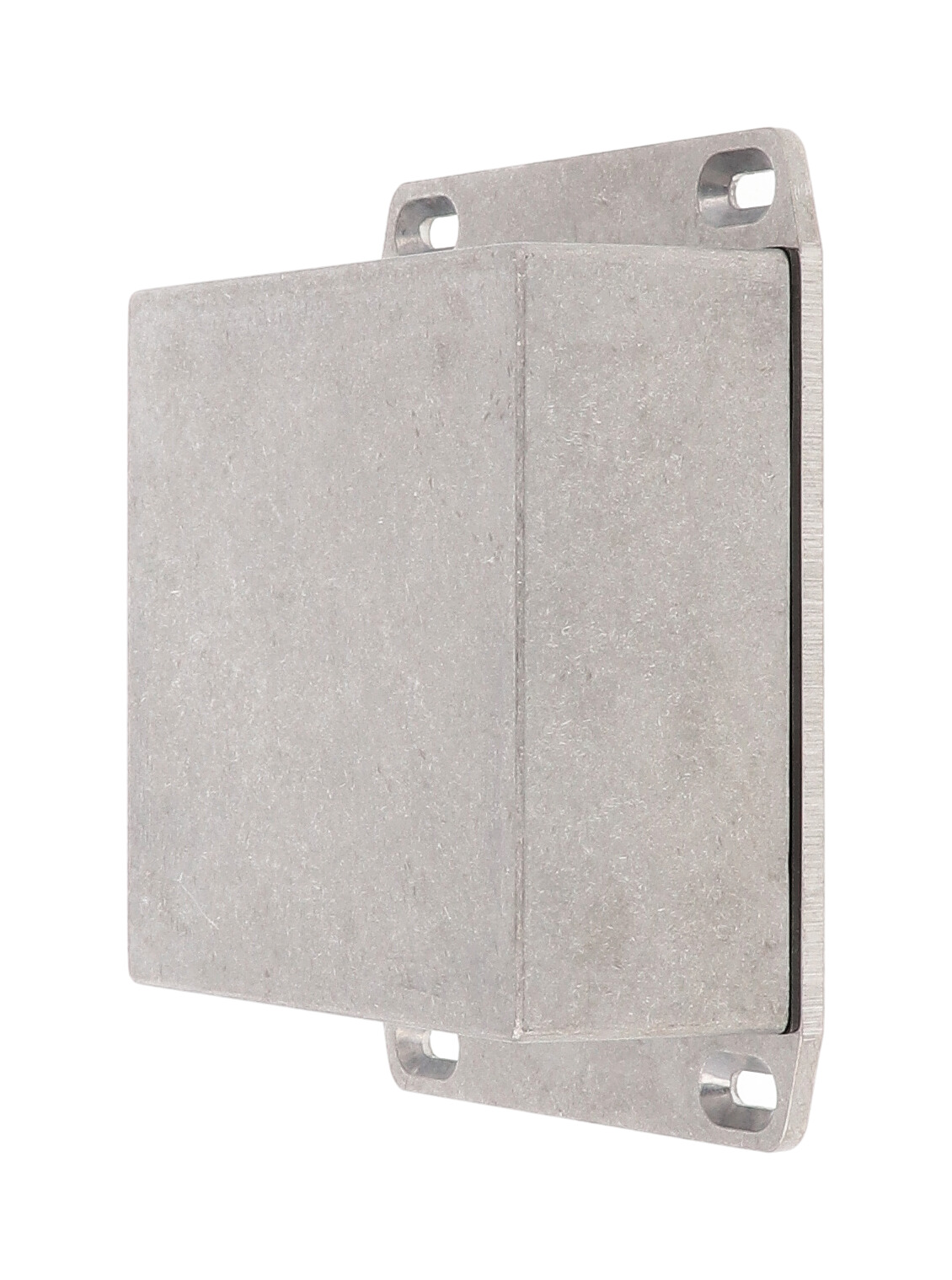

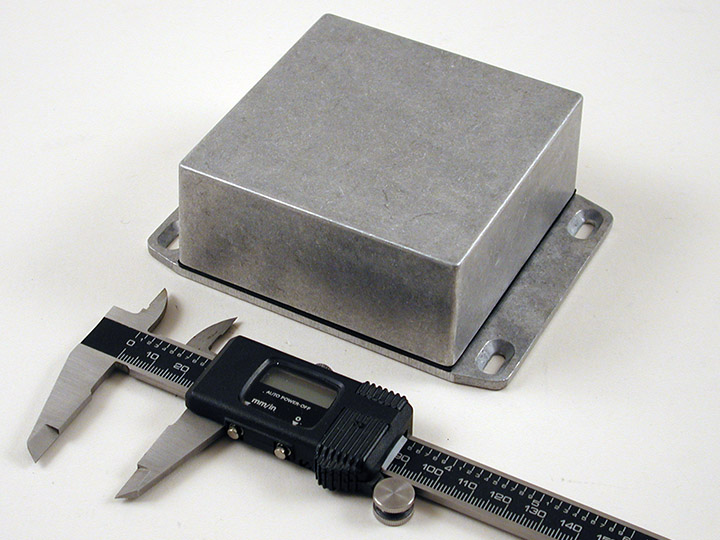

The 1590WYFL is the water-tight, flanged-lid version of the 1590Y diecast aluminum enclosure in a natural aluminum finish. The wall-mounting flange is integrated into the lid, so the housing can be fixed to a wall or panel while the box itself carries the electronics. It is aimed at electricians, OEM designers and integrators building compact devices that need protection against dust and liquids.
Box and lid are diecast aluminum alloy, which is tough yet easy to machine, and they meet at a lap joint. The unpainted version is vibra finished for a smooth surface with no sharp edges. Designed to meet IP65, this water-tight model includes a silicone gasket supplied loose inside the enclosure; torque lid screws to 25-30 cN.m (36-43 ozf.in) with the gasket fitted.
Nominal size is 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm). Across the lid flange the drawing gives 122.20 mm [4.811 in] overall length and 42.00 mm [1.654 in] overall height. Inside, the box measures 85.17 x 85.17 mm with 36.30 mm inside height, and it accepts a P.C. board up to 84.17 x 84.17 mm.

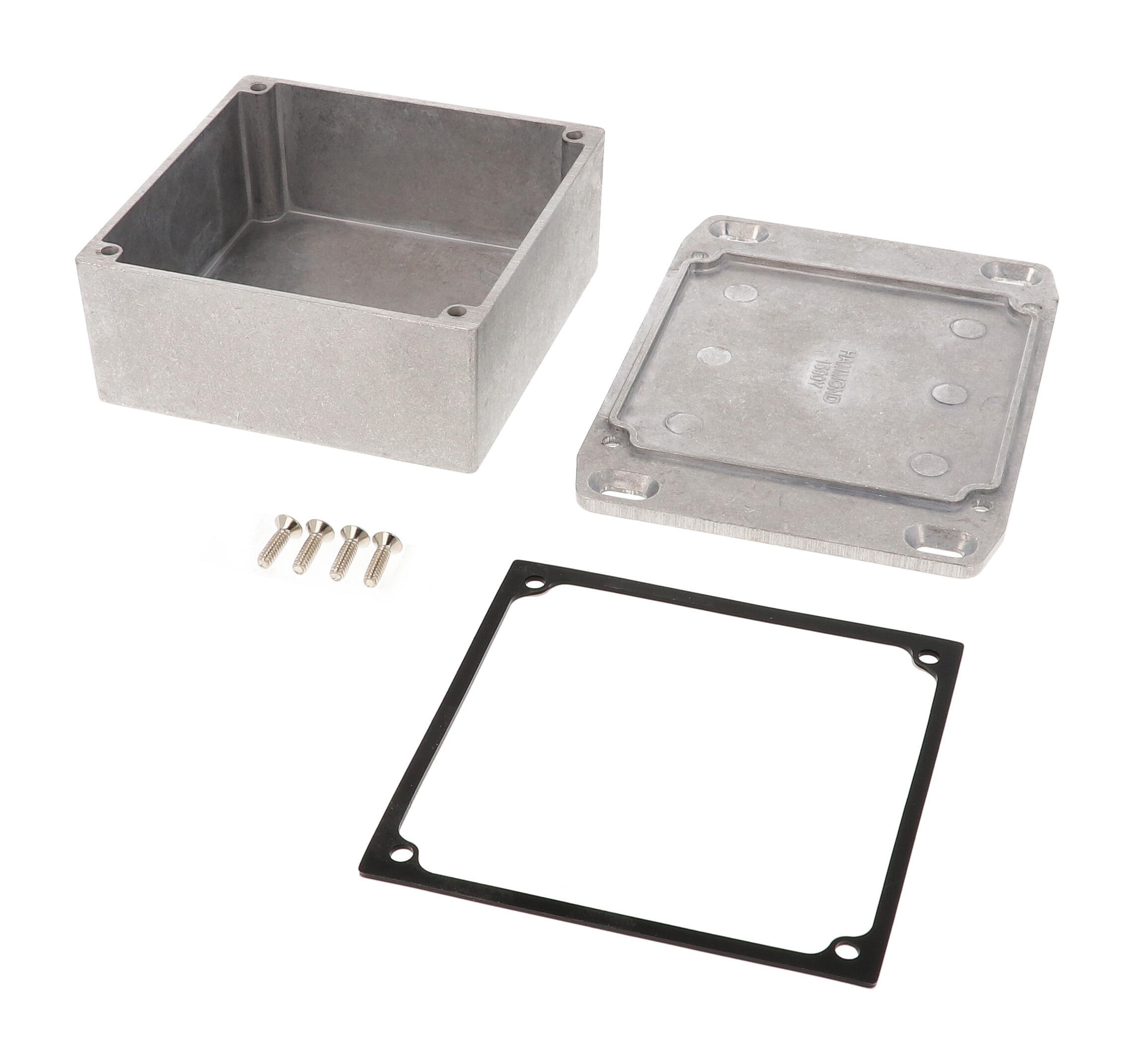

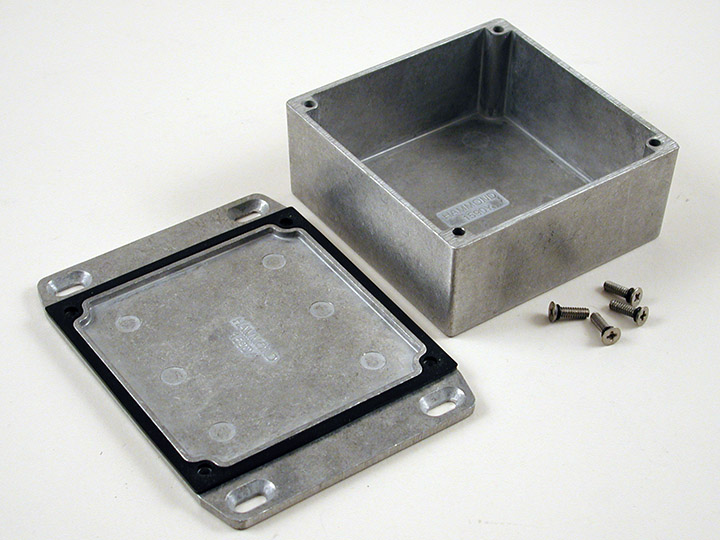

Each 1590WYFL assembly includes box, lid and four 6-32 UNC cover screws in factory-tapped holes. It ships in shrink wrap at 0.63 lbs (0.29 kg) and is RoHS and REACH compliant. Order 1590YGASKET as a replacement gasket kit.
Ideal For
- Wall-mounted electronic controls in damp or dusty areas
- IP65 electronic instrument housings
- Compact instrument enclosures for OEM equipment
- Machined diecast project enclosures
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Gasket | Silicone gasket included, supplied loose inside the enclosure (not pre-installed) |
| Included | Box, lid and 4 cover screws |
| Cover Screw Thread | 6-32 UNC, into factory-tapped holes (4X) |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated / 1590MS100BK black [6-32 x 1/2"] |
| Tamper-Resistant Screwdriver Bit | SCDRIVET10-2 |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless / 1590WMS100BK black stainless [6-32 x 1/2" with O-Ring] |
| Tamper-Resistant Screws (Torx With Pin, 50-packs) | 1590MS50T natural / 1590MS50TBK black; water-tight 1590WMS50T / 1590WMS50TBK |
Overview
| Type | Die-cast box, water-tight |
| Version | Water-Tight |
| Part Number | 1590WYFL |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast; watertight; flanged lid |
| Short Description | 1590Y WATERPROOF FLANGED LID |
| Replacement Gasket Kit (Optional) | 1590YGASKET |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 85.17 mm [3.353 in] |
| Inside Height | 36.30 mm [1.429 in] |
| Inside Length | 85.17 mm [3.353 in] |
| Size L X W X H | 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm) |
| Max. P.C. Board Width | 84.17 mm |
| Max. P.C. Board Length | 84.17 mm |
| Width (Ordering Table) | 3.62 in (92 mm) |
| Height (Ordering Table) | 1.65 in (42 mm) |
| Length (Ordering Table) | 3.62 in (92 mm) |
| Overall Width (Drawing) | 92.00 mm [3.622 in] |
| Overall Height (Drawing) | 42.00 mm [1.654 in] |
| Overall Length (Drawing, Box) | 92.00 mm [3.622 in] |
| Overall Length Incl. Lid Flange | 122.20 mm [4.811 in] |
Identifiers
| UPC | 623980401324 |
| UNSPSC | 39121301 |
Related Versions
| No Flanges, Standard | 1590Y |
| Flanged Lid, Standard | 1590YFL |
| No Flanges, Water-Tight | 1590WY |
| Flanged Lid, Water-Tight | 1590WYFL |
| Flanged Bottom Plate, Standard | 1590YF |
| Flanged Bottom Plate, Water-Tight | 1590WYF |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.63 lbs (0.29 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Natural aluminum; unpainted version is vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Flange | Wall-mounting flange integrated into lid |
| Box And Lid | Diecast aluminum alloy |
| Joint Construction | Lap joint where lid and box meet |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP65 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the mounting flange on the 1590WYFL?▾
The wall-mounting flange is integrated into the lid. Overall length across the flange is 122.20 mm [4.811 in].
Does it come with a gasket?▾
Yes. As a water-tight version it includes a silicone gasket, supplied loose inside the enclosure rather than pre-installed.
What IP rating does it have?▾
It is designed to meet IP65 with the gasket properly installed and lid screws torqued to 25-30 cN.m (36-43 ozf.in).
What are the inside dimensions?▾
Inside length and width are 85.17 mm [3.353 in] and inside height is 36.30 mm [1.429 in].
Is a black version available?▾
Yes, the black textured water-tight flanged-lid version is 1590WYFLBK.
