Hammond 1590WYFBK Black Watertight IP65 Flanged-Bottom Diecast Box
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Water-tight version designed to meet IP65; silicone gasket supplied loose inside

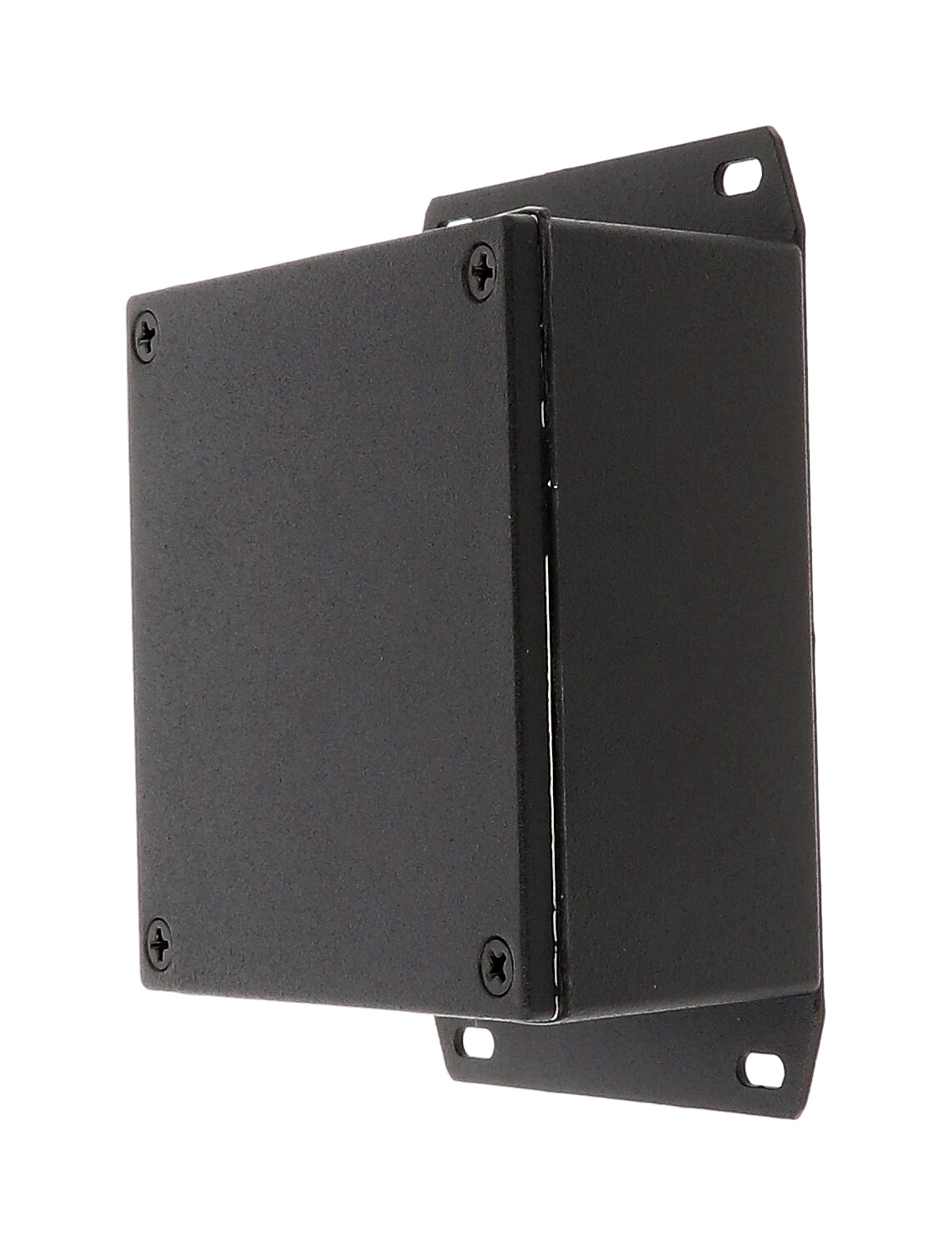

- Welded bottom flange for surface or wall mounting
- 92 x 92 x 42 mm nominal; 120.65 mm overall length across flange
- Inside cavity 85.17 x 85.17 mm, 36.30 mm inside height
- Accepts P.C. boards up to 84.17 x 84.17 mm
- Textured black polyester powder paint with black screws included
- Four 6-32 UNC cover screws in factory-tapped holes
- RoHS and REACH compliant

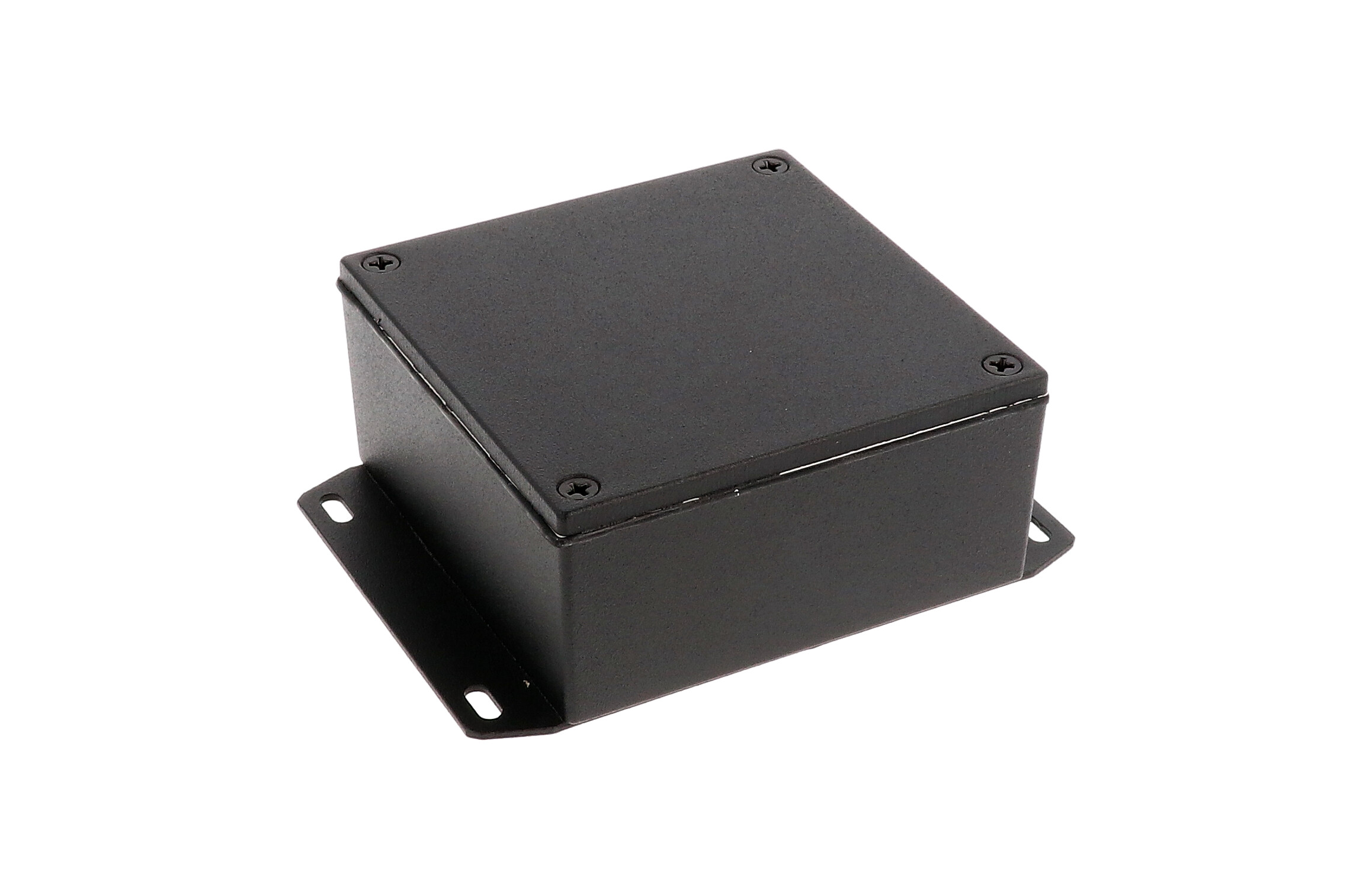

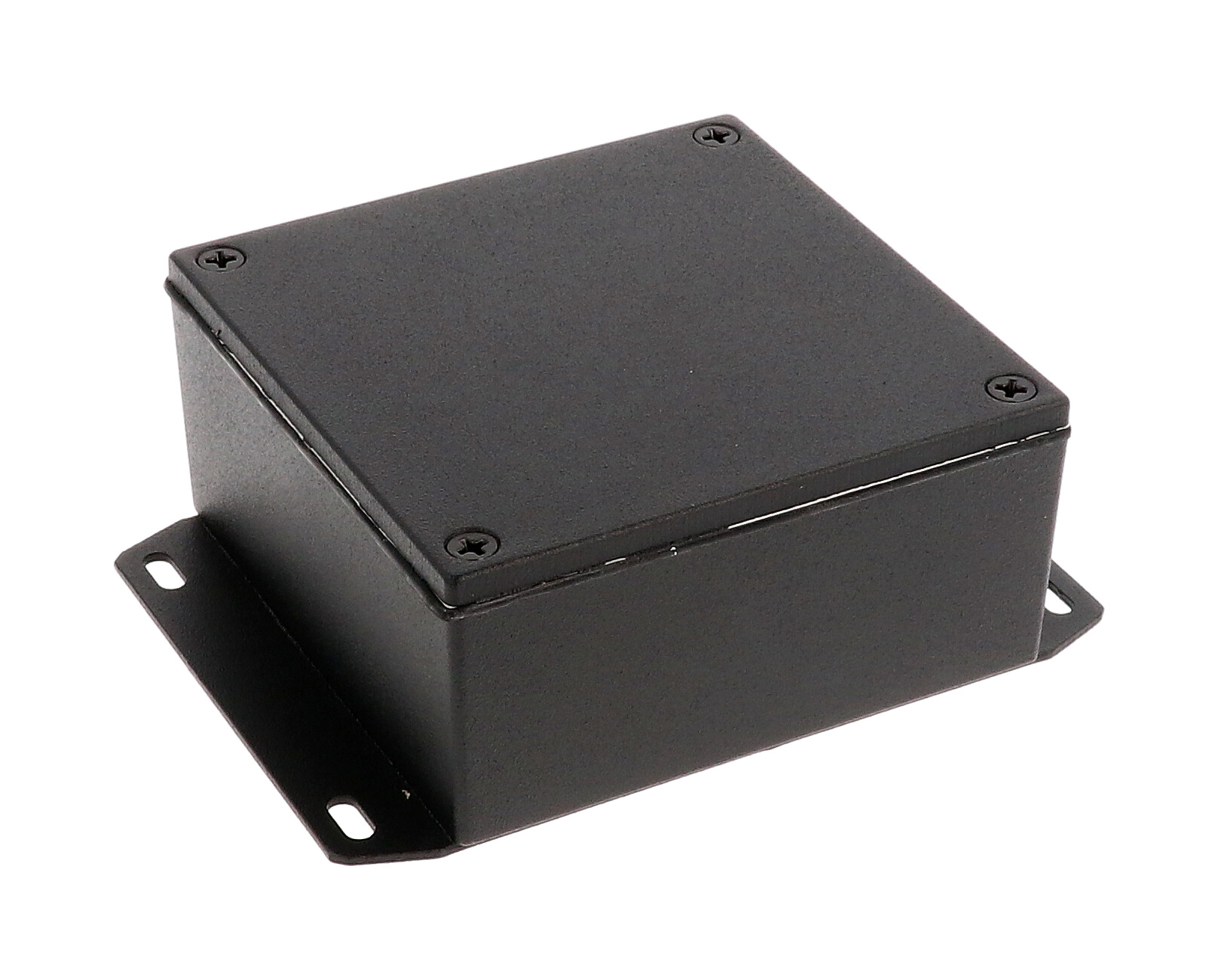

The 1590WYFBK is a water-tight version of the square 1590Y diecast aluminum enclosure, finished in textured black and fitted with a welded bottom flange for surface mounting. It suits OEM engineers, electricians and integrators who need a compact 92 x 92 x 42 mm housing for electronics that will face dust and liquid exposure.

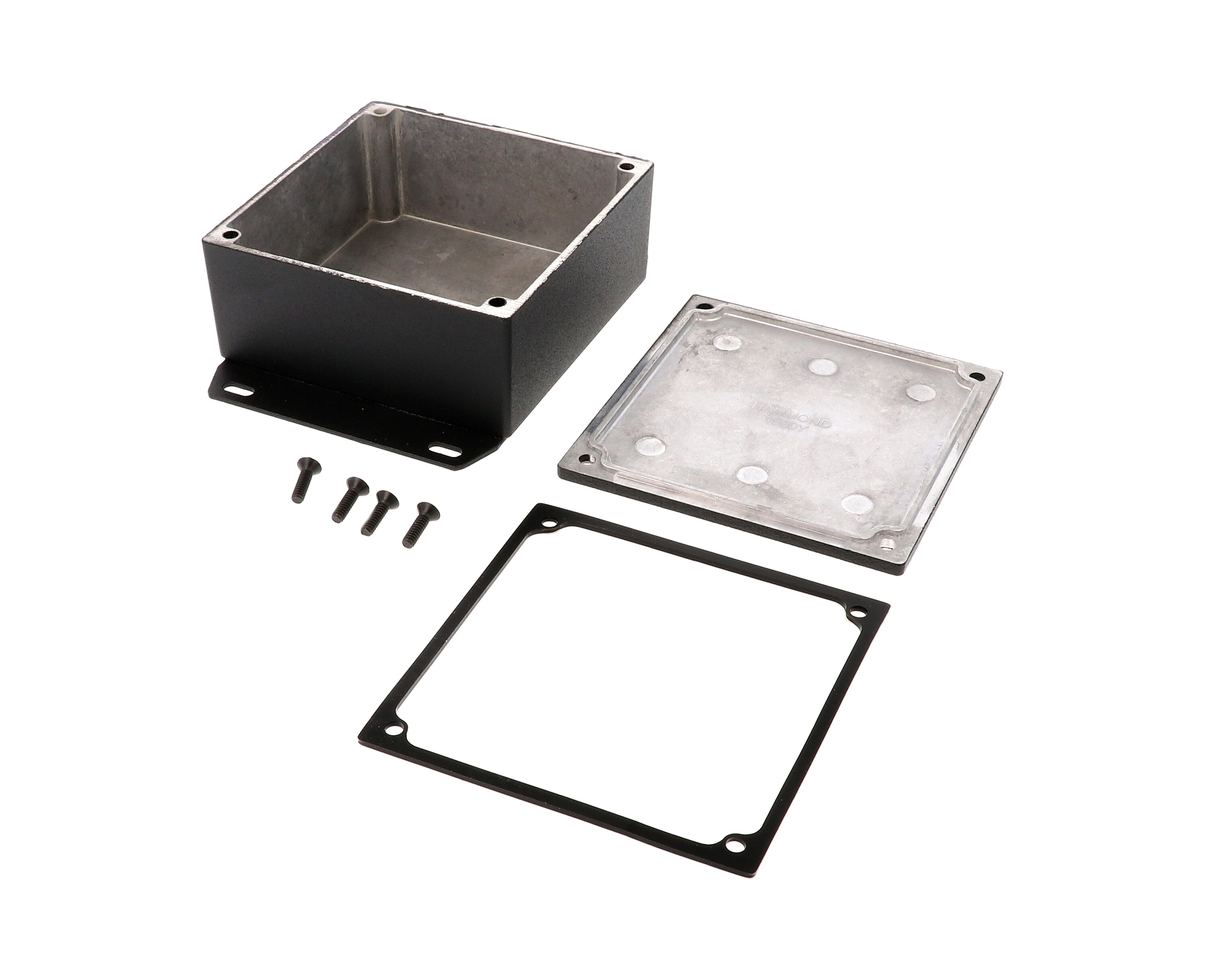

Box and lid are cast from aluminum alloy and meet at a lap joint. The black version is coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included. This water-tight model is designed to meet IP65: a silicone gasket is supplied loose inside the enclosure for you to fit to the lid, with lid screws torqued to 25-30 cN.m (36-43 ozf.in).
Nominal size is 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm). The drawing shows 120.65 mm [4.750 in] overall length across the bottom flange and 43.50 mm [1.713 in] overall height, with an inside cavity of 85.17 x 85.17 mm and 36.30 mm inside height. A P.C. board up to 84.17 x 84.17 mm fits, and the side walls have a draft angle of 2° or less for easy board mounting.

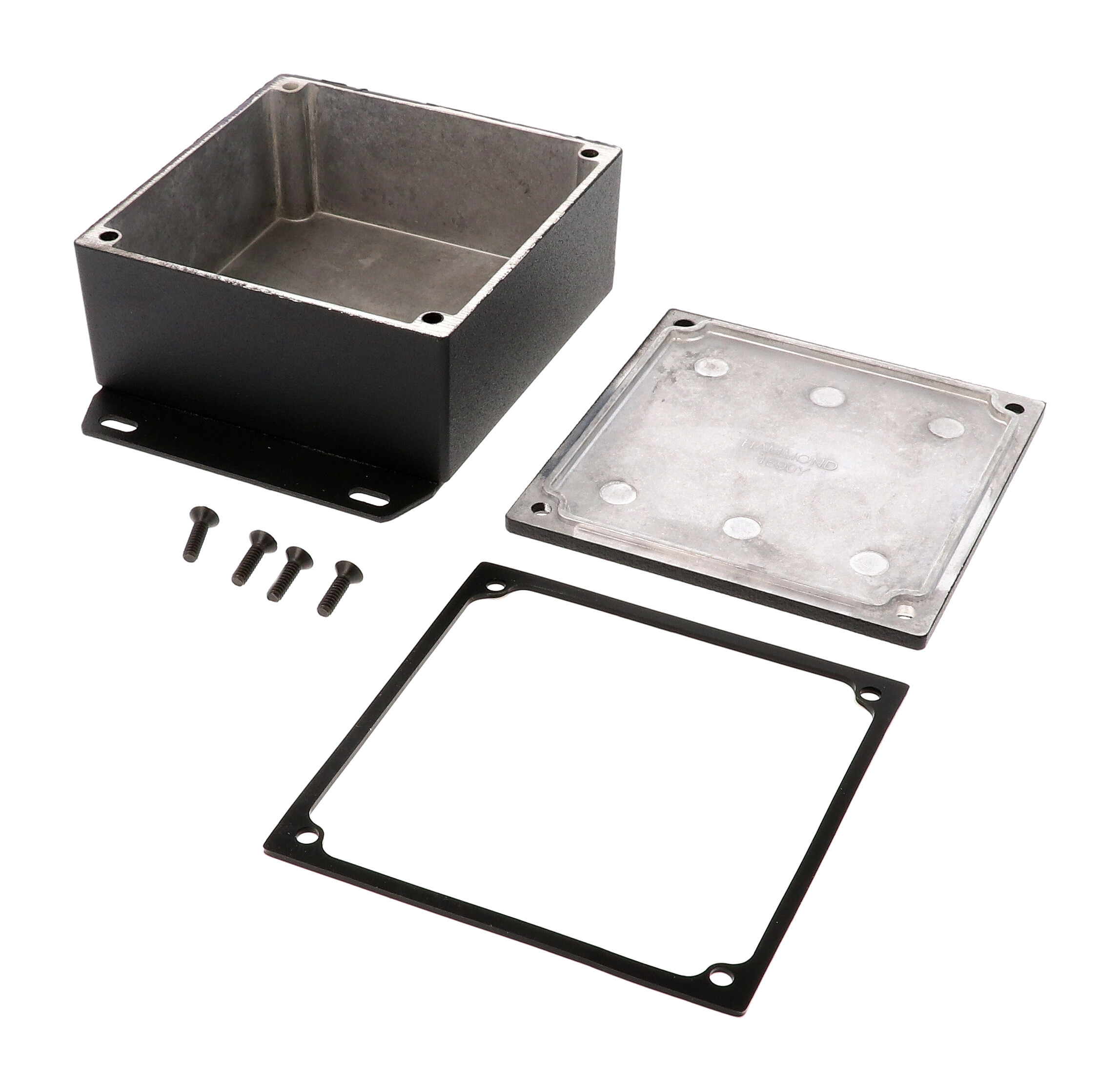

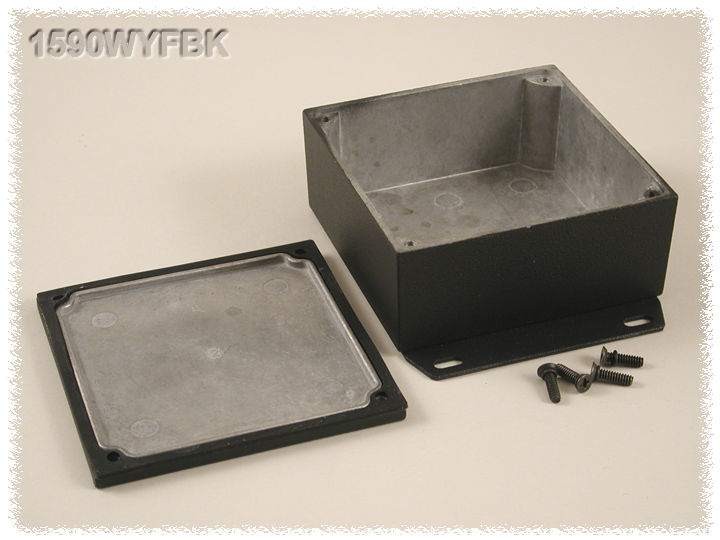

The purchased assembly includes box, lid and four 6-32 UNC cover screws threaded into factory-tapped holes. Shipping weight is 0.64 lbs (0.29 kg), packed in shrink wrap. The 1590WYFBK is RoHS and REACH compliant; the replacement gasket kit is 1590YGASKET.
Ideal For
- Wall-mounted electronics exposed to dust and splashing water
- Panel-mounted control electronics housings
- Compact IP65 instrument enclosures
- OEM electronics requiring machined diecast housings
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Gasket | Silicone gasket included, supplied loose inside the enclosure (not pre-installed) |
| Included | Box, lid and 4 cover screws (black screws) |
| Cover Screw Thread | 6-32 UNC, into factory-tapped holes (4X) |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated / 1590MS100BK black [6-32 x 1/2"] |
| Tamper-Resistant Screwdriver Bit | SCDRIVET10-2 |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless / 1590WMS100BK black stainless [6-32 x 1/2" with O-Ring] |
| Tamper-Resistant Screws (Torx With Pin, 50-packs) | 1590MS50T natural / 1590MS50TBK black; water-tight 1590WMS50T / 1590WMS50TBK |
Overview
| Type | Die-cast box, water-tight |
| Version | Water-Tight |
| Part Number | 1590WYFBK |
| Mounting Style | Flanged bottom plate |
| Long Description | enclosure - watertight diecast |
| Short Description | 92 X 92 X 42MM WPROOF FLANGED |
| Replacement Gasket Kit (Optional) | 1590YGASKET |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 85.17 mm [3.353 in] |
| Inside Height | 36.30 mm [1.429 in] |
| Inside Length | 85.17 mm [3.353 in] |
| Size L X W X H | 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm) |
| Max. P.C. Board Width | 84.17 mm |
| Max. P.C. Board Length | 84.17 mm |
| Width (Ordering Table) | 3.62 in (92 mm) |
| Height (Ordering Table) | 1.65 in (42 mm) |
| Length (Ordering Table) | 3.62 in (92 mm) |
| Overall Width (Drawing) | 92.00 mm [3.622 in] |
| Overall Height (Drawing) | 43.50 mm [1.713 in] |
| Overall Length (Drawing, Box) | 92.00 mm [3.622 in] |
| Overall Length Incl. Bottom Flange | 120.65 mm [4.750 in] |
Identifiers
| UPC | 623980808963 |
| UNSPSC | 39121301 |
Related Versions
| No Flanges, Standard | 1590YBK |
| Flanged Lid, Standard | 1590YFLBK |
| No Flanges, Water-Tight | 1590WYBK |
| Flanged Lid, Water-Tight | 1590WYFLBK |
| Flanged Bottom Plate, Standard | 1590YFBK |
| Flanged Bottom Plate, Water-Tight | 1590WYFBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.64 lbs (0.29 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Bottom Flange | Welded (spot-welded bottom flange) |
| Joint Construction | Lap joint where lid and box meet |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP65 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the gasket installed on the 1590WYFBK?▾
No. The silicone gasket is supplied loose inside the enclosure (not pre-installed) and is applied to the lid.
What torque should the lid screws be tightened to?▾
With the gasket fitted the recommended torque is 25-30 cN.m (36-43 ozf.in). Without a gasket the drawing lists 50-55 cN.m (71-78 ozf.in).
What is the largest P.C. board that fits?▾
The maximum P.C. board size is 84.17 mm x 84.17 mm.
How is the flange attached?▾
The bottom flange is welded to the box. Overall length across the flange is 120.65 mm [4.750 in].
What replacement gasket fits this enclosure?▾
The optional replacement gasket kit is 1590YGASKET, which contains two pre-formed silicone gaskets.
