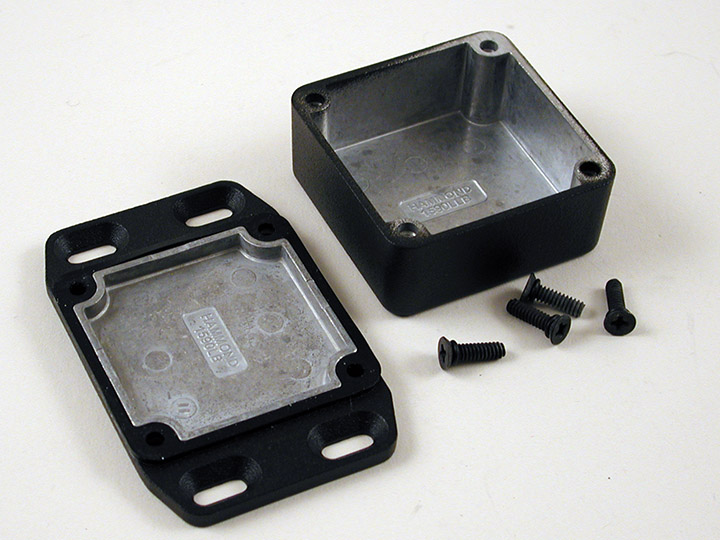

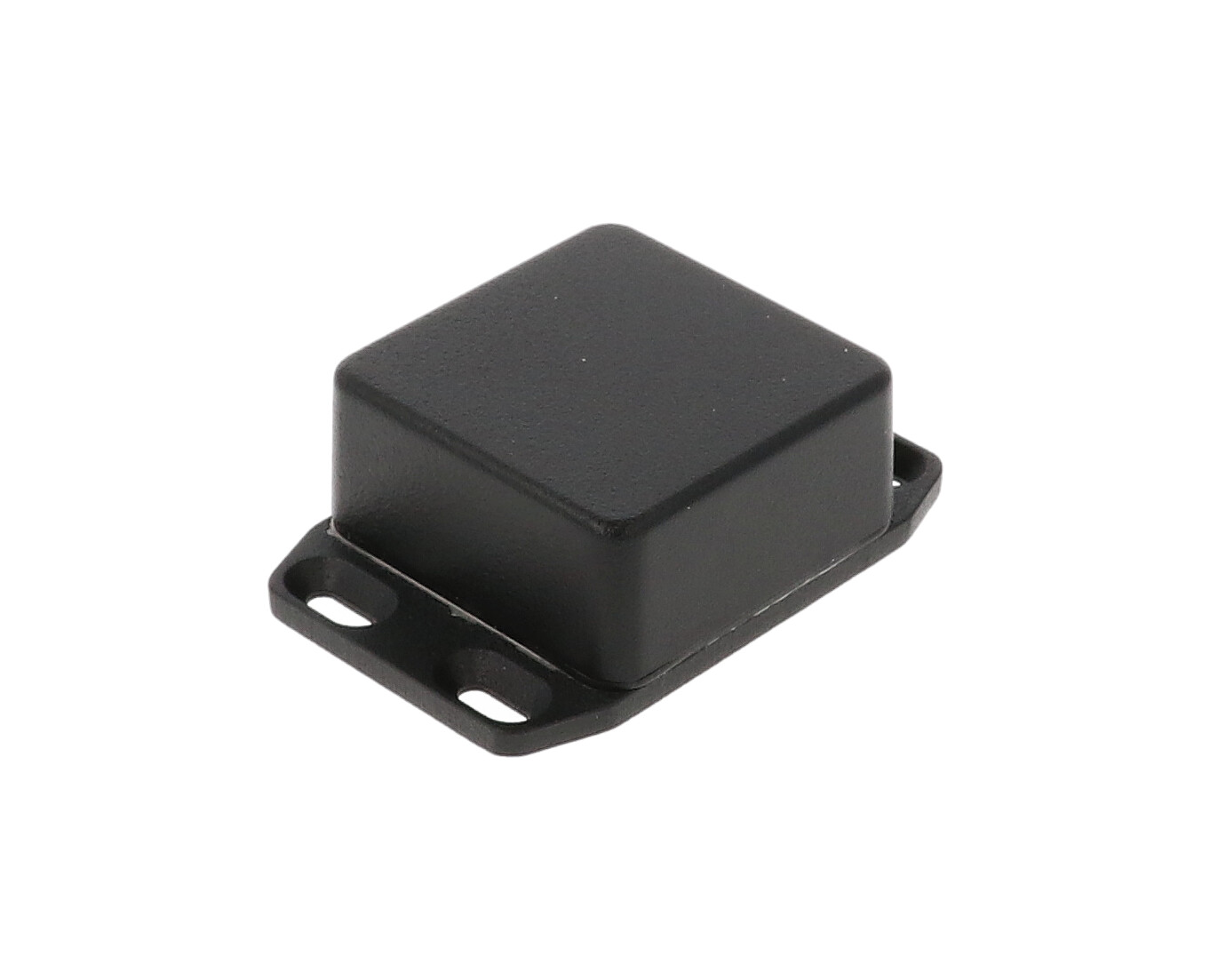

Hammond 1590WLLBFLBK Black Low-Profile 51mm IP65 Diecast Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- Low-profile 51 x 51 x 25 mm (1.99 x 1.99 x 0.98 in)
- 77.00 mm overall; 65.04 mm flange hole spacing
- Designed to meet IP65 with included loose silicone gasket
- PC board capacity up to 44.83 x 44.83 mm
- Textured black powder paint, black screws included
The 1590WLLBFLBK is the black watertight 1590LLB enclosure with a wall-mounting flange integrated into the lid. At 1.99 x 1.99 x 0.98 in (51 x 51 x 25 mm) it is one of the shallow sizes in the 1590 Series, suited to technicians and product designers who want a slim sealed box that mounts flat against a wall or panel.
Drawing dimensions: 77.00 mm (3.031 in) overall length across the lid flange, 65.04 mm (2.561 in) between flange holes, 50.40 mm body width and 25.00 mm height. Inside the box there is 45.63 x 45.63 mm with 21.00 mm of height; maximum PC board size is 44.83 x 44.83 mm.
The box and lid are diecast aluminum alloy, easy to machine for glands and connectors. This version has textured black polyester powder paint, a finish the series literature describes as lasting even after machining, and it ships with black screws to match. Lap joint construction where lid and box meet protects against dust and splashing water.

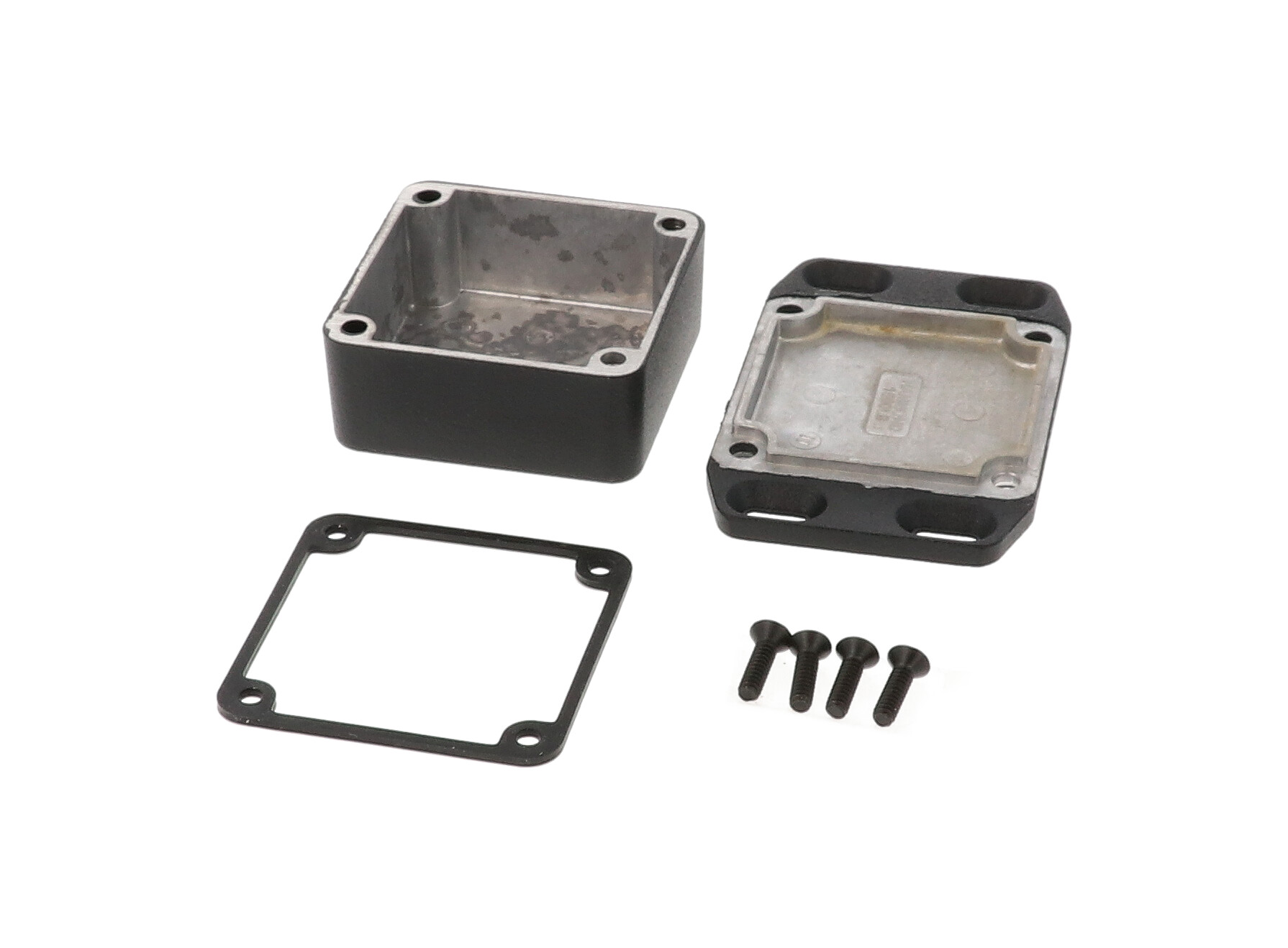

Designed to meet IP65, it ships with a loose silicone gasket and four 6-32 UNC cover screws. Recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with the gasket. RoHS and REACH compliant; shrink wrapped at 0.18 lbs (0.08 kg).
Ideal For
- Flat wall-mounted sealed electronics
- Slim IP65 sensor housings
- Panel-mounted interface modules
- Machined custom enclosures
Hardware
| Included | Box, lid and 4 cover screws |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Replacement Gasket Kit | 1590LBGASKET |
| Watertight Replacement Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, pkg 100) |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Part Number | 1590WLLBFLBK |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast; watertight; flanged lid; black |
| Short Description | 1590LLB W-PROOF FLNGD LID BK |
| Standard (IP54) Equivalent | 1590LLBFLBK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 45.63 mm [1.796 in] |
| Inside Height | 21.00 mm [.827 in] |
| Inside Length | 45.63 mm [1.796 in] |
| Size L X W X H | 1.99 in x 1.99 in x 0.98 in (51 mm x 51 mm x 25 mm) |
| Body Width (Drawing) | 50.40 mm [1.984 in] |
| Max. P.C. Board Width | 44.83 mm |
| Max. P.C. Board Length | 44.83 mm |
| Overall Height (Drawing) | 25.00 mm [.984 in] |
| Nominal Width (Ordering Table) | 2.01 in (51 mm) |
| Nominal Height (Ordering Table) | 0.98 in (25 mm) |
| Nominal Length (Ordering Table) | 2.01 in (51 mm) |
| Overall Length Incl. Lid Flange (Drawing) | 77.00 mm [3.031 in] |
| Lid Flange Mounting Hole Spacing (Drawing) | 65.04 mm [2.561 in] |
Identifiers
| UPC | 623980401287 |
| UNSPSC | 39121301 |
Customization
| Solid Models | STEP or IGES |
| Factory Modification | Available (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.18 lbs (0.08 kg) |
Construction & Finish
| Color | Black |
| Joint | Lap joint where lid and box meet |
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What makes the 1590WLLBFLBK different from the 1590WLLB?▾
It adds a wall-mounting flange integrated into the lid, giving an overall length of 77.00 mm with 65.04 mm between flange holes.
What is the internal space?▾
45.63 x 45.63 mm with 21.00 mm inside height; PC boards up to 44.83 x 44.83 mm.
Is the gasket pre-installed?▾
No, the silicone gasket is supplied loose inside the enclosure. Installed with lid screws torqued to 25-30 cN.m, the enclosure is designed to meet IP65.
What is included?▾
The box, lid and four cover screws, plus the silicone gasket.
Is there a natural aluminum version?▾
Yes, 1590WLLBFL.
