Hammond 1590WLLBFL Low-Profile 51mm IP65 Diecast Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- Low-profile 51 x 51 x 25 mm (1.99 x 1.99 x 0.98 in)
- 77.00 mm overall; 65.04 mm flange hole spacing
- Designed to meet IP65 with included loose silicone gasket
- PC board capacity up to 44.83 x 44.83 mm
- Natural unpainted vibra finish

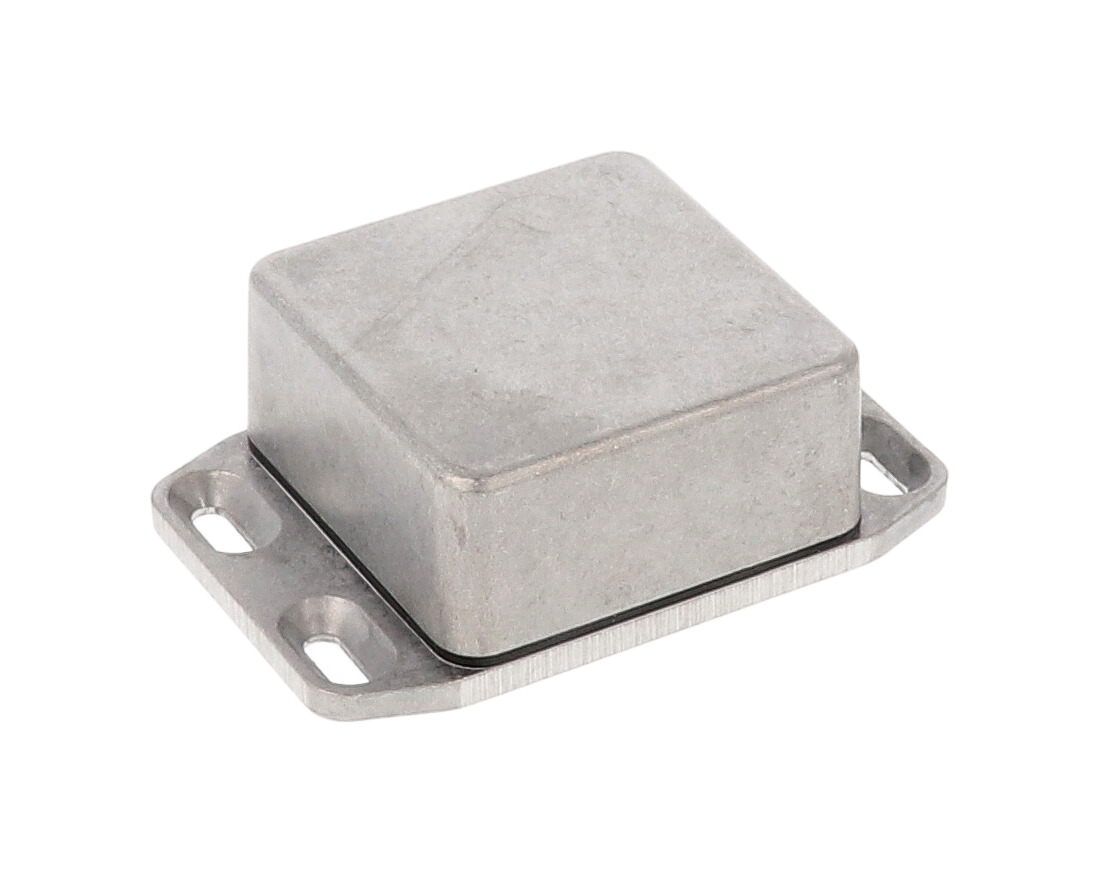

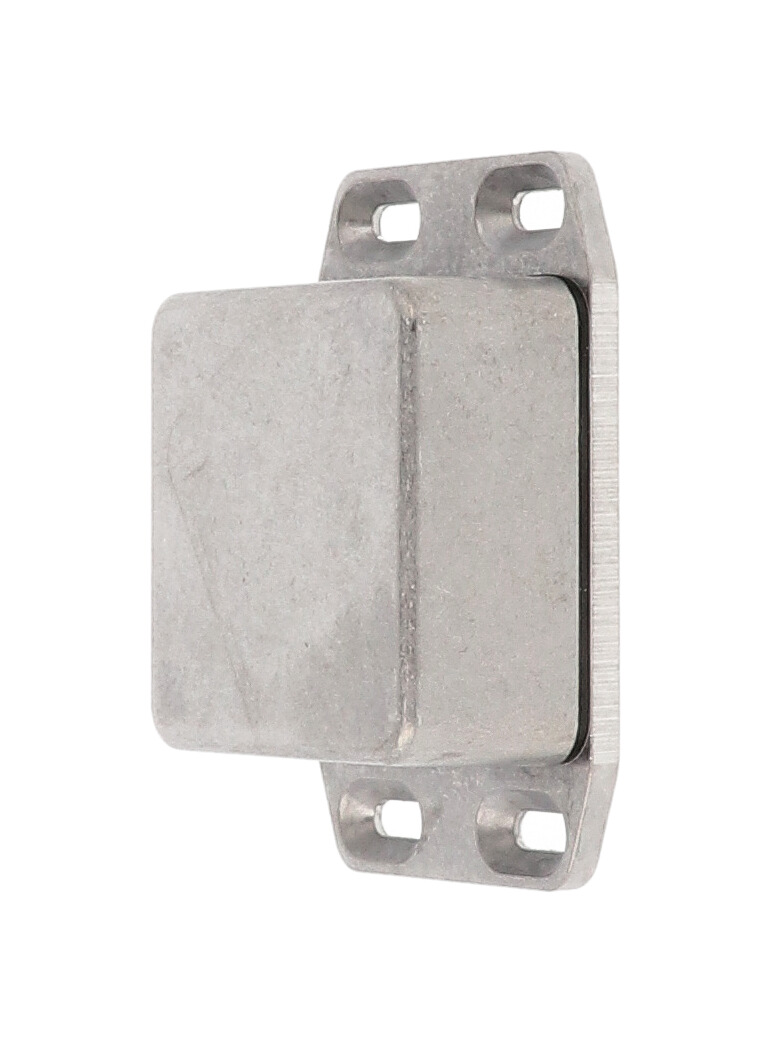

The 1590WLLBFL is the natural watertight 1590LLB enclosure with a wall-mounting flange integrated into the lid. At 1.99 x 1.99 x 0.98 in (51 x 51 x 25 mm) it is one of the shallow sizes in the 1590 Series, suited to technicians and product designers who want a slim sealed box that mounts flat against a wall or panel.
Drawing dimensions: 77.00 mm (3.031 in) overall length across the lid flange, 65.04 mm (2.561 in) between flange holes, 50.40 mm body width and 25.00 mm height. Inside the box there is 45.63 x 45.63 mm with 21.00 mm of height; maximum PC board size is 44.83 x 44.83 mm.
The box and lid are diecast aluminum alloy, easy to machine for glands and connectors. This version has an unpainted, vibra-finished surface that is smooth with no sharp edges. Lap joint construction where lid and box meet protects against dust and splashing water.
Designed to meet IP65, it ships with a loose silicone gasket and four 6-32 UNC cover screws. Recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with the gasket. RoHS and REACH compliant; shrink wrapped at 0.18 lbs (0.08 kg).
Ideal For
- Flat wall-mounted sealed electronics
- Slim IP65 sensor housings
- Panel-mounted interface modules
- Machined custom enclosures
Hardware
| Included | Box, lid and 4 cover screws |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Replacement Gasket Kit | 1590LBGASKET |
| Watertight Replacement Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, pkg 100) |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Part Number | 1590WLLBFL |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast; watertight; flanged lid |
| Short Description | 1590LLB WATERPROOF FLANGED LID |
| Standard (IP54) Equivalent | 1590LLBFL |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 45.63 mm [1.796 in] |
| Inside Height | 21.00 mm [.827 in] |
| Inside Length | 45.63 mm [1.796 in] |
| Size L X W X H | 1.99 in x 1.99 in x 0.98 in (51 mm x 51 mm x 25 mm) |
| Body Width (Drawing) | 50.40 mm [1.984 in] |
| Max. P.C. Board Width | 44.83 mm |
| Max. P.C. Board Length | 44.83 mm |
| Overall Height (Drawing) | 25.00 mm [.984 in] |
| Nominal Width (Ordering Table) | 2.01 in (51 mm) |
| Nominal Height (Ordering Table) | 0.98 in (25 mm) |
| Nominal Length (Ordering Table) | 2.01 in (51 mm) |
| Overall Length Incl. Lid Flange (Drawing) | 77.00 mm [3.031 in] |
| Lid Flange Mounting Hole Spacing (Drawing) | 65.04 mm [2.561 in] |
Identifiers
| UPC | 623980401270 |
| UNSPSC | 39121301 |
Customization
| Solid Models | STEP or IGES |
| Factory Modification | Available (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.18 lbs (0.08 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Joint | Lap joint where lid and box meet |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What makes the 1590WLLBFL different from the 1590WLLB?▾
It adds a wall-mounting flange integrated into the lid, giving an overall length of 77.00 mm with 65.04 mm between flange holes.
What is the internal space?▾
45.63 x 45.63 mm with 21.00 mm inside height; PC boards up to 44.83 x 44.83 mm.
Is the gasket pre-installed?▾
No, the silicone gasket is supplied loose inside the enclosure. Installed with lid screws torqued to 25-30 cN.m, the enclosure is designed to meet IP65.
What is included?▾

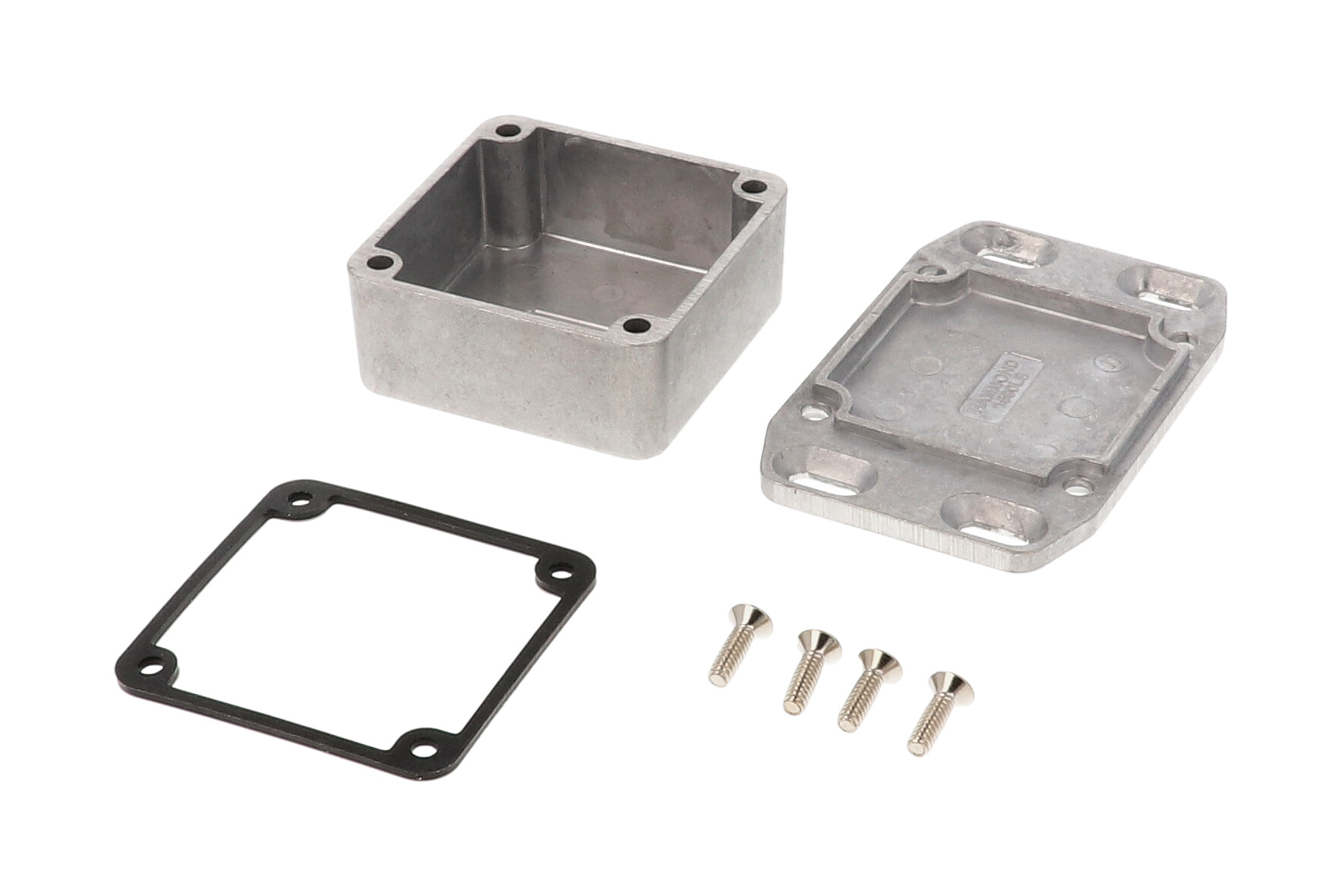

The box, lid and four cover screws, plus the silicone gasket.
Is there a black version?▾
Yes, 1590WLLBFLBK.
