Hammond 1590WLLBF Low-Profile 51mm IP65 Diecast Box, Flanged Bottom
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate on a low 25 mm body
- 78.99 mm overall length; 67.72 mm between flange holes
- Designed to meet IP65; silicone gasket supplied loose
- Inside 45.63 x 45.63 x 21.00 mm; board up to 44.83 x 44.83 mm
- Natural vibra-finished aluminum
- Diecast aluminum alloy; four 6-32 UNC cover screws included

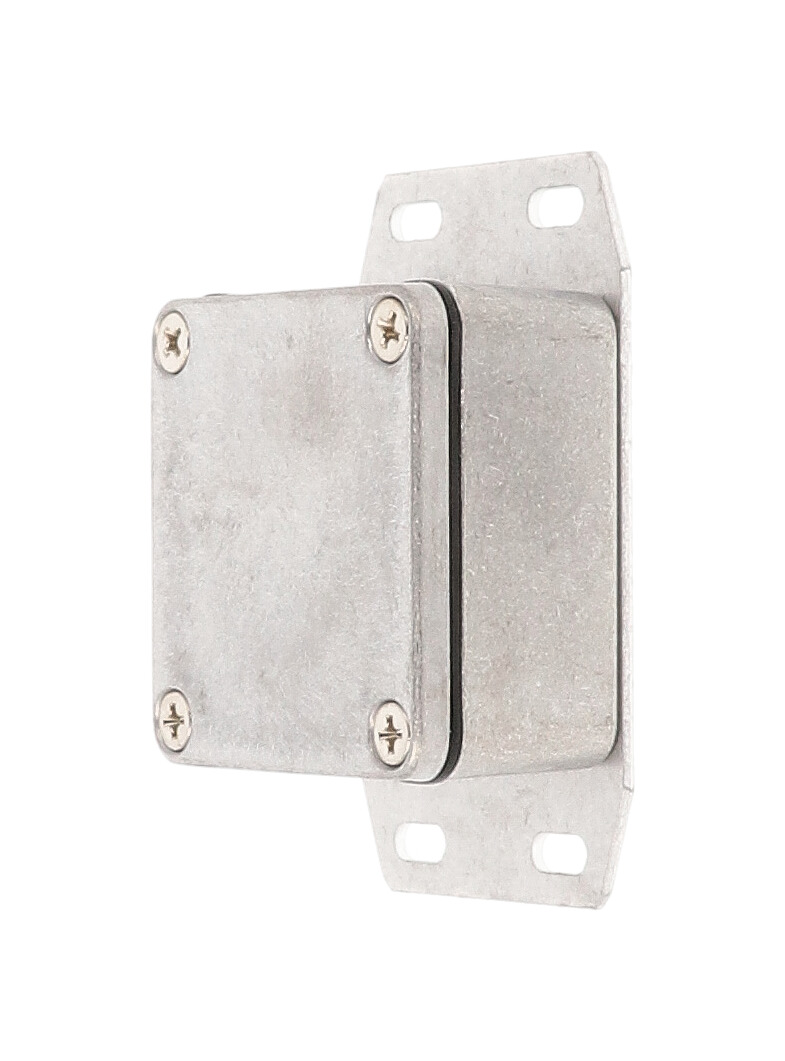

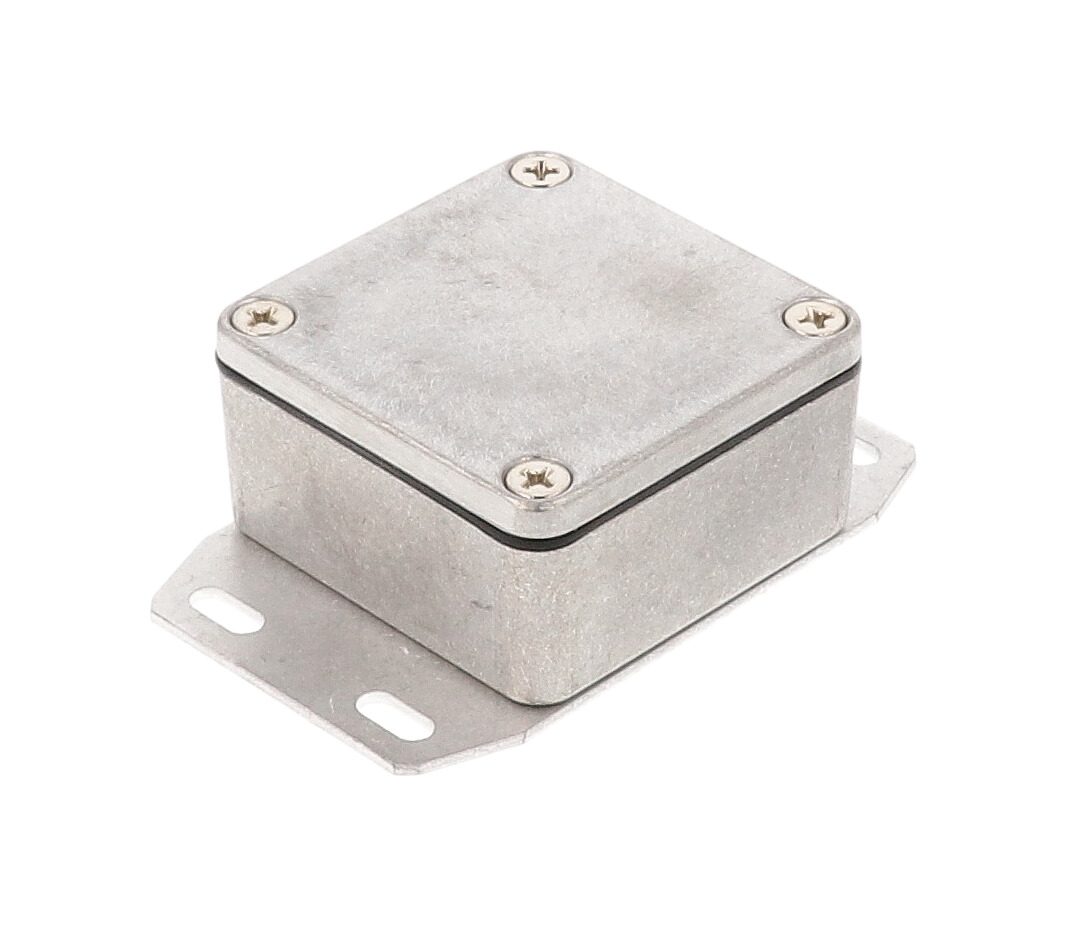

The 1590WLLBF pairs the low-profile 1590LLB body (1.99 x 1.99 x 0.98 in / 51 x 51 x 25 mm) with a welded flanged bottom plate, in a natural watertight build. The flange allows direct mounting to a surface, making it a practical choice for installers and OEMs housing compact electronics where height is tight.
The drawing shows an overall length of 78.99 mm (3.110 in) across the flange, 67.72 mm (2.666 in) between mounting holes and a body of 50.50 x 50.50 mm at 25.00 mm high. Inside there is 45.63 x 45.63 mm with 21.00 mm of height, and the maximum PC board size is 44.83 x 44.83 mm.
Construction is diecast aluminum alloy for box and lid, with an unpainted, vibra-finished surface that is smooth with no sharp edges. Lap joint construction and a side wall draft angle of 2° or less are standard across the series.

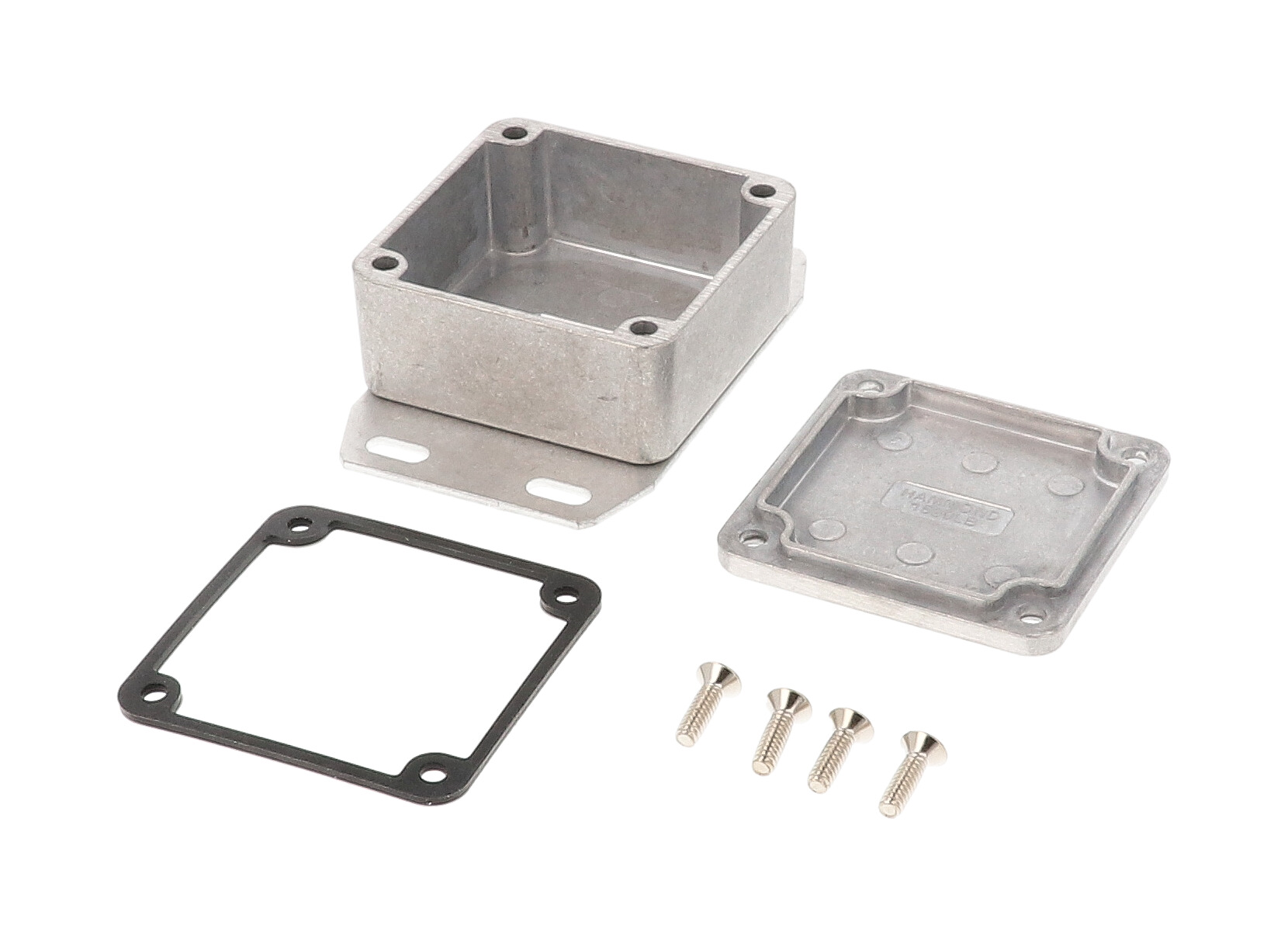

It is designed to meet IP65 with the included silicone gasket, which ships loose inside. Four 6-32 UNC cover screws are included; recommended torque is 50-55 cN.m, or 25-30 cN.m with the gasket. RoHS and REACH compliant, shrink wrapped, 0.18 lbs (0.08 kg) shipping weight.
Ideal For
- Surface-mounted low-profile electronics
- Sealed junction boxes in tight spaces
- Chassis-mounted sensor interfaces
- IP65 control modules
Hardware
| Included | Box, lid and 4 cover screws |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Replacement Gasket Kit | 1590LBGASKET |
| Watertight Replacement Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, pkg 100) |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Part Number | 1590WLLBF |
| Mounting Style | Flanged bottom plate (welded bottom flange) |
| Long Description | enclosure - watertight diecast |
| Short Description | 50 X 50 X 25MM WPROOF FLANGED |
| Standard (IP54) Equivalent | 1590LLBF |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 45.63 mm [1.796 in] |
| Inside Height | 21.00 mm [.827 in] |
| Inside Length | 45.63 mm [1.796 in] |
| Size L X W X H | 1.99 in x 1.99 in x 0.98 in (51 mm x 51 mm x 25 mm) |
| Height (Drawing) | 25.00 mm [.984 in] |
| Body Width (Drawing) | 50.50 mm [1.988 in] |
| Body Length (Drawing) | 50.50 mm [1.988 in] |
| Max. P.C. Board Width | 44.83 mm |
| Max. P.C. Board Length | 44.83 mm |
| Nominal Width (Ordering Table) | 2.01 in (51 mm) |
| Nominal Height (Ordering Table) | 0.98 in (25 mm) |
| Nominal Length (Ordering Table) | 2.01 in (51 mm) |
| Flange Mounting Hole Spacing (Drawing) | 67.72 mm [2.666 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 78.99 mm [3.110 in] |
Identifiers
| UPC | 623980808833 |
| UNSPSC | 39121301 |
Customization
| Solid Models | STEP or IGES |
| Factory Modification | Available (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.18 lbs (0.08 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Joint | Lap joint where lid and box meet |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Bottom Flange | Welded |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1590WLLBF mount?▾
Through its flanged bottom plate. The drawing notes the bottom flange is welded, with 67.72 mm between the mounting holes and 78.99 mm overall length.
How tall is it?▾
The listed height is 0.98 in (25 mm), with 21.00 mm of inside height.
Is it watertight?▾
Yes, it is designed to meet IP65 with the included silicone gasket, which is supplied loose and applied to the lid.
What gasket kit is the replacement?▾
1590LBGASKET.
What is the black equivalent?▾
1590WLLBFBK.
