Hammond 1590WKKFL 125mm Square IP65 Diecast Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 125 x 125 x 57 mm (4.91 x 4.91 x 2.24 in) square body
- Flanged lid: 155.00 mm overall, 140.00 mm hole spacing
- Designed to meet IP65; silicone gasket supplied loose
- Inside 120.00 x 116.44 x 51.30 mm; board up to 116.38 x 116.38 mm
- Unpainted vibra finish, smooth with no sharp edges
- Diecast aluminum alloy box and lid, easy to machine
- Four 6-32 UNC cover screws included; gasket kit 1590KGASKET

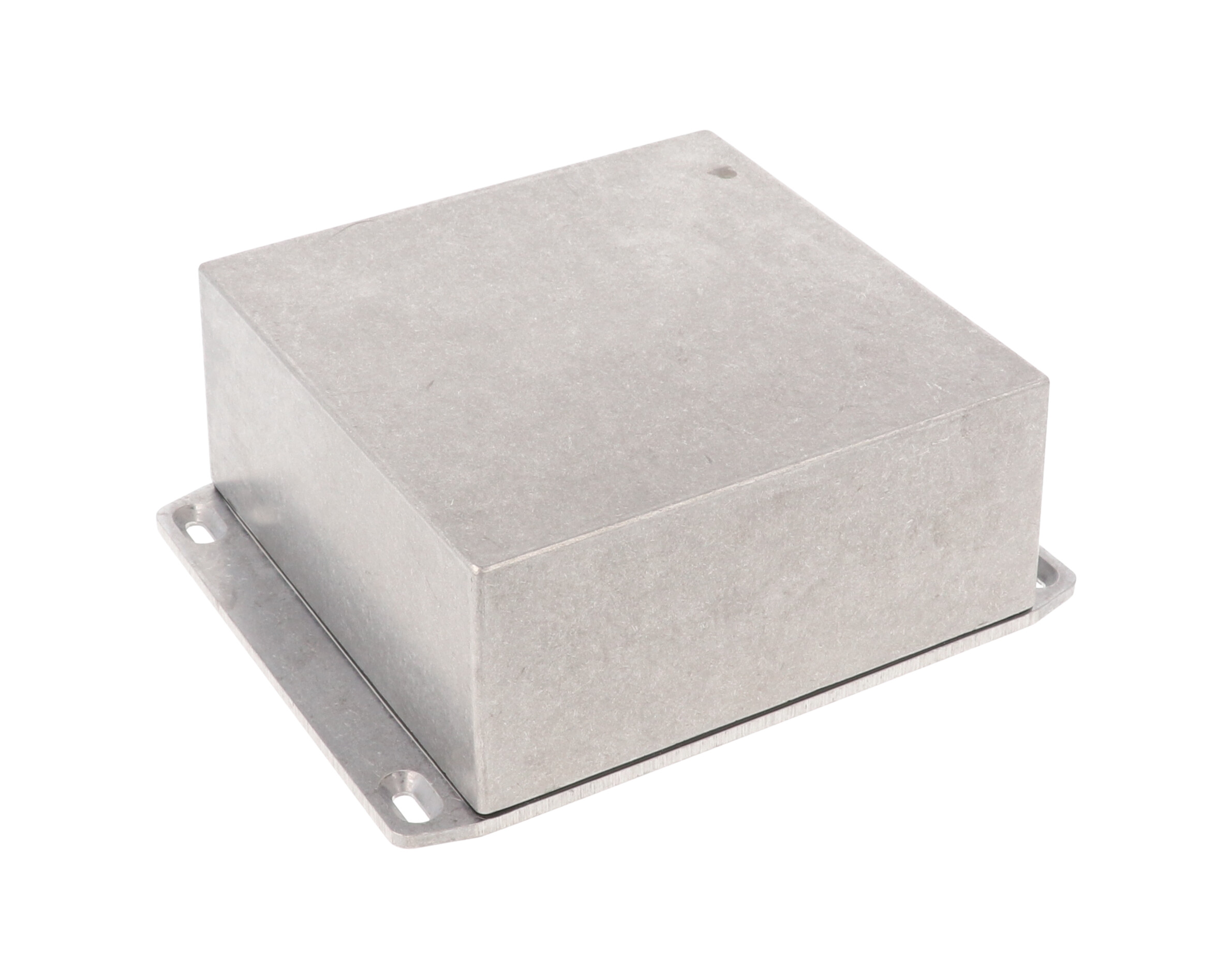

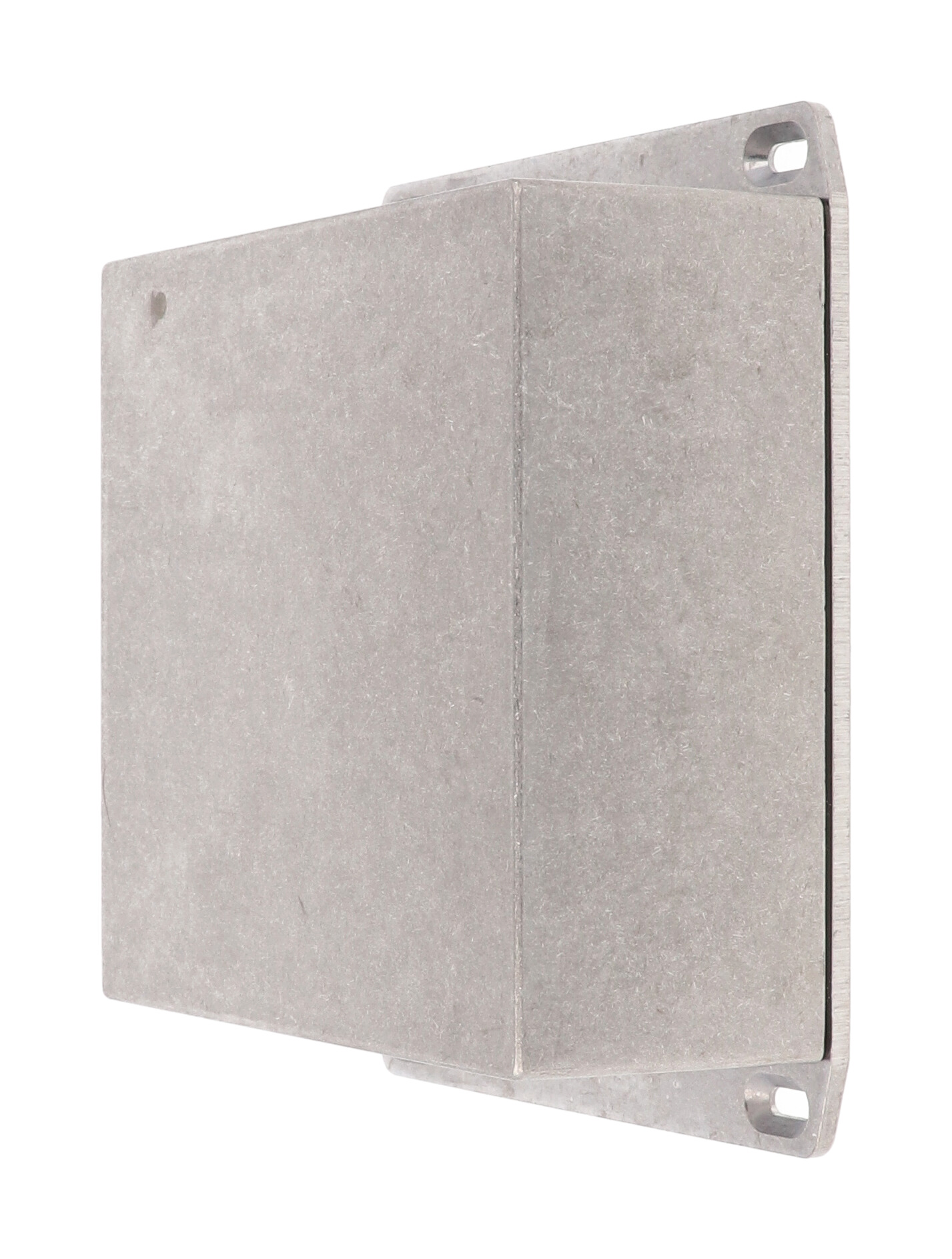

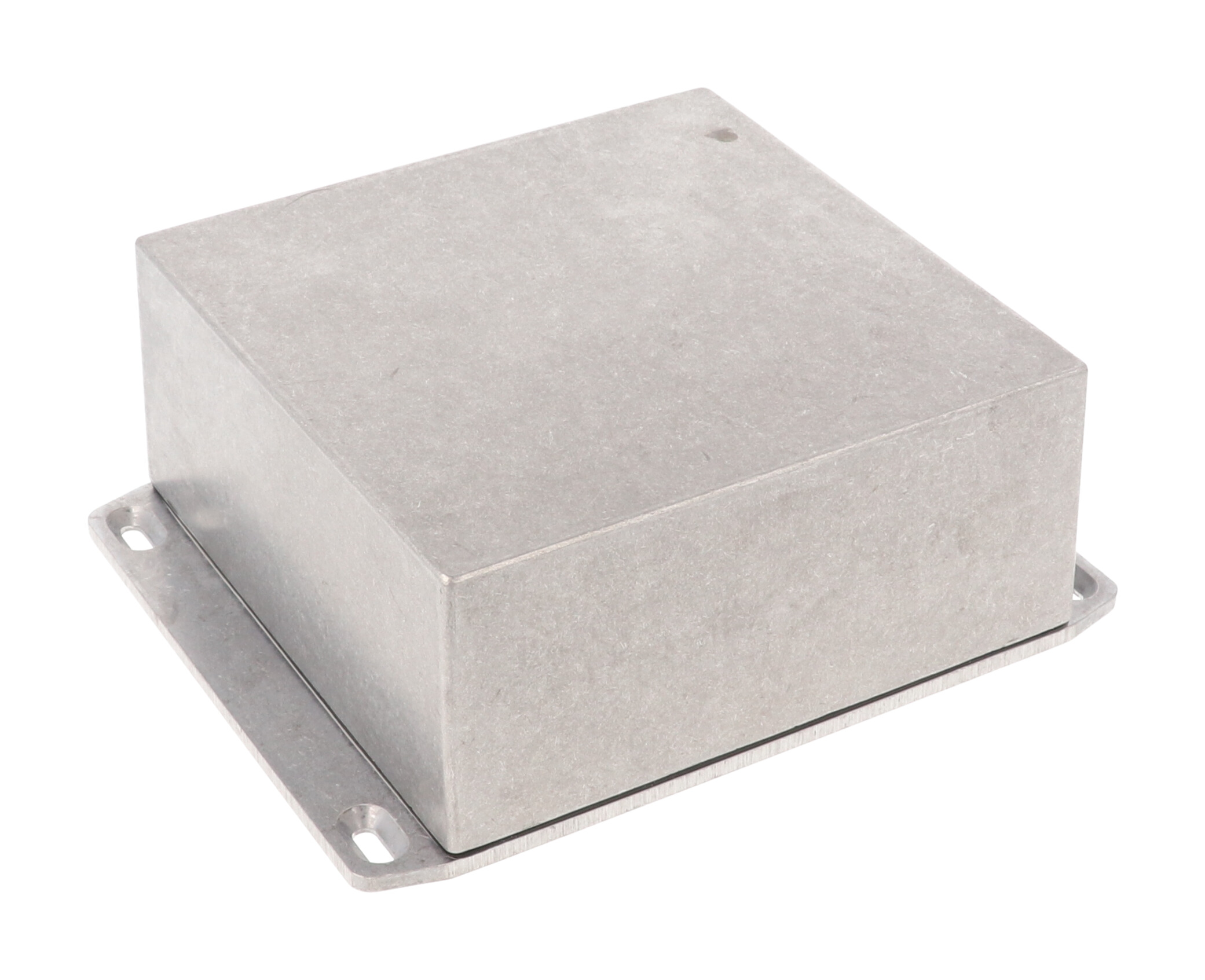

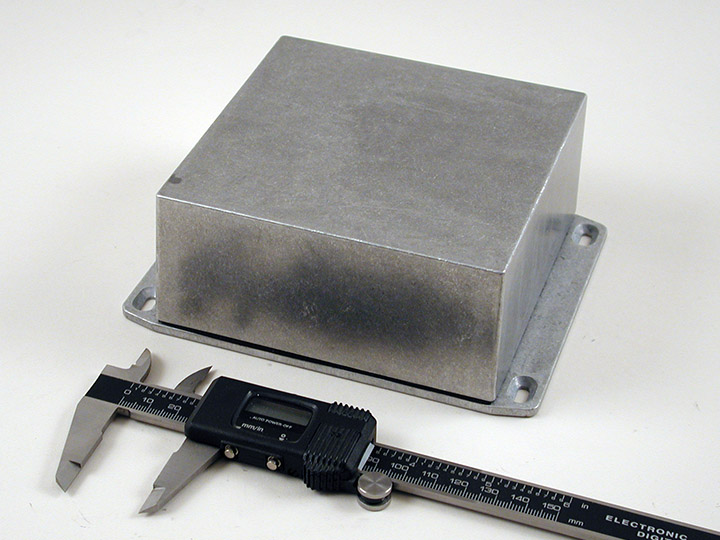

The 1590WKKFL is a natural watertight diecast aluminum enclosure in the 1590KK size, 4.91 x 4.91 x 2.24 in (125 x 125 x 57 mm), with a wall-mounting flange integrated into the lid. It gives electronics builders, integrators and OEM engineers a square, sealed housing with room for a board up to 116.38 x 116.38 mm.
The drawing shows an overall length of 155.00 mm (6.102 in) across the lid flange with 140.00 mm (5.512 in) between the flange mounting holes, a body width of 124.80 mm and a height of 57.00 mm. Inside dimensions are 120.00 mm long, 116.44 mm wide and 51.30 mm (2.020 in) high. Lid height is 0.16 in (4 mm).
Box and lid are diecast aluminum alloy, tough yet easy to machine. This part has an unpainted, vibra-finished surface that is smooth with no sharp edges. Lap joint construction where lid and box meet protects against dust and splashing water, and the side wall draft angle is 2° or less for board mounting.

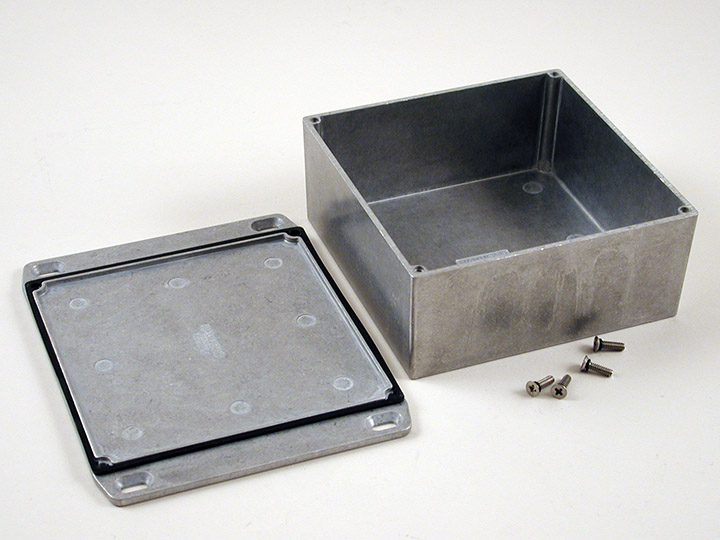

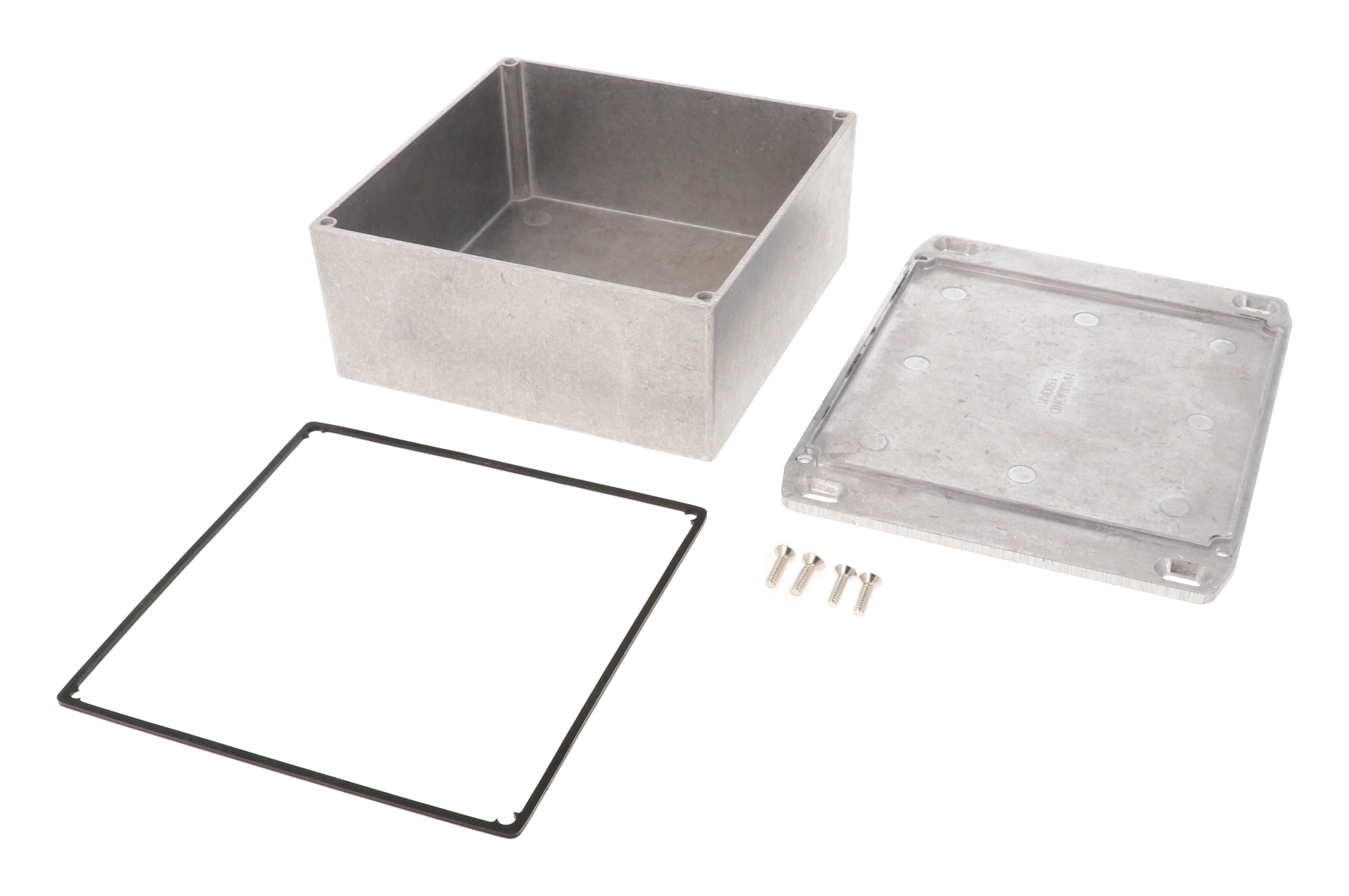

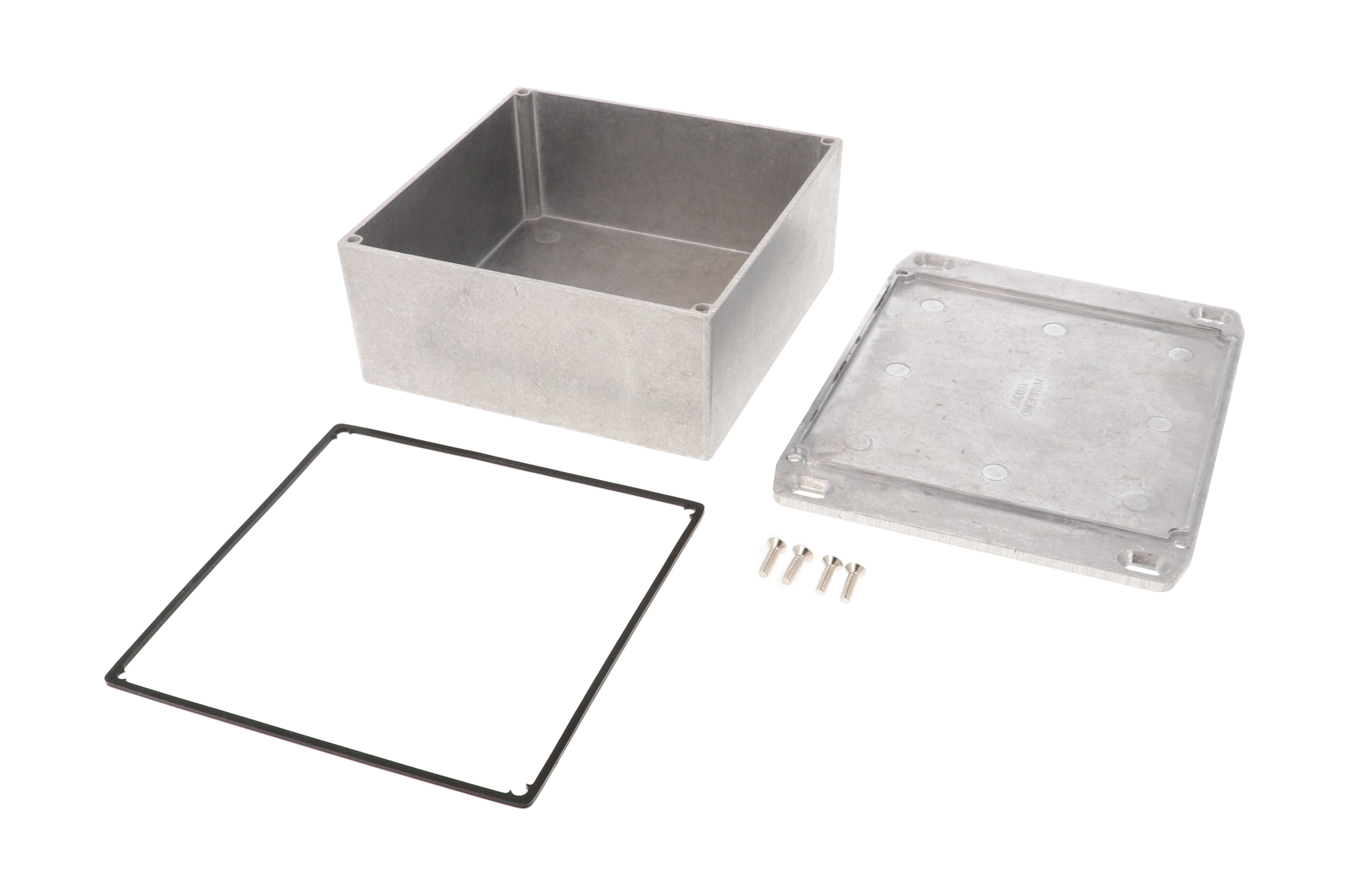

Designed to meet IP65, it includes a silicone gasket supplied loose and four 6-32 UNC cover screws. Tighten to 50-55 cN.m, or 25-30 cN.m with the gasket. The replacement gasket kit is 1590KGASKET. RoHS and REACH compliant; shrink wrapped, 0.54 lbs (0.24 kg).
Ideal For
- Wall-mounted sealed control electronics
- IP65 junction and terminal housings
- Square PCB enclosures for OEM equipment
- Machined instrument enclosures
Hardware
| Included | Box, lid and 4 cover screws |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Replacement Gasket Kit | 1590KGASKET |
| Watertight Replacement Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, pkg 100) |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Part Number | 1590WKKFL |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast; watertight; flanged lid; |
| Short Description | 1590KK WATERPROOF FLANGED LID |
| Standard (IP54) Equivalent | 1590KKFL |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 116.44 mm [4.584 in] |
| Inside Height | 51.30 mm [2.020 in] |
| Inside Length | 120.00 mm [4.724 in] |
| Size L X W X H | 4.91 in x 4.91 in x 2.24 in (125 mm x 125 mm x 57 mm) |
| Body Width (Drawing) | 124.80 mm [4.913 in] |
| Max. P.C. Board Width | 116.38 mm |
| Max. P.C. Board Length | 116.38 mm |
| Overall Height (Drawing) | 57.00 mm [2.244 in] |
| Nominal Width (Ordering Table) | 4.92 in (125 mm) |
| Nominal Height (Ordering Table) | 2.24 in (57 mm) |
| Nominal Length (Ordering Table) | 4.92 in (125 mm) |
| Overall Length Incl. Lid Flange (Drawing) | 155.00 mm [6.102 in] |
| Lid Flange Mounting Hole Spacing (Drawing) | 140.00 mm [5.512 in] |
Identifiers
| UPC | 623980401362 |
| UNSPSC | 39121301 |
Customization
| Solid Models | .stp or .x_t |
| Factory Modification | Available (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.54 lbs (0.24 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Joint | Lap joint where lid and box meet |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size PC board fits the 1590WKKFL?▾
The maximum PC board size is listed as 116.38 x 116.38 mm. Inside dimensions per the drawing are 120.00 x 116.44 mm with 51.30 mm inside height.
How is it mounted?▾
A wall-mounting flange is integrated into the lid. The drawing shows 155.00 mm overall length and 140.00 mm between the flange holes.
What IP rating does it carry?▾
IP65, as the water-tight version, with the included silicone gasket installed on the lid and screws torqued to 25-30 cN.m.
Which replacement gasket should I order?▾
The ordering table lists 1590KGASKET.
Is a black version available?▾
Yes, 1590WKKFLBK.
