Hammond 1590WDF 188x119x56mm IP65 Diecast Box with Flanged Bottom
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed to meet IP65; silicone gasket supplied loose inside the enclosure
- Size 7.39 in x 4.7 in x 2.2 in (188 mm x 119 mm x 56 mm); inside 178.86 mm x 111.61 mm x 51.00 mm
- Welded flanged bottom plate for surface mounting, 216.64 mm overall length
- Diecast aluminum alloy box and lid, tough yet easy to machine
- Natural aluminum, vibra finished for a smooth surface with no sharp edges
- 6 cover screws included, threaded into factory-tapped 6-32 UNC holes
- Maximum PC board 109.61 x 177.86 mm; side wall draft angle 2° or less
- Lap joint construction where lid and box meet; RoHS and REACH compliant

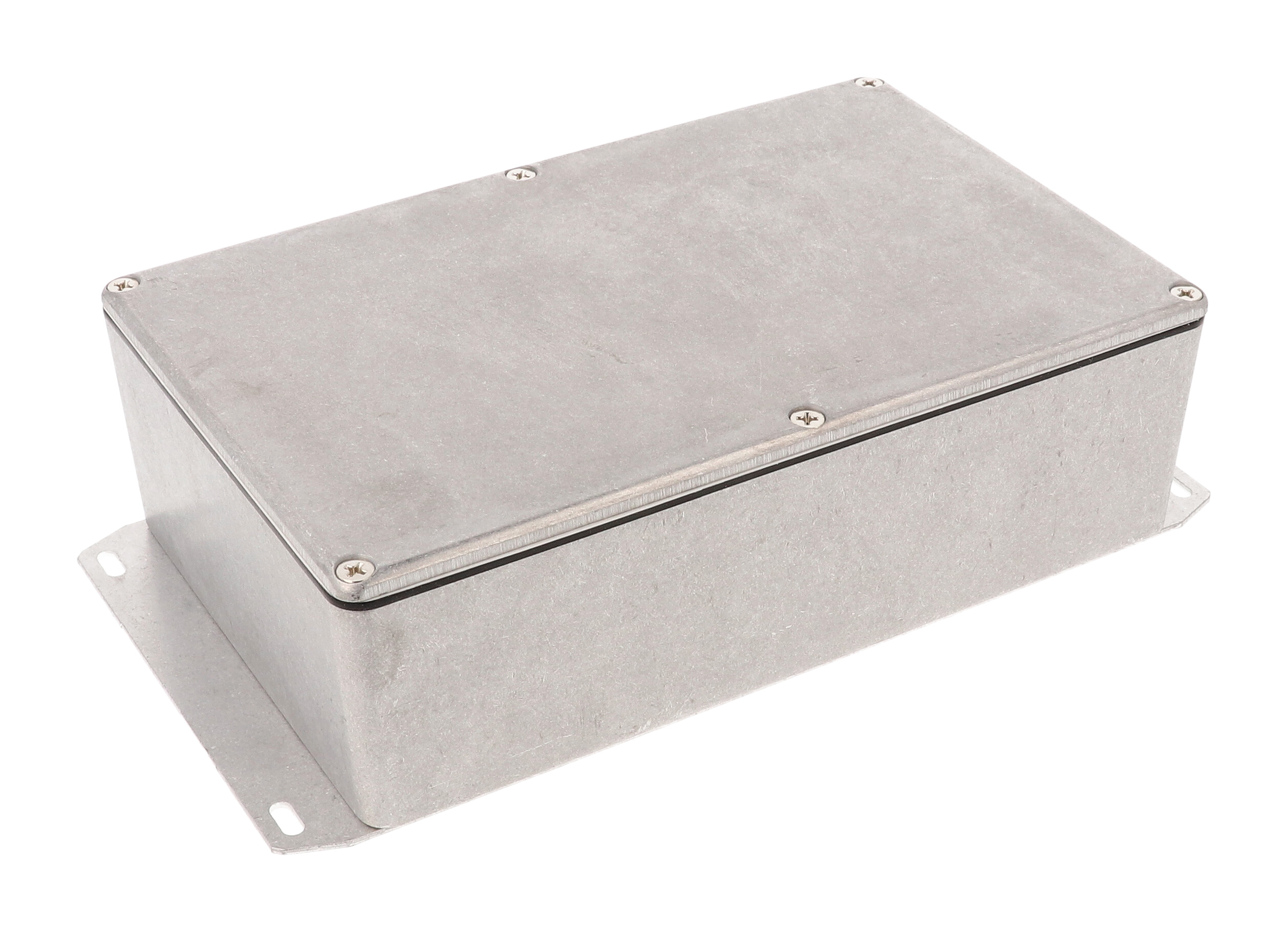

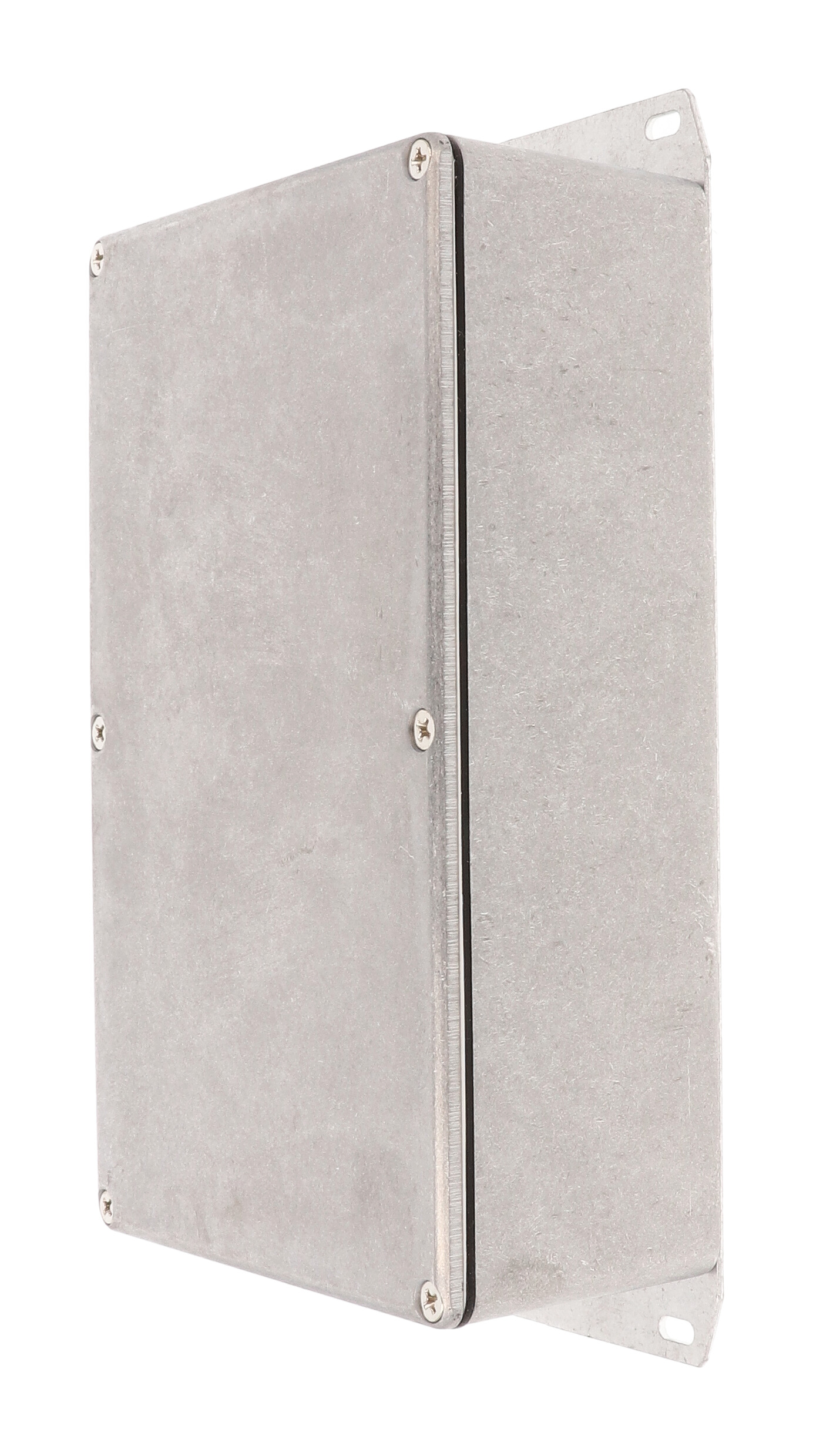

The 1590WDF is a watertight diecast aluminum enclosure measuring 7.39 in x 4.7 in x 2.2 in (188 mm x 119 mm x 56 mm) with a welded, flanged bottom plate, for installers and OEM engineers who need a surface-mountable IP65 instrument housing. It is the water-tight version of the 1590DF, finished in natural aluminum.
Box and lid are made from diecast aluminum alloy, a rugged material that is tough yet easy to machine. This version adds a flanged bottom plate; the drawing notes the bottom flange is welded to the box, extending the overall length to 216.64 mm [8.529 in], with the flange holes 205.36 mm [8.085 in] apart. The natural aluminum finish is vibra finished for a smooth surface with no sharp edges, and the alloy remains easy to machine. Low side wall draft angles (2° or less) make PC board mounting straightforward.
Drawing dimensions are 187.75 mm [7.392 in] long, 119.50 mm [4.705 in] wide and 57.50 mm [2.264 in] high, with inside dimensions of 178.86 mm [7.042 in] x 111.61 mm [4.394 in] x 51.00 mm [2.008 in] (length x width x height). The part data lists a maximum PC board size of 109.61 mm x 177.86 mm. Shipping weight is 1.37 lbs (0.62 kg).

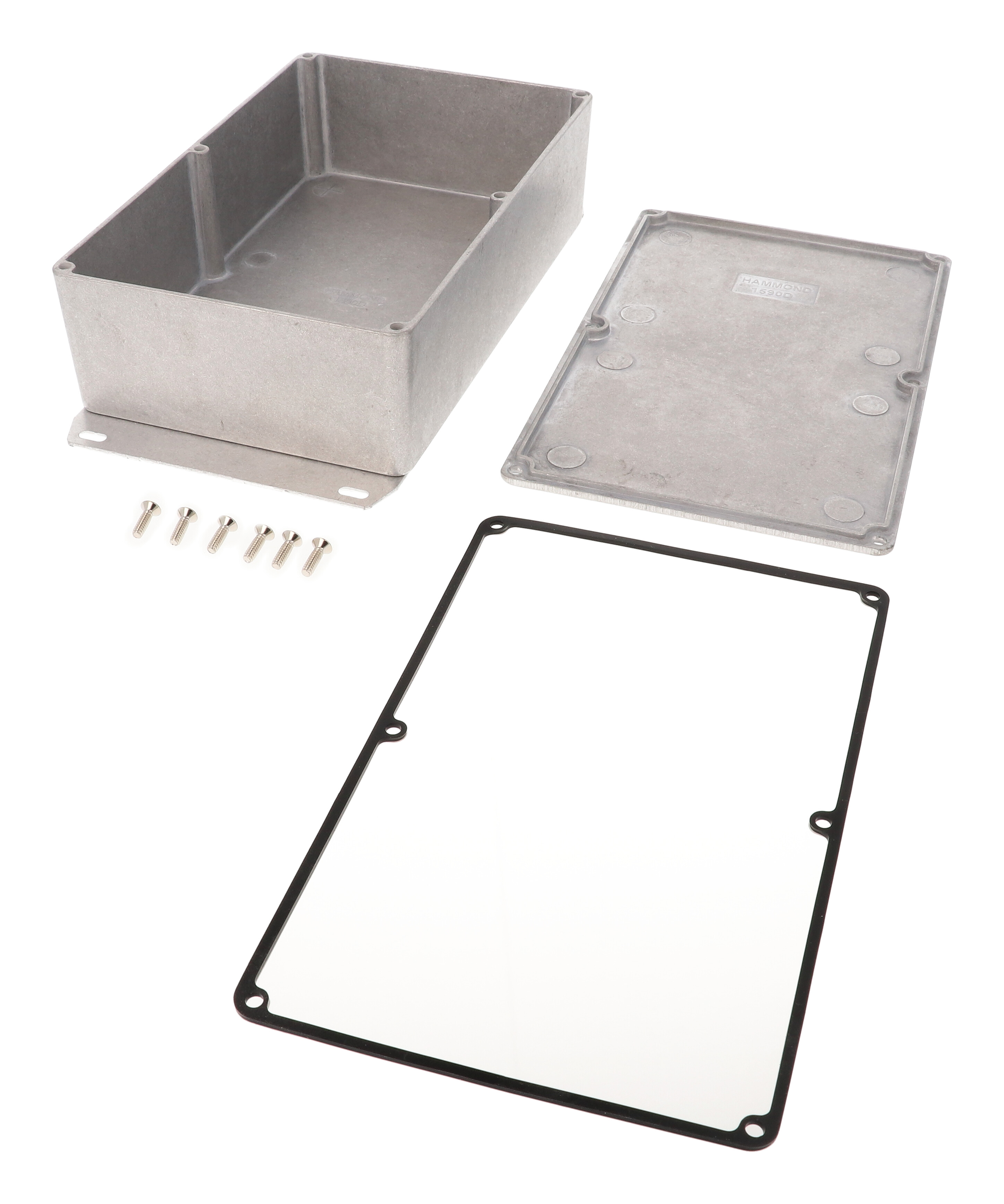

The assembly includes box, lid and 6 cover screws threaded into factory-tapped holes (6X 6-32 UNC). Watertight 1590 enclosures are designed to meet IP65 and ship with a silicone gasket supplied loose inside the enclosure, not pre-installed. Recommended lid screw torque is 25-30 cN.m (36-43 ozf.in) with the gasket fitted, and 50-55 cN.m (71-78 ozf.in) without. The replacement gasket kit for this size is 1590EGASKET, and the 1590WDF is RoHS and REACH compliant.
Ideal For
- Watertight IP65 electronics housings
- Electronic instrument enclosures
- PC board enclosures for OEM equipment
- Panel or chassis mounting via welded bottom flange
- Housings exposed to dust and splashing water
Hardware
| Screw Holes | Factory-tapped, 6X 6-32 UNC |
| Included In Assembly | Box, lid and 6 cover screws |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Recommended Torque (With Gasket) | 25-30 cN.m [36-43 ozf.in] |
| Recommended Torque (Without Gasket) | 50-55 cN.m [71-78 ozf.in] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2", with O-ring] |
Overview
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Water-Tight |
| Description | enclosure - watertight diecast |
| Product Type | Die-cast box, water-tight |
| Mounting Style | flanged bottom plate |
| Enclosure Model | 1590DF |
| Short Description | 1590D WATERPROOF FLANGED BOX |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 111.61 mm [4.394 in] |
| Inside Height | 51.00 mm [2.008 in] |
| Inside Length | 178.86 mm [7.042 in] |
| Size (L X W X H) | 7.39 in x 4.7 in x 2.2 in (188 mm x 119 mm x 56 mm) |
| Max. P.C. Board Width | 177.86 mm |
| Max. P.C. Board Length | 109.61 mm |
| Overall Width (Drawing) | 119.50 mm [4.705 in] |
| Overall Height (Drawing) | 57.50 mm [2.264 in] |
| Overall Length (Drawing) | 187.75 mm [7.392 in] |
| Flange Mounting Hole Spacing (Drawing) | 205.36 mm [8.085 in] |
| Nominal Size (L X W X H, Ordering Table) | 7.40 in (188 mm) x 4.72 in (120 mm) x 2.20 in (56 mm) |
| Overall Length Including Bottom Flange (Drawing) | 216.64 mm [8.529 in] |
Identifiers
| UPC | 623980677132 |
| UNSPSC | 39121301 |
| Part Number | 1590WDF |
Modification
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Related Versions
| Standard (IP54) Equivalent | 1590DF |
| W/ Flanged Lid Standard Version | 1590DFL |
| W/ Flanged Lid Water-Tight Version | 1590WDFL |
| No Mounting Flanges Standard Version | 1590D |
| No Mounting Flanges Water-Tight Version | 1590WD |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.37 lbs (0.62 kg) |
Construction & Finish
| Finish | Natural finish, vibra finished (smooth surface, no sharp edges) |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast Aluminum Alloy |
| Bottom Flange | Welded |
| Lid-to-Box Joint | Lap joint construction |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| Gasket | Silicone gasket included, supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Kit Contents | Two pre-formed silicone gaskets with adhesive backing, applied to the lid |
| Gasket Kit Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
| Optional Replacement Gasket Kit | 1590EGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the gasket already installed on the 1590WDF?▾
No. Watertight 1590 enclosures include a silicone gasket that is supplied loose inside the enclosure, not pre-installed. Fitted with the lid screws torqued to 25-30 cN.m (36-43 ozf.in), the enclosure is designed to meet IP65.
What are the inside dimensions of the 1590WDF?▾
Per the drawing, inside length is 178.86 mm [7.042 in], inside width 111.61 mm [4.394 in] and inside height 51.00 mm [2.008 in]. The listed maximum PC board size is 109.61 mm x 177.86 mm.
How many lid screws does it use, and which replacements fit?▾
The assembly includes 6 cover screws in factory-tapped 6-32 UNC holes. Liquid resistant replacements are 1590WMS100 (stainless steel) or 1590WMS100BK (black stainless steel), 6-32 x 1/2", with O-ring, in packs of 100.
How is this enclosure mounted?▾
It has a flanged bottom plate, welded to the box per the drawing, extending the overall length to 216.64 mm [8.529 in] with flange holes 205.36 mm [8.085 in] apart.
Which replacement gasket kit fits this size?▾
The optional replacement gasket kit is 1590EGASKET. Each kit includes two pre-formed silicone gaskets with adhesive backing, applied to the lid, rated -40°C to 150°C (-40°F to 302°F).
Can the enclosure be machined or modified?▾
Yes. Diecast aluminum is tough yet easy to machine, and the natural version is vibra finished with no sharp edges. The drawing also notes that enclosures can be factory modified (milling, drilling, printing etc.) and that solid models are available in STEP or IGES.
Related Products

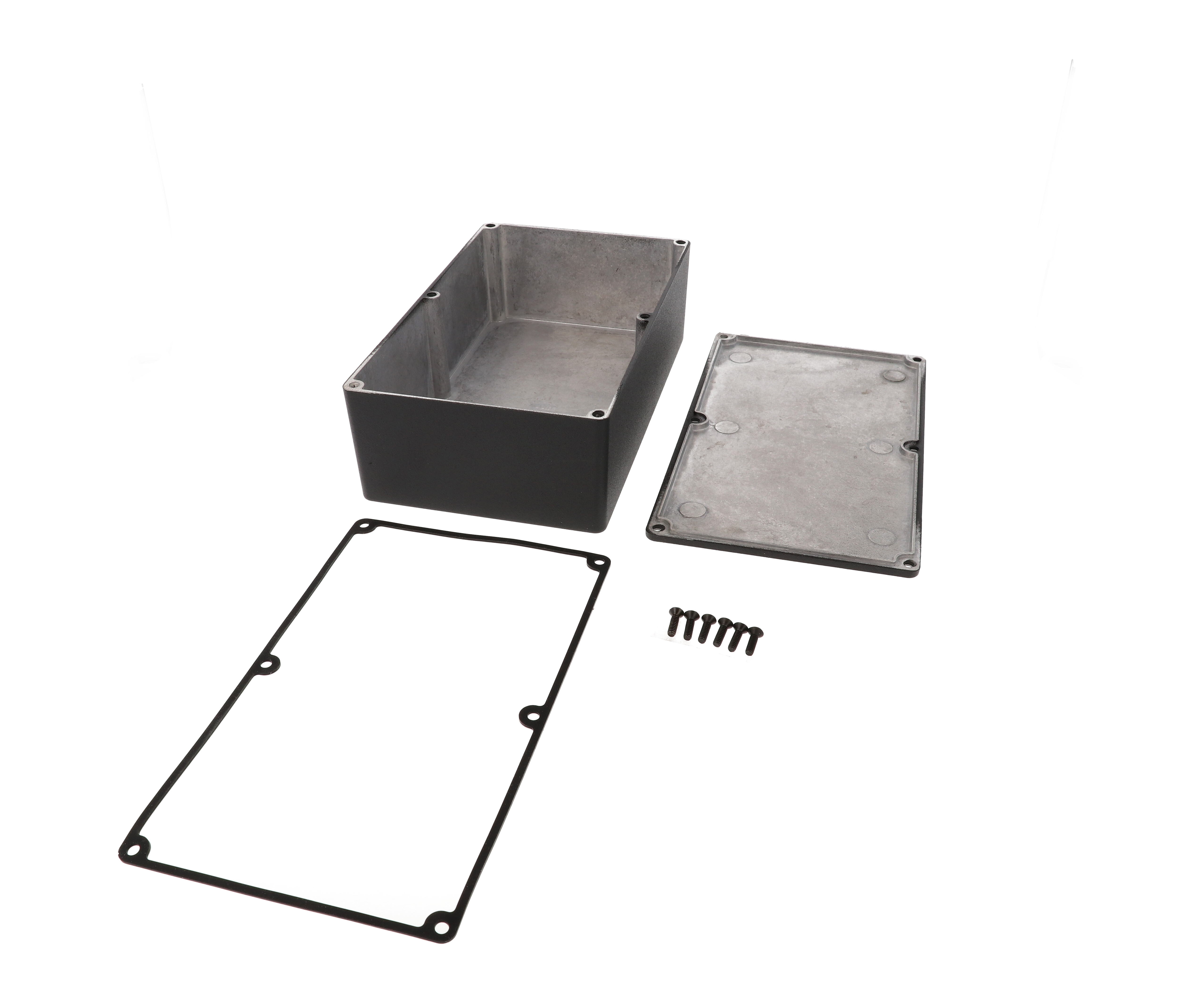

Save 52%1590WDEBK — enclosure - watertight diecast
Hammond Manufacturing · 1590WDEBK

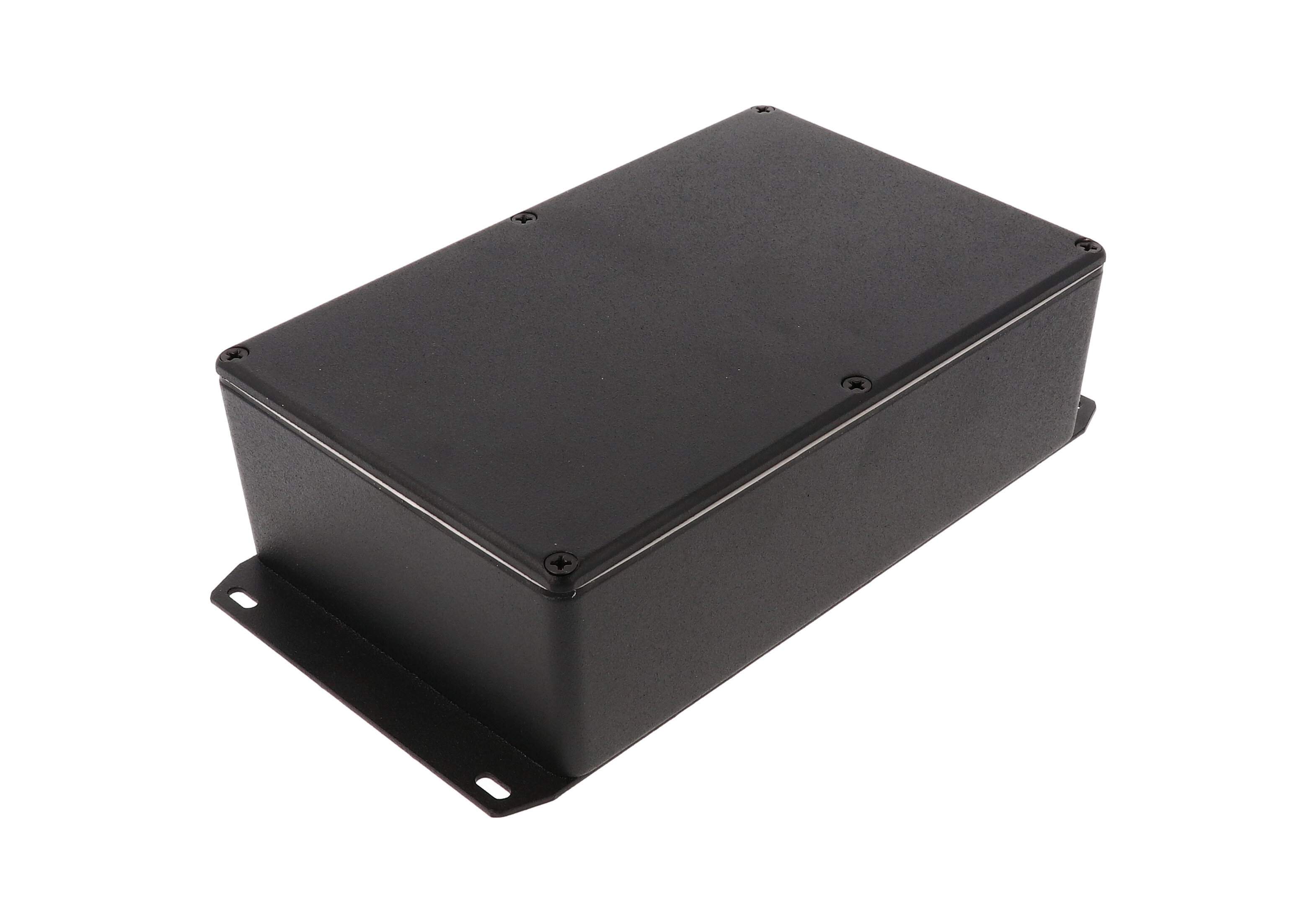

Save 52%1590WDFBK — enclosure - watertight diecast
Hammond Manufacturing · 1590WDFBK

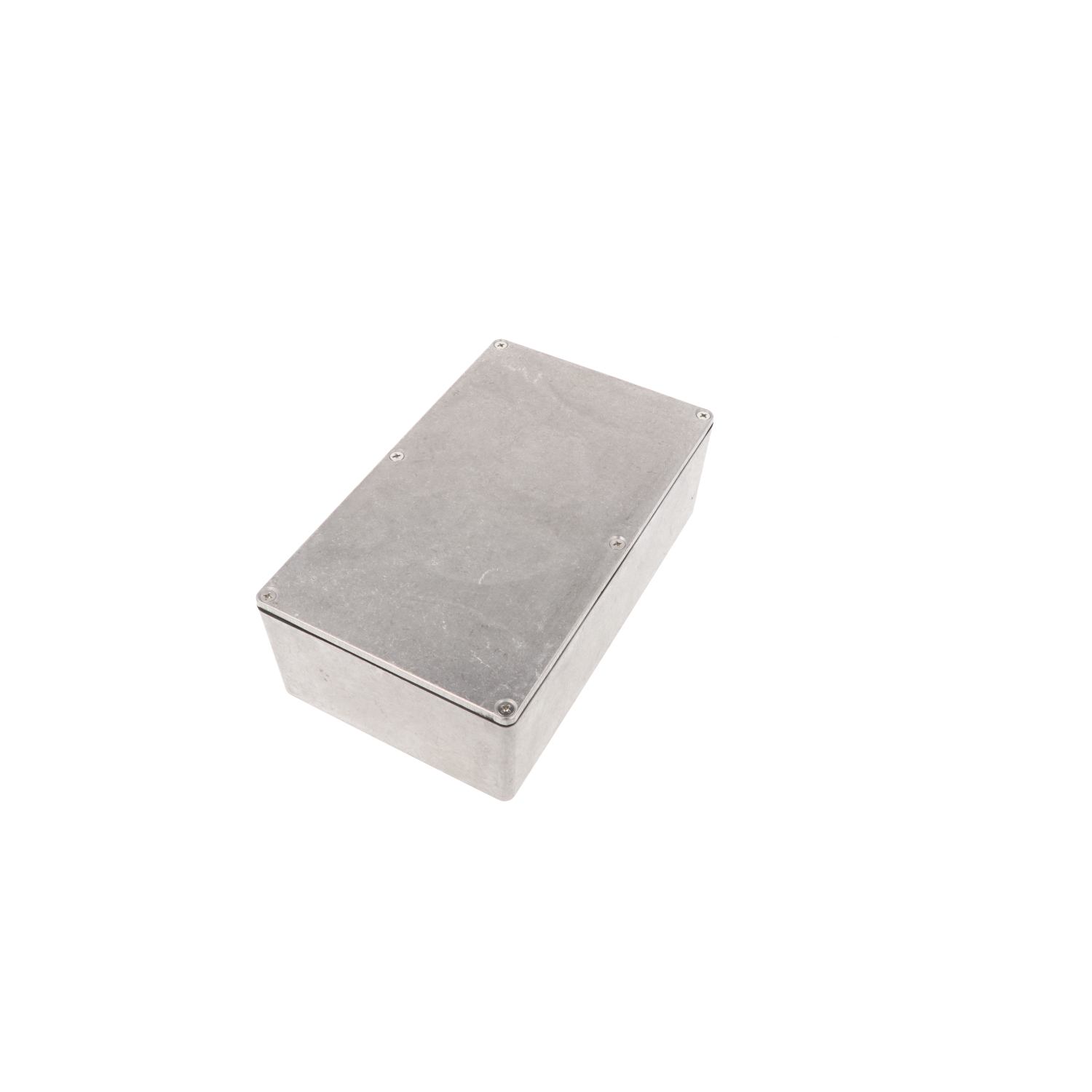

Save 52%1590WDE — enclosure - watertight diecast
Hammond Manufacturing · 1590WDE

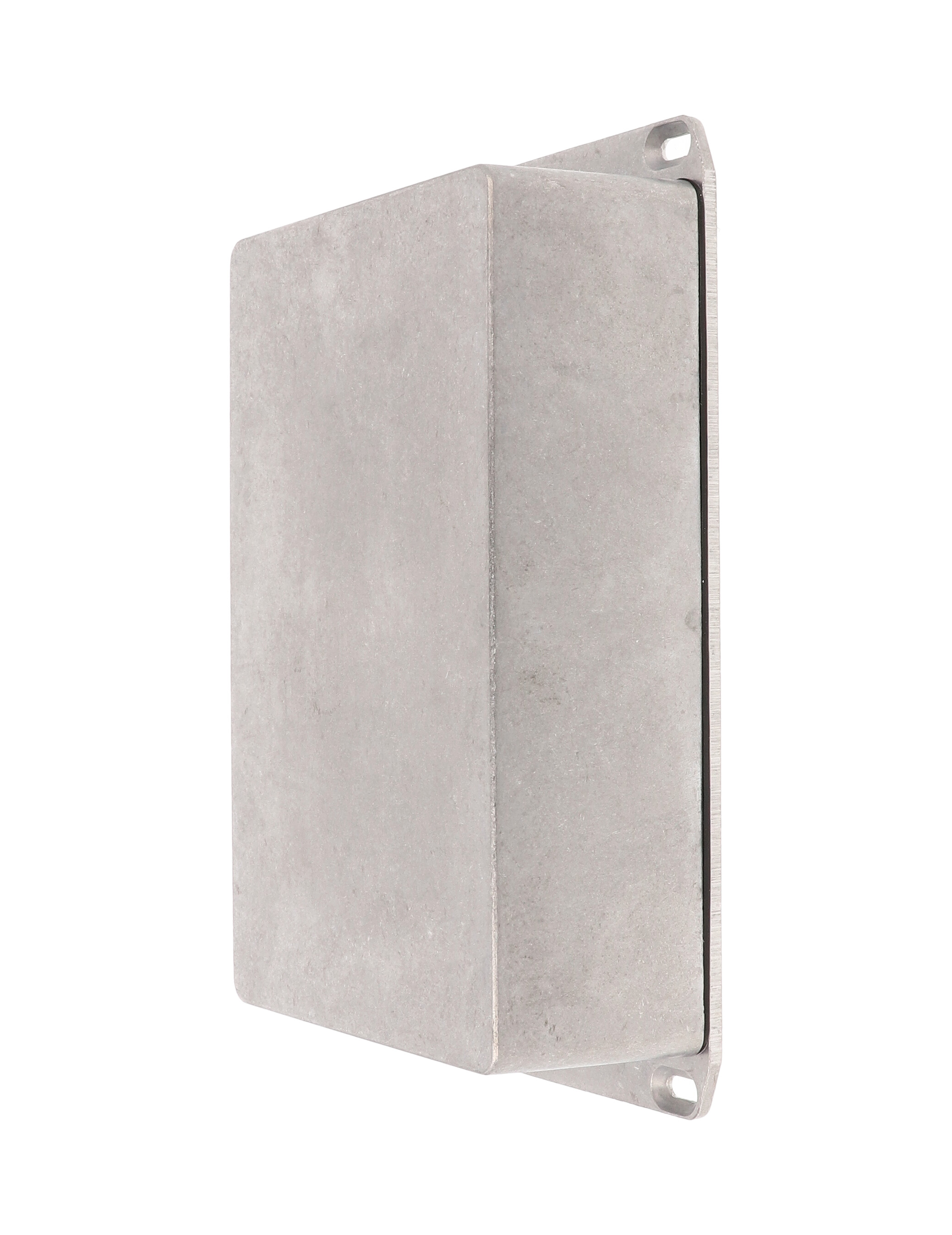

Save 52%1590WDFL — enclosure - watertight diecast
