Hammond 1590WBBSFBK 120x94x42mm IP65 Black Diecast Enclosure, Flanged Base
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black textured polyester powder paint with black screws included
- Welded flanged bottom plate, 148.24 mm [5.836 in] across
- Designed to meet IP65; loose silicone gasket included
- Nominal 120 x 94 x 42 mm; 43.60 mm [1.717 in] overall height
- Inside 113.48 x 87.98 x 37.85 mm; max PC board 85.98 x 111.48 mm
- Diecast aluminum alloy, tough yet easy to machine
- RoHS and REACH compliant; replacement gasket kit 1590BBGASKET

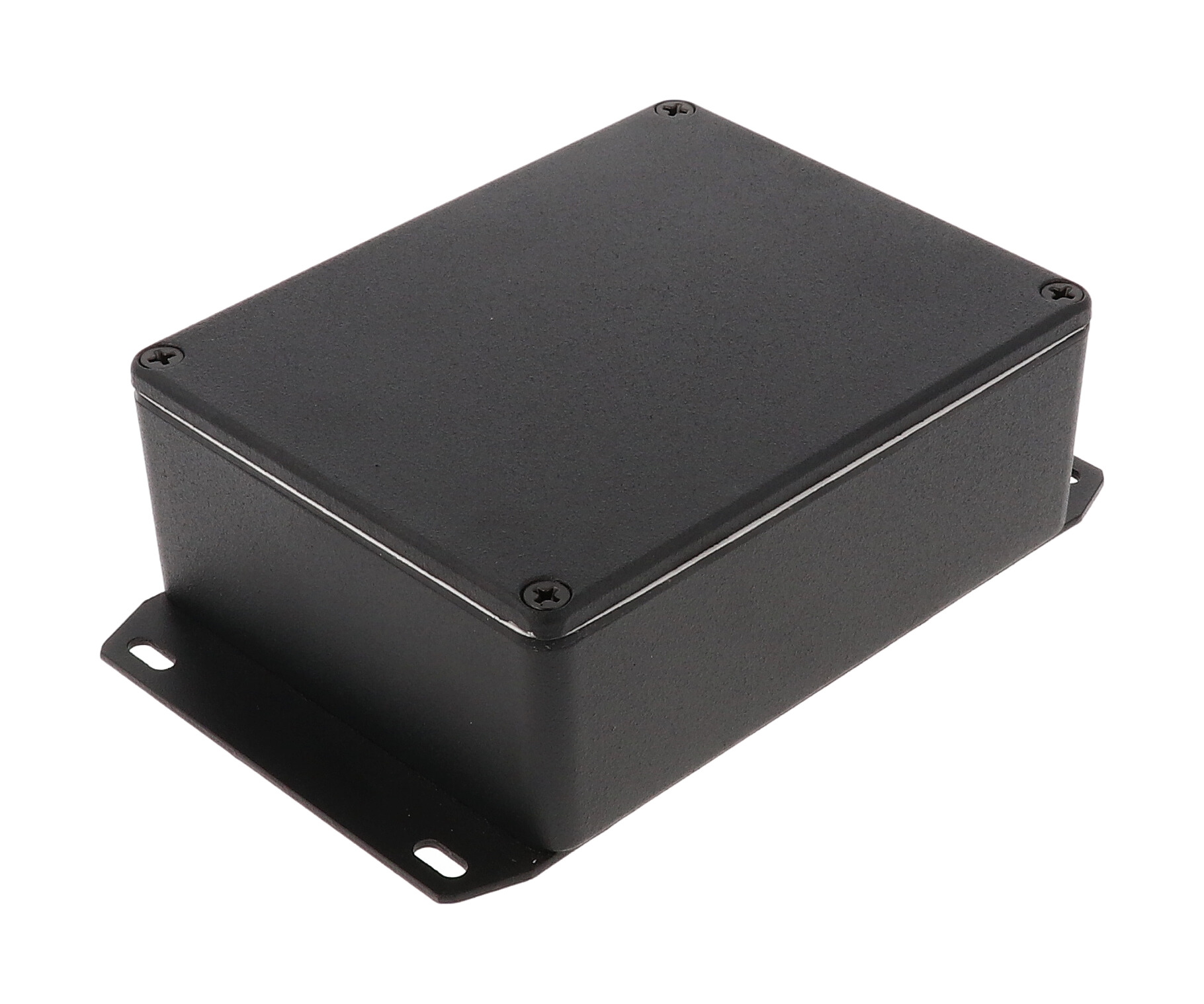

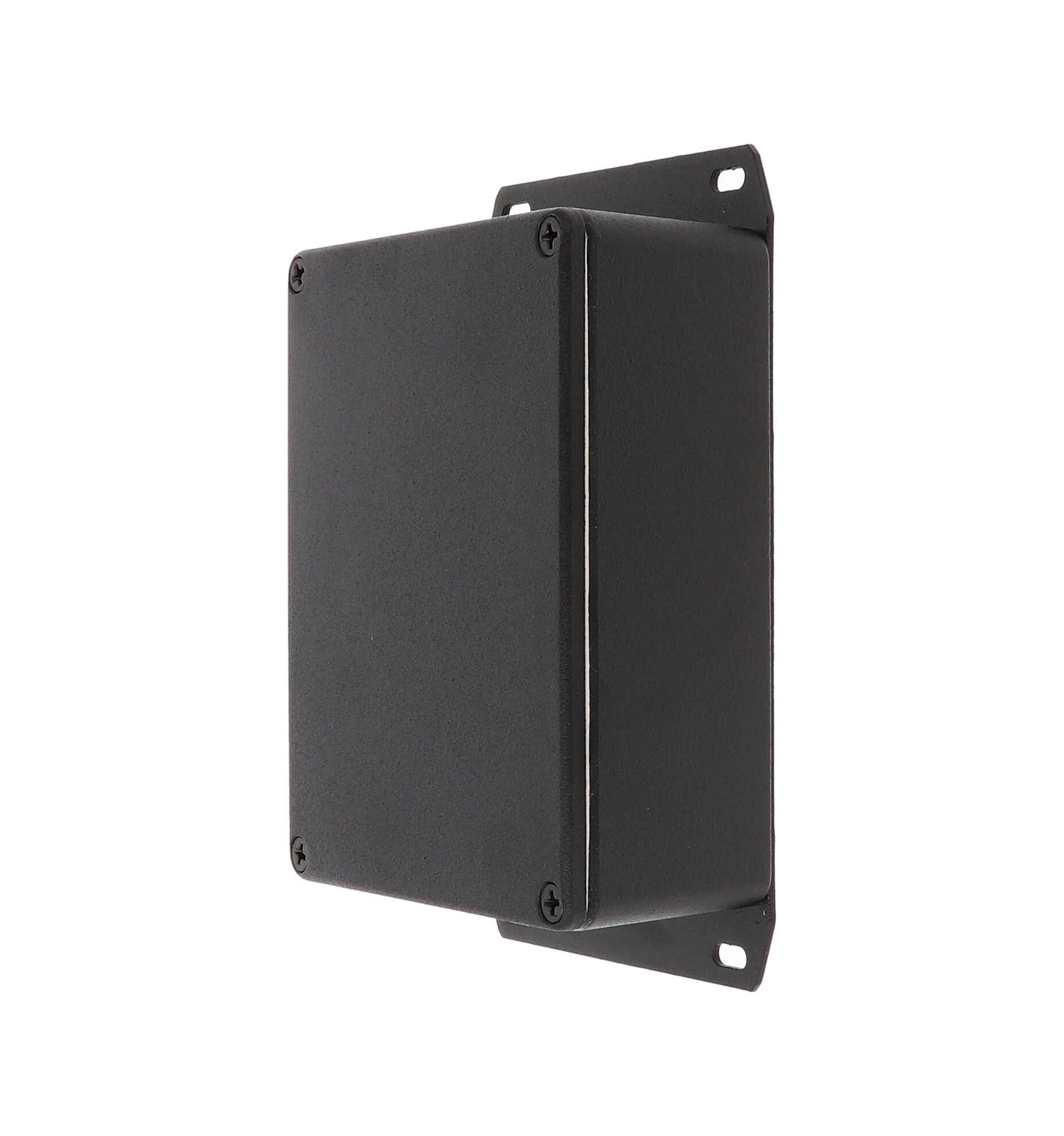

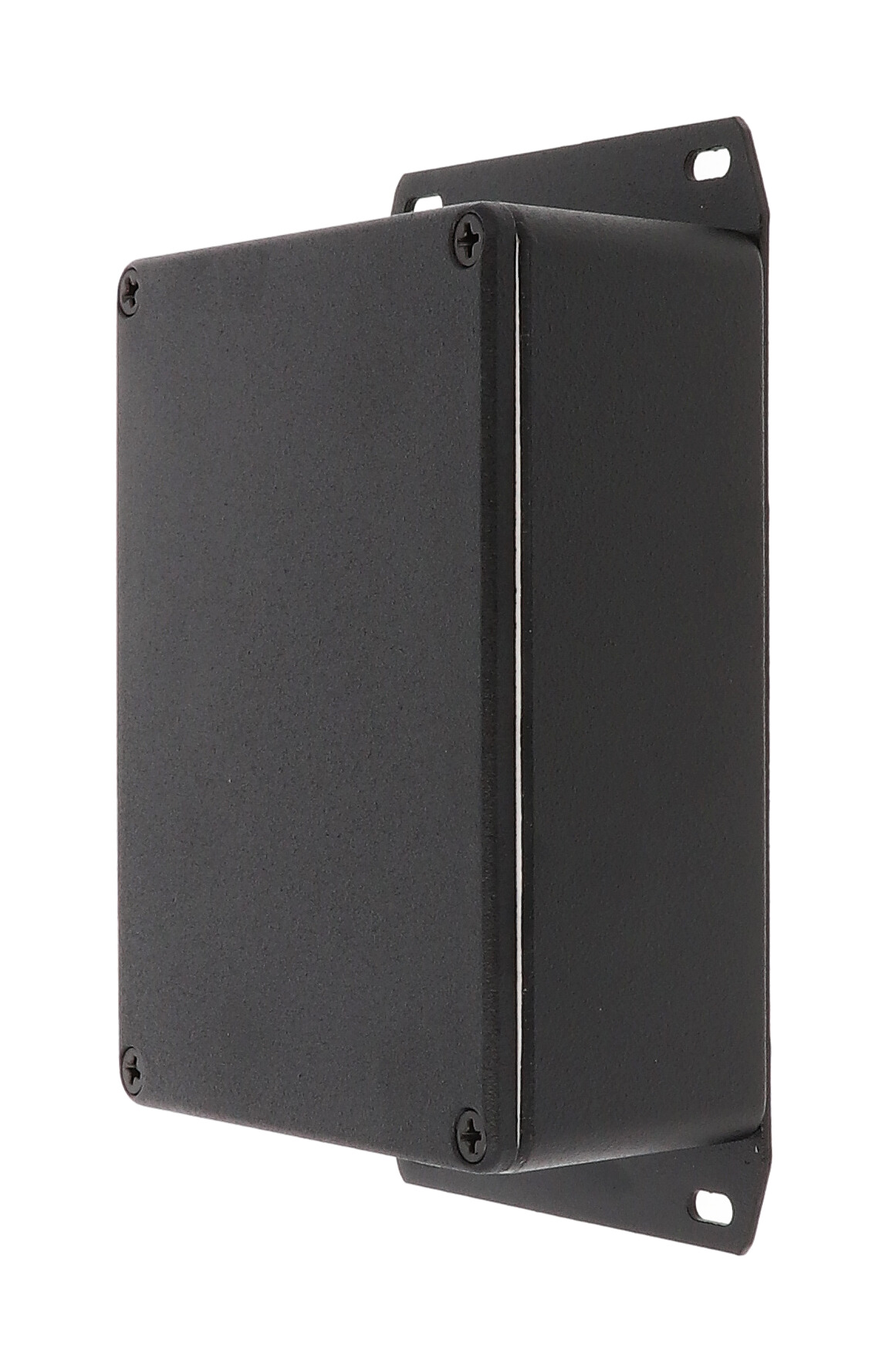

The 1590WBBSFBK is the black textured version of the water-tight 1590BBSF, a deeper 1590BBS-size diecast aluminum enclosure with a flanged bottom plate. It is for OEM engineers, panel builders and integrators who want a painted metal housing that mounts from its base and is designed to meet IP65.
The box and lid are diecast aluminum alloy, and the bottom flange is welded. The black version is coated with tough polyester powder paint, giving a lasting finish even after machining, and black screws are included. Lap joint construction where lid and box meet protects against dust and splashing water, and the silicone gasket for this liquid-resistant version is supplied loose inside.
Nominal dimensions are 4.72 x 3.70 x 1.65 in (120 x 94 x 42 mm). The drawing shows 148.24 mm [5.836 in] across the flange, a 119.50 mm [4.705 in] x 94.00 mm [3.701 in] box body and an overall height of 43.60 mm [1.717 in]. Inside: 113.48 x 87.98 x 37.85 mm [4.468 x 3.464 x 1.490 in]. The listed maximum PC board is 85.98 x 111.48 mm, and side wall draft is 2 degrees or less.

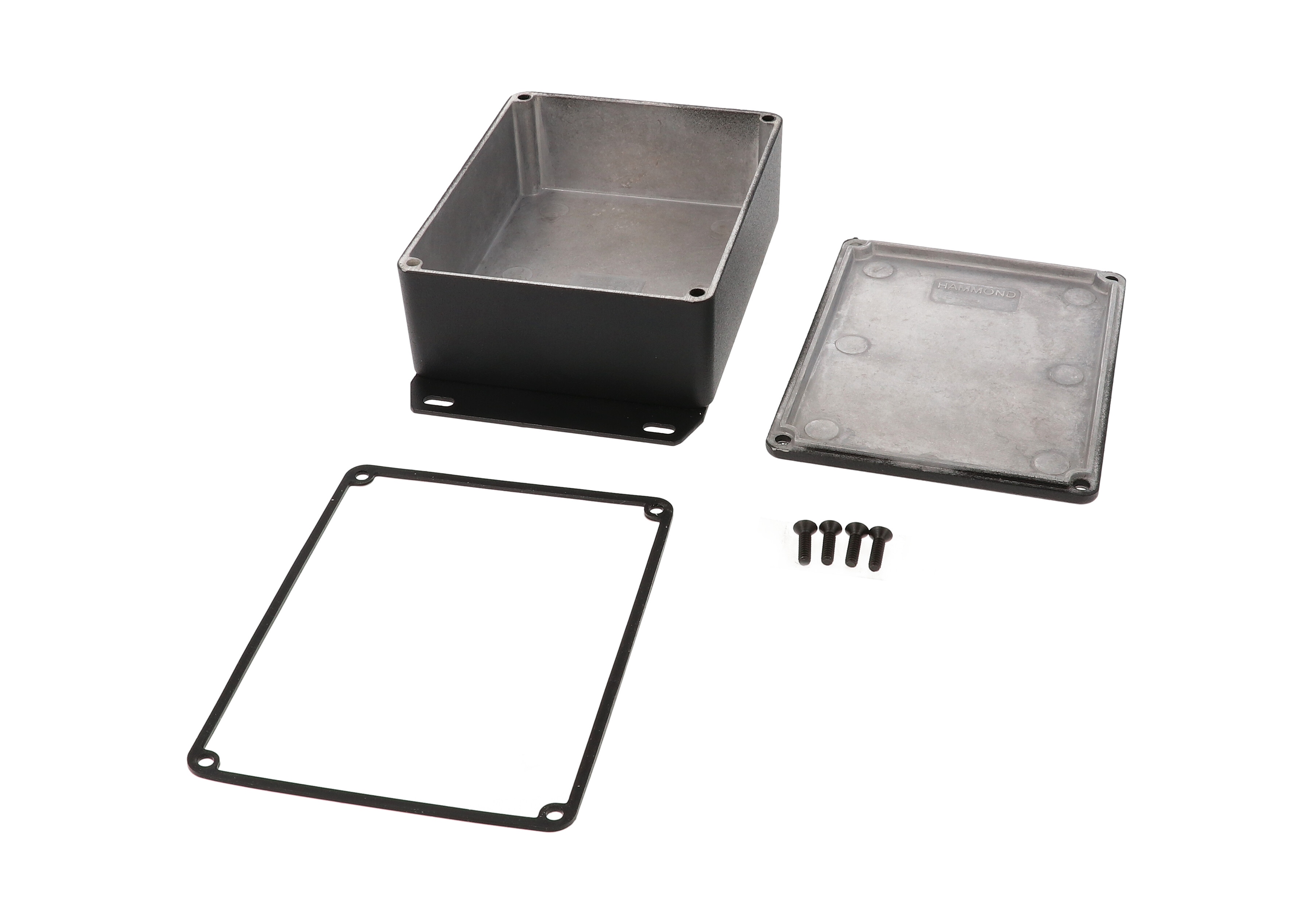

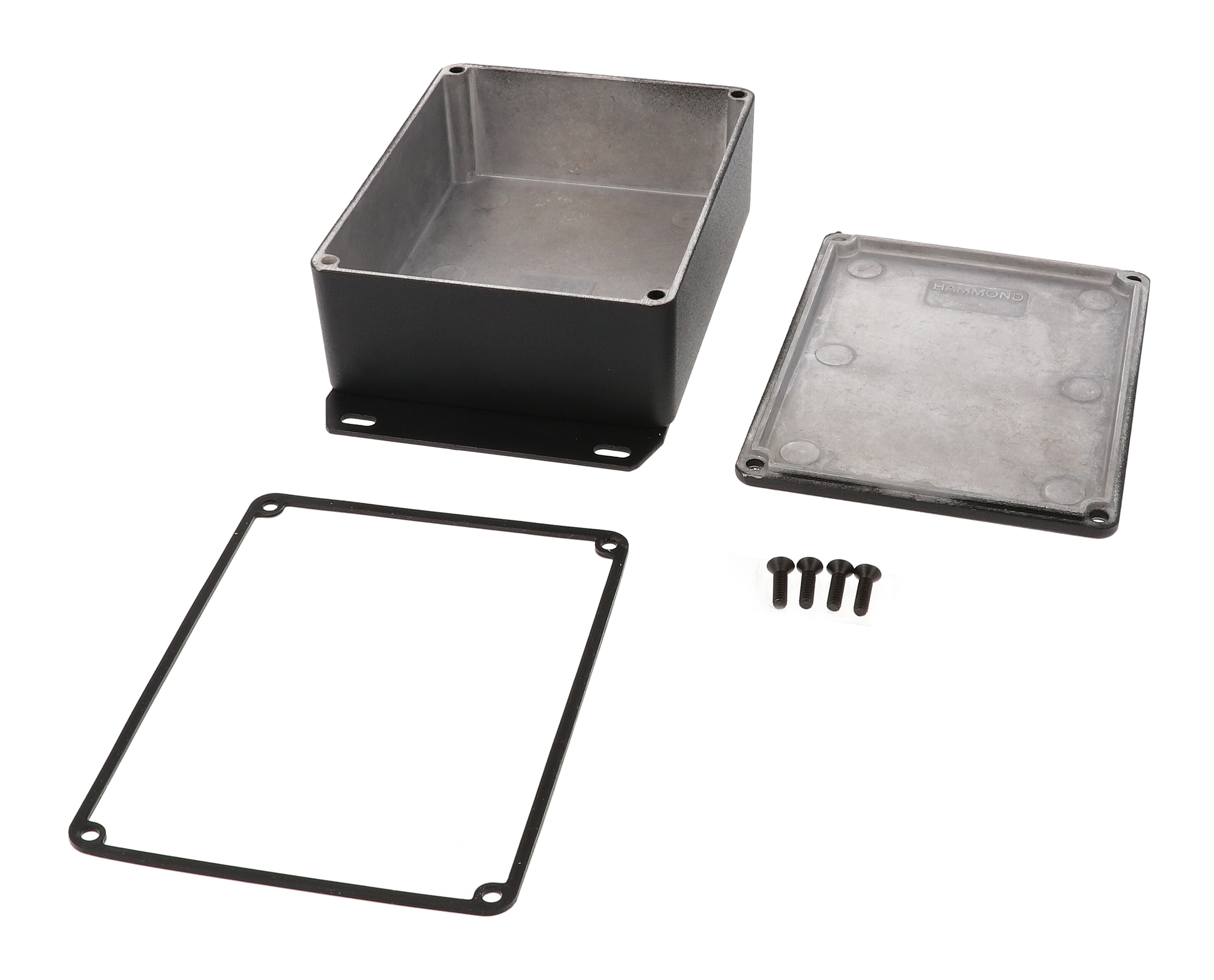

The 1590WBBSFBK includes box, lid and 4 cover screws for factory-tapped 6-32 UNC holes. Tighten to 50-55 cN.m [71-78 ozf.in], or to 25-30 cN.m [36-43 ozf.in] with the gasket installed. Shipping weight is 0.35 lbs (0.16 kg); the part is RoHS and REACH compliant.
Ideal For
- Surface-mounted control and instrument boxes
- Electronics exposed to dust and splashing water
- Painted housings that will be machined
- OEM PC board enclosures
Other
| CAD Models | Solid models available in .stp or .x_t |
| Drawing Reference | 1590BBSF |
| Factory Modification | Milling, drilling, printing etc. available from the factory on a quote basis |
Mounting
| Bottom Flange | Welded |
| Cover Screw Thread | 6-32 UNC (4 factory-tapped holes) |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Overview
| Type | Die-cast box, water-tight |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Water-Tight |
| Description | enclosure - watertight diecast |
| Part Number | 1590WBBSFBK |
| Mounting Style | Flanged bottom plate (spot-welded bottom flange) |
| Short Description | 1590BBS W-PROOF FLNGD BLACK |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 87.98 mm [3.464 in] |
| Inside Height | 37.85 mm [1.490 in] |
| Inside Length | 113.48 mm [4.468 in] |
| Overall Width | 94.00 mm [3.701 in] |
| Overall Height | 43.60 mm [1.717 in] |
| Size (L X W X H) | 4.7 in x 3.7 in x 1.66 in (119 mm x 94 mm x 42 mm) |
| Max. P.C. Board Width | 111.48 mm |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 85.98 mm |
| Nominal Size (L X W X H) | 4.72 in (120 mm) x 3.70 in (94 mm) x 1.65 in (42 mm) |
| Overall Length (Box Body) | 119.50 mm [4.705 in] |
| Overall Length (Incl. Flange) | 148.24 mm [5.836 in] |
Accessories
| Standard Cover Screws | 1590MS100 plated / 1590MS100BK black, 6-32 x 1/2" (Pkg 100) |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel / 1590WMS100BK black stainless steel, 6-32 x 1/2" with O-ring (Pkg 100) |
| Optional Replacement Gasket Kit | 1590BBGASKET (two pre-formed silicone gaskets with adhesive backing) |
Identifiers
| UPC | 623980400532 |
| UNSPSC | 39121301 |
Related Versions
| Standard Version (No Flanges) | 1590BBSBK |
| Standard Version (Flanged Lid) | 1590BBSFLBK |
| Water-Tight Version (No Flanges) | 1590WBBSBK |
| Water-Tight Version (Flanged Lid) | 1590WBBSFLBK |
| Standard Version (Flanged Bottom Plate) | 1590BBSFBK |
| Water-Tight Version (Flanged Bottom Plate) | 1590WBBSFBK |
Packaging & Shipping
| Included | Box, lid and 4 cover screws; silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.35 lbs (0.16 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
Environmental & Protection
| Gasket | Silicone gasket included, supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Kit Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1590WBBSFBK?▾
The black textured, water-tight 1590BBS-size diecast aluminum enclosure with a welded flanged bottom plate.
Is it IP65 rated?▾
Water-tight versions are designed to meet IP65 and include a silicone gasket, supplied loose inside the enclosure.
What are the inside dimensions?▾
113.48 mm [4.468 in] long, 87.98 mm [3.464 in] wide and 37.85 mm [1.490 in] high.
Which screws fit as replacements?▾
The drawing lists 6-32 x 1/2 in cover screws in packs of 100, including 1590WMS100BK black stainless steel screws with o-ring.
What does it weigh?▾
Shipping weight is 0.35 lbs (0.16 kg).
