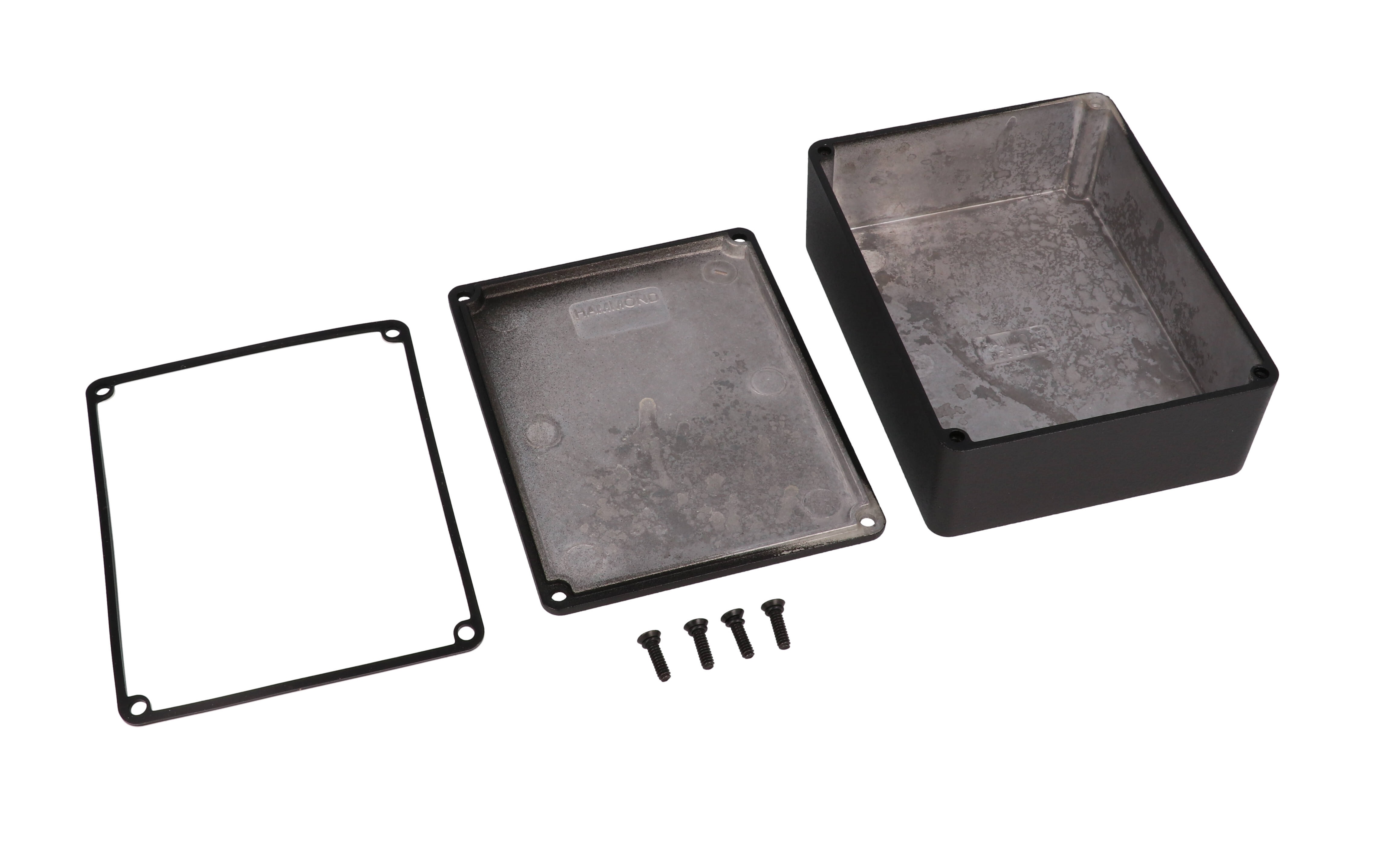

Hammond 1590WBBSBK 120x94x42mm IP65 Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black textured polyester powder paint; black screws included
- Designed to meet IP65 with the included loose silicone gasket
- Nominal 120 x 94 x 42 mm (4.72 x 3.70 x 1.65 in), no mounting flanges
- Inside 113.48 x 87.98 x 37.85 mm; max PC board 85.98 x 111.48 mm
- Diecast aluminum alloy with lap joint lid construction
- 4 cover screws for factory-tapped 6-32 UNC holes
- RoHS and REACH compliant; replacement gasket kit 1590BBGASKET
The 1590WBBSBK is the black textured, water-tight 1590BBS diecast aluminum enclosure without mounting flanges. It gives OEM engineers, integrators and instrument builders the deeper 1590BBS body in a painted finish, designed to meet IP65.
Construction is diecast aluminum alloy for box and lid, a material that is tough yet easy to machine. The black version is coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to enhance appearance. Lap joint construction at the lid-to-box seam guards against dust and splashing water; the silicone gasket is included and supplied loose inside the enclosure.
The nominal size is 4.72 x 3.70 x 1.65 in (120 x 94 x 42 mm). Per the drawing, the enclosure is 119.50 mm [4.705 in] long, 94.00 mm [3.701 in] wide and 42.10 mm [1.657 in] high outside. Interior dimensions are 113.48 x 87.98 x 37.85 mm [4.468 x 3.464 x 1.490 in], and the maximum PC board is listed at 85.98 x 111.48 mm. Side walls have a draft of 2 degrees or less.
The 1590WBBSBK comes with box, lid and 4 cover screws for factory-tapped 6-32 UNC holes. Recommended torque is 50-55 cN.m [71-78 ozf.in]; with the gasket, use 25-30 cN.m [36-43 ozf.in]. Listed shipping weight is 0.31 lbs (0.14 kg), and the part is RoHS and REACH compliant.
Ideal For
- Deeper electronic instrument housings
- Electronics exposed to dust and splashing water
- Painted enclosures that will be machined
- OEM PC board enclosures
Other
| CAD Models | Solid models available in .stp or .x_t |
| Drawing Reference | 1590BBS |
| Factory Modification | Milling, drilling, printing etc. available from the factory on a quote basis |
Mounting
| Cover Screw Thread | 6-32 UNC (4 factory-tapped holes) |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Overview
| Type | Die-cast box, water-tight |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Water-Tight |
| Description | enclosure - watertight diecast |
| Part Number | 1590WBBSBK |
| Mounting Style | No mounting flanges |
| Short Description | 1590 BBS WATERPROOF |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 87.98 mm [3.464 in] |
| Inside Height | 37.85 mm [1.490 in] |
| Inside Length | 113.48 mm [4.468 in] |
| Overall Width | 94.00 mm [3.701 in] |
| Overall Height | 42.10 mm [1.657 in] |
| Overall Length | 119.50 mm [4.705 in] |
| Size (L X W X H) | 4.7 in x 3.7 in x 1.66 in (119 mm x 94 mm x 42 mm) |
| Max. P.C. Board Width | 111.48 mm |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 85.98 mm |
| Nominal Size (L X W X H) | 4.72 in (120 mm) x 3.70 in (94 mm) x 1.65 in (42 mm) |
Accessories
| Standard Cover Screws | 1590MS100 plated / 1590MS100BK black, 6-32 x 1/2" (Pkg 100) |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel / 1590WMS100BK black stainless steel, 6-32 x 1/2" with O-ring (Pkg 100) |
| Optional Replacement Gasket Kit | 1590BBGASKET (two pre-formed silicone gaskets with adhesive backing) |
Identifiers
| UPC | 623980027739 |
| UNSPSC | 39121301 |
Related Versions
| Standard Version (No Flanges) | 1590BBSBK |
| Standard Version (Flanged Lid) | 1590BBSFLBK |
| Water-Tight Version (No Flanges) | 1590WBBSBK |
| Water-Tight Version (Flanged Lid) | 1590WBBSFLBK |
| Standard Version (Flanged Bottom Plate) | 1590BBSFBK |
| Water-Tight Version (Flanged Bottom Plate) | 1590WBBSFBK |
Packaging & Shipping
| Included | Box, lid and 4 cover screws; silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.31 lbs (0.14 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
Environmental & Protection
| Gasket | Silicone gasket included, supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Kit Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1590WBBSBK?▾
The black textured, water-tight version of the 1590BBS diecast aluminum enclosure, with no mounting flanges.
How tall is it?▾
Nominal height is 1.65 in (42 mm); the drawing shows 42.10 mm [1.657 in] outside and 37.85 mm [1.490 in] inside.
Which gasket kit replaces the included gasket?▾
The optional replacement gasket kit is 1590BBGASKET.
What torque should be used with the gasket?▾
25-30 cN.m [36-43 ozf.in]. Without a gasket, the recommended torque is 50-55 cN.m [71-78 ozf.in].
Are flanged versions available?▾
Yes. In black water-tight, 1590WBBSFLBK has a flanged lid and 1590WBBSFBK has a flanged bottom plate.
