Hammond 1590U 120x120x59 mm Natural Diecast Aluminum Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Square 120 x 120 x 59 mm (4.72 x 4.72 x 2.32 in) diecast box and lid
- PC boards up to 111.74 x 111.74 mm; inside 112.65 x 112.65 x 53.60 mm
- No mounting flanges for a clean, compact outline
- Designed to meet IP54 via lap joint construction
- Unpainted natural aluminum, vibra finished
- Low side wall draft (2° or less) for easy board mounting
- 4 cover screws included in factory-tapped 6-32 UNC holes

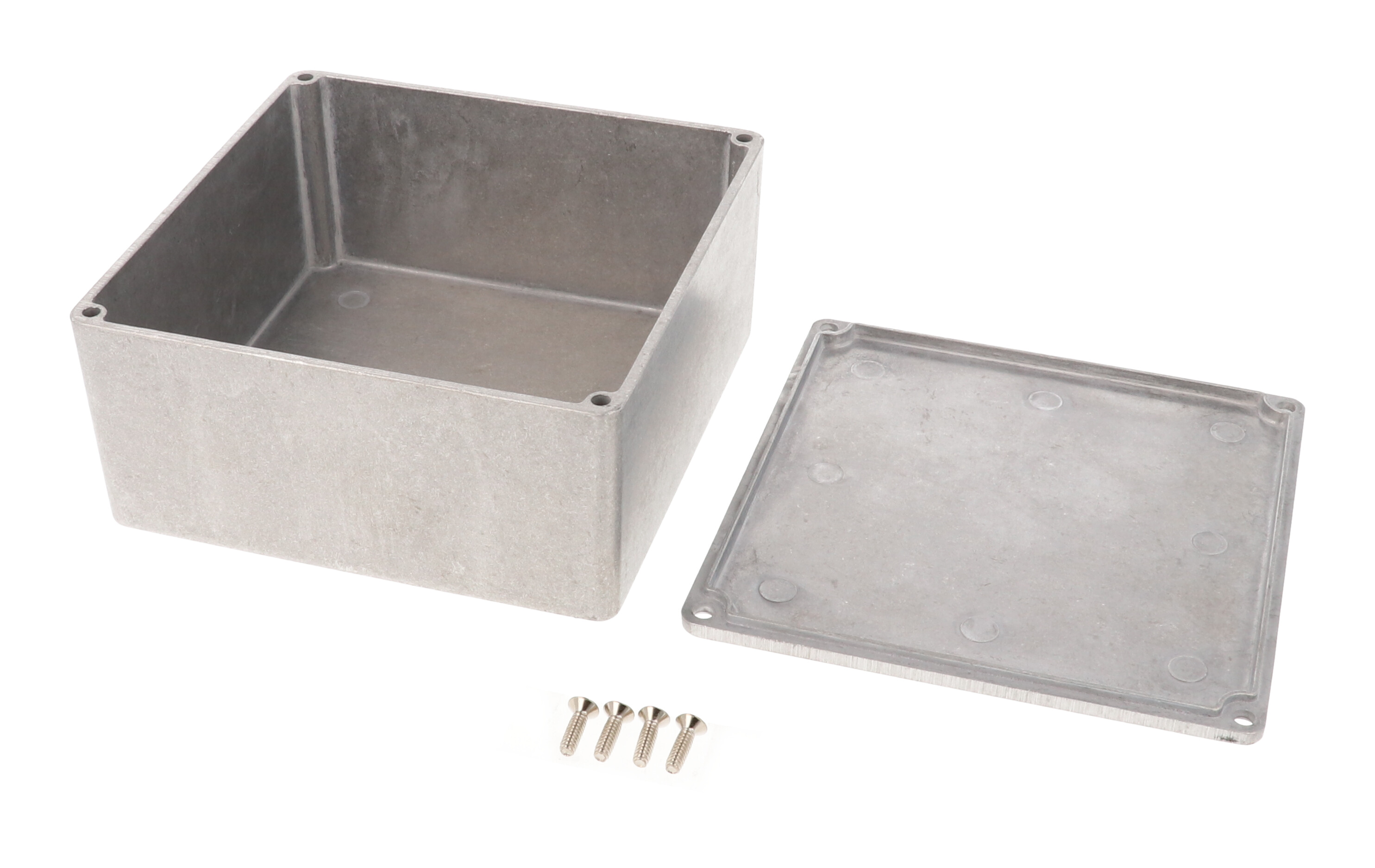

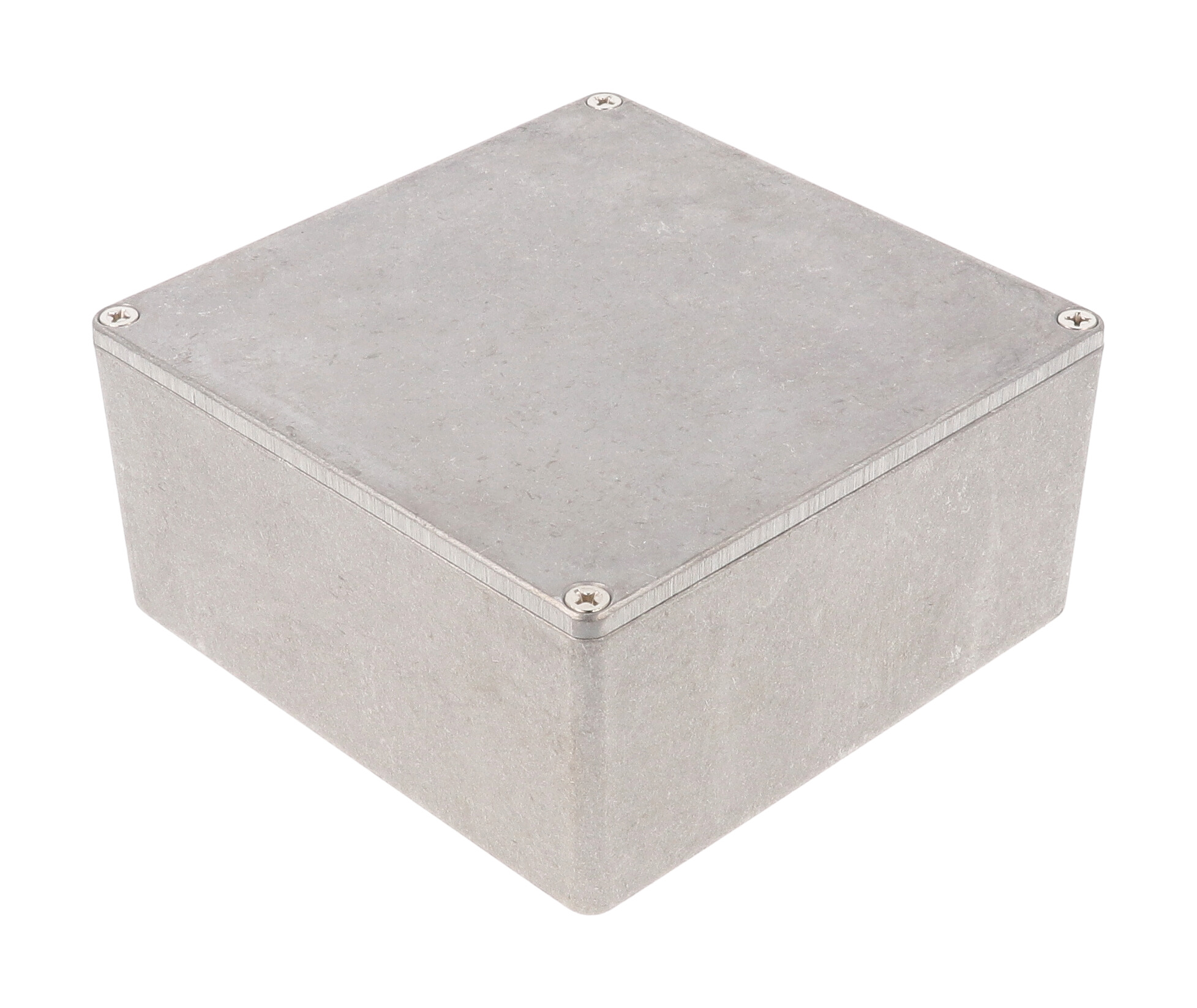

The 1590U is a square diecast aluminum box and lid in natural aluminum, with no mounting flanges. It is aimed at electronics designers, hobbyists and OEM teams who need a rugged, easily machined metal enclosure for a PC board up to 111.74 mm square.
Both box and lid are cast from diecast aluminum alloy, which is tough yet easy to machine for controls, displays and connectors. The unpainted natural aluminum version is vibra finished for a smooth surface with no sharp edges. A lap joint where lid and box meet provides protection against dust and splashing water, and this standard version is designed to meet IP54.
Outside size is 4.72 in x 4.72 in x 2.32 in (120 mm x 120 mm x 59 mm); the drawing gives an overall height of 58.60 mm [2.307 in]. The inside box measures 112.65 mm x 112.65 mm x 53.60 mm [4.435 x 4.435 x 2.110 in], and side walls have a low draft angle of 2° or less, which makes PC board mounting easier.
Four cover screws are included, threaded into factory-tapped 6-32 UNC holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in]. For a sealed build choose the water-tight 1590WU, or fit the 1590QGASKET replacement kit. Flanged variants are also listed: 1590UF (flanged bottom plate) and 1590UFL (flanged lid). RoHS and REACH compliant; shipping weight 0.82 lbs (0.37 kg).
Ideal For
- Square electronic instrument housing
- Custom PC board projects needing a metal case
- Dust and splash protected control electronics
- Machined enclosures for connectors and controls
Overview
| Type | Die-cast box |
| Series | 1590 Series Diecast Aluminum Enclosures |
| CAD Models | Solid models available in STEP or IGES |
| Mounting Style | No mounting flanges |
| Product Description | enclosure - diecast |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Manufacturer Description | 1590 DIECAST BOX |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 112.65 mm [4.435 in] |
| Inside Height | 53.60 mm [2.110 in] |
| Inside Length | 112.65 mm [4.435 in] |
| Size L X W X H | 4.72 in x 4.72 in x 2.32 in (120 mm x 120 mm x 59 mm) |
| Side Wall Draft Angle | 2° or less (for easy PC board mounting) |
| Overall Height (Drawing) | 58.60 mm [2.307 in] |
| Max. P.C. Board Width (Mm) | 111.74 |
| Max. P.C. Board Length (Mm) | 111.74 |
| Nominal Size (Series Ordering Table) | 4.72 in (120 mm) x 4.72 in (120 mm) x 2.32 in (59 mm) |
Accessories
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" With O-Ring] |
| Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" With O-Ring] |
Identifiers
| UPC | 623980544144 |
| UNSPSC | 39121301 |
| Part Number | 1590U |
Related Parts

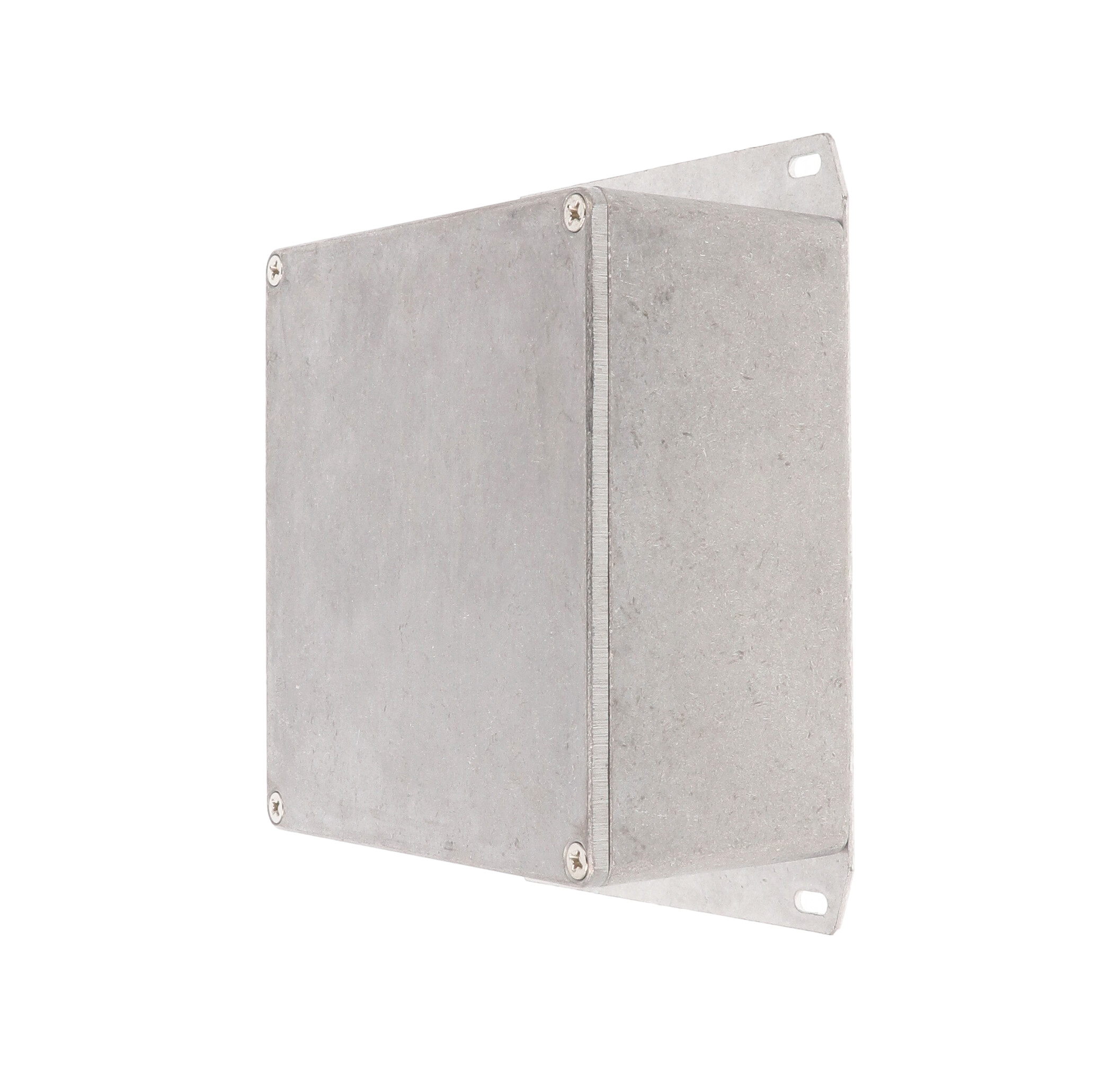

| Standard Version, No Flanges | 1590U |
| Standard Version, Flanged Lid | 1590UFL |
| Optional Replacement Gasket Kit | 1590QGASKET |
| Water-Tight Version, No Flanges | 1590WU |
| Water-Tight Version, Flanged Lid | 1590WUFL |
| Standard Version, Flanged Bottom Plate | 1590UF |
| Water-Tight Version, Flanged Bottom Plate | 1590WUF |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.82 lbs (0.37 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Joint Construction | Lap joint where lid and box meet |
| Box And Lid Material | Diecast Aluminum Alloy |
| Included In Assembly | Box, lid and 4 cover screws |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size PC board fits the 1590U?▾
Maximum PC board size is 111.74 mm x 111.74 mm. The inside box is 112.65 mm square and 53.60 mm high.
Does the 1590U have mounting flanges?▾
No. This is the version with no mounting flanges. Flanged versions are 1590UF (flanged bottom plate) and 1590UFL (flanged lid).
What IP rating does it meet?▾
The standard 1590U is designed to meet IP54. The water-tight 1590WU is designed to meet IP65, and the listed replacement gasket kit is 1590QGASKET.
What comes with the enclosure?▾
The box, the lid and 4 cover screws. Recommended cover screw torque is 50-55 cN.m [71-78 ozf.in].
Can it be modified?▾
Diecast aluminum is easy to machine, and the drawing notes enclosures can be factory modified (milling, drilling, printing). Solid models are available in STEP or IGES.
