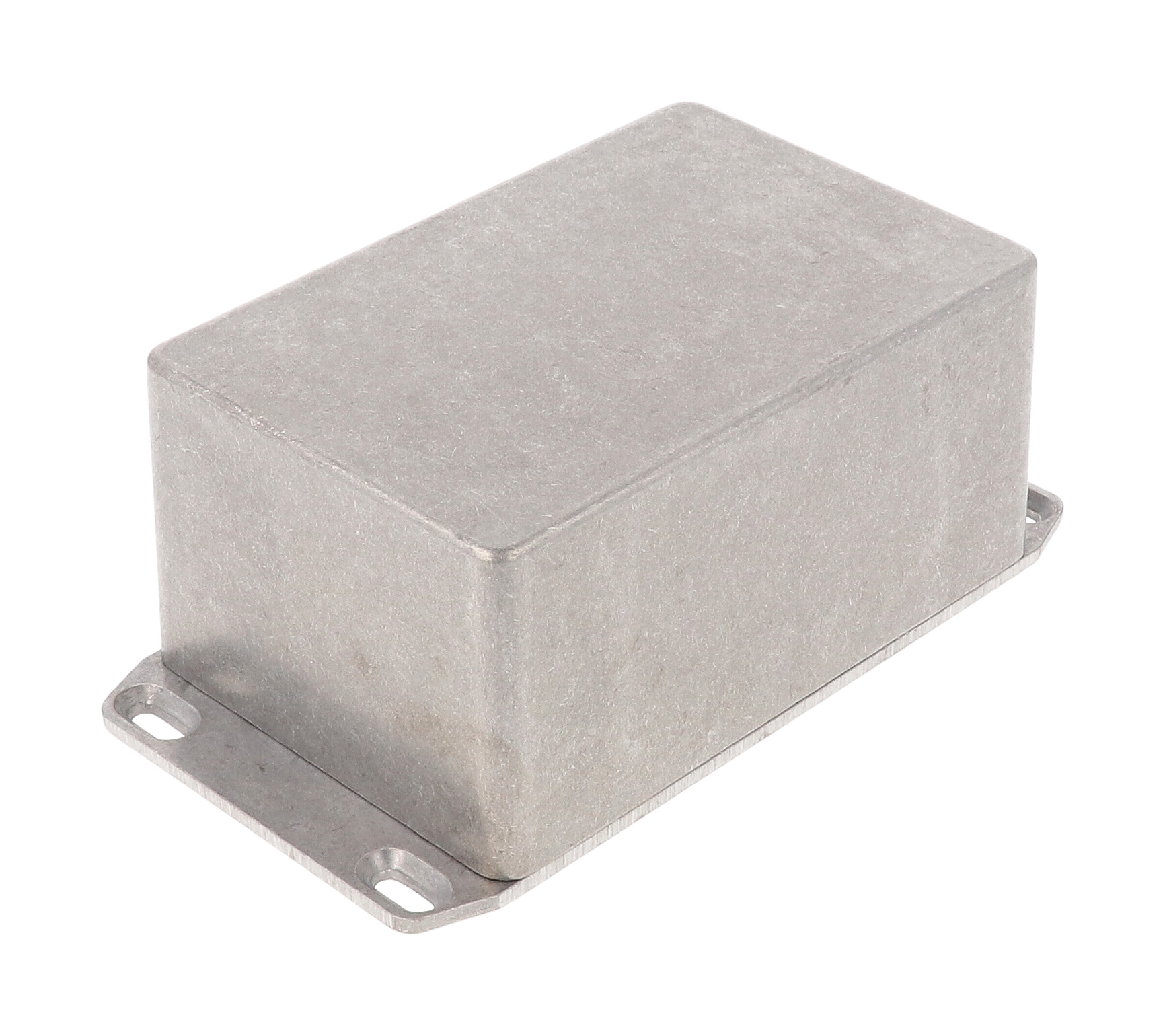

Hammond 1590TFL 120x80x59 mm Natural Diecast Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- Nominal 120 x 80 x 59 mm (4.72 x 3.15 x 2.32 in); 149.00 mm across the flanged lid
- Inside 113.38 x 73.38 x 54.60 mm; PC boards up to 112.38 x 72.38 mm
- Designed to meet IP54; lap joint lid construction
- Natural aluminum, vibra finished for smooth edges
- Diecast aluminum alloy box and lid, easy to machine
- Includes 4 cover screws for factory-tapped 6-32 UNC holes
The 1590TFL is the flanged-lid version of the 1590T diecast aluminum enclosure in natural aluminum. The wall-mounting flange is integrated into the lid, so the lid is fixed to the mounting surface and the box closes onto it. It is a practical choice for OEM engineers and electronics builders who want a compact metal housing that mounts flat against a wall or panel.
Box and lid are diecast aluminum alloy, tough yet easy to machine. The unpainted natural aluminum version is vibra finished for a smooth surface with no sharp edges. The lap joint where lid and box meet guards against dust and splashing water, and this standard version is designed to meet IP54.
- Nominal size: 4.72 in x 3.15 in x 2.32 in (120 mm x 80 mm x 59 mm)
- Overall length across the flanged lid: 149.00 mm [5.866 in]; overall height 59.00 mm [2.323 in]
- Inside box: 113.38 mm x 73.38 mm x 54.60 mm
- Maximum PC board: 112.38 mm x 72.38 mm, with side wall draft of 2° or less
Four cover screws thread into factory-tapped 6-32 UNC holes; the recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] when a gasket is fitted. The 1590TGASKET kit upgrades this box to IP65, and a water-tight 1590WTFL is also offered. The 1590TFL is RoHS and REACH compliant, ships in shrink wrap and weighs 0.68 lbs.
Ideal For
- Wall-mounted electronics housing
- Panel-mounted control and sensor circuits
- Custom machined instrument enclosures
- Dust and splash protected installations
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| CAD Models | Solid models available in STEP or IGES |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Product Description | enclosure - diecast |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Manufacturer Description | 1590T WITH FLANGED LID |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 73.38 mm [2.889 in] |
| Inside Height | 54.60 mm [2.150 in] |
| Inside Length | 113.38 mm [4.464 in] |
| Size L X W X H | 4.72 in x 3.15 in x 2.32 in (120 mm x 80 mm x 59 mm) |
| Side Wall Draft Angle | 2° or less (for easy PC board mounting) |
| Overall Height (Drawing) | 59.00 mm [2.323 in] |
| Max. P.C. Board Width (Mm) | 112.38 |
| Max. P.C. Board Length (Mm) | 72.38 |
| Nominal Size (Series Ordering Table) | 4.72 in (120 mm) x 3.15 in (80 mm) x 2.32 in (59 mm) |
| Overall Length Including Flange (Drawing) | 149.00 mm [5.866 in] |
Accessories
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" With O-Ring] |
| Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" With O-Ring] |
Identifiers
| UPC | 623980676616 |
| UNSPSC | 39121301 |
| Part Number | 1590TFL |
Related Parts
| Standard Version, No Flanges | 1590T |
| Standard Version, Flanged Lid | 1590TFL |
| Optional Replacement Gasket Kit | 1590TGASKET |
| Water-Tight Version, No Flanges | 1590WT |
| Water-Tight Version, Flanged Lid | 1590WTFL |
| Standard Version, Flanged Bottom Plate | 1590TF |
| Water-Tight Version, Flanged Bottom Plate | 1590WTF |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.68 lbs (0.31 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Joint Construction | Lap joint where lid and box meet |
| Box And Lid Material | Diecast Aluminum Alloy |

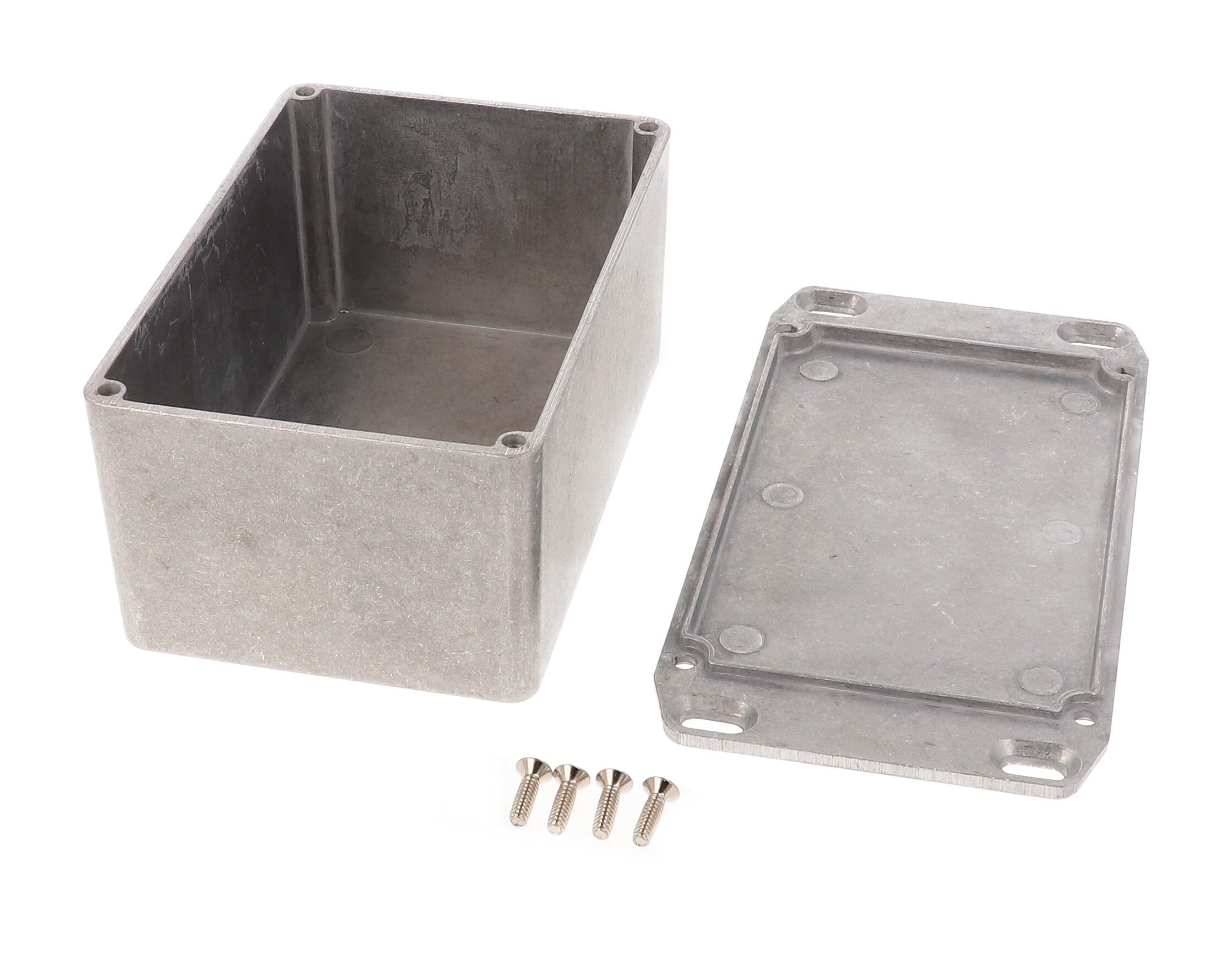

| Included In Assembly | Box, lid and 4 cover screws |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the mounting flange on the 1590TFL?▾
The wall-mounting flange is integrated into the lid. Overall length across the flanged lid is 149.00 mm [5.866 in].
What PC board fits in the 1590TFL?▾
Maximum PC board size is 112.38 mm x 72.38 mm. The inside box is 113.38 mm long, 73.38 mm wide and 54.60 mm high.
What IP rating does it have?▾
The standard 1590TFL is designed to meet IP54. Adding the 1590TGASKET kit, with lid screws torqued to 25-30 cN.m, allows it to meet IP65.
What is included?▾
Box, lid and 4 cover screws. Replacement screws are available as 1590MS100 (plated) and 1590MS100BK (black) in packs of 100.
What does it weigh?▾
Shipping weight is 0.68 lbs (0.31 kg).
