Hammond 1590SGASKET IP65 Silicone Gasket for 110 x 82 mm Box, 2-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two pre-formed silicone gaskets per kit
- Fits the 1590S, 1590SF and 1590SFL families in natural and black
- Upgrades IP54 enclosures to IP65 when properly installed
- Adhesive backing; applied to the lid
- Rated -40°C to 150°C (-40°F to 302°F)
- Lets you machine or paint the box before gasketing
- RoHS and REACH compliant

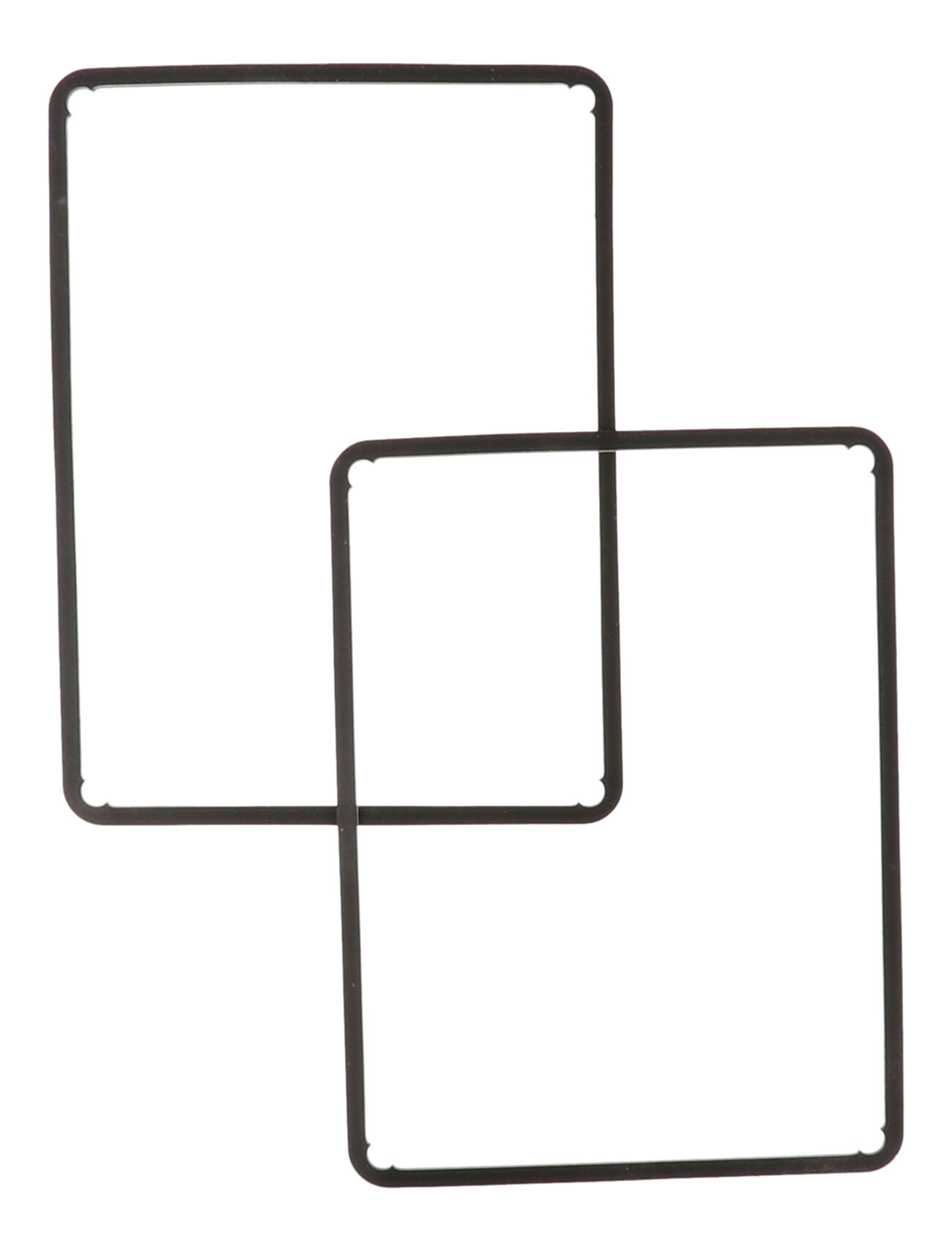

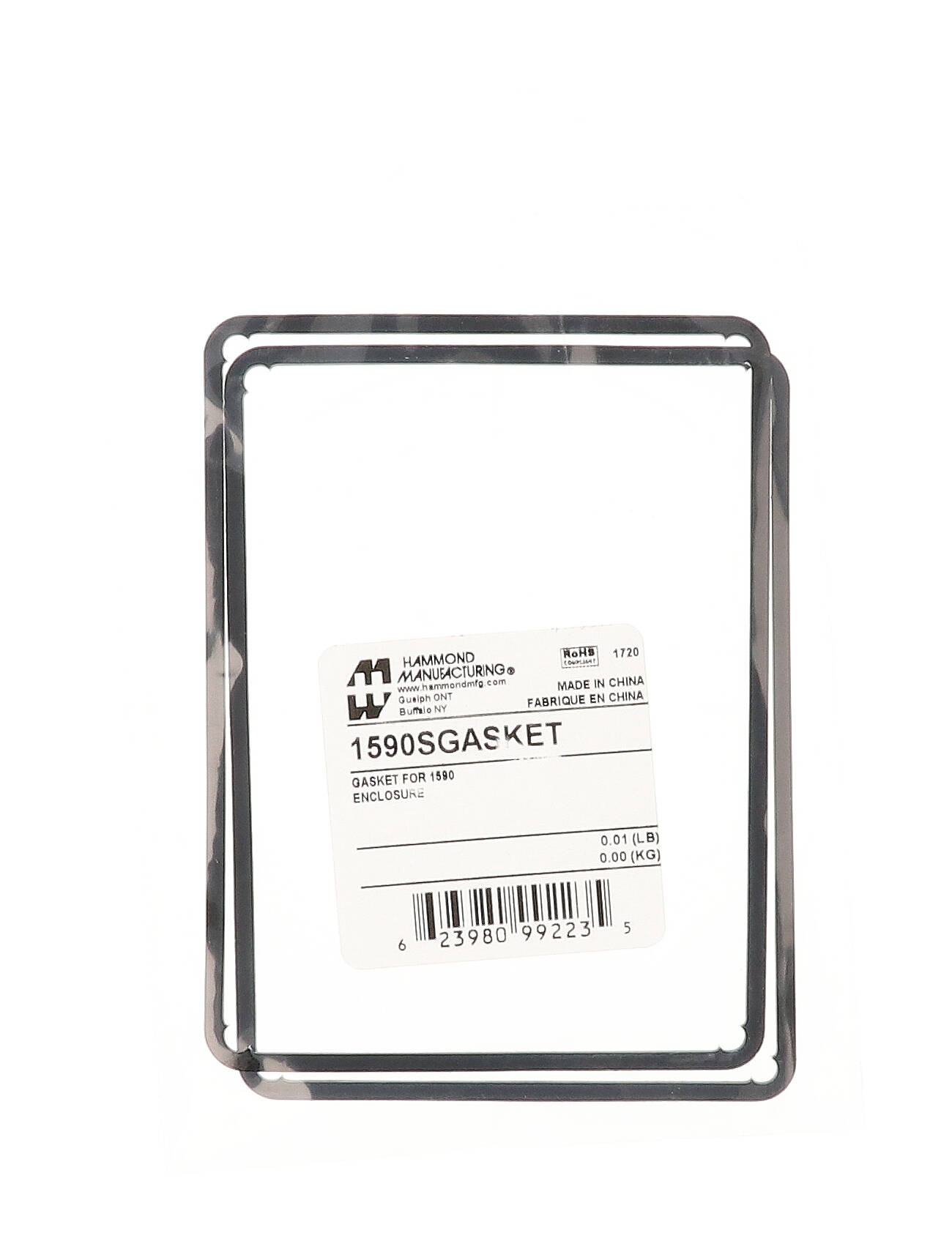

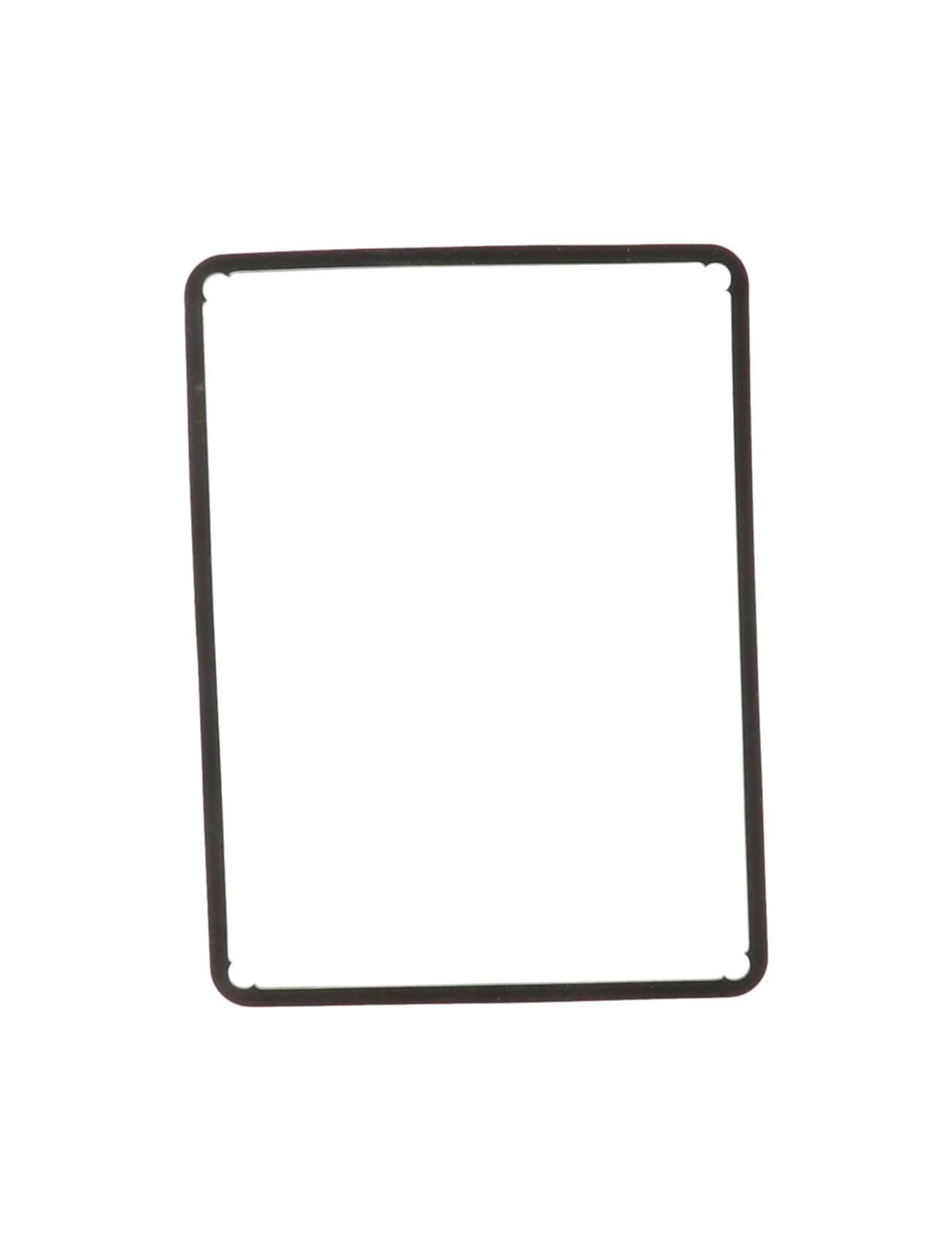

The 1590SGASKET is a pack of two pre-formed silicone gaskets made for the 1590S family of diecast aluminum enclosures, which measure 4.37 x 3.23 x 1.73 in (111 x 82 x 44 mm) in the series ordering table. It fits the natural and black 1590S, the flanged-bottom 1590SF/1590SFBK and the flanged-lid 1590SFL/1590SFLBK, and serves as a replacement for the water-tight 1590WS versions.
Standard 1590S enclosures are designed to meet IP54. With this gasket properly installed and the lid screws torqued to 25-30 cN.m (36-43 ozf.in), the enclosure is designed to meet IP65, making it a straightforward upgrade path for electronics that need better protection against water.
Each gasket is adhesive backed and is applied to the lid. That lets you machine and/or paint the enclosure first, then add the gasket afterwards, a practical sequence for OEM builders and integrators cutting connector openings. The silicone gasket carries a temperature rating of -40°C to 150°C (-40°F to 302°F).
If you are converting a standard 1590S to a water-tight box, the manufacturer also recommends its watertight screws (stainless steel with O-ring). The 1590SGASKET is RoHS and REACH compliant and ships in a bag, with a listed shipping weight of 0.01 lbs (0.00 kg).
Ideal For
- Upgrading IP54 1590 enclosures to IP65
- Replacing gaskets on water-tight 1590 enclosures
- Sealing enclosures after machining or painting
- Outdoor or wash-down electronics housings needing IP65
Overview
| Type | Gasket |
| Part Number | 1590SGASKET |
| Pack Contents | Two pre-formed silicone gaskets |
| Long Description | silicone gasket for 1590S enclosures, 2-pack |
| Manufacturer Description | SILICONE GASKET- 2 PACK |
Identifiers
| UPC | 623980992235 |
| UNSPSC | 39121301 |
Compatibility
| Fits Enclosures | 1590S, 1590SBK, 1590SF, 1590SFBK, 1590SFL, 1590SFLBK and their water-tight 1590WS versions |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Backing | Adhesive backing for easy installation |
| Material | Silicone |
| Application Location | Applied to the lid |
Environmental & Protection
| IP Rating | IP65 |
| IP65 Condition | With properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in) |
| Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1590SGASKET fit?▾
The 1590S family: 1590S, 1590SBK, 1590SF, 1590SFBK, 1590SFL, 1590SFLBK and their water-tight 1590WS versions.
What is in the pack?▾
Two pre-formed silicone gaskets with adhesive backing.
What protection rating does it give?▾
It is designed to meet IP65 with the gasket properly installed and lid screws torqued to 25-30 cN.m (36-43 ozf.in).
Can I paint the enclosure before fitting the gasket?▾
Yes. The kit allows the enclosure to be machined and/or painted first and gasketed later.
What is the temperature rating?▾
-40°C to 150°C (-40°F to 302°F).
Related Products

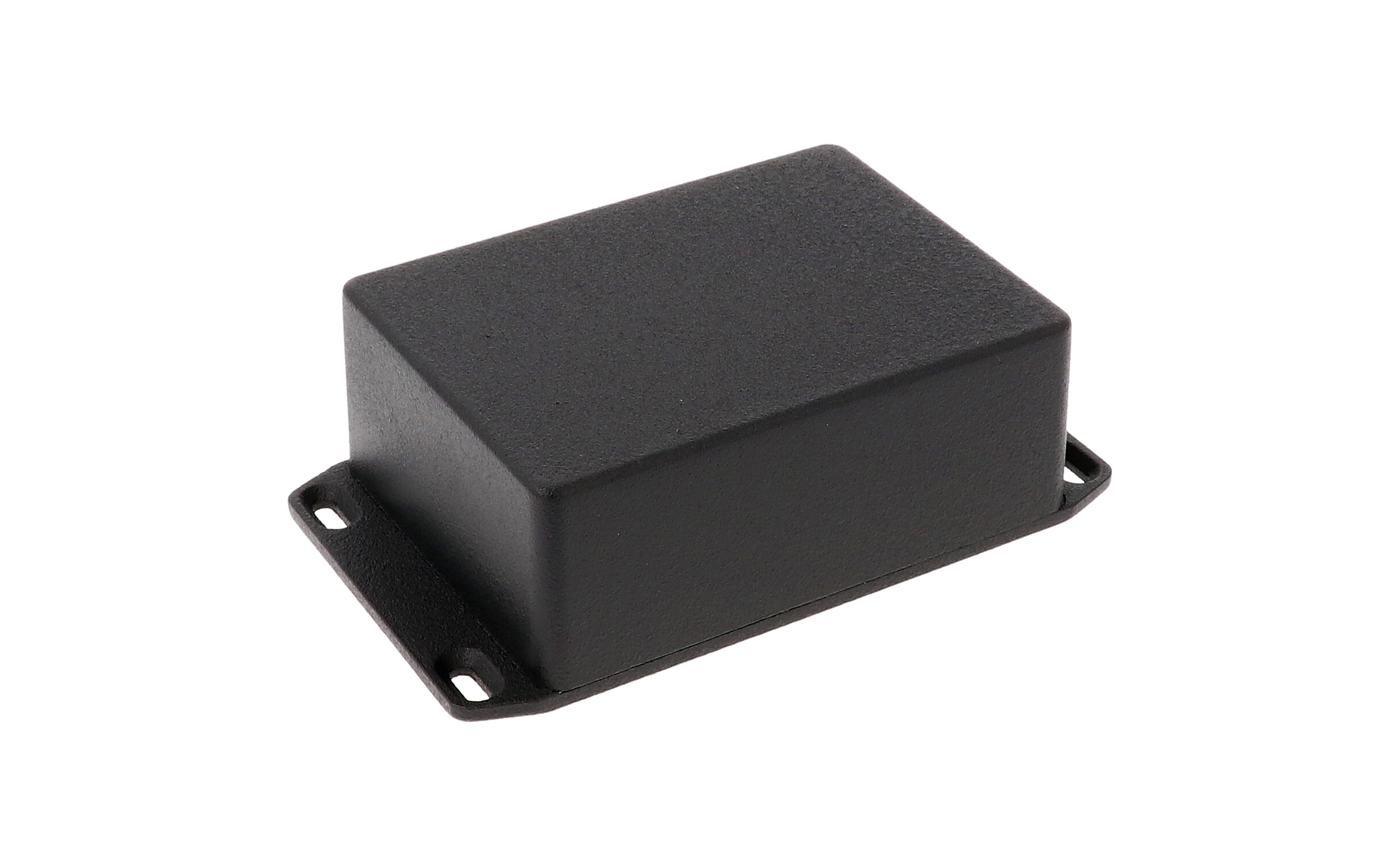

Save 52%1590SFLBK — enclosure - diecast
Hammond Manufacturing · 1590SFLBK

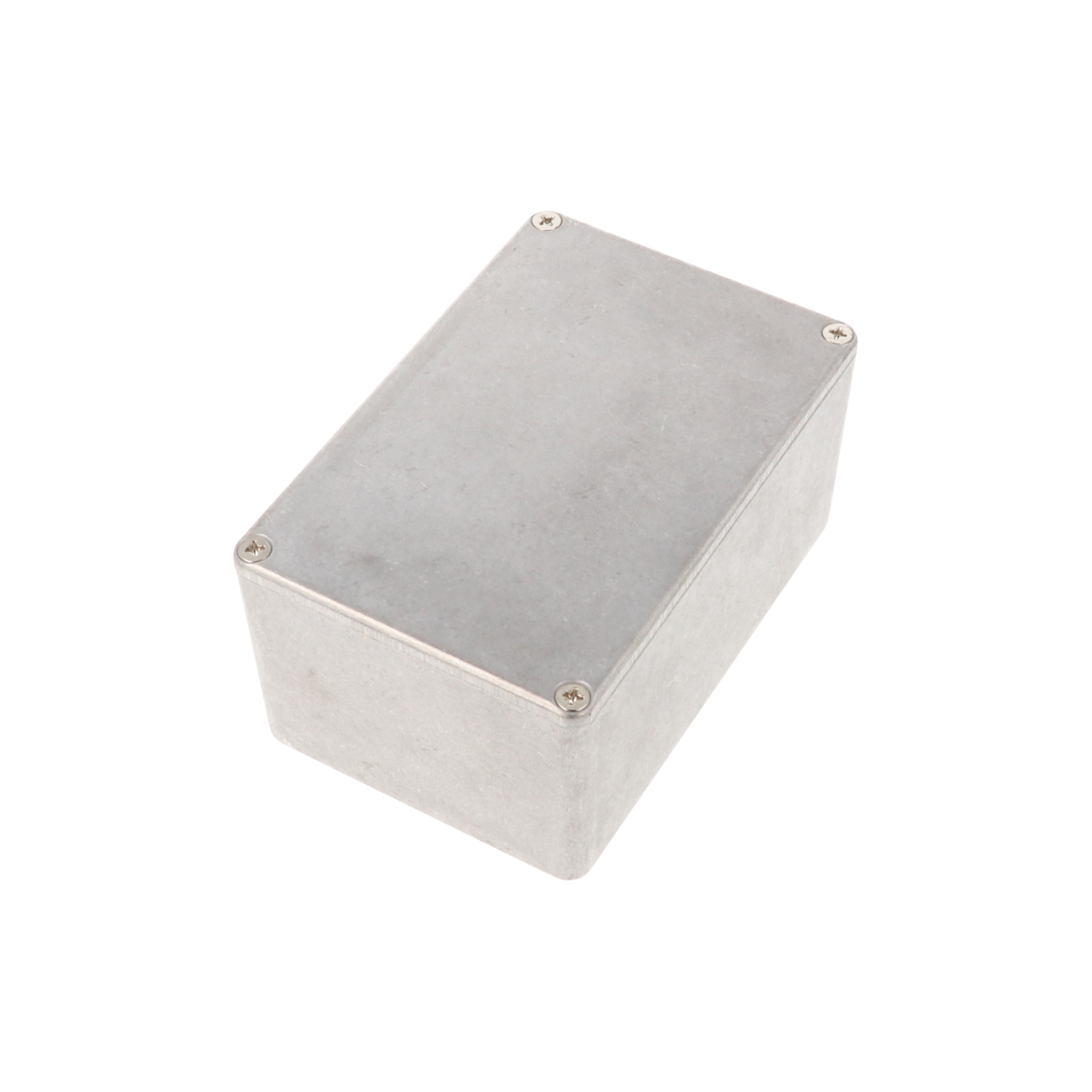

Save 52%1590T — enclosure - diecast
Hammond Manufacturing · 1590T

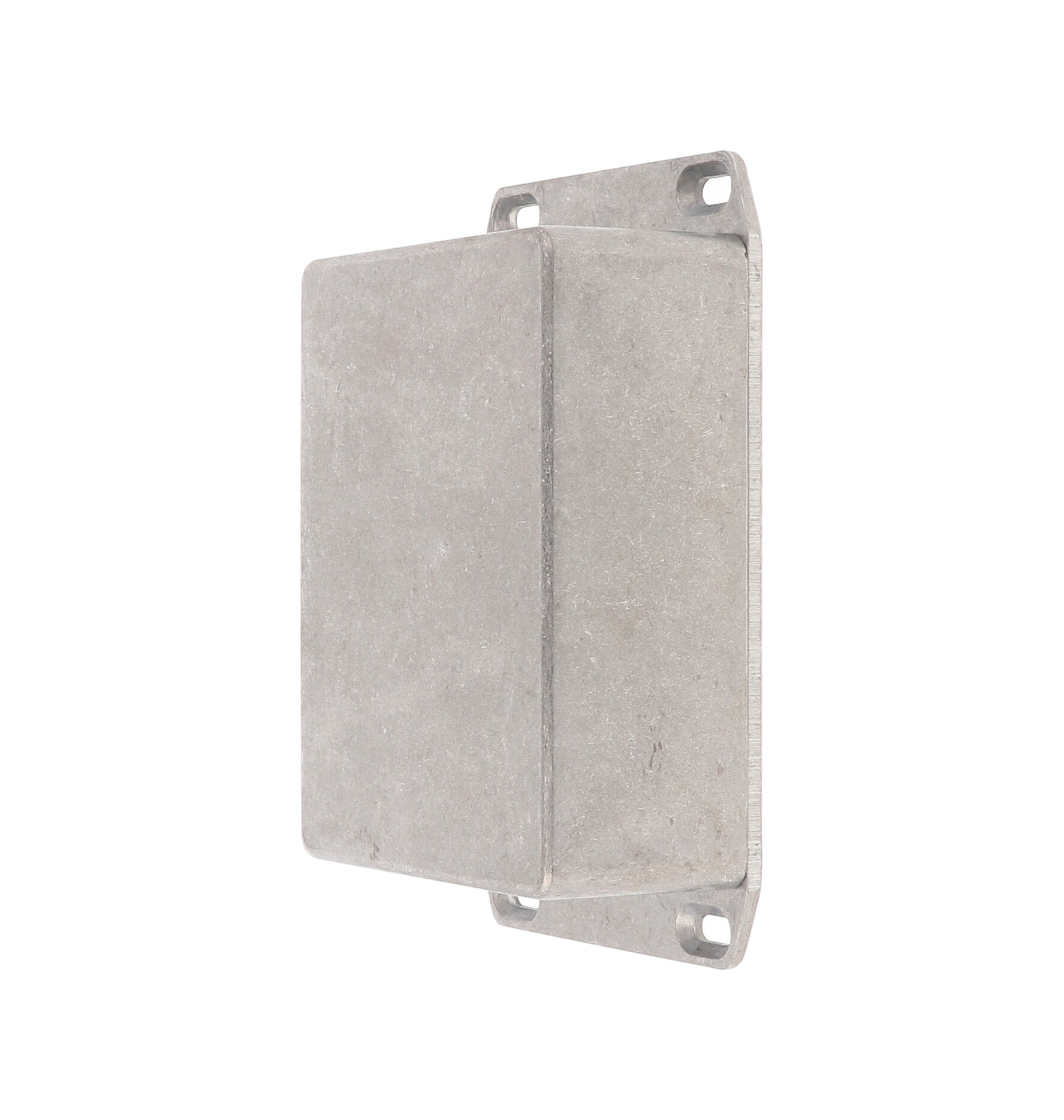

Save 52%1590SFL — enclosure - diecast
Hammond Manufacturing · 1590SFL

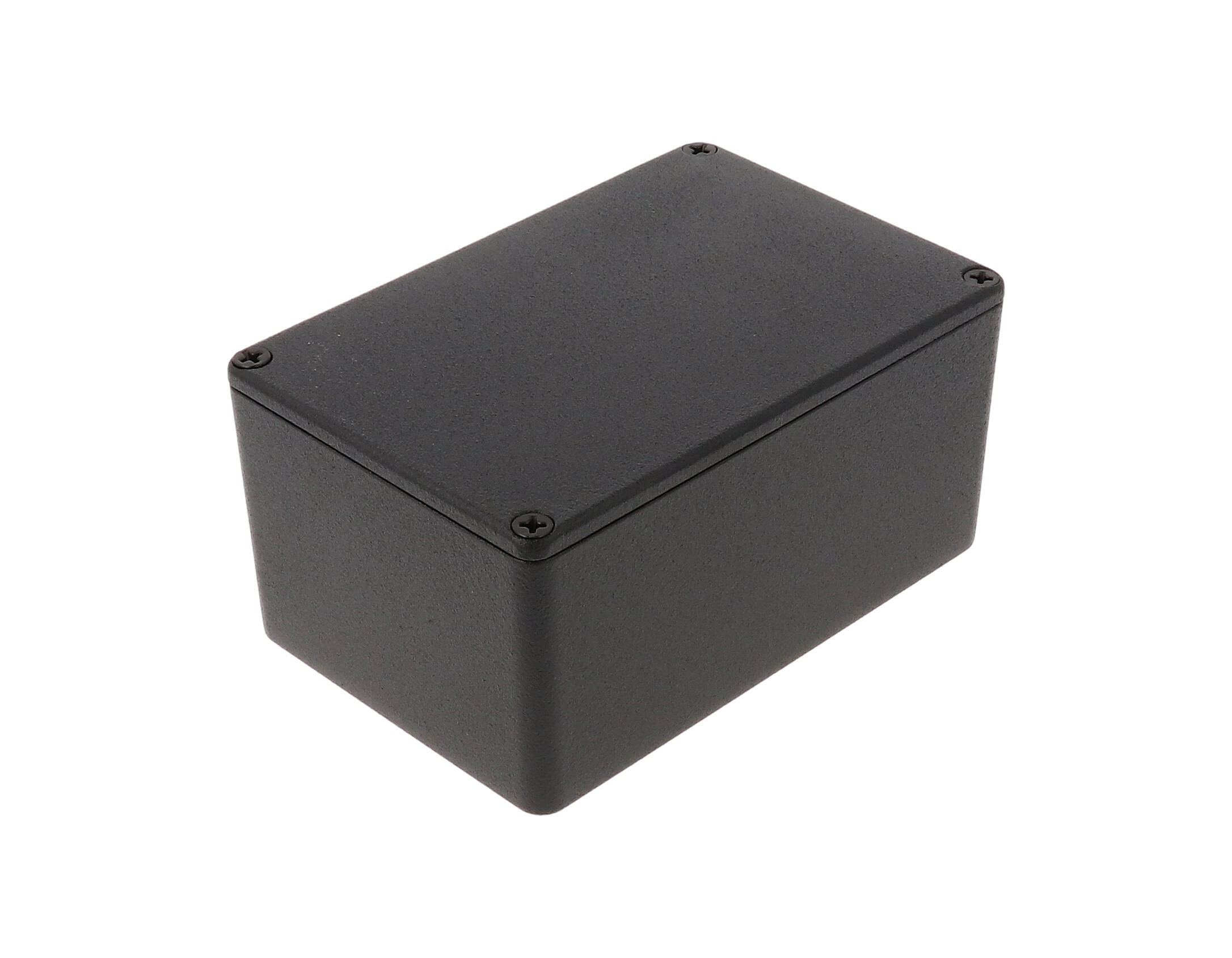

Save 52%1590TBK — enclosure - diecast
Hammond Manufacturing · 1590TBK

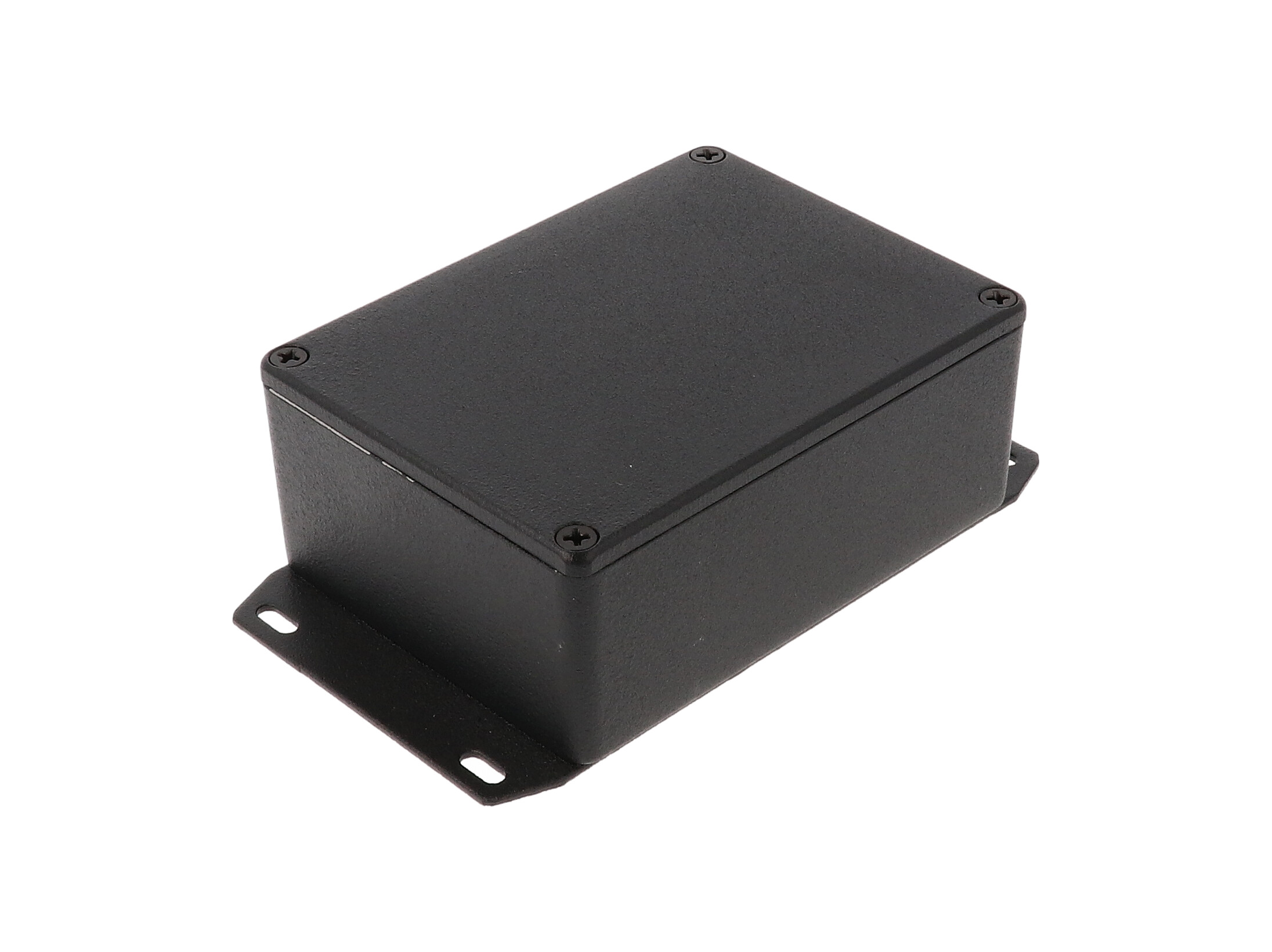

Save 52%1590SFBK — enclosure - diecast
