Hammond 1590SBK 110x82x44mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Compact 110 x 82 x 44 mm (4.35 x 3.24 x 1.73 in) diecast aluminum box
- Inside 103.65 x 75.55 x 39.25 mm
- PC boards up to 74.68 x 102.78 mm (per manufacturer listing)
- Designed to meet IP54; IP65 upgrade with the 1590SGASKET kit
- Textured black polyester powder paint with black screws
- Four 6-32 UNC cover screws included in factory-tapped holes
- RoHS and REACH compliant

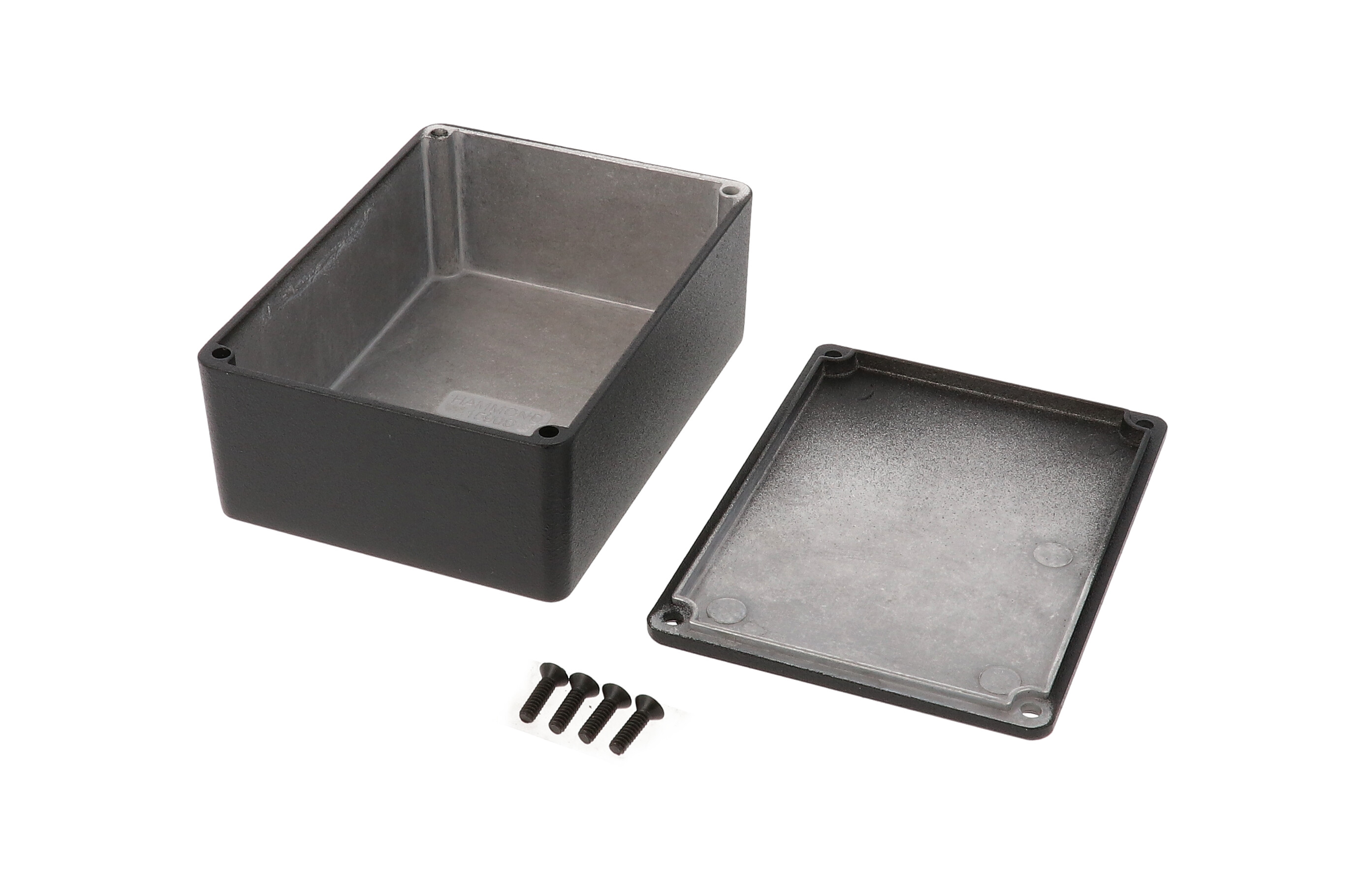

The 1590SBK is a compact black diecast aluminum box and lid from the 1590 Series, measuring 4.35 x 3.24 x 1.73 in (110 x 82 x 44 mm). It is a practical housing for small circuit boards, sensors and interface electronics, aimed at hobbyist builders, OEM engineers and integrators alike.
Diecast aluminum alloy is tough yet easy to machine. The lid and box meet at a lap joint that protects against dust and splashing water, and this standard version is designed to meet IP54. The black finish is a tough textured polyester powder paint that holds up after machining, and black screws are included to match.
The drawing gives overall dimensions of 110.50 x 82.40 x 44.00 mm (4.350 x 3.244 x 1.732 in) and inside dimensions of 103.65 mm (4.081 in) long, 75.55 mm (2.974 in) wide and 39.25 mm (1.545 in) high. Maximum P.C. board values are 74.68 mm (length) and 102.78 mm (width). Side walls have a draft angle of 2° or less, and the lid height is 0.16 in (4 mm).
Four 6-32 UNC cover screws are included and thread into factory-tapped holes; recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket. There are no mounting flanges. For IP65 choose the water-tight 1590WSBK or add the 1590SGASKET kit. The 1590SBK is RoHS and REACH compliant and ships shrink wrapped at 0.5 lbs (0.23 kg).
Ideal For
- Small PC board and sensor housings
- Compact instrument and interface boxes
- DIY and OEM electronics projects
- Dust- and splash-protected electronics (IP54)
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws | 1590MS100BK (Pkg 100, 6-32 x 1/2") |
| Replacement Plated Cover Screws | 1590MS100 (Pkg 100, 6-32 x 1/2") |
| Liquid Resistant Stainless Steel Cover Screws | 1590WMS100 (Pkg 100, 6-32 x 1/2" with O-ring) |
| Liquid Resistant Black Stainless Steel Cover Screws | 1590WMS100BK (Pkg 100, 6-32 x 1/2" with O-ring) |
Overview
| Type | Die-cast box |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Part Number | 1590SBK |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - diecast |
| Manufacturer Description | 1590 DIECAST BOX AND LID |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 75.55 mm [2.974 in] |
| Inside Height | 39.25 mm [1.545 in] |
| Inside Length | 103.65 mm [4.081 in] |
| Ordering Table Width | 3.23 in (82 mm) |
| Max. P.C. Board Width | 102.78 mm |
| Ordering Table Height | 1.73 in (44 mm) |
| Ordering Table Length | 4.37 in (111 mm) |
| Max. P.C. Board Length | 74.68 mm |
| Overall Width (Drawing) | 82.40 mm [3.244 in] |
| Nominal Size (L X W X H) | 4.35 in x 3.24 in x 1.73 in (110 mm x 82 mm x 44 mm) |
| Overall Height (Drawing) | 44.00 mm [1.732 in] |
| Overall Length (Drawing) | 110.50 mm [4.350 in] |
Identifiers
| UPC | 623980544021 |
| UNSPSC | 39121301 |
Related Versions
| W/ Flanged Lid, Standard | 1590SFLBK |
| W/ Flanged Lid, Water-Tight | 1590WSFLBK |
| No Mounting Flanges, Water-Tight | 1590WSBK |
| W/ Flanged Bottom Plate, Standard | 1590SFBK |
| W/ Flanged Bottom Plate, Water-Tight | 1590WSFBK |
Engineering Support
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.5 lbs (0.23 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Joint Construction | Lap joint where lid and box meet |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WSBK (includes silicone gasket, supplied loose) |
| Replacement / Upgrade Gasket Kit | 1590SGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
