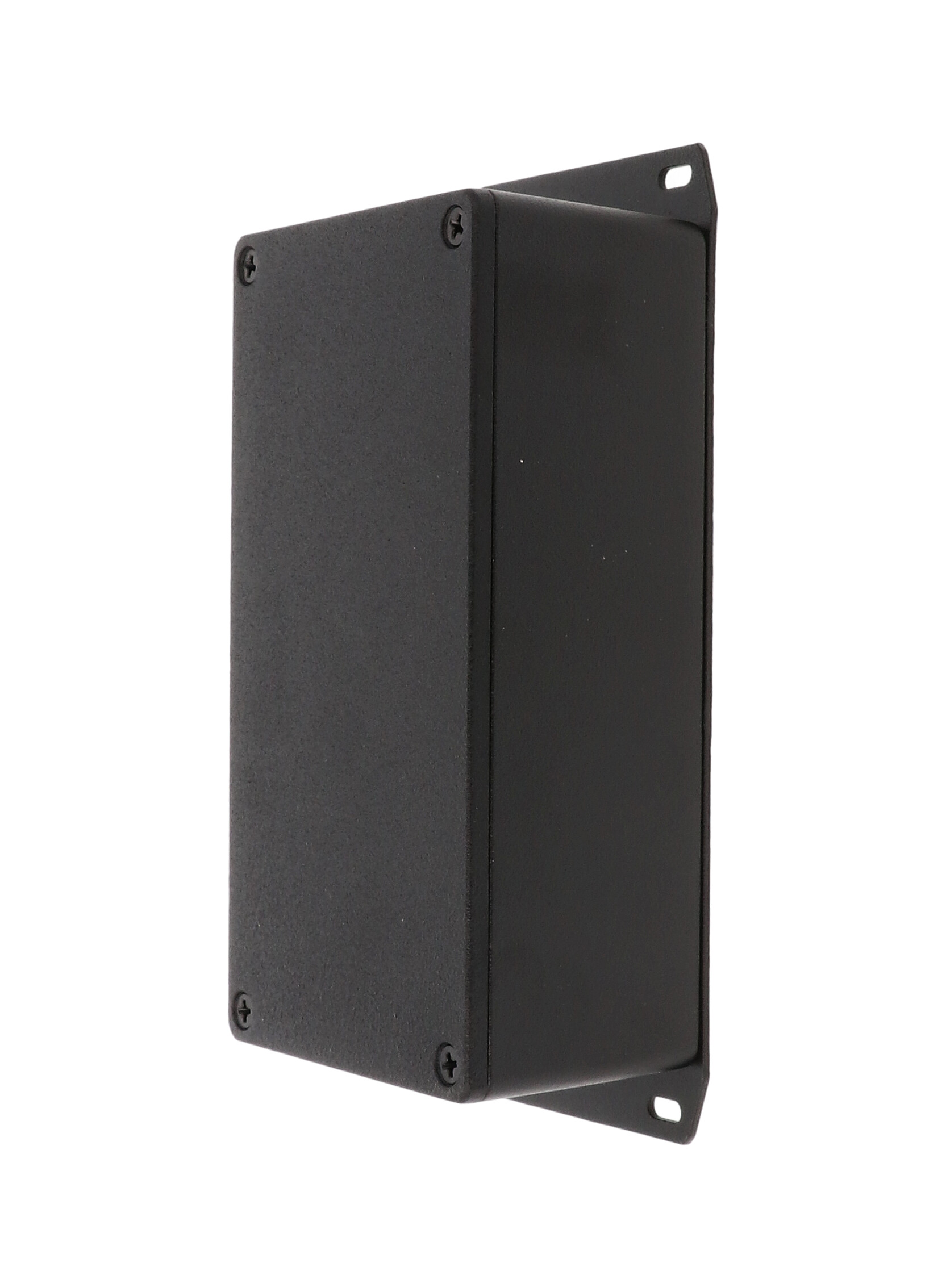

Hammond 1590P1FBK 153x83x50mm Black Diecast Box, Welded Bottom Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black textured powder paint with black screws
- Welded bottom flange; 179.53 mm overall length
- 153 x 83 x 50 mm nominal box
- 145.69 x 75.79 x 45.50 mm inside
- Designed to meet IP54
- Diecast aluminum alloy, easy to machine
The 1590P1FBK is a black textured 153 x 83 x 50 mm diecast aluminum enclosure with a flanged bottom plate. It serves integrators and OEMs who need a mid-sized metal box that bolts to a surface and presents a finished black appearance.
Its diecast aluminum alloy box and lid carry a tough polyester powder paint finish that lasts even after machining, and black screws are included to match. The bottom flange is welded to the box. Lap joint construction where lid and box meet guards against dust and splashing water, and the enclosure is designed to meet IP54.
The drawing shows 179.53 mm [7.068 in] overall length across the flange, a 153.00 x 83.10 mm box and 51.90 mm [2.043 in] overall height. Inside there is 145.69 x 75.79 x 45.50 mm of space, and maximum PC board dimensions are listed as 145.35 and 75.45 mm. The low side wall draft (2° or less) simplifies board mounting.

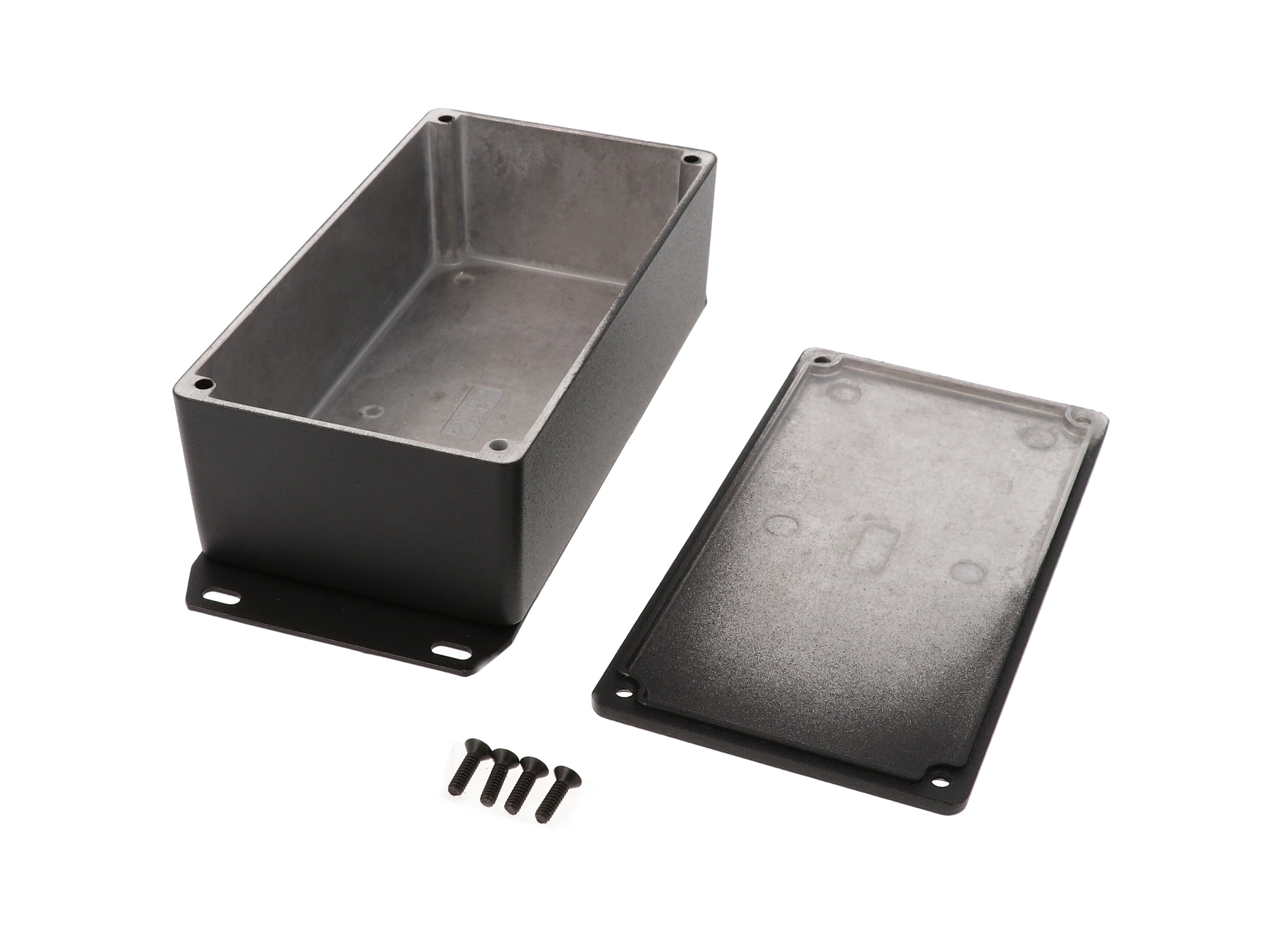

The purchased assembly includes box, lid and 4 cover screws for factory-tapped 6-32 UNC holes. The water-tight black version is 1590WP1FBK; 1590PGASKET is the replacement gasket kit. Shipping weight 0.86 lbs (0.39 kg); RoHS and REACH compliant.
Ideal For
- Surface-mounted black control enclosure
- Equipment or wall-mounted electronics housing
- Finished instrument case
- Machined OEM enclosure
Options
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Hardware
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel (Pkg 100) or 1590WMS100BK black stainless steel (Pkg 100), 6-32 x 1/2" with O-ring |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Replacement Cover Screws | 1590MS100 plated (Pkg 100) or 1590MS100BK black (Pkg 100), 6-32 x 1/2" |
| Tamper-Resistant Screw Upgrade (Torx With Pin, 50-pack) | 1590MS50T (natural), 1590MS50TBK (black); screwdriver bit SCDRIVET10-2 |
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Part Number | 1590P1FBK |
| Mounting Style | w/ Flanged Bottom Plate |
| Long Description | enclosure - diecast |
| Short Description | 1590P1 FLANGED BOX BLACK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 75.79 mm [2.984 in] |
| Inside Height | 45.50 mm [1.791 in] |
| Inside Length | 145.69 mm [5.736 in] |
| Size (L X W X H) | 6.02 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm) |
| Box Width (Drawing) | 83.10 mm [3.272 in] |
| Box Length (Drawing) | 153.00 mm [6.024 in] |
| Nominal Size (Width) | 3.27 in (83 mm) |
| Nominal Size (Height) | 1.97 in (50 mm) |
| Nominal Size (Length) | 6.02 in (153 mm) |
| Side Wall Draft Angle | 2° or less |
| Overall Height (Drawing) | 51.90 mm [2.043 in] |
| Max. P.C. Board Width (Mm) | 145.35 |
| Max. P.C. Board Length (Mm) | 75.45 |
| Overall Length Incl. Flange (Drawing) | 179.53 mm [7.068 in] |
Identifiers
| UPC | 623980543185 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.86 lbs (0.39 kg) |
Construction & Finish
| Finish | Black textured polyester powder paint |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Screw Finish | Black screws included |
| Bottom Flange | Welded |
| Lid/Box Joint | Lap joint construction |
| Included Items | Box, lid and 4 cover screws |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Equivalent | 1590WP1FBK (IP65, silicone gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590PGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1590P1FBK?▾
A black textured 153 x 83 x 50 mm diecast aluminum enclosure with a welded flanged bottom plate.
What are its overall dimensions?▾
179.53 mm long including the flange, with a 153.00 x 83.10 mm box and 51.90 mm overall height per the drawing.
What torque should the cover screws have?▾
50-55 cN.m [71-78 ozf.in] without a gasket; 25-30 cN.m [36-43 ozf.in] with a gasket.
Can I upgrade it to IP65?▾
The 1590PGASKET kit is listed as the replacement gasket for this size, or order the water-tight 1590WP1FBK.
How much does it weigh?▾
0.86 lbs (0.39 kg) shipping weight.
