Hammond 1590P1BK 153x83x50mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black textured polyester powder paint; black screws included
- 153 x 83 x 50 mm nominal (6.02 x 3.27 x 1.98 in)
- No mounting flanges or PCB guides
- 145.69 x 75.79 x 45.50 mm inside
- Diecast aluminum; finish lasts after machining
- IP54 lap joint lid; water-tight version 1590WP1BK

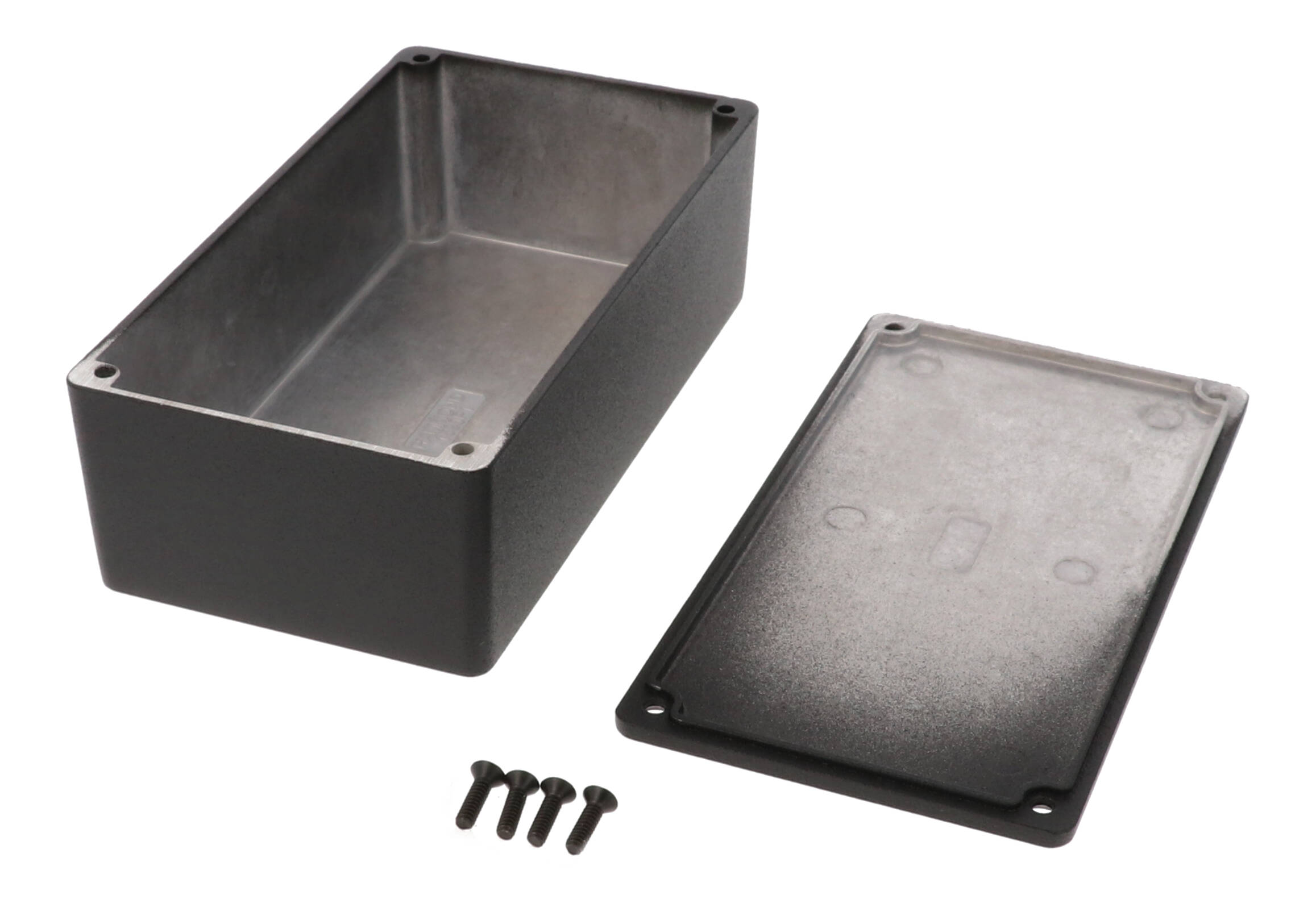

The 1590P1BK is the black textured version of the 153 x 83 x 50 mm 1590P1 enclosure, with no mounting flanges and, per its short description, no PCB guides. It is a practical choice for finished instruments, test fixtures and control electronics where a black case is preferred over bare aluminum.
The diecast aluminum alloy box and lid are coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to enhance appearance. Lap joint construction where the lid and box meet protects against dust and splashing water; this standard version is designed to meet IP54.
Outside dimensions on the drawing are 153.00 x 83.10 x 50.40 mm [6.024 x 3.272 x 1.984 in]; inside, 145.69 x 75.79 x 45.50 mm. Maximum PC board dimensions are listed as 145.35 and 75.45 mm, and the side wall draft angle is 2° or less.
Every assembly includes box, lid and 4 cover screws in factory-tapped 6-32 UNC holes. The water-tight black equivalent is 1590WP1BK and the replacement gasket kit is 1590PGASKET. Shipping weight is 0.75 lbs (0.34 kg); RoHS and REACH compliant.
Ideal For
- Black instrument or test fixture enclosure
- Control electronics housing
- Audio project enclosure
- PCB enclosure up to 145.35 x 75.45 mm
Options
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Hardware
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel (Pkg 100) or 1590WMS100BK black stainless steel (Pkg 100), 6-32 x 1/2" with O-ring |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Replacement Cover Screws | 1590MS100 plated (Pkg 100) or 1590MS100BK black (Pkg 100), 6-32 x 1/2" |
| Tamper-Resistant Screw Upgrade (Torx With Pin, 50-pack) | 1590MS50T (natural), 1590MS50TBK (black); screwdriver bit SCDRIVET10-2 |
Overview
| Type | Die-cast box |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Part Number | 1590P1BK |
| Mounting Style | No Mounting Flanges |
| Long Description | enclosure - diecast |
| Short Description | 1590P1 BLK C/W NO PCB GUIDES |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 75.79 mm [2.984 in] |
| Inside Height | 45.50 mm [1.791 in] |
| Inside Length | 145.69 mm [5.736 in] |
| Size (L X W X H) | 6.02 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm) |
| Nominal Size (Width) | 3.27 in (83 mm) |
| Nominal Size (Height) | 1.97 in (50 mm) |
| Nominal Size (Length) | 6.02 in (153 mm) |
| Side Wall Draft Angle | 2° or less |
| Overall Width (Drawing) | 83.10 mm [3.272 in] |
| Overall Height (Drawing) | 50.40 mm [1.984 in] |
| Overall Length (Drawing) | 153.00 mm [6.024 in] |
| Max. P.C. Board Width (Mm) | 145.35 |
| Max. P.C. Board Length (Mm) | 75.45 |
Identifiers
| UPC | 623980543154 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.75 lbs (0.34 kg) |
Construction & Finish
| Finish | Black textured polyester powder paint |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Screw Finish | Black screws included |
| Lid/Box Joint | Lap joint construction |
| Included Items | Box, lid and 4 cover screws |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Equivalent | 1590WP1BK (IP65, silicone gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590PGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1590P1BK differ from the 1590P1?▾
Same size and construction; the 1590P1BK has black textured polyester powder paint with black screws instead of the natural vibra finish.
What are the inside dimensions?▾
145.69 x 75.79 x 45.50 mm per the drawing.
Does it have mounting flanges?▾
No. Flanged versions are 1590P1FBK (flanged bottom plate) and 1590P1FLBK (flanged lid).
What IP rating is it?▾
Designed to meet IP54. The 1590WP1BK is the IP65 water-tight version.
What screws hold the lid?▾
Four included cover screws in 6-32 UNC tapped holes; black replacements are listed as 1590MS100BK (6-32 x 1/2 in, Pkg 100).
