Hammond 1590P1 153x83x50mm Diecast Aluminum Box, No Flanges
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 153 x 83 x 50 mm nominal (6.02 x 3.27 x 1.98 in)
- No mounting flanges, no PCB guides
- Inside 145.69 x 75.79 x 45.50 mm
- PC boards up to 145.35 x 75.45 mm
- Natural vibra-finished diecast aluminum
- Lap joint lid designed to meet IP54
- Box, lid and 4 cover screws (6-32 UNC) included

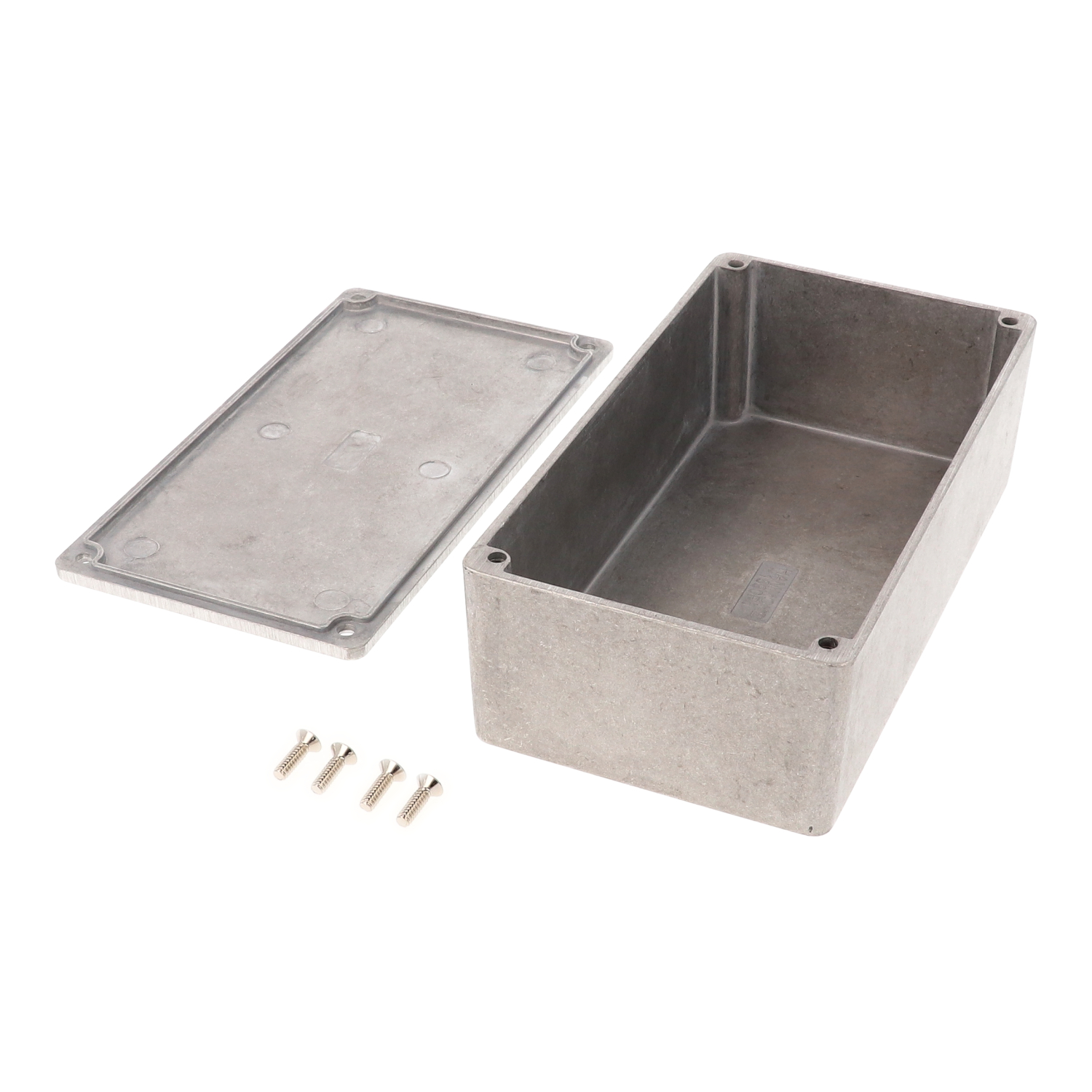

The 1590P1 is a 153 x 83 x 50 mm diecast aluminum enclosure without mounting flanges, in natural aluminum. Its short description, '1590P WITH NO PCB GUIDES', points to a plain interior, which suits designers who will mount boards on standoffs or machine their own features. It is a mid-sized box for instruments, audio projects and control electronics.
Box and lid are made from diecast aluminum alloy, tough yet easy to machine, and the unpainted version is vibra finished for a smooth surface without sharp edges. A lap joint where lid and box meet protects against dust and splashing water, and the standard version is designed to meet IP54.
The drawing gives outside dimensions of 153.00 x 83.10 x 50.40 mm [6.024 x 3.272 x 1.984 in] and inside dimensions of 145.69 x 75.79 x 45.50 mm. Maximum PC board dimensions are listed as 145.35 and 75.45 mm. Side walls have a draft angle of 2° or less, and the lid is 0.16 in (4 mm) high.
The assembly includes box, lid and 4 cover screws that thread into factory-tapped 6-32 UNC holes at 50-55 cN.m. The water-tight version is 1590WP1, and the optional replacement gasket kit for this size is 1590PGASKET. Shipping weight is 0.74 lbs (0.34 kg); RoHS and REACH compliant.
Ideal For
- Electronic instrument enclosure
- Audio and effects project housing
- Control electronics box
- PCB enclosure up to 145.35 x 75.45 mm
Options
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Hardware
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel (Pkg 100) or 1590WMS100BK black stainless steel (Pkg 100), 6-32 x 1/2" with O-ring |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Replacement Cover Screws | 1590MS100 plated (Pkg 100) or 1590MS100BK black (Pkg 100), 6-32 x 1/2" |
| Tamper-Resistant Screw Upgrade (Torx With Pin, 50-pack) | 1590MS50T (natural), 1590MS50TBK (black); screwdriver bit SCDRIVET10-2 |
Overview
| Type | Die-cast box |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Part Number | 1590P1 |
| Mounting Style | No Mounting Flanges |
| Long Description | enclosure - diecast |
| Short Description | 1590P WITH NO PCB GUIDES |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 75.79 mm [2.984 in] |
| Inside Height | 45.50 mm [1.791 in] |
| Inside Length | 145.69 mm [5.736 in] |
| Size (L X W X H) | 6.02 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm) |
| Nominal Size (Width) | 3.27 in (83 mm) |
| Nominal Size (Height) | 1.97 in (50 mm) |
| Nominal Size (Length) | 6.02 in (153 mm) |
| Side Wall Draft Angle | 2° or less |
| Overall Width (Drawing) | 83.10 mm [3.272 in] |
| Overall Height (Drawing) | 50.40 mm [1.984 in] |
| Overall Length (Drawing) | 153.00 mm [6.024 in] |
| Max. P.C. Board Width (Mm) | 145.35 |
| Max. P.C. Board Length (Mm) | 75.45 |
Identifiers
| UPC | 623980543116 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.74 lbs (0.34 kg) |
Construction & Finish
| Finish | Natural, vibra finished (smooth surface, no sharp edges) |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Lid/Box Joint | Lap joint construction |
| Included Items | Box, lid and 4 cover screws |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Equivalent | 1590WP1 (IP65, silicone gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590PGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1590P1?▾
Listed size is 6.02 x 3.27 x 1.98 in (153 x 83 x 50 mm). The drawing shows 153.00 x 83.10 x 50.40 mm outside and 145.69 x 75.79 x 45.50 mm inside.
Does it include PCB guides?▾
No. Its short description is '1590P WITH NO PCB GUIDES'.
What is the largest PC board it takes?▾
Maximum PC board dimensions are listed as 145.35 mm and 75.45 mm.
How do I make it water-tight?▾
Order the water-tight 1590WP1, designed to meet IP65, or fit the 1590PGASKET kit with lid screws torqued to 25-30 cN.m.
What does it weigh?▾
0.74 lbs (0.34 kg) shipping weight.
