Hammond 1590N1FLBK 121x66x40mm Black Diecast Box, Wall-Mount Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Lid-integrated wall-mounting flange, black textured finish
- 121 x 66 x 40 mm nominal; 149.50 mm overall length
- Polyester powder paint with matching black screws
- Inside 115.91 x 60.21 x 35.45 mm
- Designed to meet IP54; IP65 upgrade via 1590NGASKET
- Diecast aluminum alloy box and lid

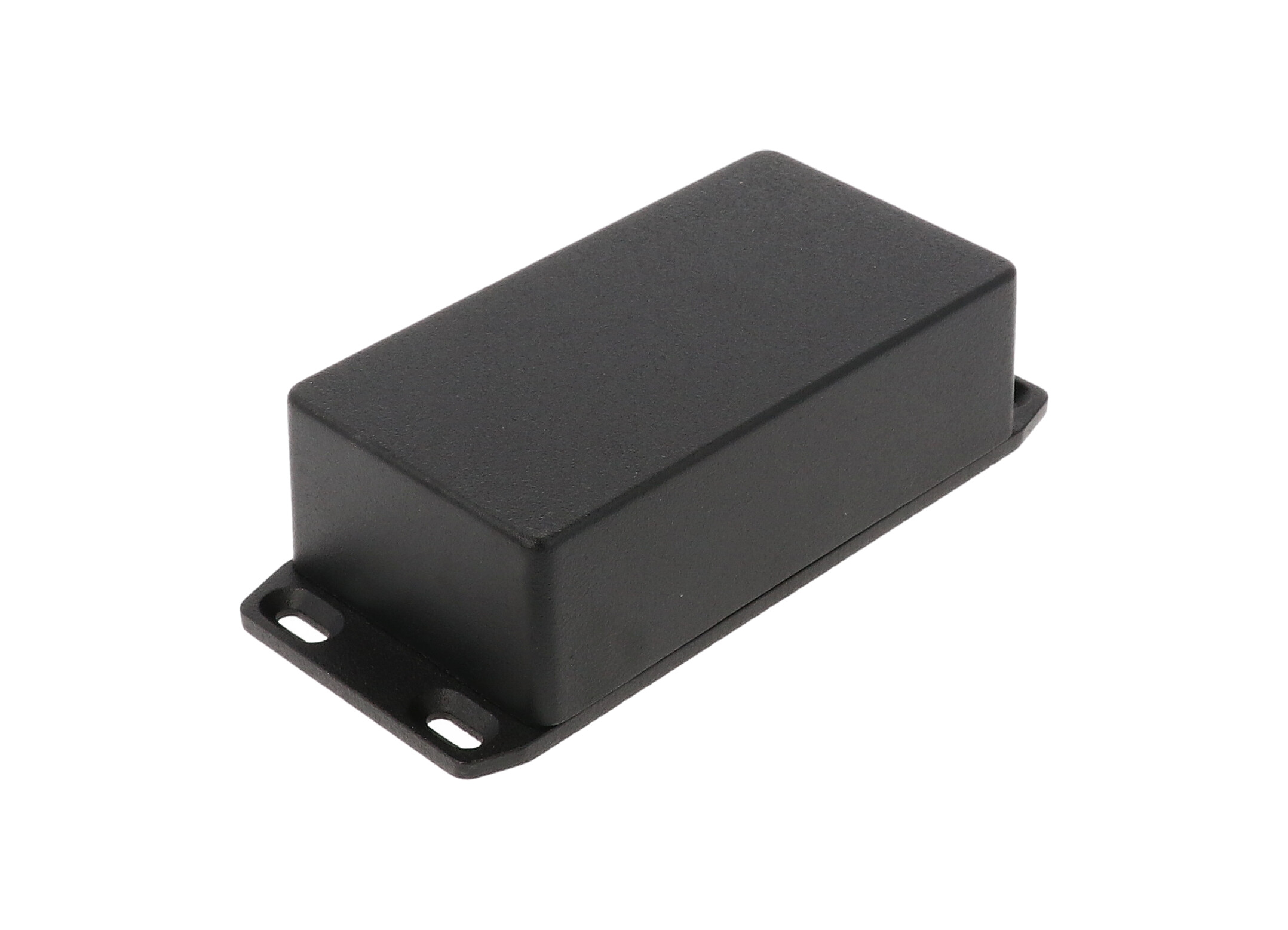

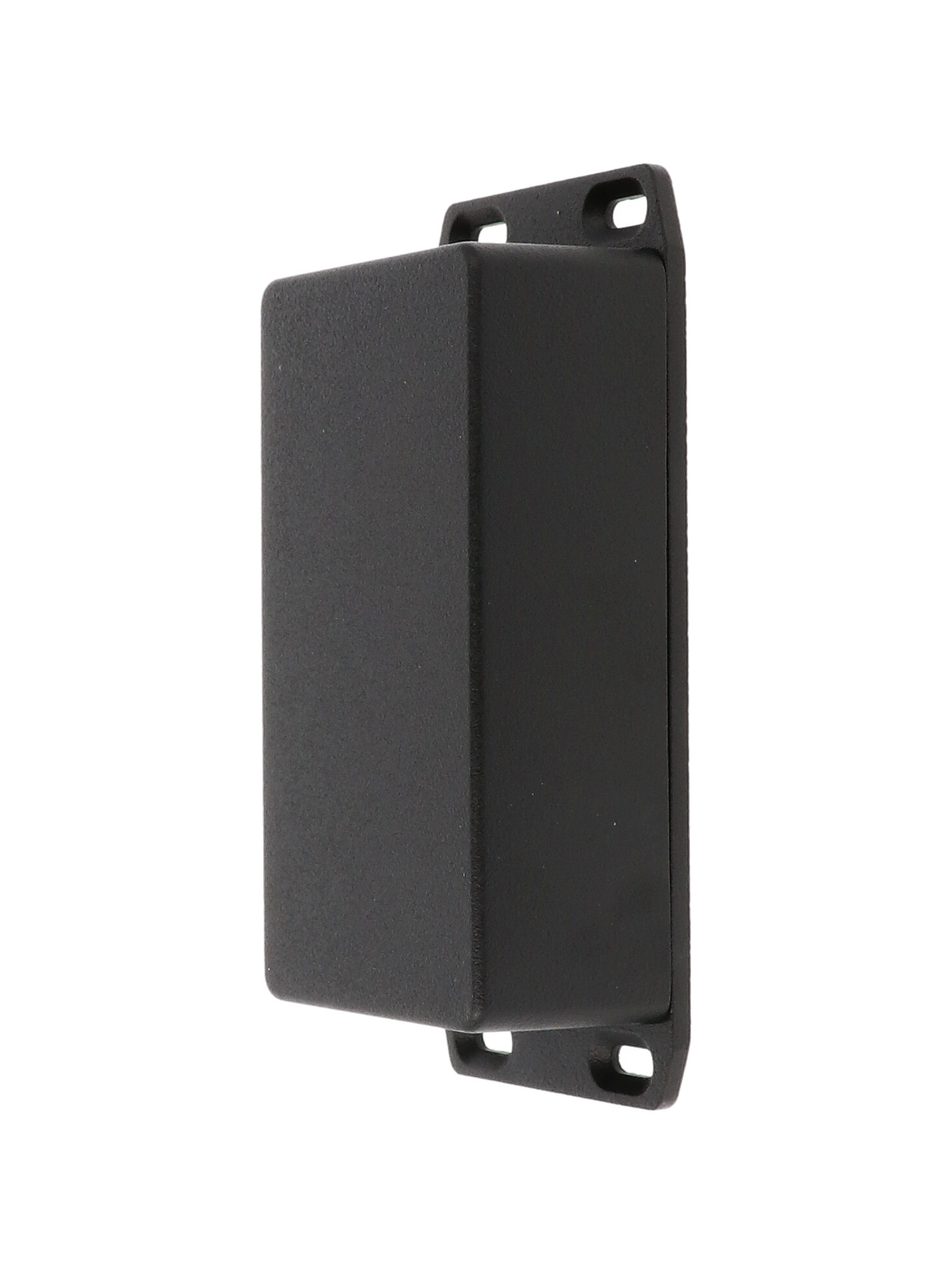

The 1590N1FLBK is the black flanged-lid version of the 121 x 66 x 40 mm 1590N1 enclosure. Its wall-mounting flange is part of the lid, and the textured black finish suits visible installations such as wall-mounted controls, indicator housings and customer-facing equipment.
Construction is diecast aluminum alloy for box and lid, coated with a tough polyester powder paint that holds up after machining. Black screws are included to enhance appearance. The lid and box meet in a lap joint that protects against dust and splashing water, and the part is designed to meet IP54.
The drawing gives an overall length of 149.50 mm [5.886 in] across the lid flange, a box width of 65.50 mm and a height of 39.80 mm. Inside, there is 115.91 x 60.21 mm of floor space and 35.45 mm of height. Side walls have a draft angle of 2° or less for PC board mounting.

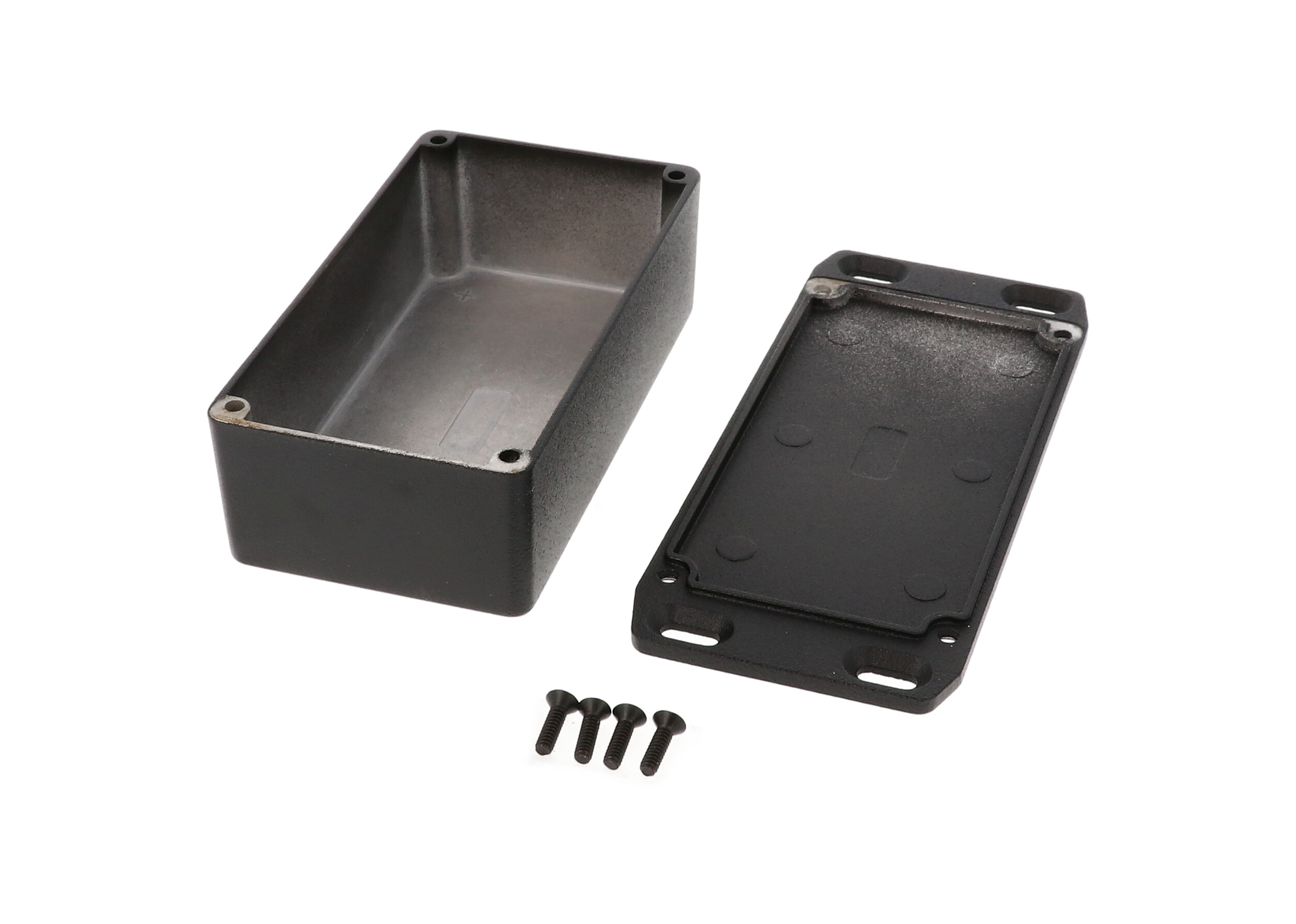

Included: box, lid and 4 cover screws for factory-tapped 6-32 UNC holes. The water-tight black version is 1590WN1FLBK, and 1590NGASKET is the listed gasket kit if you want to upgrade to IP65 later. Shipping weight is 0.39 lbs (0.18 kg); RoHS and REACH compliant.
Ideal For
- Wall-mounted black control enclosure
- Indicator or sensor housing
- Panel-mounted electronics box
- Finished OEM instrument case
Options
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Hardware
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel (Pkg 100) or 1590WMS100BK black stainless steel (Pkg 100), 6-32 x 1/2" with O-ring |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Replacement Cover Screws | 1590MS100 plated (Pkg 100) or 1590MS100BK black (Pkg 100), 6-32 x 1/2" |
| Tamper-Resistant Screw Upgrade (Torx With Pin, 50-pack) | 1590MS50T (natural), 1590MS50TBK (black); screwdriver bit SCDRIVET10-2 |
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Part Number | 1590N1FLBK |
| Mounting Style | w/ Flanged Lid |
| Long Description | enclosure - diecast |
| Short Description | 1590N1 FLANGED LID BLACK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 60.21 mm [2.370 in] |
| Inside Height | 35.45 mm [1.396 in] |
| Inside Length | 115.91 mm [4.563 in] |
| Size (L X W X H) | 4.77 in x 2.58 in x 1.57 in (121 mm x 66 mm x 40 mm) |
| Box Width (Drawing) | 65.50 mm [2.579 in] |
| Nominal Size (Width) | 2.60 in (66 mm) |
| Nominal Size (Height) | 1.57 in (40 mm) |
| Nominal Size (Length) | 4.76 in (121 mm) |
| Side Wall Draft Angle | 2° or less |
| Overall Height (Drawing) | 39.80 mm [1.567 in] |
| Max. P.C. Board Width (Mm) | 115.91 |
| Max. P.C. Board Length (Mm) | 60.21 |
| Overall Length Incl. Flange (Drawing) | 149.50 mm [5.886 in] |
Identifiers
| UPC | 623980539881 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.39 lbs (0.18 kg) |
Construction & Finish
| Finish | Black textured polyester powder paint |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Screw Finish | Black screws included |
| Lid/Box Joint | Lap joint construction |
| Included Items | Box, lid and 4 cover screws |
| Mounting Flange | Wall-mounting flange integrated into lid |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Equivalent | 1590WN1FLBK (IP65, silicone gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590NGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1590N1FLBK?▾
A black textured 121 x 66 x 40 mm diecast aluminum enclosure with a wall-mounting flange integrated into the lid.
How long is it with the flange?▾
149.50 mm [5.886 in] overall per the drawing.
Are black screws included?▾
Yes. Black screws are included with the black version, and the assembly includes 4 cover screws.
Which gasket kit fits?▾
1590NGASKET is the listed replacement gasket kit, designed to bring the enclosure to IP65 with lid screws torqued to 25-30 cN.m.
What does it weigh?▾
0.39 lbs (0.18 kg) shipping weight.
