Hammond 1590LBF 51x51x31mm Diecast Aluminum Box, Flanged Base
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate for direct mounting
- Flange 78.99 mm long; 3.96 mm holes on 67.72 x 25.40 mm centres
- Compact 51 x 51 x 31 mm body; 32.50 mm high with flange
- Inside 45.50 x 45.50 x 27.05 mm; P.C. boards up to 44.7 mm square
- IP54 lap joint lid; IP65 with the 1590LBGASKET kit
- Natural vibra finished diecast aluminum
- 4 cover screws in factory-tapped 6-32 UNC holes

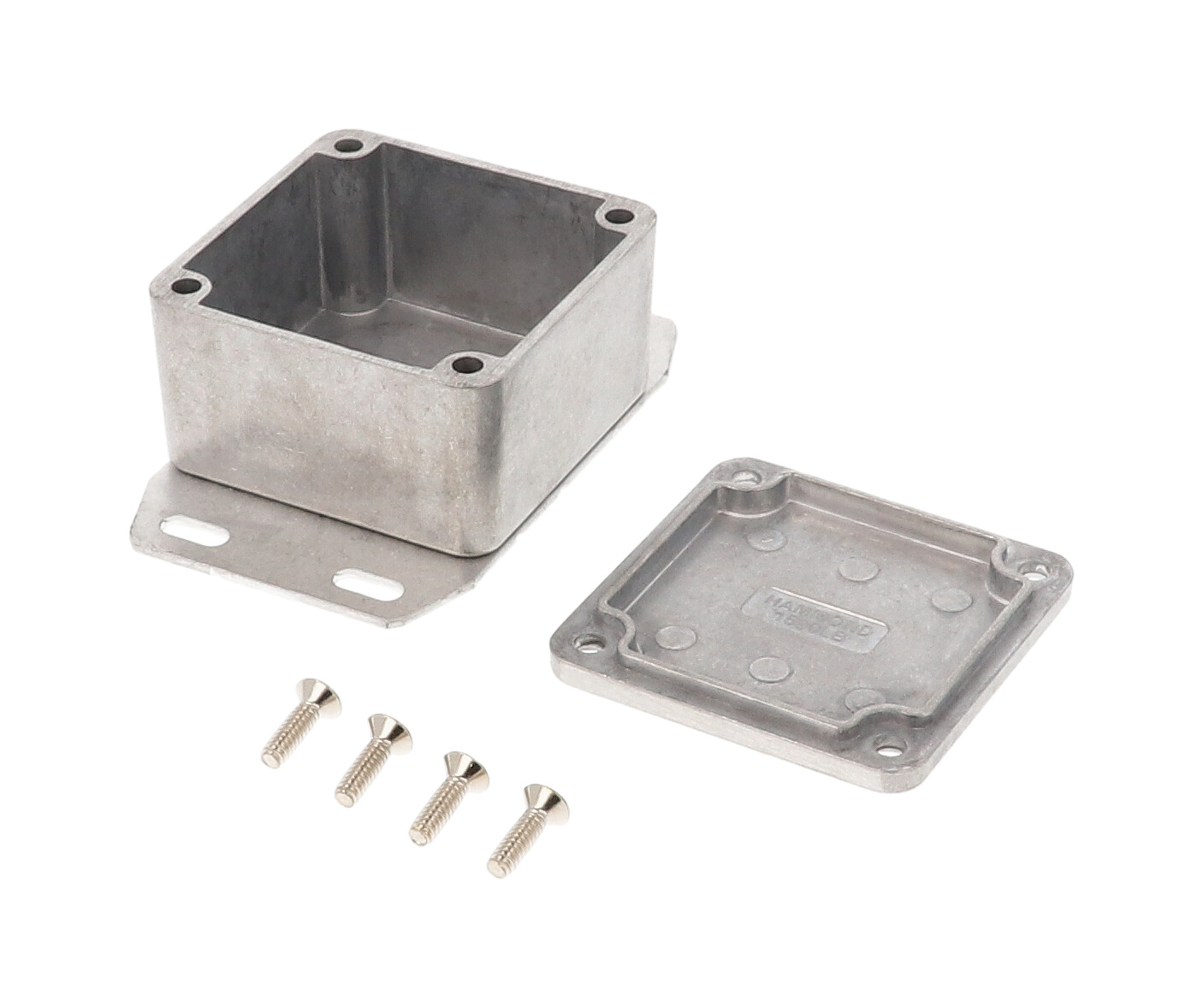

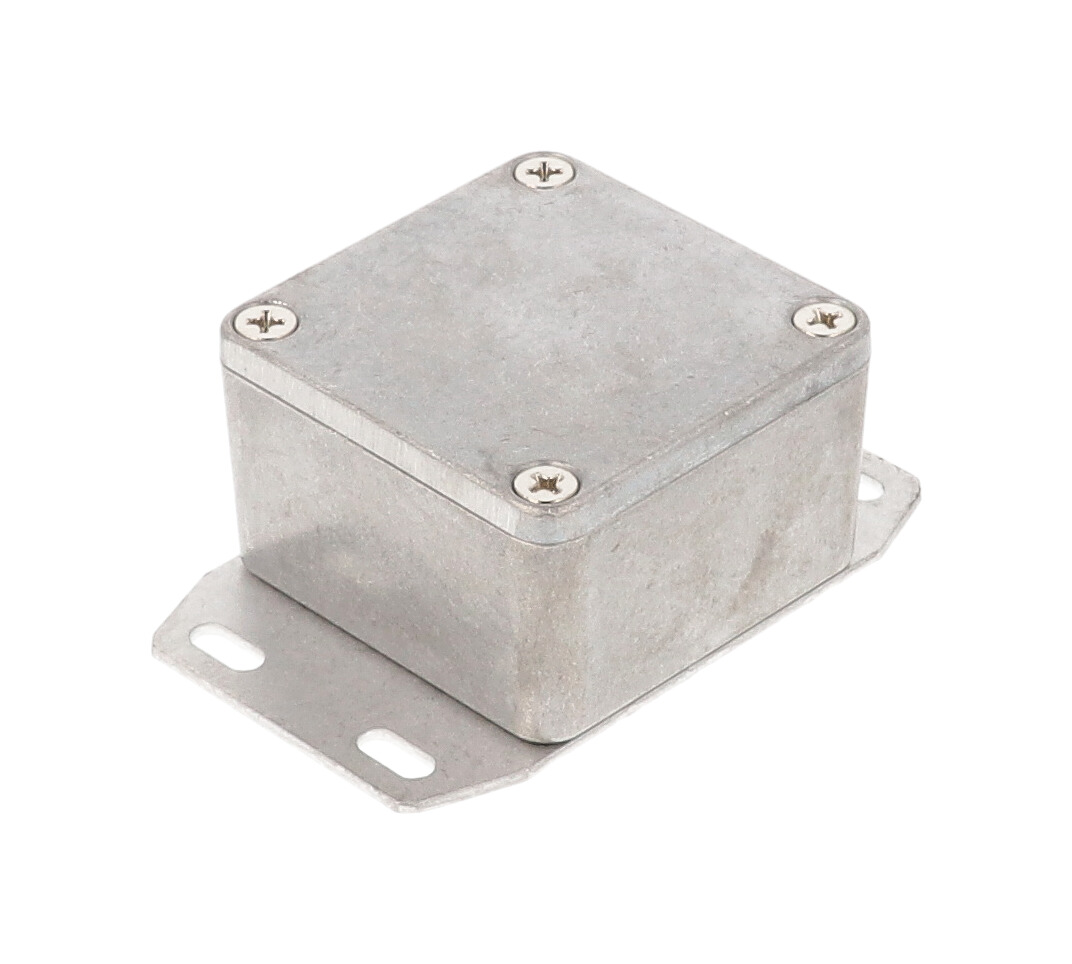

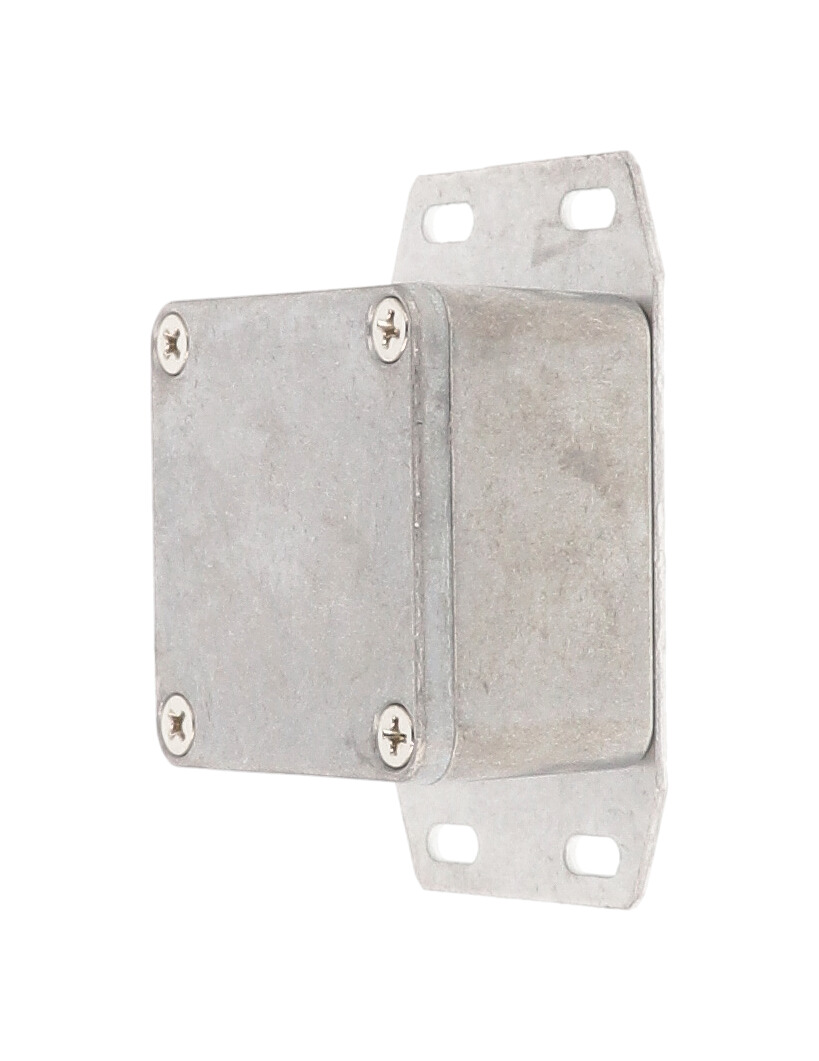

The 1590LBF is the compact 51 mm x 51 mm x 31 mm (1.99 in x 1.99 in x 1.22 in) 1590 Series diecast aluminum box with a welded flanged bottom plate. It gives installers and OEM designers a small metal housing that screws straight onto a wall, panel or piece of equipment.
The drawing shows the flange extending to 78.99 mm [3.110 in] overall, with 3.96 mm [0.156 in] mounting holes on 67.72 mm x 25.40 mm [2.666 in x 1.000 in] centres. Height including the flange is 32.50 mm [1.280 in]. The box is 50.55 mm x 50.60 mm outside, with 45.50 mm [1.791 in] of inside length and width and 27.05 mm [1.065 in] of inside height; P.C. boards up to 44.7 mm square fit.
Box and lid are diecast aluminum alloy that is tough yet easy to machine, finished here in natural vibra finished aluminum with no sharp edges. A lap joint between lid and box protects against dust and splashing water, and the standard version is designed to meet IP54. Side walls have a draft angle of 2° or less for easy board mounting.
The 1590LBF includes the box, lid and 4 cover screws threaded into factory-tapped 6-32 UNC holes (recommended torque 50-55 cN.m [71-78 ozf.in]). Add the 1590LBGASKET kit for IP65 with lid screws at 25-30 cN.m [36-43 ozf.in], or order the water-tight 1590WLBF. RoHS and REACH compliant; 0.18 lbs (0.08 kg), shrink wrapped.
Ideal For
- Small wall or panel mounted sensor housings
- Equipment-mounted mini electronics
- Compact flange-mounted junction boxes
- Dust and splash protected modules
Mounting
| Flange Type | Welded bottom flange plate |
| Flange Hole Spacing (Width) | 25.40 mm [1.000 in] |
| Flange Hole Spacing (Length) | 67.72 mm [2.666 in] |
| Flange Mounting Hole Diameter | 3.96 mm [0.156 in] |
| Overall Height Including Flange | 32.50 mm [1.280 in] |
| Overall Length Including Flange | 78.99 mm [3.110 in] |
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Description | enclosure - diecast |
| Part Number | 1590LBF |
| Mounting Style | Flanged bottom plate |
| Short Description | DIECAST BOX WITH FLANGE |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 45.50 mm [1.791 in] |
| Inside Height | 27.05 mm [1.065 in] |
| Inside Length | 45.50 mm [1.791 in] |
| Ordering Table Width | 2.01 in (51 mm) |
| Max. P.C. Board Width | 44.7 mm |
| Ordering Table Height | 1.22 in (31 mm) |
| Ordering Table Length | 2.01 in (51 mm) |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 44.7 mm |
| Nominal Size (L X W X H) | 1.99 in x 1.99 in x 1.22 in (51 mm x 51 mm x 31 mm) |
| Overall Box Width (Drawing) | 50.60 mm [1.992 in] |
| Overall Box Height (Drawing) | 31.00 mm [1.220 in] |
| Overall Box Length (Drawing) | 50.55 mm [1.990 in] |
Accessories
| Related Versions | Black 1590LBFBK; no-flange 1590LB; flanged lid 1590LBFL; water-tight 1590WLBF |
| Standard Cover Screws | 1590MS100 plated, 1590MS100BK black (6-32 x 1/2", Pkg 100) |
| Liquid Resistant Cover Screws | 1590WMS100 stainless, 1590WMS100BK black stainless (6-32 x 1/2" with O-ring, Pkg 100) |
Identifiers
| UPC | 623980536811 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.18 lbs (0.08 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |
| Included | Box, lid and 4 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| CAD Models | Solid models available in STEP or IGES |
| Cover Screw Thread | 4X 6-32 UNC, factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Milling, drilling, printing etc. available by factory quote |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Version | 1590WLBF (designed to meet IP65, gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590LBGASKET (upgrades IP54 to IP65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the 1590LBF mounting hole positions?▾
The drawing shows 3.96 mm [0.156 in] holes on 67.72 mm x 25.40 mm [2.666 in x 1.000 in] centres in a flange 78.99 mm [3.110 in] long.
How tall is the 1590LBF with the flange?▾
32.50 mm [1.280 in] including the welded bottom flange, per the drawing.
How is it different from the 1590LB?▾
Same 51 x 51 x 31 mm body; the 1590LBF adds a welded flanged bottom plate for mounting.
Can it be made IP65?▾
Yes, with the 1590LBGASKET kit properly installed and lid screws torqued to 25-30 cN.m, or choose the water-tight 1590WLBF.
What is included?▾
The box, lid and 4 cover screws.
