Hammond 1590LB 51x51x31mm Diecast Aluminum Enclosure, IP54
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Compact 51 x 51 x 31 mm (1.99 x 1.99 x 1.22 in) diecast aluminum box
- Inside 45.50 x 45.50 x 27.05 mm; P.C. boards up to 44.7 mm square
- IP54 design with lap joint against dust and splashing water
- Natural vibra finish: smooth surface, no sharp edges
- 4 cover screws in factory-tapped 6-32 UNC holes included
- IP65 upgrade via the 1590LBGASKET kit; water-tight 1590WLB offered
- Draft angle of 2° or less for easy PC board mounting

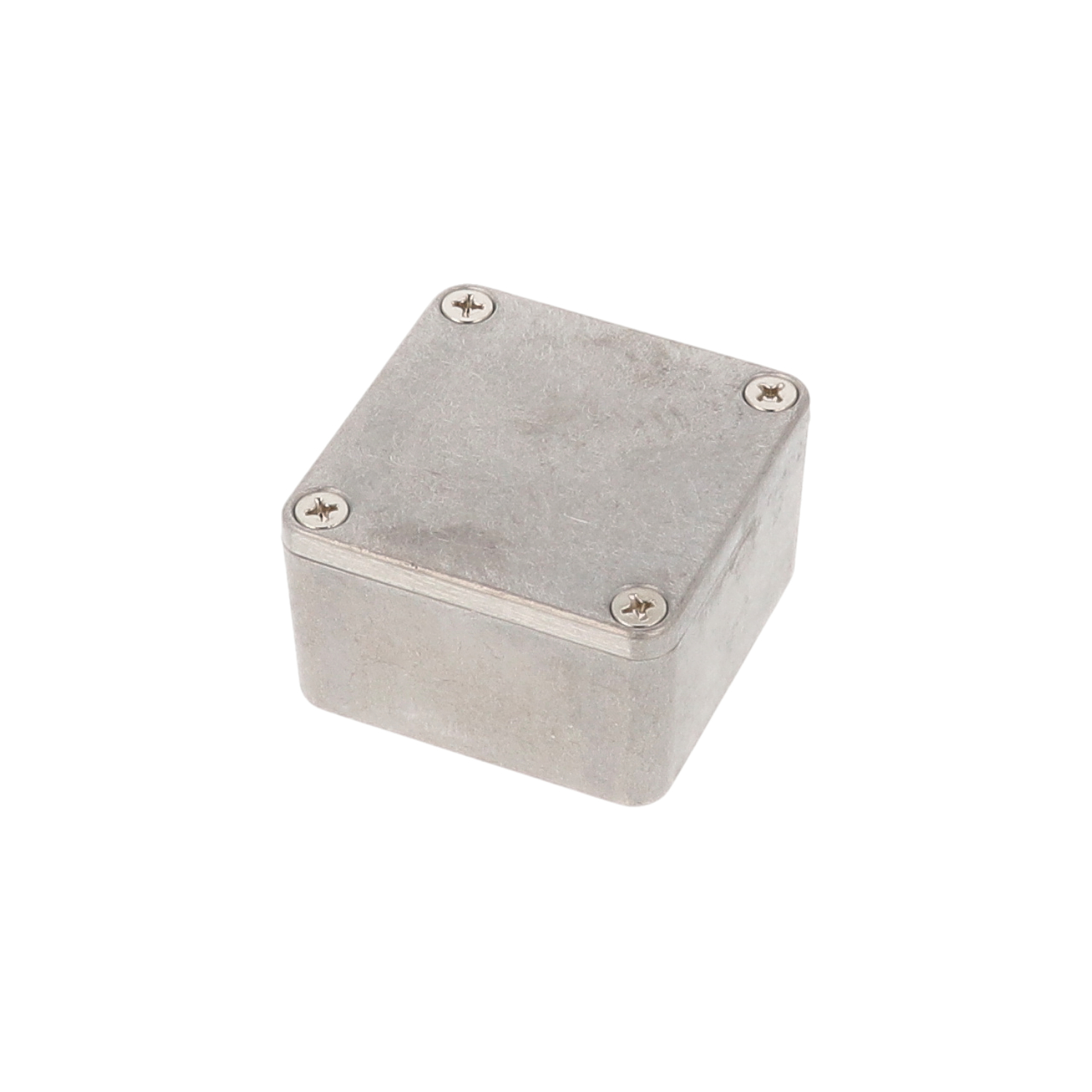

The 1590LB is a small square diecast aluminum enclosure measuring 1.99 in x 1.99 in x 1.22 in (51 mm x 51 mm x 31 mm). Its compact footprint makes it a good fit for sensors, small circuit boards, remote modules and similar electronics built by OEM engineers, hobbyists and field integrators.

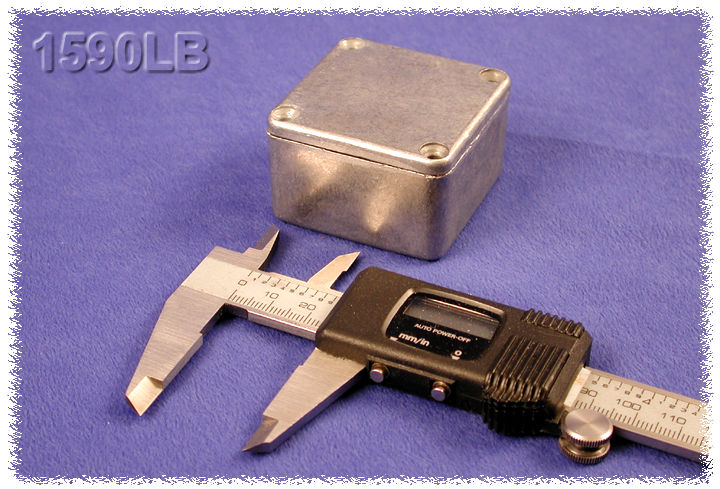

The drawing gives outside dimensions of 50.55 mm [1.990 in] by 50.60 mm [1.992 in] and 31.00 mm [1.220 in] tall. Inside, there is 45.50 mm [1.791 in] of length and width with 27.05 mm [1.065 in] of height, and the manufacturer lists a maximum P.C. board size of 44.7 mm x 44.7 mm. A side wall draft angle of 2° or less makes PC board mounting easier.
The box and lid are cast from aluminum alloy, which is tough yet easy to machine, and this natural version is vibra finished for a smooth surface with no sharp edges. A lap joint where lid and box meet protects against dust and splashing water, and the standard 1590LB is designed to meet IP54. It has no mounting flanges; 1590LBF (flanged base) and 1590LBFL (flanged lid) are the mountable versions.

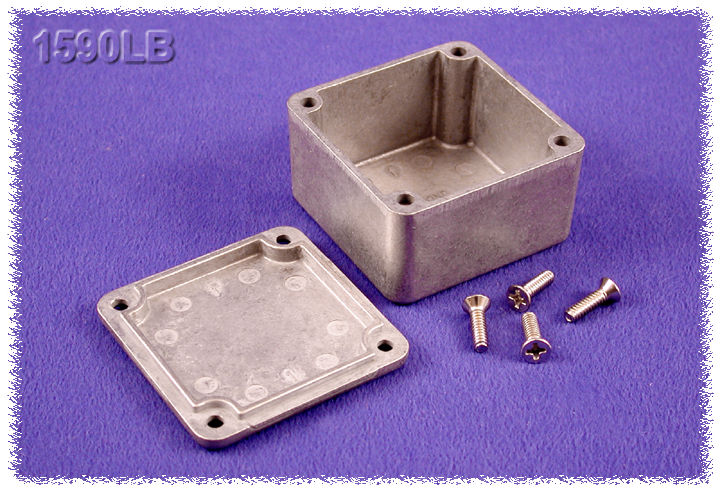

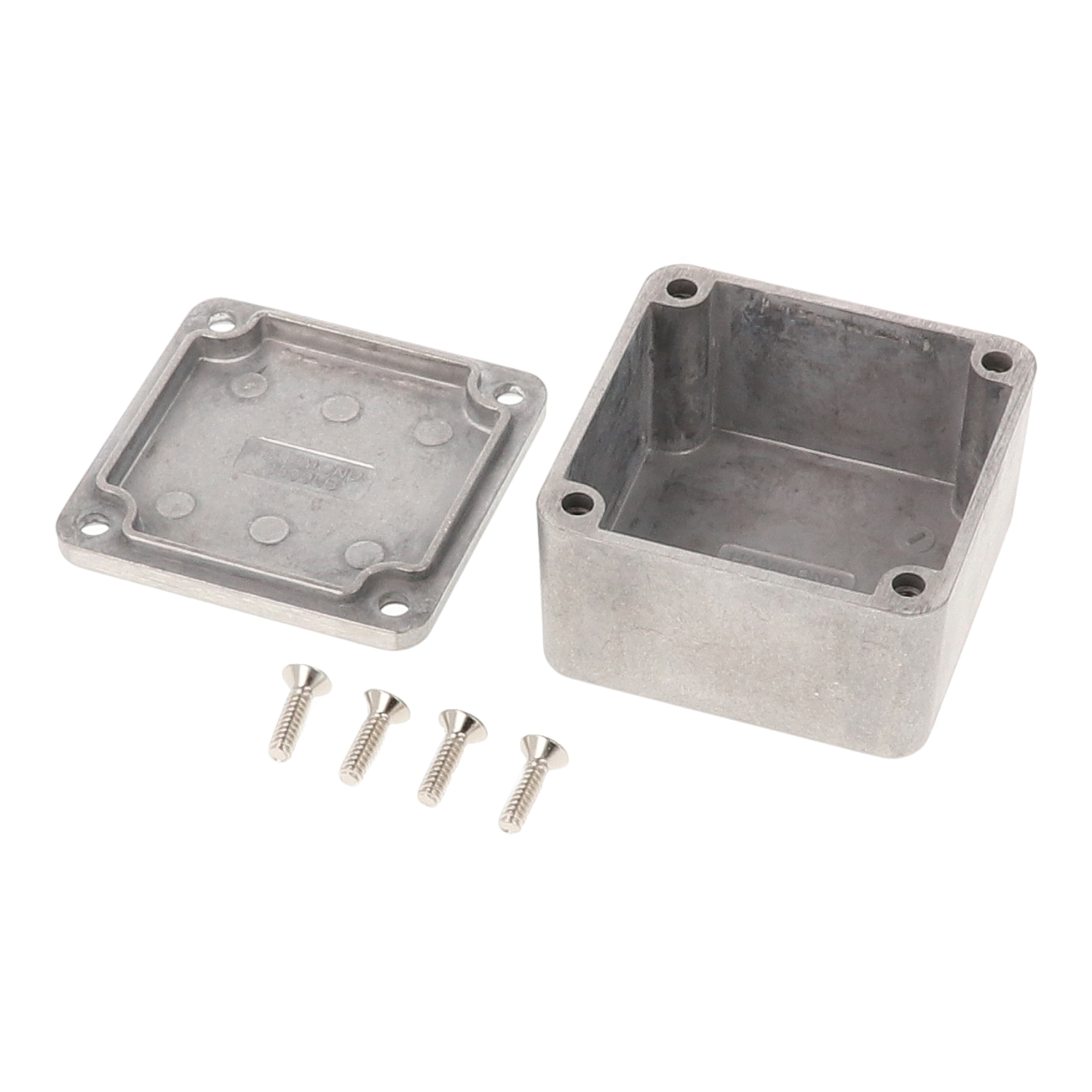

Supplied with the box, lid and 4 cover screws threaded into factory-tapped 6-32 UNC holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in]. The optional 1590LBGASKET kit upgrades it to IP65 (torque 25-30 cN.m [36-43 ozf.in] with gasket), and a water-tight 1590WLB is also offered. RoHS and REACH compliant; 0.15 lbs (0.07 kg), shrink wrapped.
Ideal For
- Small sensor and module housings
- Compact custom electronics projects
- Dust and splash protected small instruments
- Machinable mini enclosures for OEM products
Overview
| Type | Die-cast box |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Description | enclosure - diecast |
| Part Number | 1590LB |
| Mounting Style | No mounting flanges |
| Short Description | DIECAST BOX 1.98X1.98X1.07 |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 45.50 mm [1.791 in] |
| Inside Height | 27.05 mm [1.065 in] |
| Inside Length | 45.50 mm [1.791 in] |
| Ordering Table Width | 2.01 in (51 mm) |
| Max. P.C. Board Width | 44.7 mm |
| Ordering Table Height | 1.22 in (31 mm) |
| Ordering Table Length | 2.01 in (51 mm) |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 44.7 mm |
| Nominal Size (L X W X H) | 1.99 in x 1.99 in x 1.22 in (51 mm x 51 mm x 31 mm) |
| Overall Box Width (Drawing) | 50.60 mm [1.992 in] |
| Overall Box Height (Drawing) | 31.00 mm [1.220 in] |
| Overall Box Length (Drawing) | 50.55 mm [1.990 in] |
Accessories
| Related Versions | Black 1590LBBK; flanged bottom 1590LBF; flanged lid 1590LBFL; water-tight 1590WLB |
| Standard Cover Screws | 1590MS100 plated, 1590MS100BK black (6-32 x 1/2", Pkg 100) |
| Liquid Resistant Cover Screws | 1590WMS100 stainless, 1590WMS100BK black stainless (6-32 x 1/2" with O-ring, Pkg 100) |
Identifiers
| UPC | 623980542607 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.15 lbs (0.07 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |
| Included | Box, lid and 4 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| CAD Models | Solid models available in STEP or IGES |
| Cover Screw Thread | 4X 6-32 UNC, factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Milling, drilling, printing etc. available by factory quote |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Version | 1590WLB (designed to meet IP65, gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590LBGASKET (upgrades IP54 to IP65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1590LB?▾
Nominal size is 1.99 in x 1.99 in x 1.22 in (51 mm x 51 mm x 31 mm). The ordering table lists 2.01 in (51 mm) length and width.
What PC board fits inside?▾
The maximum P.C. board length and width are 44.7 mm. Inside dimensions are 45.50 mm x 45.50 mm x 27.05 mm.
Is the 1590LB waterproof?▾
It is designed to meet IP54. For IP65, use the 1590LBGASKET kit with lid screws torqued to 25-30 cN.m, or order the water-tight 1590WLB.
Does it have mounting flanges?▾
No. The 1590LBF has a welded flanged bottom plate and the 1590LBFL has a flanged lid.
What does it weigh?▾
Shipping weight is 0.15 lbs (0.07 kg).
