Hammond 1590KKFL 125x125x57mm Diecast Aluminum Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- Lid flange 155.00 mm overall with 140.00 mm [5.512 in] hole spacing
- Low-profile 125 x 125 x 57 mm (4.91 x 4.91 x 2.24 in) body
- P.C. boards up to 116.38 mm square; 51.30 mm inside height
- IP54 lap joint; IP65 with the 1590KGASKET kit
- Natural vibra finished diecast aluminum alloy
- 4 cover screws in factory-tapped 6-32 UNC holes

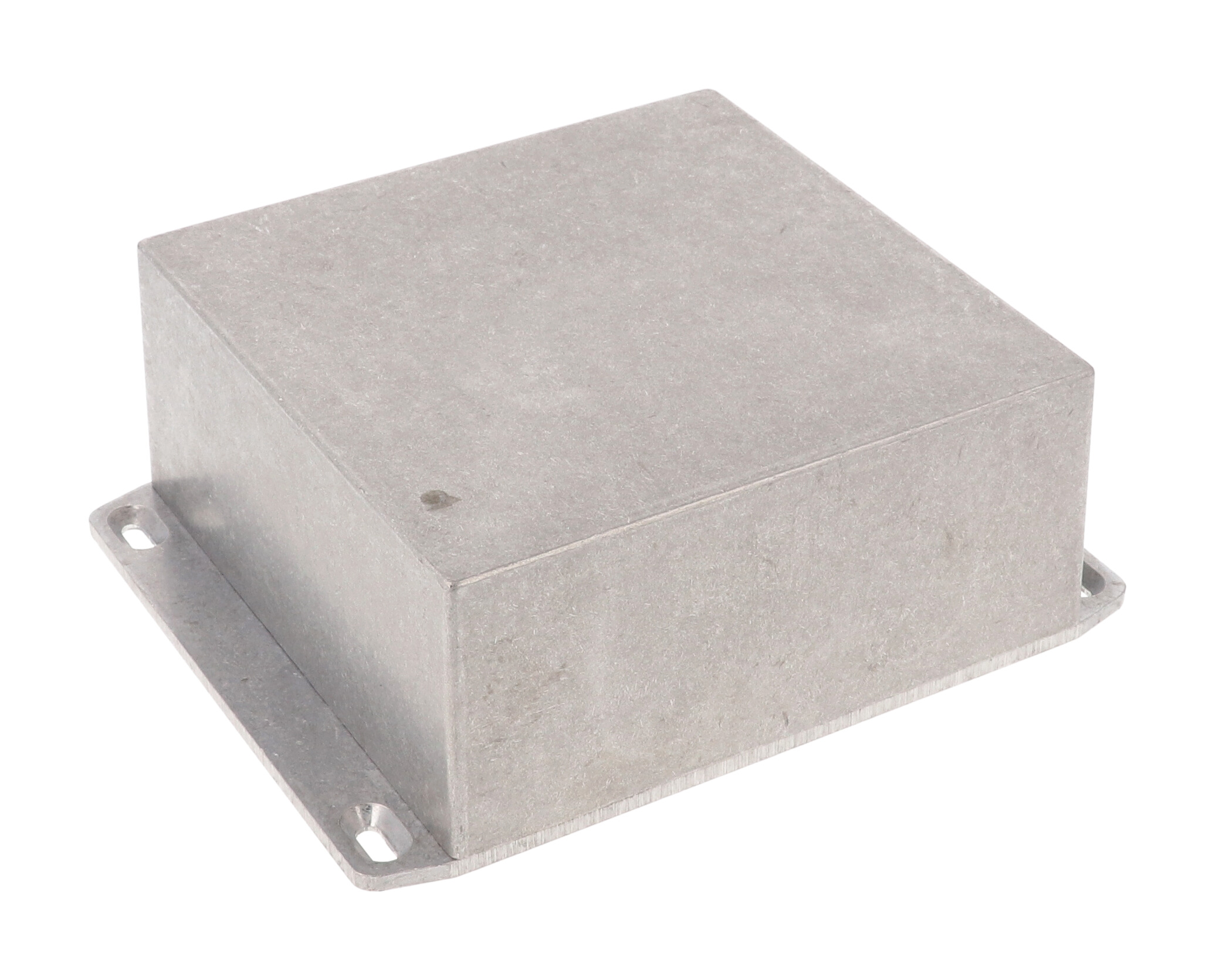

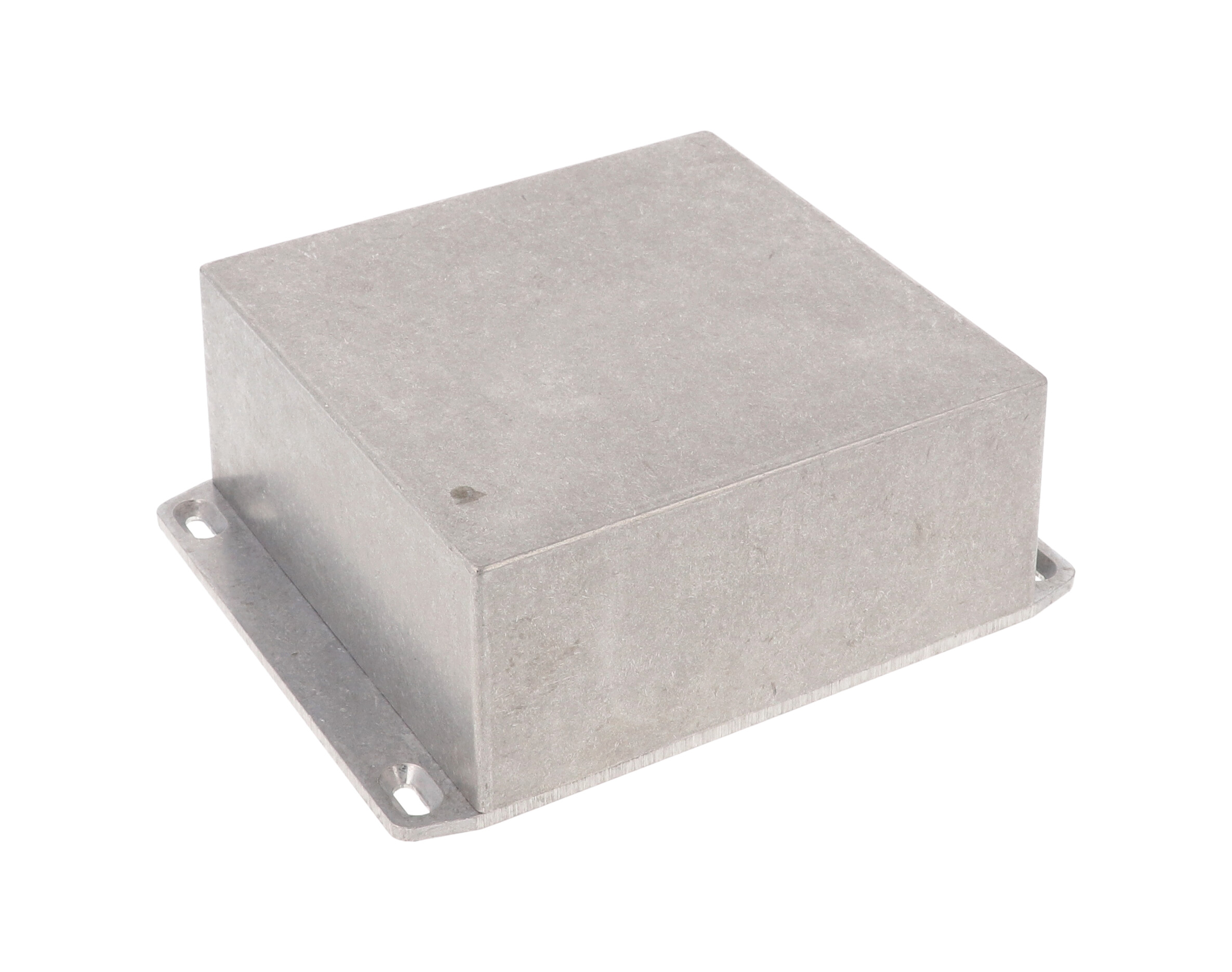

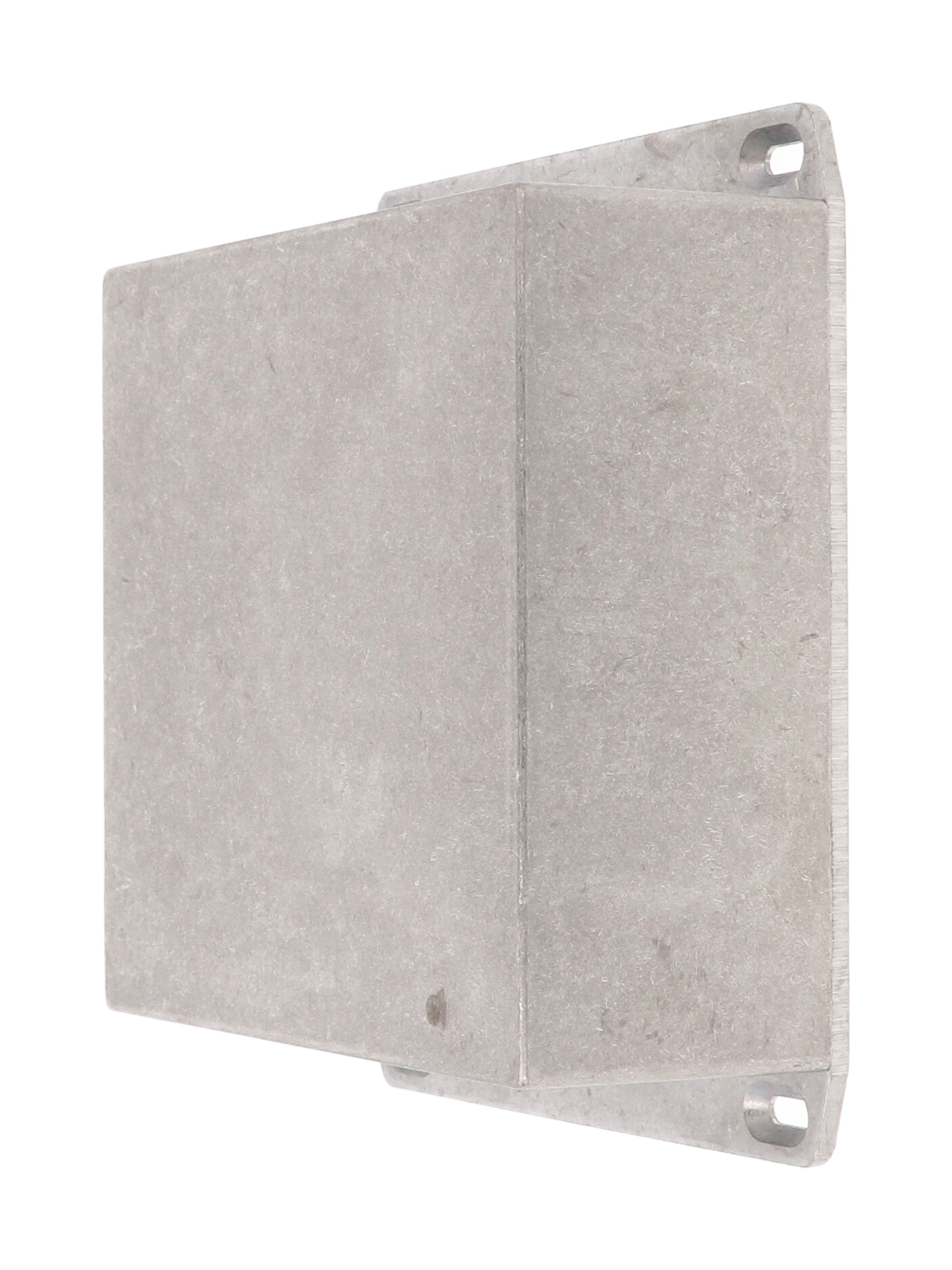

The 1590KKFL is the low-profile 125 mm x 125 mm x 57 mm (4.91 in x 4.91 in x 2.24 in) 1590 Series enclosure with a wall-mounting flange integrated into the lid. Mounting through the lid lets the box body face outward, a useful arrangement for installers and OEMs fixing electronics to walls, panels or equipment.

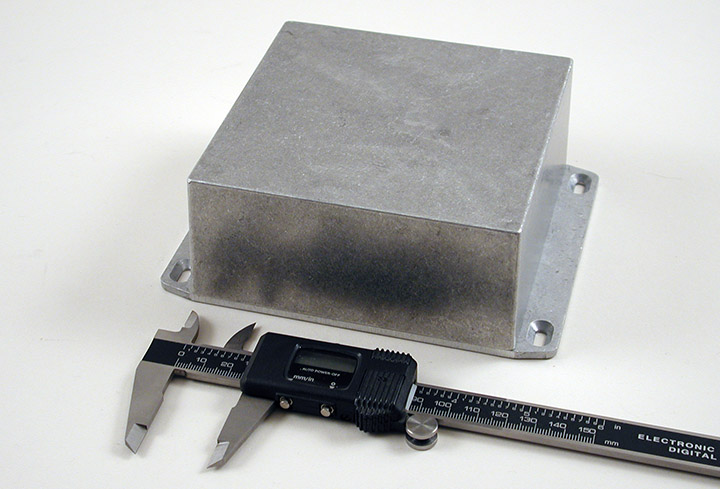

On the drawing, the flanged lid extends to 155.00 mm [6.102 in] overall with mounting holes spaced 140.00 mm [5.512 in] apart. The box is 124.80 mm [4.913 in] square and 57.00 mm [2.244 in] tall, with an inside width of 116.44 mm [4.584 in] and 51.30 mm [2.020 in] of inside height. The manufacturer lists a maximum P.C. board size of 116.38 mm x 116.38 mm and a catalog description of 4.92" x 4.92" x 2.10".
Box and lid are diecast aluminum alloy, tough but easy to machine, and this natural version is vibra finished with no sharp edges. The lap joint where lid and box meet protects against dust and splashing water, and the standard version is designed to meet IP54. A side wall draft angle of 2° or less aids PC board mounting.

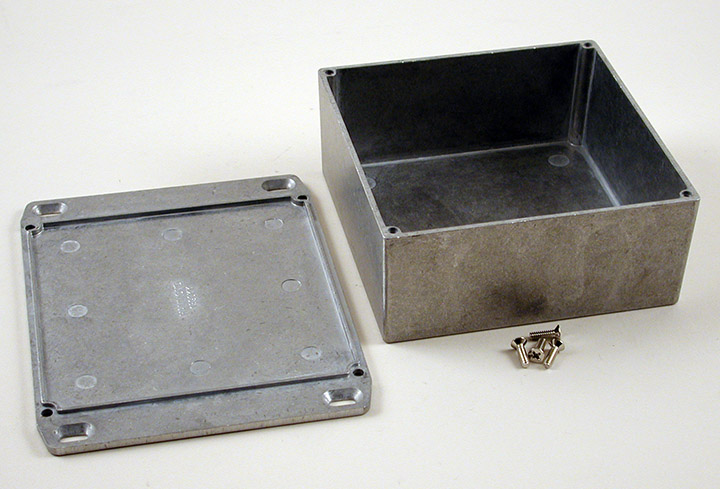

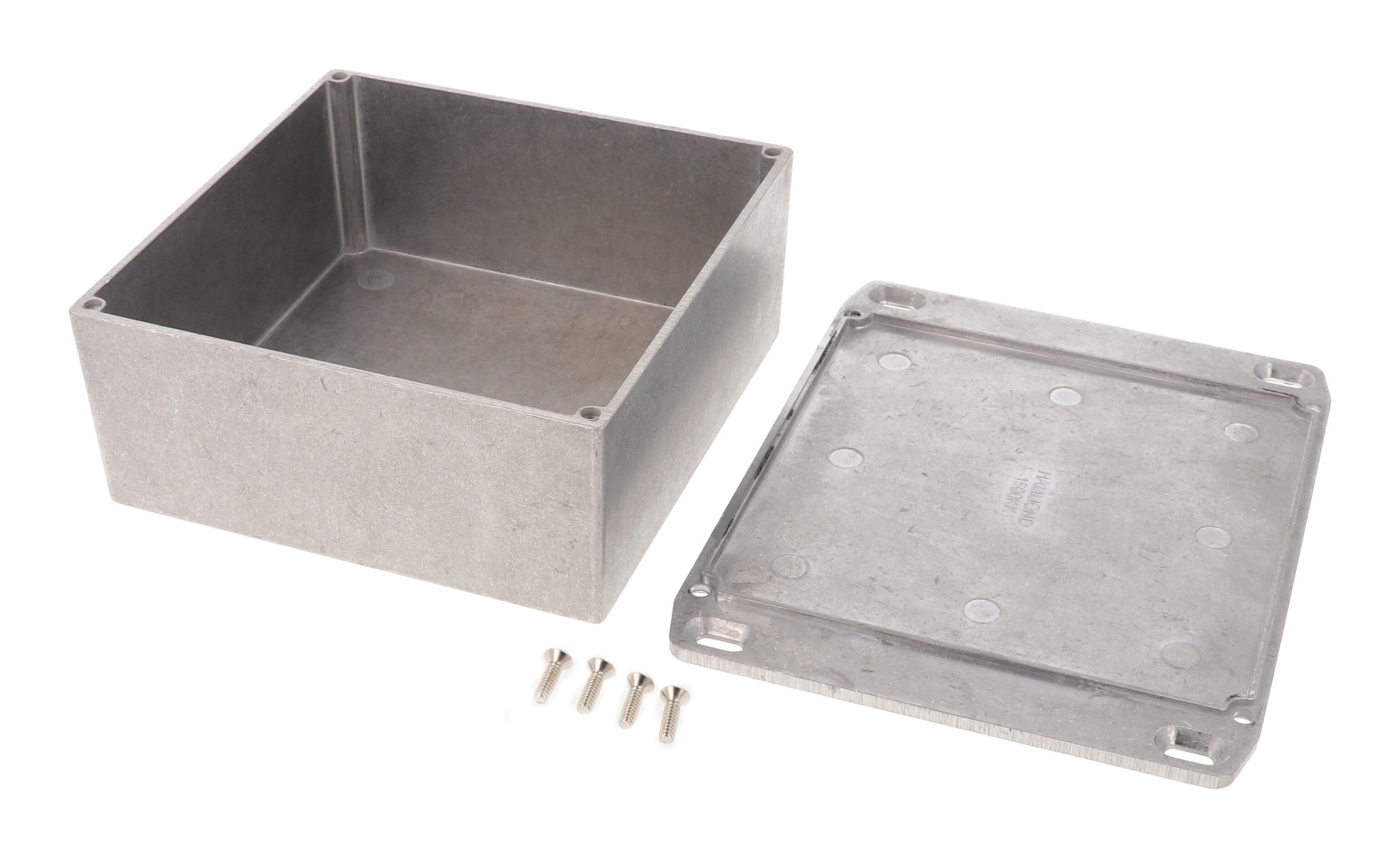

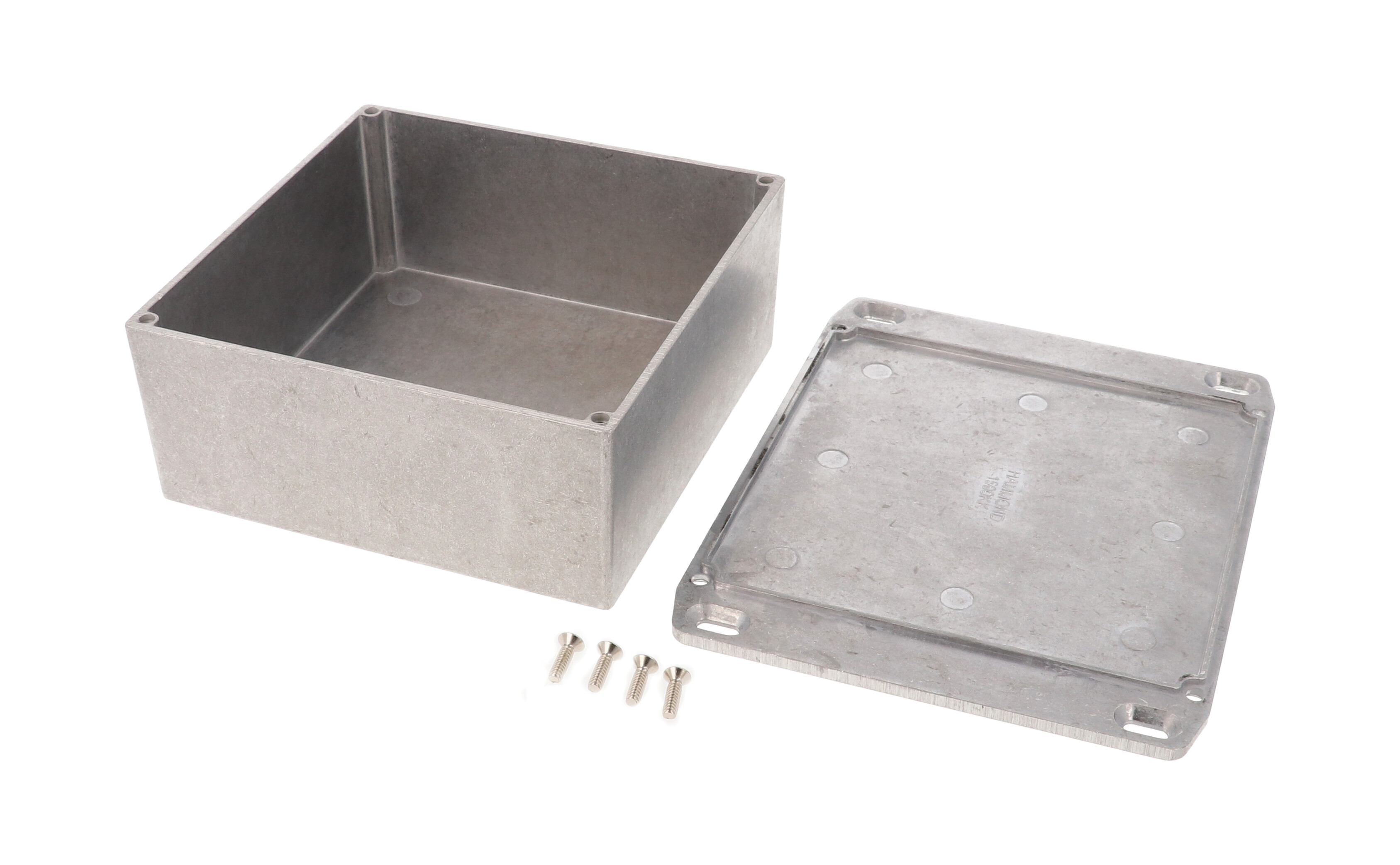

Supplied as box, lid and 4 cover screws in factory-tapped 6-32 UNC holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in]. For IP65, add the 1590KGASKET kit and torque to 25-30 cN.m [36-43 ozf.in], or choose the water-tight 1590WKKFL. RoHS and REACH compliant; 0.97 lbs (0.44 kg), shrink wrapped.
Ideal For
- Wall-mounted electronics with the box facing out
- Panel-mounted sensor or control housings
- Low-profile equipment-mounted enclosures
- Dust and splash protected instruments
Mounting
| Flange Type | Wall-mounting flange integrated into lid |
| Flange Hole Spacing (Length) | 140.00 mm [5.512 in] |
| Overall Lid Length Including Flange | 155.00 mm [6.102 in] |
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Description | enclosure - diecast; flanged lid; 4.92"x4.92"x2.10" |
| Part Number | 1590KKFL |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Short Description | DIECAST BOX W/FLANGE LID |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 116.44 mm [4.584 in] |
| Inside Height | 51.30 mm [2.020 in] |
| Ordering Table Width | 4.92 in (125 mm) |
| Max. P.C. Board Width | 116.38 mm |
| Ordering Table Height | 2.24 in (57 mm) |
| Ordering Table Length | 4.92 in (125 mm) |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 116.38 mm |
| Nominal Size (L X W X H) | 4.91 in x 4.91 in x 2.24 in (125 mm x 125 mm x 57 mm) |
| Overall Box Width (Drawing) | 124.80 mm [4.913 in] |
| Overall Box Height (Drawing) | 57.00 mm [2.244 in] |
| Overall Box Length (Drawing) | 124.80 mm [4.913 in] |
Accessories
| Related Versions | Black 1590KKFLBK; no-flange 1590KK; flanged bottom 1590KKF; water-tight 1590WKKFL |
| Standard Cover Screws | 1590MS100 plated, 1590MS100BK black (6-32 x 1/2", Pkg 100) |
| Liquid Resistant Cover Screws | 1590WMS100 stainless, 1590WMS100BK black stainless (6-32 x 1/2" with O-ring, Pkg 100) |
Identifiers
| UPC | 623980401348 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.97 lbs (0.44 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |
| Included | Box, lid and 4 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| CAD Models | Solid models available in .stp or .x_t |
| Drawing Revision | 25.05.2020 |
| Cover Screw Thread | 4X 6-32 UNC, factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Milling, drilling, printing etc. available by factory quote |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Version | 1590WKKFL (designed to meet IP65, gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590KGASKET (upgrades IP54 to IP65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the mounting flange on the 1590KKFL?▾
The wall-mounting flange is integrated into the lid, rather than a welded bottom plate as on the 1590KKF.
What are the lid flange dimensions?▾
The drawing shows the flanged lid at 155.00 mm [6.102 in] overall with mounting holes 140.00 mm [5.512 in] apart.
What are the inside dimensions?▾
The drawing shows an inside width of 116.44 mm [4.584 in] and inside height of 51.30 mm [2.020 in]. Maximum P.C. board size is 116.38 mm square.
What IP rating does it have?▾
The standard 1590KKFL is designed to meet IP54; the water-tight 1590WKKFL and the 1590KGASKET upgrade are designed to meet IP65.
Are 3D models available?▾
Yes, the drawing states solid models are available in .stp or .x_t.
