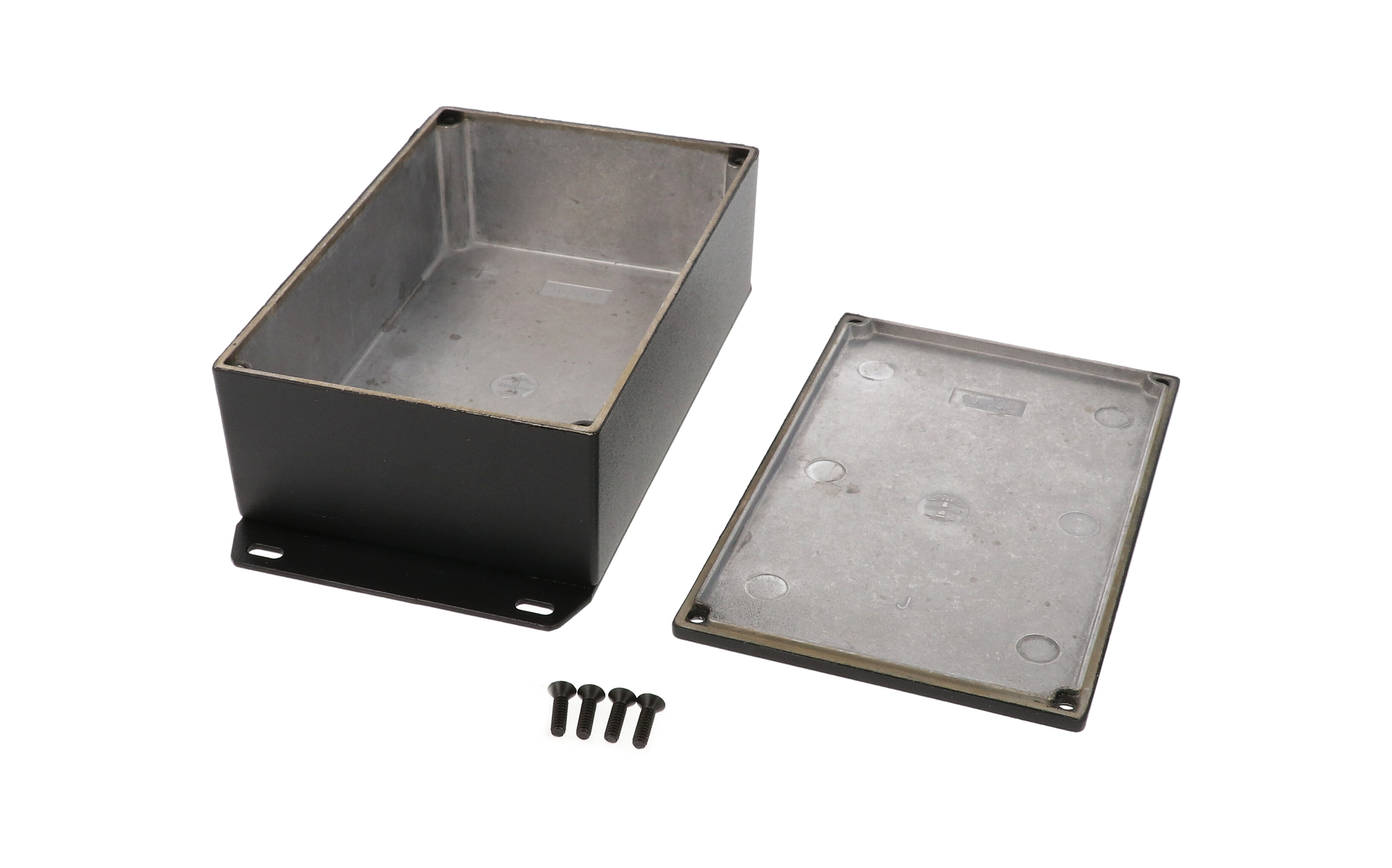

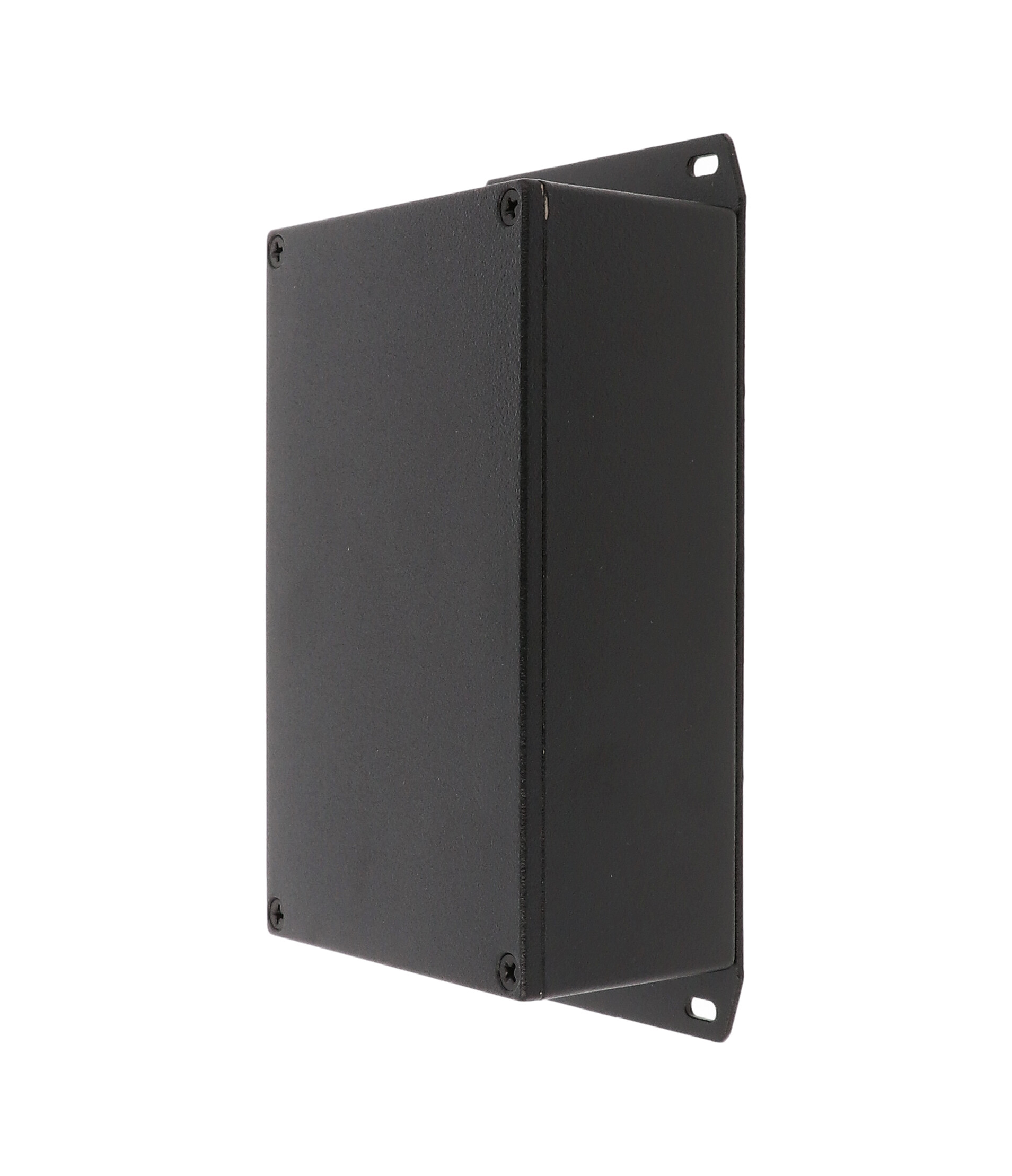

Hammond 1590JFBK 145x95x49mm Black Diecast Box, Welded Base Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded bottom flange; 172.97 mm [6.810 in] overall length
- 3.96 mm mounting holes on 161.70 mm [6.366 in] centres
- Textured black powder paint with black screws included
- Nominal 145 x 95 x 49 mm; 44.50 mm [1.752 in] inside height
- Max. P.C. board 138.14 x 88.04 mm
- IP54 design; IP65 via 1590WJFBK or 1590JGASKET
- RoHS and REACH compliant; 0.86 lbs (0.39 kg)
The 1590JFBK brings together the mid-size 1590J body, 5.71 in x 3.74 in x 1.93 in (145 mm x 95 mm x 49 mm), a welded bottom mounting flange and a textured black finish. It is built for OEM engineers, integrators and installers who want a larger, finished metal housing that fastens directly to a wall, panel or frame.
The manufacturer drawing gives an overall flange length of 172.97 mm [6.810 in], with 3.96 mm [.156 in] mounting holes on 161.70 mm [6.366 in] centres, and an overall height of 49.10 mm [1.933 in]. The interior is 139.14 mm [5.478 in] long, 89.04 mm [3.505 in] wide and 44.50 mm [1.752 in] high, accepting P.C. boards up to 138.14 x 88.04 mm.
Diecast aluminum alloy box and lid are coated with a tough textured black polyester powder paint that keeps a lasting finish, even after machining, and black screws are included. Lap joint construction protects against dust and splashing water to an IP54 design rating, and side walls are drafted at 2° or less for easy board mounting.
Supplied shrink wrapped with box, lid and four 6-32 UNC cover screws (50-55 cN.m [71-78 ozf.in] recommended), the 1590JFBK is RoHS and REACH compliant. The water-tight black version is 1590WJFBK, and the 1590JGASKET kit offers an IP65 upgrade.
Ideal For
- Wall- or panel-mounted black instrument housings
- Bolt-down control and terminal enclosures
- Larger P.C. board housings
- Dust- and splash-resistant electronics
Other
| Solid Models | Available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Screw Color | Black screws included |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Replacement Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" with O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" with O-Ring] |
Mounting
| Flange Type | Welded bottom flange |
| Flange Mounting Hole Spacing (Drawing) | 161.70 mm [6.366 in] |
| Flange Mounting Hole Diameter (Drawing) | 3.96 mm [.156 in] |
Overview
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures (General Purpose, Wall-Mounting, Water-Tight, Colors) |
| Version | Standard |
| Description | 1590J FLANGED BLACK |
| Product Type | Die-cast box, flanged |
| Mounting Style | w/ Flanged Bottom Plate |
| Long Description | enclosure - diecast |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Max. P.C. Board Width | 138.14 mm |
| Inside Width (Drawing) | 89.04 mm [3.505 in] |
| Max. P.C. Board Length | 88.04 mm |
| Width (Ordering Table) | 3.74 in (95 mm) |
| Height (Ordering Table) | 1.93 in (49 mm) |
| Inside Height (Drawing) | 44.50 mm [1.752 in] |
| Inside Length (Drawing) | 139.14 mm [5.478 in] |
| Length (Ordering Table) | 5.71 in (145 mm) |
| Nominal Size (L X W X H) | 5.71 in x 3.74 in x 1.93 in (145 mm x 95 mm x 49 mm) |
| Overall Height With Bottom Flange (Drawing) | 49.10 mm [1.933 in] |
| Overall Length Including Bottom Flange (Drawing) | 172.97 mm [6.810 in] |
Identifiers
| UPC | 623980282855 |
| UNSPSC | 39121301 |
| Part Number | 1590JFBK |
Related Versions
| No Mounting Flanges (Black) | 1590JBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.86 lbs (0.39 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Version | 1590WJBK |
| Optional Replacement Gasket Kit | 1590JGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the flange hole spacing on the 1590JFBK?▾
161.70 mm [6.366 in] centres, with 3.96 mm [.156 in] holes.
Is the flange welded?▾
Yes, the drawing notes the bottom flange is welded.
What colour are the screws?▾
Black screws are included with the black version.
Is a water-tight version available?▾
Yes, 1590WJFBK is the water-tight black flanged version.
