Hammond 1590HGASKET IP65 Silicone Gasket Kit for 1590H Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two pre-formed silicone gaskets per kit
- Fits 1590H-size enclosures: 53 x 38 x 31 mm
- Upgrades IP54 enclosures to IP65 when properly installed
- Adhesive backing; gasket is applied to the lid
- Temperature rating -40°C to 150°C (-40°F to 302°F)
- Allows machining or painting before gasketing
- RoHS and REACH compliant

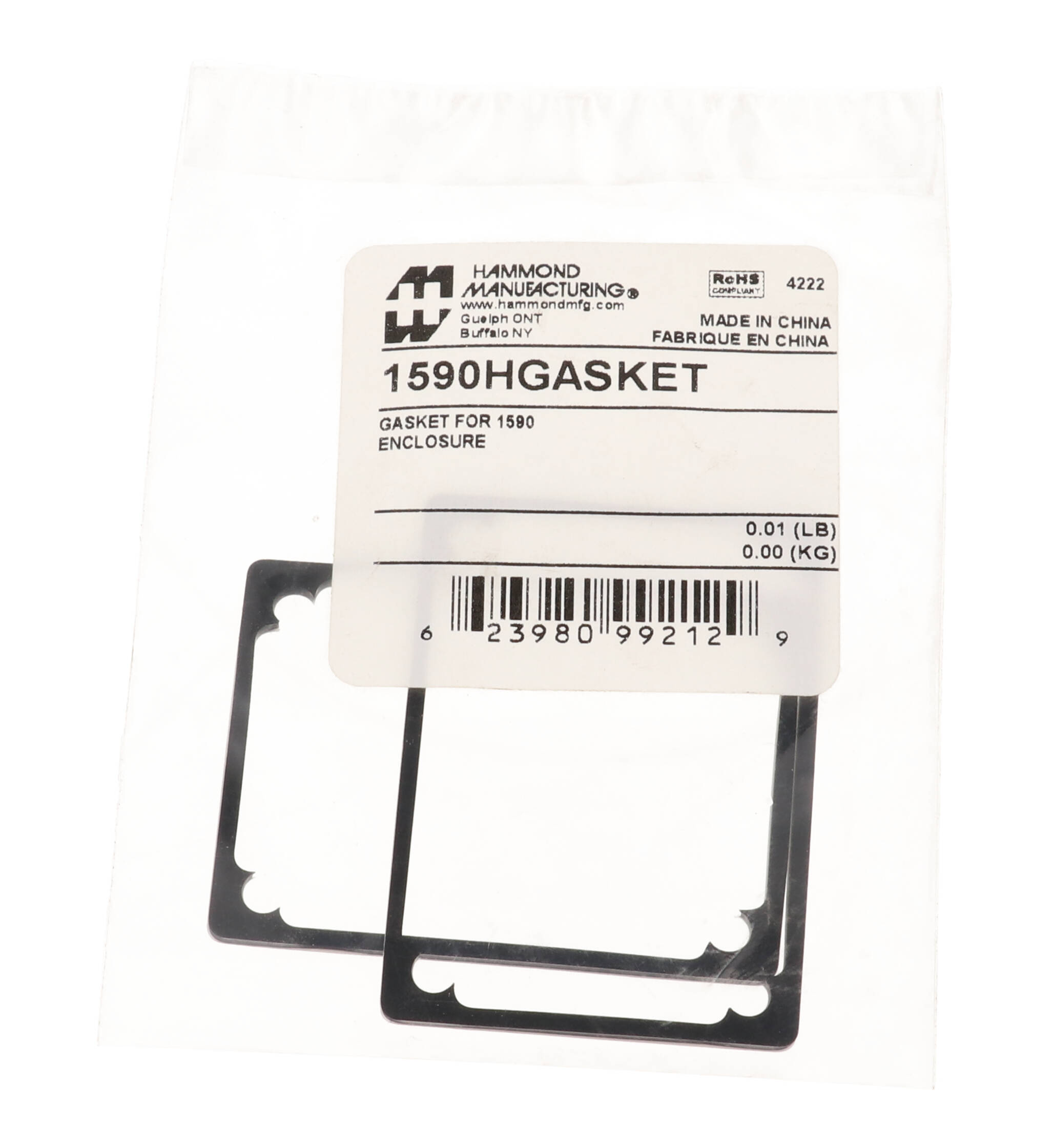

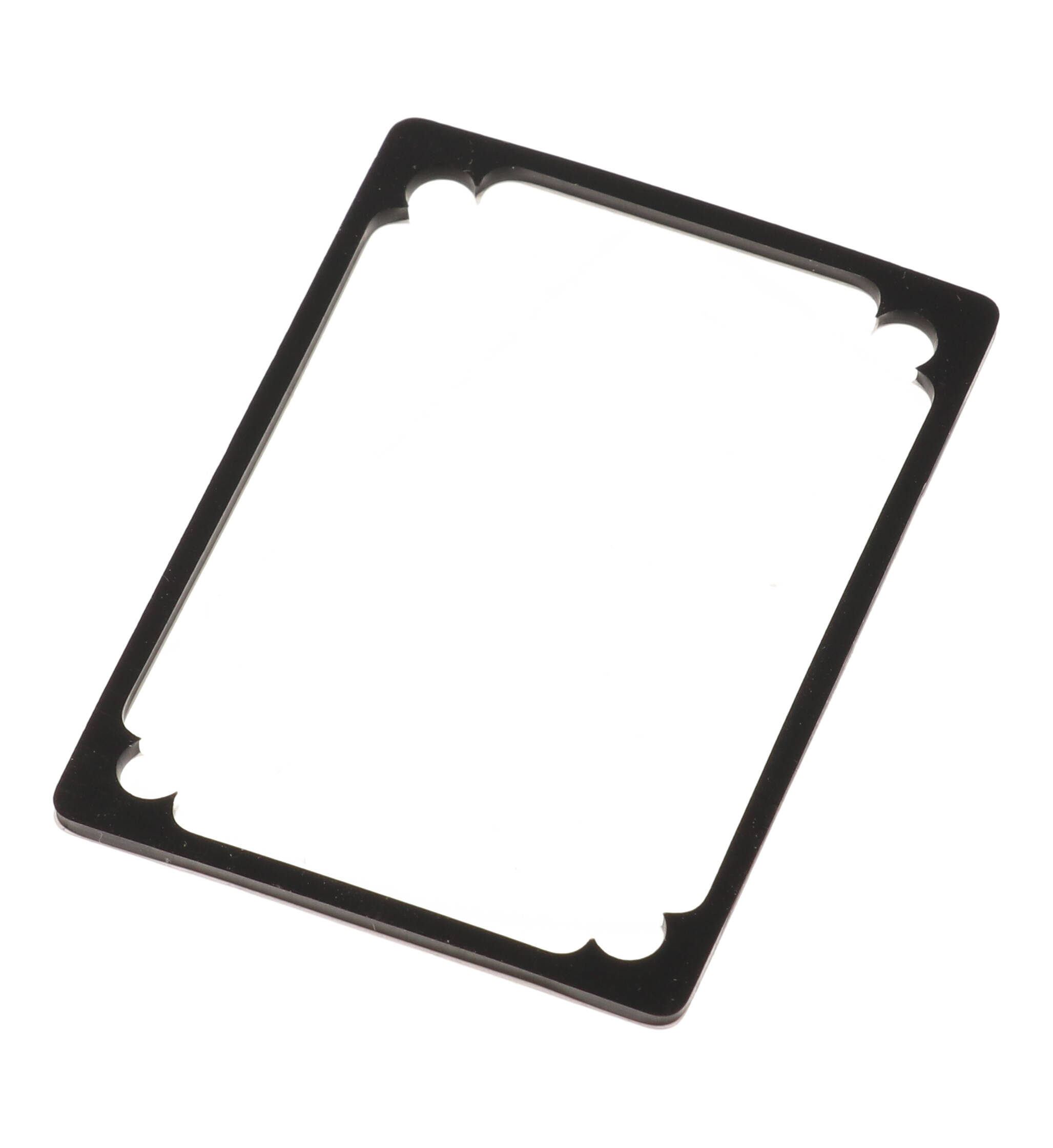

The 1590HGASKET is a two-pack of pre-formed silicone gaskets for the small 1590H diecast aluminum enclosure, 2.09 in x 1.50 in x 1.22 in (53 mm x 38 mm x 31 mm) in the ordering table. It is intended for designers and technicians upgrading a standard IP54 1590H to IP65 protection, or replacing the gasket in one of the water-tight 1590WH versions, where the gasket is supplied loose inside the enclosure rather than pre-installed.
The ordering table lists it as the optional replacement gasket kit for 1590H and 1590HF, the water-tight 1590WH and 1590WHF, and the black versions 1590HBK, 1590HFBK, 1590WHBK and 1590WHFBK.
The gaskets have adhesive backing for easy installation and are applied to the lid. That means the enclosure can be machined and/or painted first and gasketed afterwards. The silicone is rated for -40°C to 150°C (-40°F to 302°F).
The enclosure is designed to meet IP65 with a properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in). The series notes also recommend ordering watertight stainless steel screws with O-ring when converting a standard enclosure. RoHS and REACH compliant, supplied in a bag, 0.01 lbs.
Ideal For
- Upgrading 1590H enclosures from IP54 to IP65
- Replacing gaskets in water-tight 1590WH enclosures
- Gasketing after machining or painting
Overview
| Description | SILICONE GASKET - 2 PACK |
| Product Type | Gasket |
| Pack Quantity | 2 pre-formed silicone gaskets per kit |
| Long Description | silicone gasket for 1590H enclosures, 2-pack |
Identifiers
| UPC | 623980992129 |
| UNSPSC | 39121301 |
| Part Number | 1590HGASKET |
Compatibility
| 1590H Enclosures (Black) | 1590HBK, 1590WHBK, 1590HFBK, 1590WHFBK |
| 1590H Enclosures (Natural) | 1590H, 1590WH, 1590HF, 1590WHF |
| Enclosure Size 1590H (L X W X H) | 2.09 in (53 mm) x 1.50 in (38 mm) x 1.22 in (31 mm) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Material | Silicone |
| Applied To | Enclosure lid |
| Adhesive Backing | Yes |
Environmental & Protection
| IP Rating | IP65 |
| IP65 Condition | Properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in) |
| Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures use 1590HGASKET?▾
1590H, 1590HF, 1590WH and 1590WHF, in natural and black (BK) versions.
How many gaskets are included?▾
Two pre-formed silicone gaskets.
Is it adhesive backed?▾
Yes, for easy installation on the lid.
What is needed to reach IP65?▾
A properly installed gasket with lid screws torqued to 25-30 cN.m (36-43 ozf.in).
