Hammond 1590GGASKET IP65 Silicone Gasket Kit for 1590G and 1590G2
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two pre-formed silicone gaskets per kit
- Fits 1590G and 1590G2 enclosures, including flanged and colour versions
- Upgrades IP54 enclosures to IP65 when properly installed
- Adhesive backing; applied to the lid
- Temperature rating -40°C to 150°C (-40°F to 302°F)
- Machine or paint the enclosure first, gasket later
- RoHS and REACH compliant

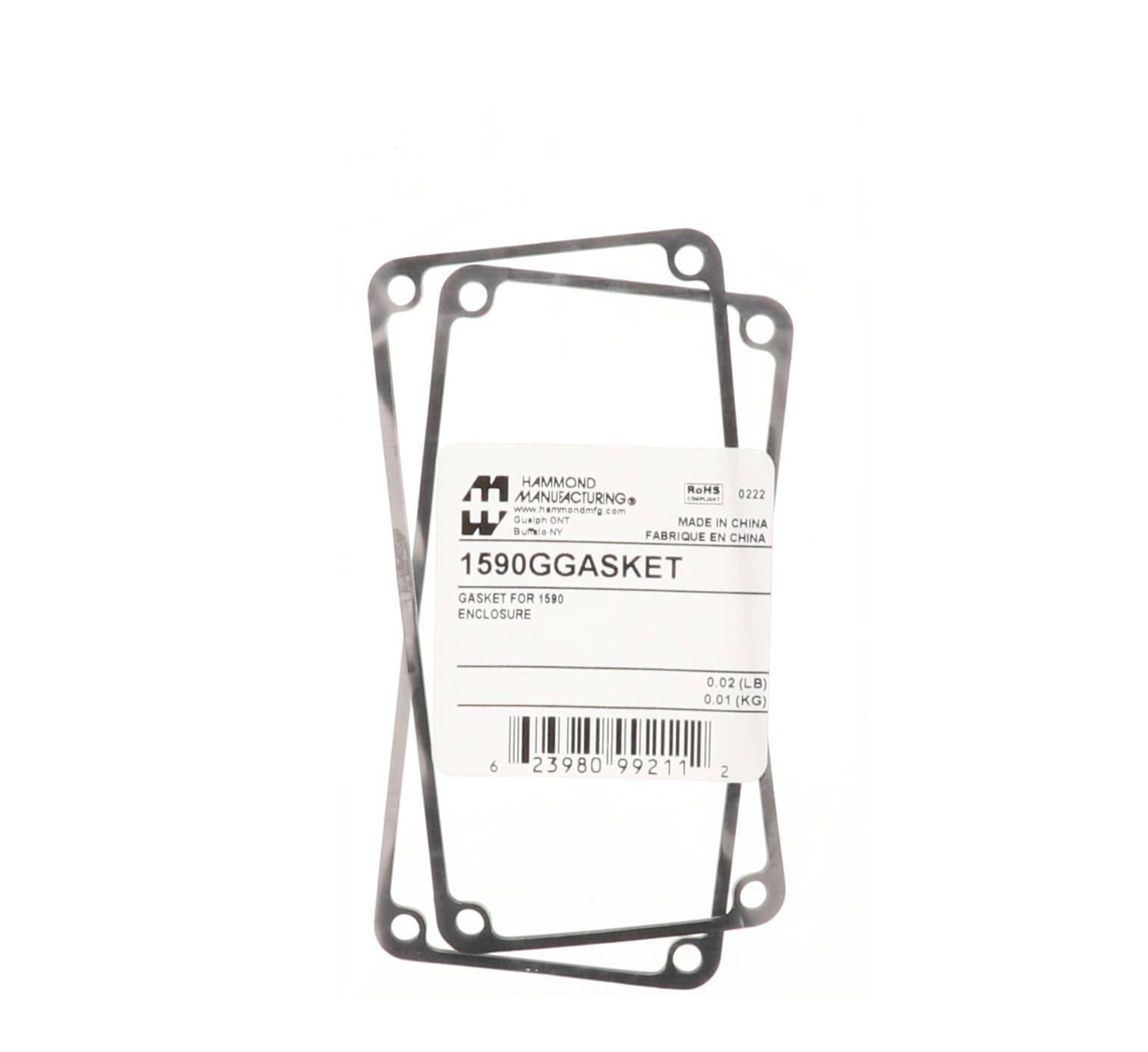

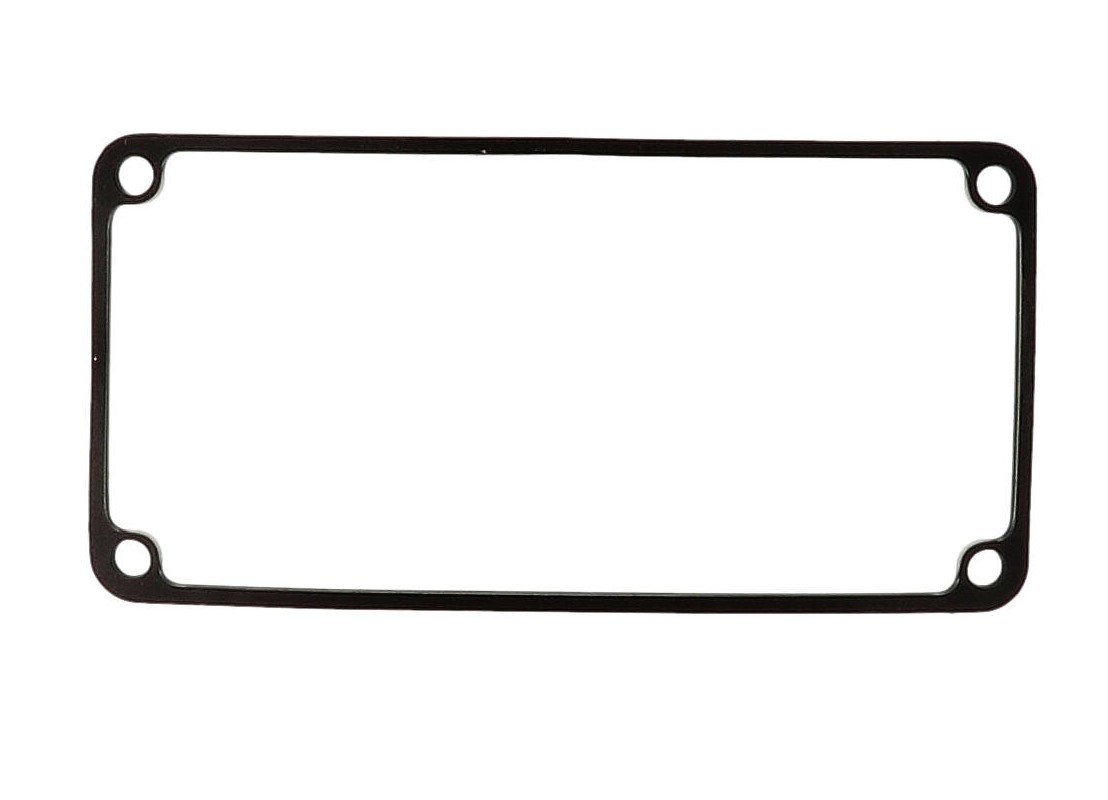

The 1590GGASKET is a two-pack of pre-formed silicone gaskets that the ordering table assigns to both 100 mm x 50 mm enclosure sizes in the 1590 series: the 1590G (3.94 x 1.97 x 1.02 in / 100 x 50 x 26 mm) and the taller 1590G2 (3.94 x 1.97 x 1.22 in / 100 x 50 x 31 mm). It lets designers and integrators upgrade a standard IP54 box to IP65.
Compatible enclosures listed in the ordering table include:
- 1590G, 1590GFL, 1590GF and water-tight 1590WG, 1590WGFL, 1590WGF, plus BK black versions
- 1590G2, 1590G2FL, 1590G2F and water-tight 1590WG2, 1590WG2FL, 1590WG2F, plus BK black versions
- 1590G2 colour versions: 1590G2CB, 1590G2GR, 1590G2LG, 1590G2OR, 1590G2PR, 1590G2RD and 1590G2YL
Each gasket has adhesive backing for easy installation and is applied to the lid, so the enclosure can be machined and/or painted first and gasketed later. The silicone is rated from -40°C to 150°C (-40°F to 302°F).
The enclosure is designed to meet IP65 with the gasket properly installed and lid screws torqued to 25-30 cN.m (36-43 ozf.in). When converting a standard enclosure, remember the watertight stainless steel screws with O-ring. RoHS and REACH compliant; bagged, 0.02 lbs (0.01 kg).
Ideal For
- Upgrading 1590G or 1590G2 enclosures from IP54 to IP65
- Replacing gaskets in water-tight 1590WG and 1590WG2 enclosures
- Gasketing coloured 1590G2 enclosures
- Gasketing after machining or painting
Overview
| Description | SILICONE GASKET- 2 PACK |
| Product Type | Gasket |
| Pack Quantity | 2 pre-formed silicone gaskets per kit |
| Long Description | silicone gasket for 1590G enclosures, 2-pack |
Identifiers
| UPC | 623980992112 |
| UNSPSC | 39121301 |
| Part Number | 1590GGASKET |
Compatibility
| 1590G2 Colour Versions | 1590G2CB (Cobalt Blue), 1590G2GR (Green), 1590G2LG (Light Gray), 1590G2OR (Orange), 1590G2PR (Purple), 1590G2RD (Red), 1590G2YL (Yellow) |
| 1590G Enclosures (Black) | 1590GBK, 1590WGBK, 1590GFLBK, 1590WGFLBK, 1590GFBK, 1590WGFBK |
| 1590G2 Enclosures (Black) | 1590G2BK, 1590WG2BK, 1590G2FLBK, 1590WG2FLBK, 1590G2FBK, 1590WG2FBK |
| 1590G Enclosures (Natural) | 1590G, 1590WG, 1590GFL, 1590WGFL, 1590GF, 1590WGF |
| 1590G2 Enclosures (Natural) | 1590G2, 1590WG2, 1590G2FL, 1590WG2FL, 1590G2F, 1590WG2F |
| Enclosure Size 1590G (L X W X H) | 3.94 in (100 mm) x 1.97 in (50 mm) x 1.02 in (26 mm) |
| Enclosure Size 1590G2 (L X W X H) | 3.94 in (100 mm) x 1.97 in (50 mm) x 1.22 in (31 mm) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Material | Silicone |
| Applied To | Enclosure lid |
| Adhesive Backing | Yes |
Environmental & Protection
| IP Rating | IP65 |
| IP65 Condition | Properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in) |
| Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does 1590GGASKET fit the 1590G2?▾
Yes. The ordering table lists 1590GGASKET as the replacement gasket kit for both the 1590G and 1590G2 sizes, including colour versions of the 1590G2.
How many gaskets come in the kit?▾
Two pre-formed silicone gaskets.
What torque is required for IP65?▾
Lid screws torqued to 25-30 cN.m (36-43 ozf.in) with the gasket properly installed.
Where is the gasket installed?▾
It is applied to the lid, using its adhesive backing.
What is the temperature rating?▾
-40°C to 150°C (-40°F to 302°F).
