Hammond 1590GFL 100x50x25mm Diecast Aluminum Box with Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid; 126.50 mm [4.980 in] long
- Lid mounting holes on 113.00 mm [4.449 in] centres
- Nominal 100 x 50 x 25 mm (3.94 x 1.97 x 1 in) diecast aluminum
- Unpainted, vibra-finished natural surface with no sharp edges
- Inside 95.23 x 45.23 x 20.70 mm; max. P.C. board 94.23 x 44.23 mm
- IP54 lap joint design; IP65 via 1590WGFL or 1590GGASKET
- Four 6-32 UNC cover screws included

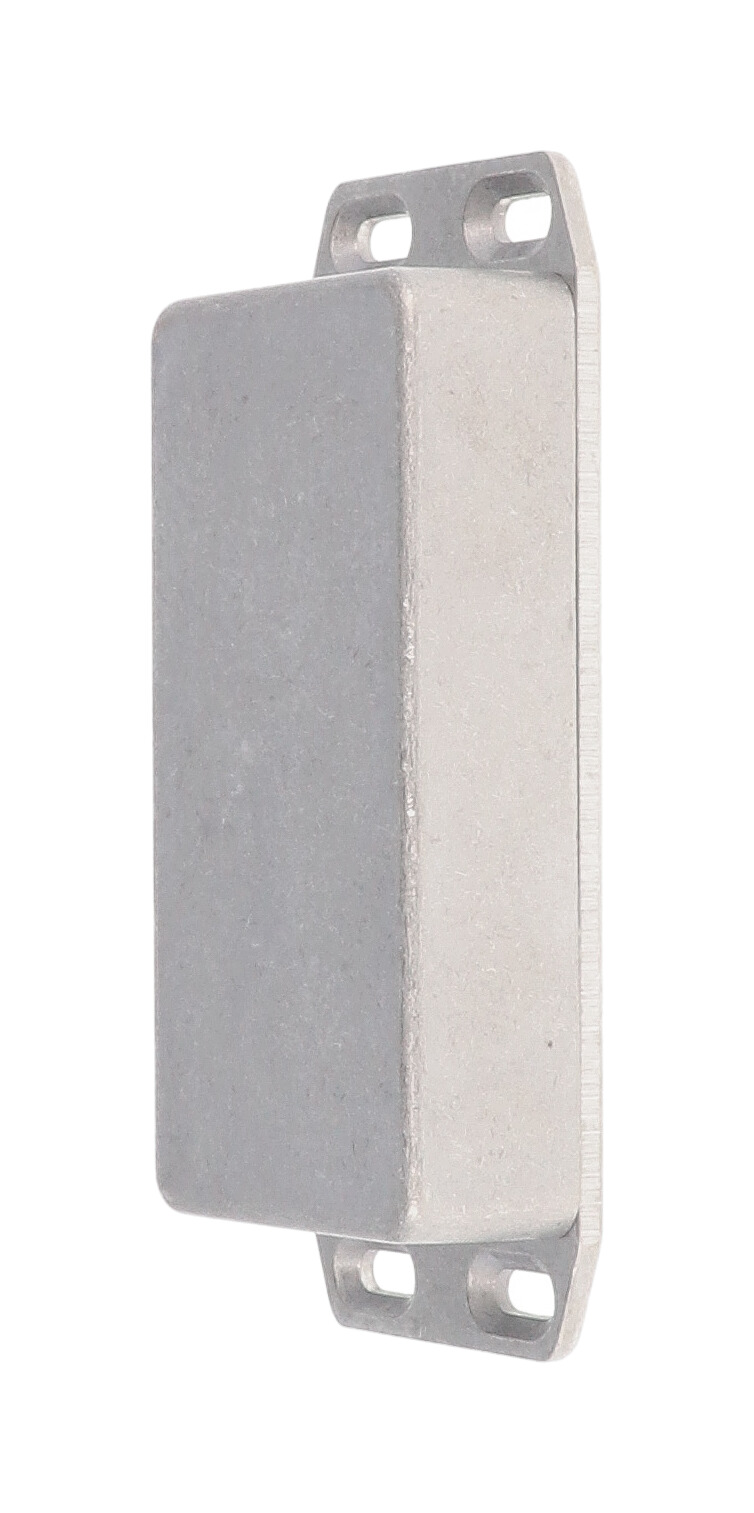

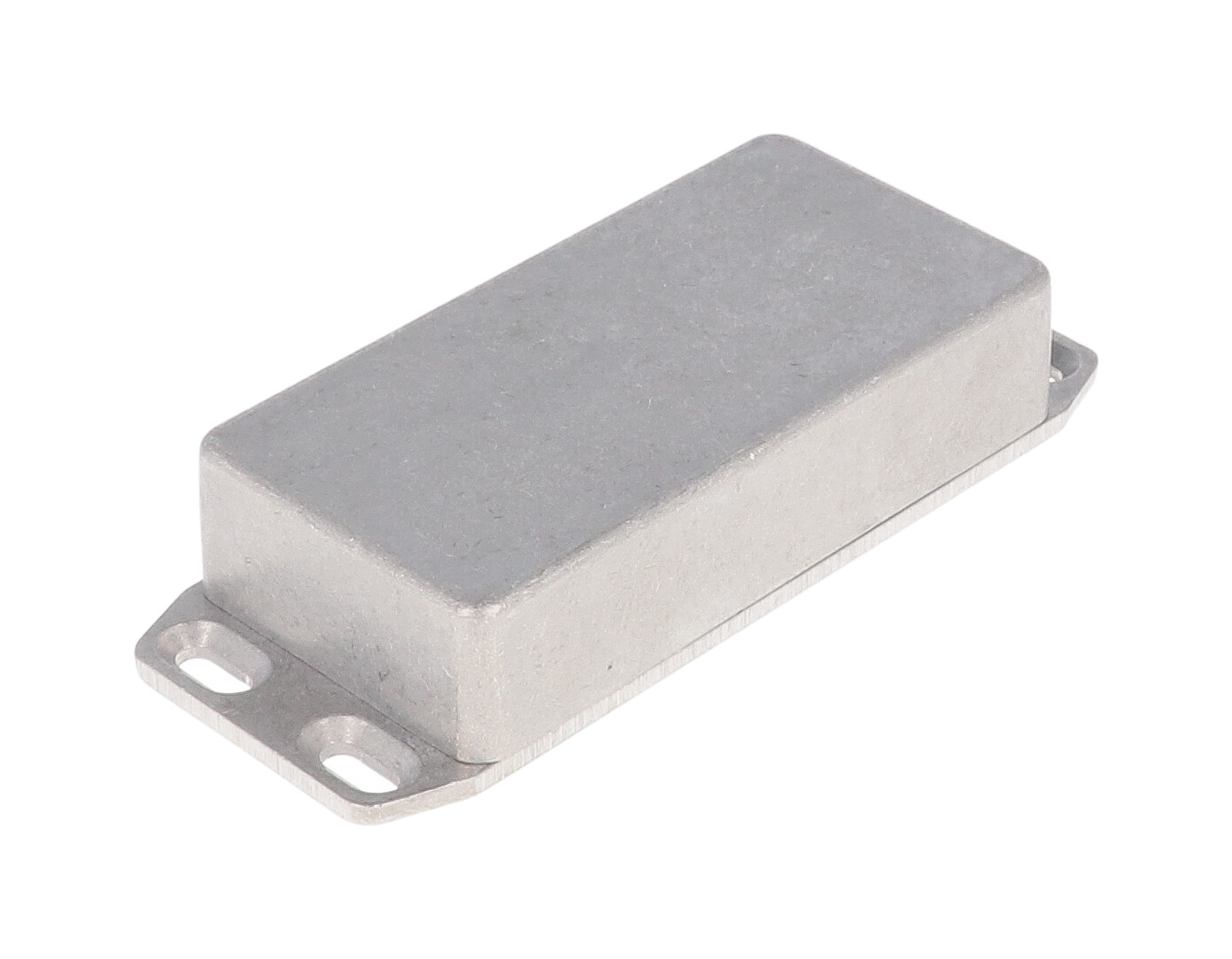

The 1590GFL is the flanged-lid version of the compact 1590G diecast aluminum enclosure, nominally 3.94 in x 1.97 in x 1 in (100 mm x 50 mm x 25 mm). Instead of a separate bottom plate, the wall-mounting flange is integrated into the lid, so the box can be fixed to a wall or panel with the lid side down. It suits electronics designers, installers and OEM teams building small instruments.
The drawing shows the flanged lid bringing overall length to 126.50 mm [4.980 in], with mounting holes on 113.00 mm [4.449 in] centres and an overall height of 25.50 mm [1.004 in]. Inside, the box measures 95.23 mm [3.749 in] long, 45.23 mm [1.781 in] wide and 20.70 mm [.815 in] high, and the maximum P.C. board is 94.23 x 44.23 mm.
Box and lid are diecast aluminum alloy, which machines easily. The natural finish is unpainted and vibra finished for a smooth surface with no sharp edges. Lap joint construction where lid and box meet protects against dust and splashing water, and the enclosure is designed to meet IP54. A side wall draft angle of 2° or less helps with board mounting.

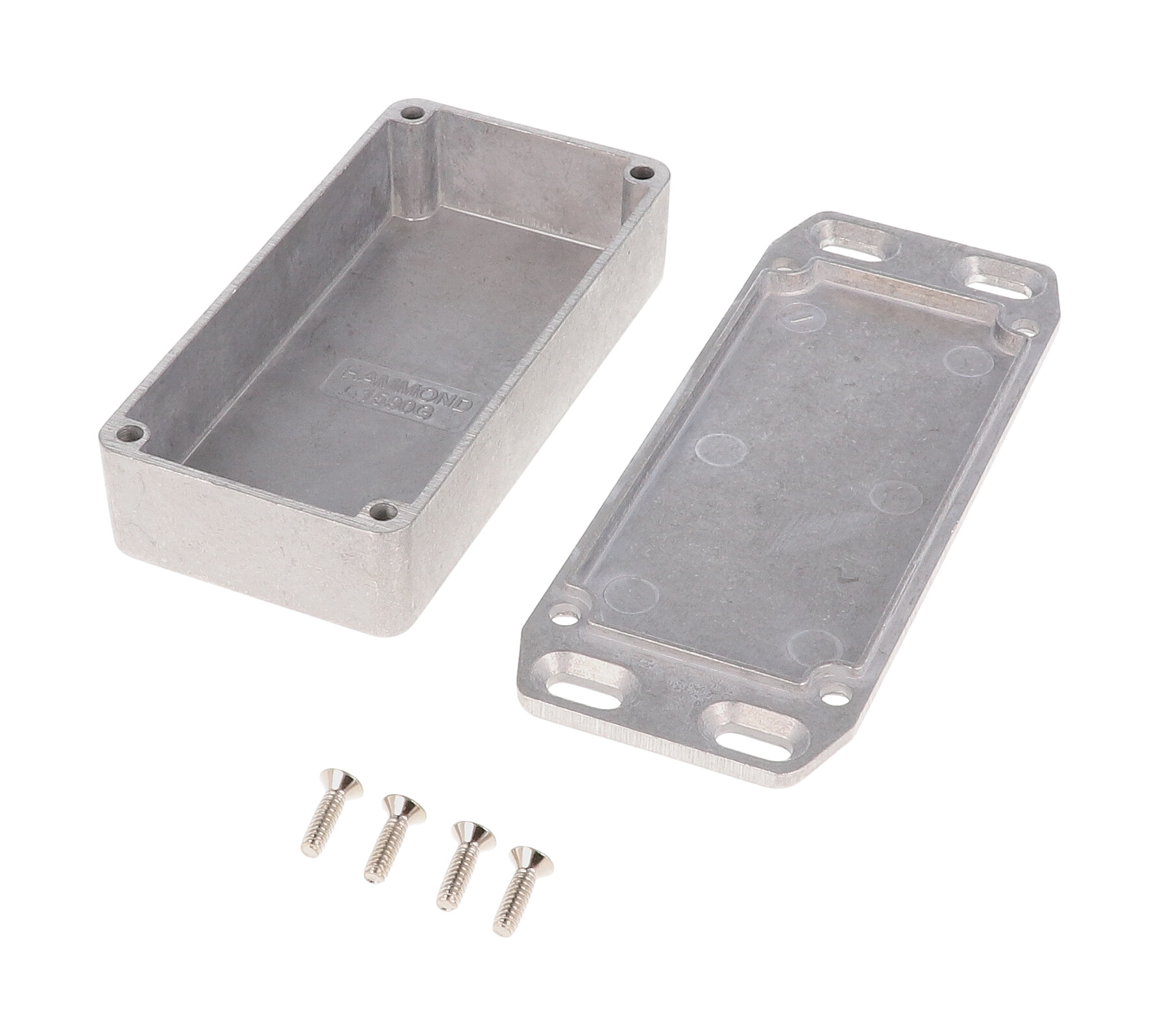

The 1590GFL ships shrink wrapped with box, lid and four 6-32 UNC cover screws for its factory-tapped holes (recommended torque 50-55 cN.m [71-78 ozf.in]). For IP65, specify 1590WGFL or add the 1590GGASKET kit. RoHS and REACH compliant, 0.25 lbs (0.11 kg).
Ideal For
- Wall-mounted instrument housings
- Panel-mounted small electronics
- Compact P.C. board enclosures
- Dust- and splash-resistant housings
Other
| Solid Models | Available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Replacement Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" with O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" with O-Ring] |
Mounting
| Flange Type | Wall-mounting flange integrated into lid |
| Lid Flange Mounting Hole Spacing (Drawing) | 113.00 mm [4.449 in] |
Overview
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures (General Purpose, Wall-Mounting, Water-Tight, Colors) |
| Version | Standard |
| Description | 100 X 50 X 24MM ENCL FLANG LID |
| Product Type | Die-cast box, flanged |
| Mounting Style | w/ Flanged Lid |
| Long Description | enclosure - diecast |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Max. P.C. Board Width | 94.23 mm |
| Inside Width (Drawing) | 45.23 mm [1.781 in] |
| Max. P.C. Board Length | 44.23 mm |
| Width (Ordering Table) | 1.97 in (50 mm) |
| Height (Ordering Table) | 1.02 in (26 mm) |
| Inside Height (Drawing) | 20.70 mm [.815 in] |
| Inside Length (Drawing) | 95.23 mm [3.749 in] |
| Length (Ordering Table) | 3.94 in (100 mm) |
| Nominal Size (L X W X H) | 3.94 in x 1.97 in x 1 in (100 mm x 50 mm x 25 mm) |
| Overall Height (Drawing) | 25.50 mm [1.004 in] |
| Overall Length Including Lid Flange (Drawing) | 126.50 mm [4.980 in] |
Identifiers
| UPC | 623980759296 |
| UNSPSC | 39121301 |
| Part Number | 1590GFL |
Related Versions
| No Mounting Flanges (Natural) | 1590G |
| Flanged Bottom Plate (Natural) | 1590GF |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.25 lbs (0.11 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Version | 1590WG |
| Optional Replacement Gasket Kit | 1590GGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the mounting flange on the 1590GFL?▾
The wall-mounting flange is integrated into the lid. The drawing shows a 126.50 mm [4.980 in] overall length with holes on 113.00 mm [4.449 in] centres.
How does this differ from the 1590GF?▾
The 1590GF has a welded flange on the bottom of the box; the 1590GFL carries its flange on the lid.
What is the inside height?▾
20.70 mm [.815 in] according to the 1590GFL drawing.
What IP rating does it meet?▾
The standard version is designed to meet IP54. The water-tight 1590WGFL is designed to meet IP65.
Which replacement screws fit?▾
The drawing lists 6-32 x 1/2" cover screws: 1590MS100 (plated) and 1590MS100BK (black), plus stainless steel O-ring versions 1590WMS100 and 1590WMS100BK, in packs of 100.
